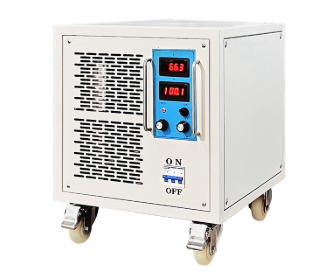

A variable power supply is one of those power supplies that lets you adjust the voltage and current to get the right setting for whatever you need to use it for. Fixed power supplies provide a constant voltage and current, but a variable power supply lets you set the output parameters within a specified range.
The working principle of variable power supply

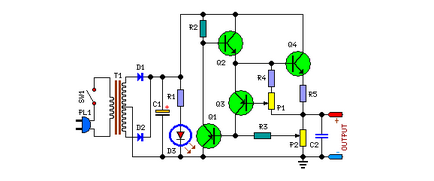

The working principle of a adjustable power supply is to convert and regulate the input power to provide a stable, adjustable output. Here's how it works. The power supply normally uses a rectifier to convert the AC input into a DC input. This is the first step in providing a usable DC output. Then, the rectified DC voltage is regulated using a linear or switching regulator. Linear regulators are simpler and provide low-noise output, while switching regulators are more efficient and suitable for high-power applications. You can adjust how it works using variable resistors or digital control circuits. In analogue designs, you'll often see potentiometers used, while digital designs tend to use microcontrollers or digital signal processors for more precise control. There's a feedback loop that keeps an eye on the output voltage and current. It compares what's actually being produced with the setpoint you're aiming for and makes real-time adjustments to keep things accurate and stable. This combination of conversion, regulation, and feedback makes sure that the variable power supply provides multiple output settings with high precision and stability.
The advantages of variable power supply
The importance of a variable DC power supply cannot be overstated. These supplies are indispensable tools for engineers and technicians in the development and testing of products. The following are some of the key reasons why you should consider investing in one:
First, let's have a chat about how useful and affordable variable power supplies can be. A variable DC power supply can be used for a variety of projects, including military equipment, sewage treatment, aging test, cell phone display and many different fields. No matter which field you are working on, the variable power supply will meet you need. Rather than purchasing a multiple fixed power supply , a variable power supply is more cost-effective because a variable power supply can serve more purposes than a fixed power supply , if you have multiple applications to execute , the variable power supply is more suitable for you, the variable power supply can ultimately saving your money.
Another reason is the precise testing and safety experiments of variable power supplies. Precise voltage regulation lets you test components and circuits in different conditions to make sure your design is reliable. And with built-in safety features, you can experiment without worrying about damaging components, which makes it easier for beginners to learn.
Picking the right variable power supply
If you want to make sure your variable power supply is right for the job, there are a few things to think about. First, you need to figure out the voltage and current range you need for your application. Make sure the power supply can provide the necessary output levels to avoid any limitations during operation. Next, check the accuracy and stability specs, as these directly impact the precision of your task. It's really important to get accurate and stable output if you want to achieve reliable results.
It's also really important to have safety features, especially when you're using sensitive or expensive equipment. Make sure you look for models with good protection mechanisms to stop them getting damaged and keep you safe. If your job involves automation, it's worth looking for a power supply with programmable settings and remote control options. These features can cut down on the amount of manual intervention, making things a lot more efficient. Also, the number of output channels is important. Having multiple channels lets you test different devices at the same time, which makes you more productive. At last, features like digital displays and fine-tuning knobs can make the power supply easier to use and more precise, so you can easily set and monitor exact values.
Conclusion
In summary, variable power supplies are indispensable tools in the toolkits of engineers, technicians, and educators. They provide adjustable, precise output, making them invaluable across a wide range of applications, from electronic development and testing to industrial automation and education. Understanding how variable power supplies work, their key features, and how to select them allows you to fully leverage their potential. Carefully selecting the right power supply based on your specific needs ensures that your projects run efficiently and reliably. If you have any questions about the blog content or wish to purchase a variable power supply, please feel free to contact us, and we will respond to your request as soon as possible.
