A DC power supply is a device that produces an output DC voltage. Power supplies deliver electric power to one or multiple loads. They generate the output power by converting an input signal into an output signal. In this case, the output signal is DC.
The purpose of a power supply is to provide power to a load at the appropriate voltage and current. The current must be provided in a controlled manner—and the voltage must be accurate—to accommodate a variety of loads, sometimes simultaneously, without allowing variations in input voltage or interference from other connected devices to affect the output.
A DC power supply is an electronic device that provides a stable, continuous current at a fixed polarity and voltage level. Unlike alternating current (AC), which reverses direction periodically, DC current flows steadily in one direction. DC power supplies are commonly used to provide a constant power source for various electronic devices, circuits, and components that require stable voltage or current to function properly. Understanding the complexities of DC power supplies is crucial for anyone working in electronics, as they form the foundation for reliable and precise power supply in countless applications.
DC power supplies can be classified in many ways, and comprehensive consideration is required. According to their output characteristics, they can be divided into constant voltage power supplies, constant current power supplies, and constant power power supplies. According to voltage regulation technology, DC power supplies can be divided into linear power supplies, switching power supplies, and SCR power supplies. If classified according to application scenarios, there are even more types, including laboratory power supplies, industrial power supplies, portable power supplies, etc. In summary, selecting a suitable DC power supply requires consideration of multiple factors. The following sections will introduce the key elements to consider when choosing an appropriate DC power supply. Before you make a decision, here are 8 key factors to consider and make sure you choose the best dc power supply:
The maximum voltage, current, total power, and efficiency required:
The total power and efficiency of the power supply are important factors affecting its performance.
Check the maximum voltage and current required and select the appropriate model accordingly.
Ideally, it should be able to support and test most of your projects. When injecting voltage into the circuit, the controller must be able to track the airflow.
Linear Power Supplies and Switching Power Supplies:
While switching power supplies are typically lighter and more compact, linear power supplies are more suitable for powering analogue circuits due to their lower electrical noise. Transformers are used to step down the AC line voltage to below AC voltage, followed by multiple rectifiers and filtering processes to achieve pure DC voltage. Performance metrics for DC regulated power supplies: These include ripple, noise, voltage/current accuracy, voltage/current readback accuracy, voltage/current resolution, voltage/current readback resolution, load regulation, power supply regulation, and output temperature coefficient. These parameters directly impact the stability and reliability of the power supply and are critical factors to consider when selecting a power supply.
Interfaces and display methods:
considering whether the power supply has suitable interfaces and clear display methods to facilitate operation and monitoring of the power supply's operational status.
Parameter setting methods:
It should be considered whether the power supply's parameter setting methods are convenient and accurate, such as using buttons, encoders, potentiometers, or touchscreens.
Functions of digital programmable power supplies:
Digital programmable power supplies offer more advanced features, greater controllability, and can meet complex and precise testing requirements.
Short-circuit protection:
Check the short-circuit protection to ensure your equipment is not damaged, even in the event of an accident, overcurrent, or exceeding the allowed current.
Stability and reliability of the power supply.
Stability refers to whether the voltage and current output by the power supply are stable, while reliability refers to the power supply's lifespan, failure rate, etc. We need to select a power supply with good stability and high reliability to ensure optimal performance and longevity.

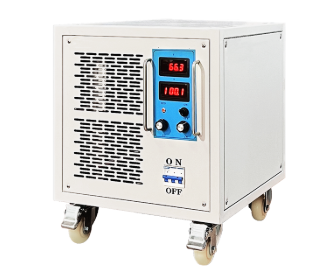

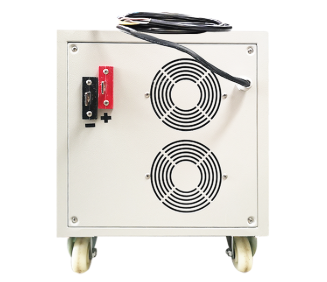

Our product's exterior structure features our company's patented design. The product has an aesthetically pleasing appearance, a sturdy and robust structure, and a powder-coated surface for durability and corrosion resistance. The bottom of the product is equipped with wheels for easy mobility. Our DC power supply employs the world's most advanced control system, PWM technology, and a stable and reliable circuit topology design for the control circuitry, utilizing high-performance modules (IGBT) for control. The main transformer uses nano-crystalline magnetic cores and pure copper wire winding, offering excellent heat dissipation, sufficient power, low power consumption, long-lasting durability, and stable performance. Key components such as the rectifier bridge and rectifier tubes are made from high-quality materials sourced worldwide. The power supply incorporates our company's advanced LC filtering patent technology. It features a low output ripple coefficient, strong interference resistance; a wide adjustable range for output voltage and current, high stability and accuracy of voltage and current, and precise detection data.
The internal control circuit board of our product is fully sealed and strictly isolated from the environment to prevent acid mist or dust contamination and short circuits caused by small insects entering, significantly enhancing product safety and service life. The product uses generous materials, has sufficient power supply capacity, and electronic components and critical components are designed with ample margin to ensure the product can maintain long-term continuous operation.
Finally, if you have any questions about this article or need to purchase our DC power supplies, please feel free to contact us, and we will respond to you as quickly as possible!
