1. The Core Role of the Adjustable Power Supply in the Laboratory
In electronics teaching and research laboratories, the adjustable power supply is one of the mostfundamental and frequently used instruments. Whether for circuit prototype debugging, electronic component testing, sensor calibration, battery performance experiments, or LED characteristic measurement, stable and flexibly configurable power support is essential. Unlike ordinary power supplies that can only output fixed parameters, the adjustable power supply can continuously change voltage and current within the rated range to accurately match the working requirements of different loads, providing safe, stable, and controllable power for experiments. For electronics students and researchers, proficient use of the adjustable power supply is a necessary skill to enter experimental and development work, and also an important prerequisite to ensure smooth progress of experiments and reliable data.
2. Working Principle and Types of the Adjustable Power Supply

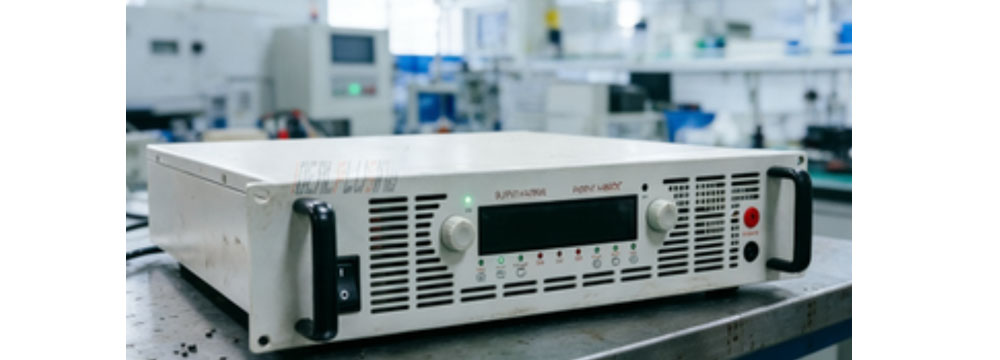

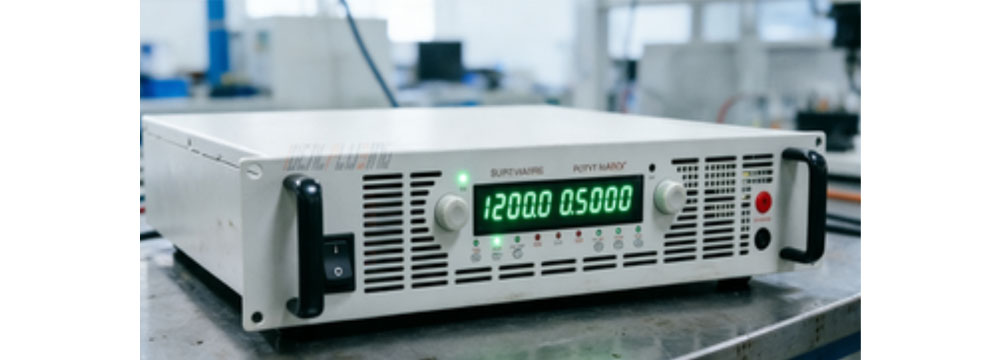

The core mechanism of the adjustable power supply is a closed-loop feedback control system. The equipment monitors the voltage and current values at the output terminal in real time through the sampling circuit, compares them with the preset reference parameters, and the error signal is amplified to drive the power conversion unit for dynamic adjustment, so that the output remains stable and accurate at all times. High-performance adjustable power supply units usually feature low output ripple, high precision regulation, fast response speed, and complete self-protection capabilities, which can minimize the impact of power fluctuations on experimental results.At present, the mainstream adjustable power supply in laboratories is mainly divided into analog knob type and digital control type. Digital models are more suitable for teaching experiments and product research and development due to their accurate setting, convenient operation and strong stability. In long-term use, I find that the IDEALPLUSING adjustable power supply has balanced performance in accuracy, ripple control and operation stability, which can meet the multiple needs of daily teaching, component testing and circuit debugging.
3. Correct Operation and Safety Specifications of the Adjustable Power Supply
Standardized operation of the adjustable power supply can not only improve experimental efficiency, but also effectively protect components and equipment, reducing experimental risks. Before powering on, adjust the voltage and current to the lowest gear to prevent instantaneous surge current from damaging the load; set reasonable output voltage and current limit values according to the rated parameters of the experimental object to avoid burning chips or modules due to overvoltage or overcurrent; if abnormal output or protection trigger occurs during the experiment, turn off the power immediately, check for short circuits or wiring errors, and restart after confirmation; after the experiment, reset the output parameters to zero before turning off the main power. These seemingly simple details are the key to ensuring experimental safety and extending service life.
4. Application Scenarios and Teaching Value of the Adjustable Power Supply
The adjustable power supply covers a full range of electronic experiments and has high teaching and practical value. In basic teaching, it helps students intuitively understand the relationship between voltage, current and load, and deepen their understanding of circuit principles; in research and development testing, it can be used for battery charge-discharge simulation, sensor accuracy calibration, LED photoelectric performance testing, low-voltage circuit drive debugging; in equipment maintenance, it can simulate different power supply environments and quickly locate circuit faults. It can be said that the adjustable power supply is an important bridge connecting theoretical knowledge and practical ability, and one of the most versatile and irreplaceable basic tools in the laboratory.
5. Conclusion
The adjustable power supply is simple in structure but critical in laboratory power supply systems. Understanding its working principle, mastering standard operation, and selecting reliable equipment can significantly improve the accuracy, safety and efficiency of experiments. For teaching and research scenarios, a stable and durable adjustable power supply is an important foundation to ensure the efficient progress of experimental teaching, product development and technical research.
