1. Introduction: Adjustable Power Supply – The "Universal Power Assistant" for Electronic Experiments
In the daily scene of electronic laboratories, the adjustable power supply is a basic tool throughout teaching, testing and research and development. Whether it is electronic majors getting started, or engineers carrying out routine debugging, it is inseparable from its support. Many people easily confuse the adjustable power supply with ordinary fixed power supplies. In fact, the core difference between the two lies in the controllability of output parameters. The adjustable power supply can continuously adjust the output voltage and current according to experimental needs, adapt to the power supply standards of different electronic components, and can be called the "universal power supply assistant" for electronic experiments.
2. Popular Science: Working Principle of Adjustable Power Supply
From the perspective of working principle, the core of the adjustable power supply is a closed-loop feedback control system. It real-time monitors the voltage and current at the output end through the sampling circuit, compares them with the preset reference parameters inside, amplifies the error signal and then adjusts the power device, and finally realizes the precise and stable control of the output parameters. Simply put, it is like an "intelligent regulating valve", which can not only avoid the problem that the fixed power supply cannot adapt to multiple loads due to fixed parameters, but also reduce experimental errors and ensure the accuracy of experimental data through precise voltage and current control.
3. For Beginners: Basic Operation Specifications of Adjustable Power Supply
For beginners, it is very important to master the basic operation of the adjustable power supply, which can not only protect experimental devices, but also extend the service life of the equipment. Before starting the machine, be sure to adjust the voltage and current to the minimum gear to avoid high-voltage impact damaging components at the moment of startup; when in use, set the appropriate output value according to the rated parameters of the load. For example, when testing a 5V single-chip microcomputer, adjust the voltage to 5V and set the current to about 1.2 times the rated current to prevent burnout due to overcurrent; after the experiment, reset the parameters to zero before turning off the power supply, and develop the habit of standardized operation.
4. Equipment Selection: Key Considerations for Adjustable Power Supply

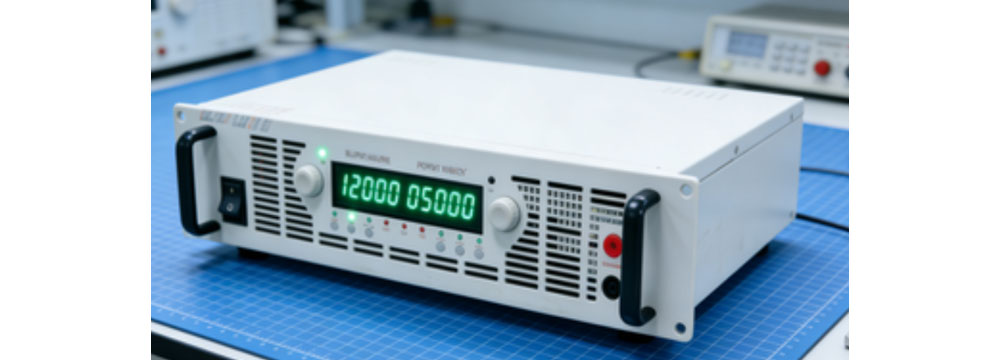

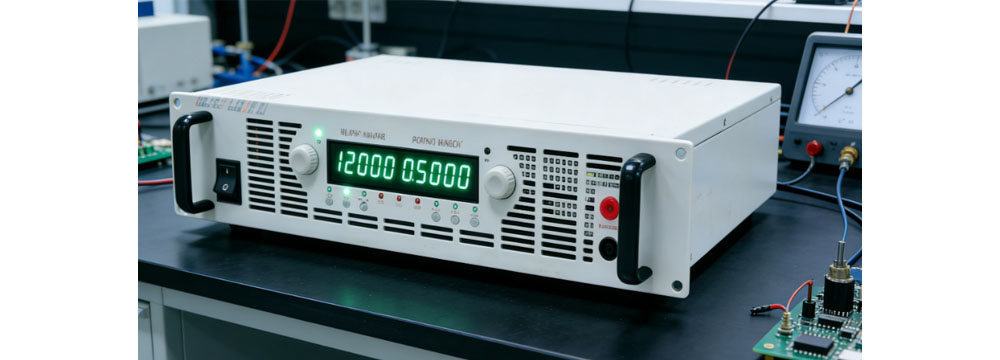

In terms of equipment selection, output ripple, stability and protection functions are the core considerations. The smaller the ripple, the more stable the power supply and the less experimental interference. The IDEALPLUSING adjustable power supply I have been using in the laboratory for a long time adopts PWM modulation technology, which has excellent ripple control and complete over-voltage, over-current and over-temperature protection functions. It is easy to operate, and can be easily adapted to both novice teaching and routine R&D testing, well meeting the diverse needs of the laboratory.
5. Application Expansion: Wide Uses of Adjustable Power Supply
The adjustable power supply has a wide range of application scenarios. In addition to basic circuit debugging, it also plays an important role in battery charge and discharge simulation, sensor calibration, LED characteristic testing and other scenarios. In teaching, it can help students intuitively understand the relationship between voltage, current and load, and transform abstract electrical theory into practical experience; in R&D, it can provide stable power supply for precision circuits, helping engineers quickly complete prototype verification and fault diagnosis.
6. Conclusion: Core Value of Adjustable Power Supply
In a word, although the adjustable power supply has a simple structure, it is an indispensable core equipment for electronic experiments. Understanding its working principle, mastering standardized operation methods, and choosing a reliable device that suits the needs can make experiments more efficient and safe. For electronic learners and practitioners, proficient use of the adjustable power supply is also a key step to consolidate professional foundation and improve practical ability.
