1. Introduction: Get to Know the Adjustable Power Supply First
For electronic majors or laboratory beginners, the adjustable power supply is the most basic and easily overlooked core tool. Different from ordinary fixed power supplies, the core advantage of the adjustable power supply is that it can continuously adjust the output voltage and current according to experimental needs, adapt to the power supply needs of different electronic components and circuit modules, and it is an important bridge connecting theoretical knowledge and practical experiments, as well as a key equipment to ensure experimental safety and improve data accuracy.
2. Popular Science: Working Principle of the Adjustable Power Supply
From a popular science perspective, the working logic of the adjustable power supply is not complicated, and its core is a closed-loop feedback control mechanism. Simply put, it is like an "intelligent control center", which captures the voltage and current signals at the output end in real time through the internal sampling circuit, compares them with the preset reference parameters, and once there is a deviation, it will dynamically correct through the power device to ensure the output parameters are stable and accurate. This is why the adjustable power supply can effectively reduce power fluctuations and avoid experimental errors or component damage caused by unstable voltage.
3. Teaching Practice: Standard Operation Points of the Adjustable Power Supply
As a commonly used instrument in teaching scenarios, the standardized operation of the adjustable power supply is a basic skill that beginners must master, which is also the key to avoiding experimental accidents and extending the service life of the equipment. Before starting the machine, be sure to adjust the voltage and current to the minimum gear to prevent high-voltage impact from damaging precision components at the moment of startup; when in use, set the appropriate output value according to the rated parameters of the load. For example, when testing a 5V single-chip microcomputer circuit, adjust the voltage to 5V and set the current limit to 1.2 times the rated value, which not only ensures the normal operation of the device, but also prevents burnout due to overcurrent; after the experiment, reset the parameters to zero before turning off the power supply, and develop the habit of standardized operation.
4. Equipment Selection: Adjustable Power Supply for Teaching and Practice

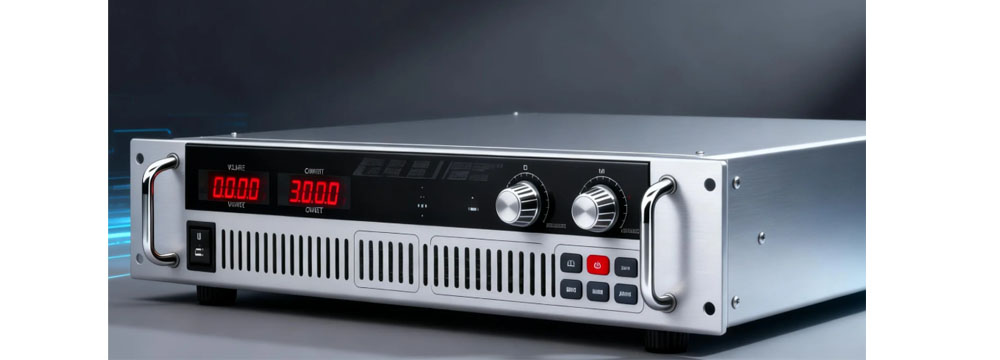

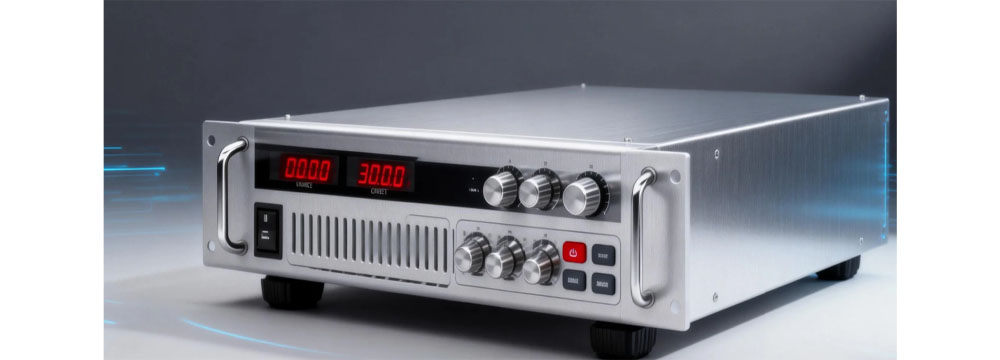

In laboratory practice, it is particularly important to choose an adjustable power supply suitable for teaching and basic research and development. The core points to pay attention to are output ripple, stability and protection functions—the smaller the ripple, the more stable the power supply and the less experimental interference; complete over-voltage, over-current and over-temperature protection can effectively avoid experimental risks. The IDEALPLUSING adjustable power supply that our laboratory has been using for a long time has balanced performance in these aspects, with convenient operation and moderate precision. It can be well adapted to both beginner entry practice, routine circuit debugging and component testing, and can be quickly put into use without complex debugging, which is very suitable for teaching and basic research and development scenarios.
5. Application Expansion: Practical Value of the Adjustable Power Supply
The application scenarios of the adjustable power supply run through the whole process of electronic teaching and basic research and development. It can not only be used for basic circuit debugging and component characteristic testing, but also for battery charge and discharge simulation, sensor calibration, LED photoelectric characteristic testing and other scenarios. In teaching, it can help beginners intuitively understand the relationship between voltage, current and load, and transform abstract electrical theory into perceptible practical experience; in basic research and development, it can provide stable power supply for precision circuits, helping to quickly complete prototype verification and fault diagnosis.
6. Conclusion: An Essential Laboratory Tool for Beginners
In general, although the adjustable power supply has a simple structure, its function is very important. For electronic learners and laboratory beginners, understanding its working principle, mastering standardized operation methods, and choosing a reliable device that suits their needs can not only make experiments more efficient and safe, but also lay a solid foundation for subsequent professional learning and practical work, and truly give play to its role as the "universal power supply assistant" in the laboratory.
