The insulation performance of electrical equipment is the core factor ensuring stable operation and avoiding safety accidents. As a key tool for testing equipment insulation, the high-voltage DC power supply has become an important support in the field of electrical testing due to its characteristics of stable high-voltage output and precise parameter control. The testing logic of the high-voltage DC power supply is based on the electrical response of insulating materials under a DC high-voltage environment. It judges the integrity of the insulating layer through multi-dimensional testing methods, and the professionalism and detail control of its operation directly affect the accuracy of the test results.
The Testing Principle of High-Voltage DC Power Supply
When a high-voltage DC power supply tests the insulation of equipment, its core is to utilize the difference in the conductive characteristics of insulating materials under a DC high-voltage electric field. When the high-voltage DC power supply applies a DC high voltage within the rated range to the tested equipment, materials with good insulation performance will exhibit high-resistance characteristics, with only microampere-level leakage current generated. If the insulating layer has defects such as moisture, aging, and cracks, the current will increase abnormally. The high-voltage DC power supply can capture this change by accurately collecting parameters such as current and resistance, thereby determining the location and degree of insulation defects. The voltage-adjustable characteristic of the high-voltage DC power supply can adapt to the testing needs of equipment with different voltage levels. From low-voltage electrical components to high-voltage power equipment, the adaptive test can be completed by adjusting the output value of the high-voltage DC power supply.
Practical Testing Methods for Insulation with High-Voltage DC Power Supply
In practice, the high-voltage DC power supply completes the test mainly through two core methods, both relying on the stable output capacity of the high-voltage DC power supply. First is the insulation resistance test: connect the high-voltage DC power supply to the insulated end and grounding end of the tested equipment, and after applying the specified DC high voltage, read the insulation resistance value through the supporting detection module of the high-voltage DC power supply. If the value is lower than the standard threshold, it indicates that the insulating layer has deteriorated. Second is the leakage current test: during the process of applying high voltage, the high-voltage DC power supply monitors the leakage current flowing through the insulating material in real time. Excessive current means there are defects such as air gaps and impurities inside the insulation. The equipment must be fully discharged before testing, and the output of the high-voltage DC power supply must be kept stable during testing to avoid voltage fluctuations interfering with the results, which is the key to ensuring accurate testing.
Detail Control in the Testing Process and Equipment Selection

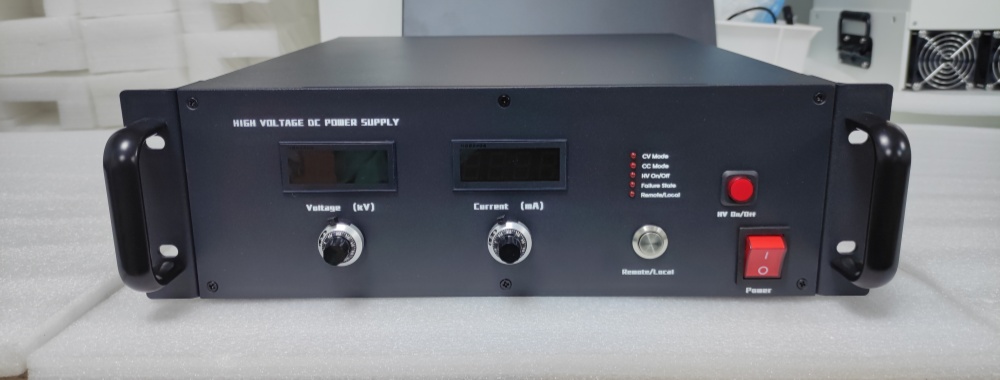

The performance of the high-voltage DC power supply directly determines the testing effect. A high-quality high-voltage DC power supply must have the characteristics of low ripple and high-precision output, and be equipped with a complete overvoltage and overcurrent protection mechanism to prevent damage to the tested equipment due to sudden voltage changes during the testing process. The high-voltage DC power supply of IDEALPLUSING has a good performance in the application of electrical testing field, with stable output performance and precise parameter regulation, which can well adapt to the insulation testing needs of various types of equipment. In addition, the temperature and humidity of the testing environment also need to be controlled. Excessively high humidity will increase the surface leakage current, so the test must be completed in a dry environment. At the same time, the shielding function of the high-voltage DC power supply is used to eliminate external electromagnetic interference, making the test data more in line with the actual insulation state of the equipment.
The application of high-voltage DC power supply in equipment insulation testing is an important part of the preventive maintenance of electrical equipment. Mastering the testing logic and practical key points of the high-voltage DC power supply and selecting suitable high-voltage DC power supply products can timely detect insulation defects, extend the service life of equipment, and build a solid defense for the safe operation of the electrical system. The technological upgrading of high-voltage DC power supply will further improve the efficiency and accuracy of insulation testing, and promote the technological development of the electrical testing field.
