Adjustable power supplies have an extremely broad range of applications; they stand as one of the most essential pieces of power equipment in factory manufacturing environments, repair workshops, research institutes, and electronics laboratories. An adjustable DC power supply functions by accomplishing the conversion of standard alternating current (AC) mains electrical power into controllable and continuously variable direct current (DC) electrical energy, which is subsequently supplied to external loads in a stable and reliable operating state. This type of power supply device enables users to implement precise and independent adjustments on output voltage and current parameters according to actual application demands, so as to effectively satisfy the diversified and specific electrical performance requirements imposed by different types of electrical and electronic loads.

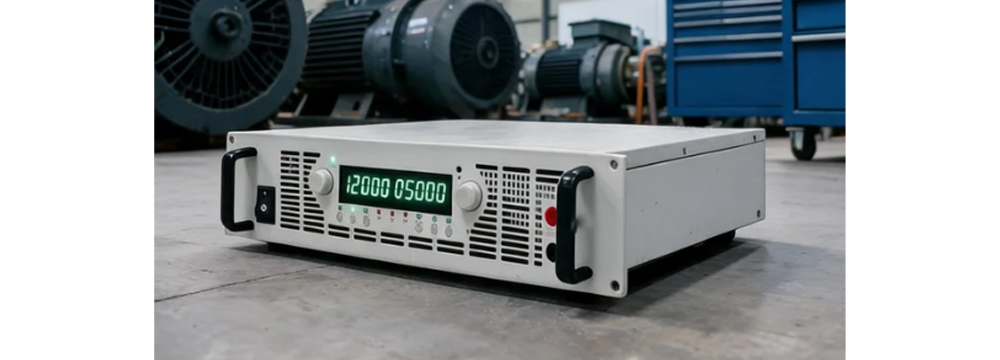

What Is a Variable DC Power Supply?
A variable DC power supply is a regulated power supply device that can output continuously adjustable DC voltage and current. Different from ordinary fixed power adapters, it features adjustable voltage, adjustable current, high stability, low ripple, and perfect protection mechanisms.
It mainly realizes energy conversion through AC input, rectification, filtering, voltage regulation and current stabilization circuits. Through the operation of a mechanical adjustment knob or a digital control panel, users are able to implement accurate and stable regulation on the output voltage and current parameters of the power supply. Meanwhile, the device is capable of realizing automatic switching between the Constant Voltage (CV) operating mode and the Constant Current (CC) operating mode, so as to provide reliable adaptation to a variety of complex and changeable load working conditions.
Two Main Types of Variable DC Power Supplies
According to different circuit design and working principles, variable DC power supplies are mainly divided into linear type and switching type.
Linear Variable DC Power Supply: Linear DC power supply adopts linear voltage regulation technology. Its biggest advantages are ultra-low ripple, low noise, high output stability and simple circuit structure. It will not produce high-frequency interference during operation, which is very suitable for precision electronic testing, audio circuit debugging and sensor calibration.Its disadvantages are low working efficiency, large heat generation, bulky size and limited high-power output capacity. It is more commonly used in small-power and high-precision laboratory scenarios.
Switching Variable DC Power Supply: Switching variable DC power supply uses high-frequency switching conversion technology. It has outstanding advantages such as high working efficiency, small size, light weight, energy saving and large power coverage. The efficiency can reach 80%~95%, and it hardly generates excessive heat during long-term operation.Although its ripple and noise are slightly higher than linear models, the modern switching power supply technology has been greatly optimized, which can meet most industrial production, product aging, battery charging and high-power working scenarios. It is the mainstream choice in the current industrial market.
Core Working Modes: CV and CC Mode
Every industrially professional adjustable DC power supply is designed to support two fundamental operating modes. These two core modes are known as Constant Voltage (CV) mode and Constant Current (CC) mode, and they serve as the critical technical basis for achieving flexible and reliable applications in various working environments.
Constant Voltage (CV) Operating Mode: When the power supply is activated under Constant Voltage working status, it is able to maintain its terminal output voltage steadily at the preset parameter value. The output current of the equipment will change dynamically in an automatic manner according to the real-time resistance variation of the connected load. This mode is mainly used for powering electronic modules, circuit debugging, and daily equipment power supply. As long as the load current does not exceed the set limit, the voltage will remain constant.
Constant Current (CC) Operating Mode: When the power supply operates under the Constant Current working state, it can sustain the output current at a relatively fixed magnitude throughout the operation process. Correspondingly, the terminal output voltage will conduct dynamic automatic adjustment to adapt to the real-time variation of external load parameters. This particular operating mode possesses extensive applicability across multiple industrial and experimental scenarios, covering constant-current battery charging processes, environmental water treatment projects, LED product aging reliability testing, as well as industrial electroplating and electrolysis production procedures. It can effectively avoid equipment damage caused by excessive current.
Key Parameters for Selecting a Variable DC Power Supply
When selecting a suitable adjustable DC power supply, you should prioritize the following core parameters to avoid making an inappropriate choice:
1.Output Voltage and Current Range
The selection of output voltage and current specifications should be formulated according to the practical operational demands of the actual application scenario. It is advisable to reserve a power margin of approximately 20% during model selection, which effectively avoids the long-term continuous operation of the power supply device under full-load working conditions.
2. Accuracy and Resolution
Professional power supply products equipped with high-precision performance parameters are capable of supporting subtle and fine parameter adjustment functions. Such technical characteristics render these devices highly applicable to laboratory experimental construction and various engineering scenarios that require high-standard precision testing.
3.Ripple and Noise Performance
The magnitude of ripple and noise parameters is inversely correlated with the operational stability of power supply devices. Lower ripple output can effectively elevate the overall stability level of power supplies, which constitutes a pivotal technical indicator for the protection and normal operation of high-precision sensitive electronic components.
4.Built-in Protection Mechanisms
Modern power supply devices are integrated with comprehensive safety protection configurations. Over-voltage protection, over-current protection, over-temperature protection as well as reverse-polarity protection, are indispensable functional modules to guarantee the safe and reliable operation of power supply equipment.
5.Regulation and Control Modes
Power supply control schemes possess diversified hierarchical design forms. On one hand, there exists the conventional manual regulation mode adopting mechanical knob configuration; on the other hand, digital programmable control systems supported by RS485 and USB communication interfaces are available, and such intelligent control schemes are highly applicable to the application scenarios of industrial automated production lines.
Classic Application Scenarios
Variable DC power supplies have extremely wide coverage in all walks of life:

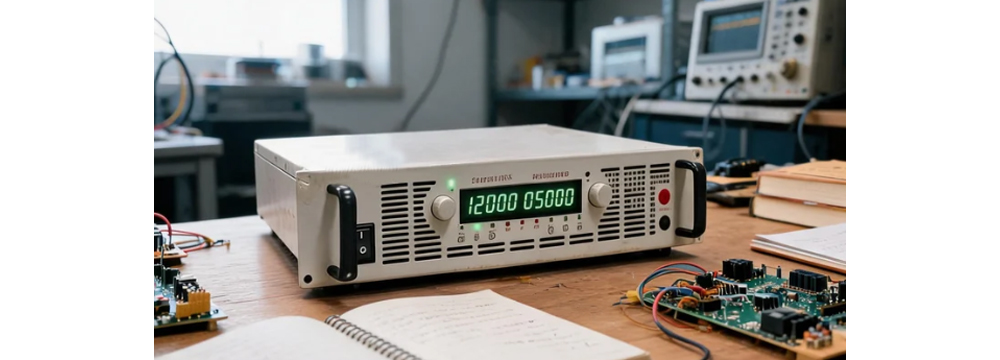

Electronic R&D Laboratory: Circuit prototyping, chip testing and component performance verification.
Industrial Production: Product aging test, automated equipment supporting power supply.
New Energy Industry Application Field: This field mainly covers the professional charging and performance testing work of mainstream energy storage devices. The testing objects primarily include lithium-ion batteries, lead-acid batteries as well as high-performance supercapacitor components.
Industrial Environmental Protection Application Field: It provides dedicated high-current power supply equipment to support industrial process operation. Such power supplies are widely applied in technological scenarios such as industrial electroplating processing, electrolytic reaction production and industrial wastewater purification treatment.
Transportation and Aerospace Application Field: This application scope involves multiple professional technical service scenarios in transportation and aerospace sectors. It is mainly used for vehicle electrical system performance detection, as well as aviation equipment ground power supply supporting work.
School & Scientific Research: Teaching experiment, scientific research precision power supply.
As a basic and universal power device, variable DC power supply plays an irreplaceable role in electronics, industry, new energy and scientific research fields. In practical engineering application scenarios that impose stringent requirements on noise suppression and output precision performance, linear power supply products are generally regarded as the optimal selection for deployment.
In contrast, in application contexts characterized by high power demand as well as large-scale industrial batch production conditions, switching power supply solutions exhibit superior economic efficiency and engineering practicability in comprehensive performance.
Understanding its working principle, CV/CC modes and key selection parameters can help users quickly select the most suitable model. With the continuous upgrading of power supply technology, digital programmable variable DC power supply will become the mainstream development trend, bringing more intelligent and efficient power supply solutions to the industry.
