Why Aviation GPU Requires Stable 115V 400Hz Output?

In the high-precision, zero-fault tolerant aerospace industry, ground power units (GPU) serve as the core energy support for aircraft on-ground operations, covering aircraft inspection, maintenance, pre-flight testing, and engine startup standby power supply. Unlike conventional industrial power supplies, aviation electronic systems, avionics devices, and flight control components are strictly calibrated to operate under a standard 115V 400Hz AC power environment. Even minor voltage fluctuations, frequency drift, or power waveform distortion can trigger equipment alarm failures, data deviation, or even permanent damage to on-board precision instruments. As a professional aerospace power solution provider, IDEALPLUSING has long observed that unstable GPU output is one of the most common hidden dangers leading to aircraft ground operation delays and maintenance cost overruns. This article explores why a stable 115V 400Hz output is non-negotiable for aviation GPU systems, analyzes core industry pain points, interprets working principles, and provides professional selection guidelines and tailored technical solutions for aerospace engineers and procurement managers.

Industry Pain Points: Risks and Cost Losses of Unstable Aviation GPU Power

Most aerospace power failures during ground operations stem from substandard GPU output stability, which brings multi-dimensional operational risks and economic losses to airlines, aviation maintenance bases, and aerospace equipment integrators. Different from general industrial power scenarios, the aviation field has extremely stringent power quality standards, and any power abnormality will be amplified into major operational risks.

First, unstable 115V voltage or 400Hz frequency drift directly damages on-board precision equipment. Modern aircraft are equipped with a large number of sensitive avionics systems, including navigation systems, communication devices, flight data recorders, and automatic control units. These devices are designed exclusively for 115V 400Hz power input. When the GPU output voltage fluctuates beyond ±2% or frequency deviates from 400Hz, the internal circuit chips of precision instruments will generate abnormal current, leading to data calculation errors, system self-test failures, and in severe cases, circuit burnout and permanent equipment scrapping. The maintenance and replacement cost of aviation precision equipment is extremely high, and a single power-induced equipment failure can cause hundreds of thousands of dollars in direct losses.

Second, poor GPU power stability causes flight delays and operational efficiency losses. Aircraft ground maintenance and pre-flight inspection are time-scheduled standardized processes. Unstable power supply will lead to repeated system self-tests, equipment restart failures, and unqualified maintenance data, forcing maintenance teams to spend extra time troubleshooting power problems and re-inspecting equipment. For commercial airports and aviation logistics bases, every minute of flight delay means increased operational costs, reduced flight throughput, and damaged operational credibility. For military aviation and aerospace research projects, power instability will delay test progress and affect project delivery cycles.

Third, unqualified GPU power quality leads to non-compliance risks. The aerospace industry follows strict FAA and ICAO power quality standards for ground support equipment. Ordinary industrial power supplies or low-quality aviation GPUs cannot maintain stable 115V 400Hz output under full-load and variable-load conditions, failing industry compliance inspections. This will cause equipment suspension, project shutdowns, and even qualification penalties for aviation enterprises. In addition, unstable power output will also produce harmonic interference, affecting the normal operation of nearby aviation communication equipment and bringing potential safety hazards to airport operation.

Working Principle: Why Aviation Adopts 115V 400Hz Power Standard & GPU Operating Logic

To understand the importance of stable 115V 400Hz GPU output, it is necessary to clarify the uniqueness of aviation power standards and the core working principle of aviation GPU devices. Unlike civil and general industrial 50Hz/60Hz power supplies, the aviation industry uniformly adopts 400Hz intermediate frequency power, which is determined by the special operational requirements of aircraft equipment.

From the perspective of power standard design, 400Hz high-frequency power can effectively reduce the volume and weight of aircraft power transformers, motors, and electrical components. Higher frequency enables smaller electromagnetic coil volume, which greatly reduces the overall weight of aircraft electrical systems, helping aircraft save fuel consumption and improve load capacity. Meanwhile, 115V voltage is the optimal safety and efficiency balance point for aviation low-voltage power distribution, which avoids the safety risks of high-voltage power and solves the insufficient power supply capacity of low-voltage power. Therefore, 115V 400Hz has become the universal global aviation ground and airborne power standard.

The core working principle of aviation GPU is to convert conventional municipal 50Hz/60Hz AC power into standardized 115V 400Hz pure sine wave power through multi-stage rectification, inversion, and frequency conversion regulation. High-quality aviation GPU adopts closed-loop feedback control system: the real-time sampling module continuously monitors output voltage, frequency, waveform, and load changes, and the intelligent control chip dynamically adjusts inversion parameters to ensure that the output index is always within the standard range, even under sudden load increase or decrease, voltage fluctuation of municipal power, and harsh environmental conditions.

Ordinary modified wave GPUs lack precise closed-loop regulation modules. After long-term operation or load changes, frequency drift and voltage drop will inevitably occur, resulting in unqualified power quality. This is the fundamental reason why ordinary power equipment cannot replace professional aviation GPU in aerospace scenarios.

Aviation GPU Selection Guide & Product Comparison

When selecting an aviation GPU for aerospace ground support, output stability of 115V 400Hz is the core evaluation index. Combined with actual aerospace application scenarios, we summarize key selection criteria and compare mainstream GPU products in the industry to help engineers and purchasers make accurate decisions.

Core Selection Key Points: First, prioritize products with precise closed-loop frequency and voltage regulation to ensure long-term stable 115V 400Hz output; second, check the waveform distortion rate, which must be lower than 3% to avoid harmonic damage to avionics; third, verify variable load stability, as aircraft ground operations often involve frequent load switching; finally, confirm aviation industry compliance certification to meet project audit requirements.

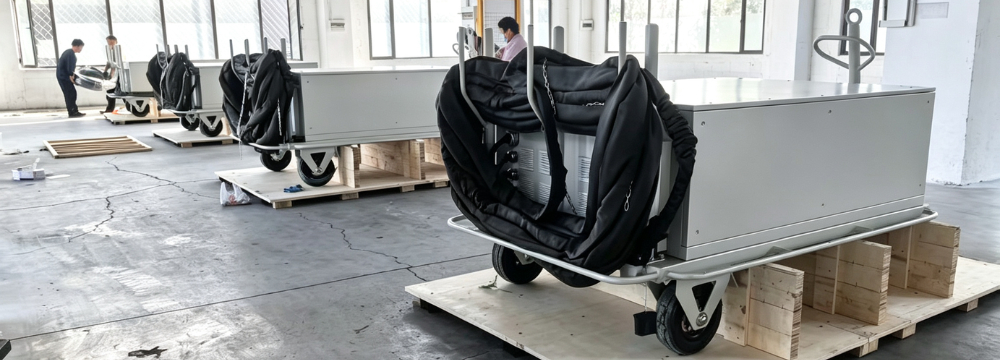

IDEALPLUSING Technical Solution for Stable 115V 400Hz Aviation GPU

As a professional industrial and aviation power supply manufacturer focusing on aerospace scenarios, IDEALPLUSING has targeted the pain points of unstable aviation GPU power, low precision, and poor environmental adaptability, launching a full series of high-stability 115V 400Hz aviation GPU solutions, covering fixed and mobile models to meet different airport, maintenance base, and aerospace test needs.

In terms of core technology, our aviation GPU adopts a third-generation intelligent frequency conversion and voltage regulation system, equipped with high-precision sampling chips and dynamic closed-loop feedback algorithm. It realizes real-time correction of voltage and frequency, with voltage fluctuation controlled within ±0.5% and frequency accuracy up to ±0.1Hz, far exceeding industry standard requirements. The high-purity sine wave output technology reduces waveform distortion rate to less than 1%, completely eliminating harmonic interference to aviation precision equipment.

In terms of performance optimization, the product supports 0-100% full-load and variable-load stable operation, with no instantaneous power drop or frequency drift during load switching. The built-in over-voltage, over-current, over-temperature, and short-circuit multi-protection mechanism effectively avoids equipment damage caused by power abnormalities. For harsh aviation outdoor working environments, the equipment adopts industrial-grade dustproof, waterproof, and anti-interference design, realizing stable operation in wide temperature and high humidity environments.

In terms of customized services, we support personalized GPU scheme customization according to customer scenarios, including special power adjustment, mobile trailer type design, intelligent remote monitoring function, and multi-device parallel operation. All products undergo strict aviation-level aging testing, high and low temperature testing, and load impact testing before delivery, with EEAT-verified engineering quality to ensure long-term reliable operation in aerospace scenarios.

Application Case: Stable GPU Power Empowers Aerospace Ground Operations

IDEALPLUSING 115V 400Hz high-stability aviation GPU has been widely applied in domestic and foreign civil aviation maintenance bases, military aviation support projects, and aerospace equipment testing laboratories, helping customers eliminate power quality risks and reduce operational costs.

A regional international airport in Southeast Asia previously faced frequent avionics self-test failures and minor equipment damage due to the use of ordinary intermediate frequency power supplies, resulting in 3-5 flight delays every month and annual maintenance losses of more than $120,000. After replacing with IDEALPLUSING aviation GPU, the equipment achieves continuous stable 115V 400Hz output. Within 12 months of operation, zero power-induced equipment failures and zero flight delays occurred, reducing the customer’s aviation equipment maintenance cost by 40% and improving ground operation efficiency by 35%.

In addition, for a domestic aerospace institute’s aircraft component testing project, our customized mobile aviation GPU provides stable power support for long-term precision testing. The product maintains ultra-high power accuracy under long-term full-load operation, ensuring consistent and reliable test data, and successfully passed the institute’s strict aviation quality inspection.

The stable 115V 400Hz output is the core core index of qualified aviation GPU and the basic guarantee for safe and efficient aircraft ground operation. In the high-standard aerospace industry, unstable power supply will bring equipment damage, economic losses, and compliance risks that cannot be ignored. Professional aviation GPU with precise voltage and frequency regulation, low distortion, and strong load adaptability is essential for aviation ground support work. IDEALPLUSING relies on mature aviation power technology, strict testing standards, and rich engineering experience to provide high-stability, high-reliability 115V 400Hz GPU power solutions for global aerospace customers, helping enterprises eliminate power hidden dangers, reduce comprehensive costs, and improve operational competitiveness.

FAQ

1. What is the standard output of aviation GPU?
The global unified standard for aviation ground power units (GPU) is 115V AC voltage and 400Hz intermediate frequency, which is applicable to most civil and military aircraft ground operations.

2. Why can’t ordinary 50Hz power supplies be used for aircraft ground power supply?
Ordinary 50Hz power supply has large volume and heavy weight of aircraft supporting electrical components, and cannot match the operating parameters of avionics systems, which will cause equipment failure and data errors.

3. What risks does unstable 400Hz GPU output bring to aircraft?
Frequency and voltage instability will lead to avionics self-test failure, precision circuit burnout, flight delay, and even failure to pass aviation industry compliance inspection.

4. What is the qualified voltage fluctuation range of aviation GPU?
Industry standard requires voltage fluctuation within ±2%, and high-quality aviation GPU represented by IDEALPLUSING can control fluctuation within ±0.5%.

5. What is the advantage of 400Hz aviation power compared with industrial power?
400Hz high-frequency power reduces the weight and volume of aircraft electrical equipment, saves fuel consumption, and improves the stability and sensitivity of precision aviation equipment.

6. Is mobile aviation GPU suitable for outdoor airport operations?
Professional industrial-grade mobile aviation GPU supports wide temperature operation, dust and water resistance, and is fully adapted to outdoor airport and temporary maintenance scenarios.

7. How to judge the power quality of aviation GPU?
It can be evaluated through three core indicators: voltage/frequency stability, sine wave distortion rate, and variable load operation stability.

8. Can IDEALPLUSING provide customized aviation GPU solutions?
Yes, we support personalized customization of power parameters, equipment form, intelligent functions and other aspects according to customer aerospace application scenarios.
