In the field of electronic engineering, power management is a crucial link. DC-DC converter and LDO , as two common power transformer converters, each have unique characteristics and application scenarios. Here's the difference between them.
Basic principles and functions：

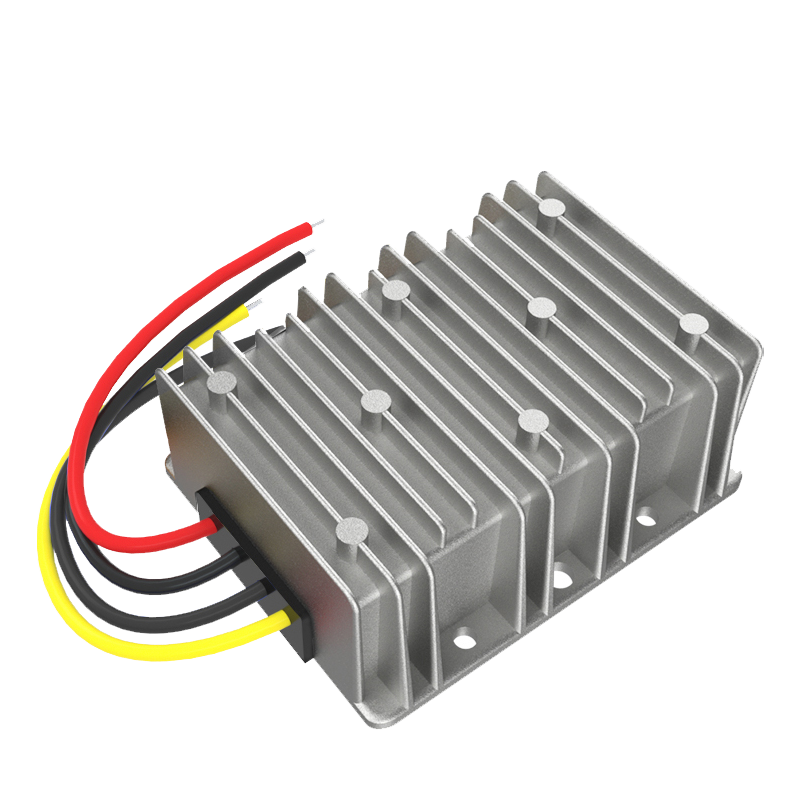

DC-DC converter: A DC-DC converter is an electronic device that converts one DC voltage into another DC voltage.utilize the switching characteristics of a controllable switching device, to adjust the output voltage. DC-DC converters are divided into three categories: boost converters, buck converters, and buck boost converters, and can be controlled according to demand. Its advantages lie in high efficiency and small size, and it is currently widely used in products such as mobile phones, MP3 players, digital cameras, portable media players, as well as industrial automation, communication equipment, and other fields.

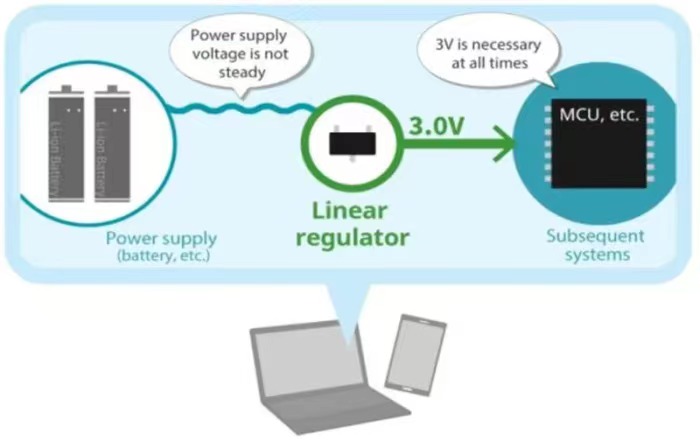

LDO (Low Dropout Regulator): LDO, also known as Linear Regulator, is a type of linear regulator that can stabilize the output voltage with a small input/output voltage difference. Control the output voltage by adjusting the resistance of a variable resistor or variable inductor based on feedback voltage. The outstanding advantages of LDO lie in its reliable operation, stable output voltage, low noise, low ripple, and fast load response capability, making it suitable for occasions with high requirements for power quality.
Output voltage and adjustment mode：
Output voltage: The output voltage range of DC-DC converters is wide and can be flexibly adjusted by changing the duty cycle of switches and circuit parameters. The output voltage of LDO is relatively fixed, with two types: fixed output and adjustable output. Fixed output voltage LDO is convenient to use, but adjustable output LDO can provide more flexible voltage settings.

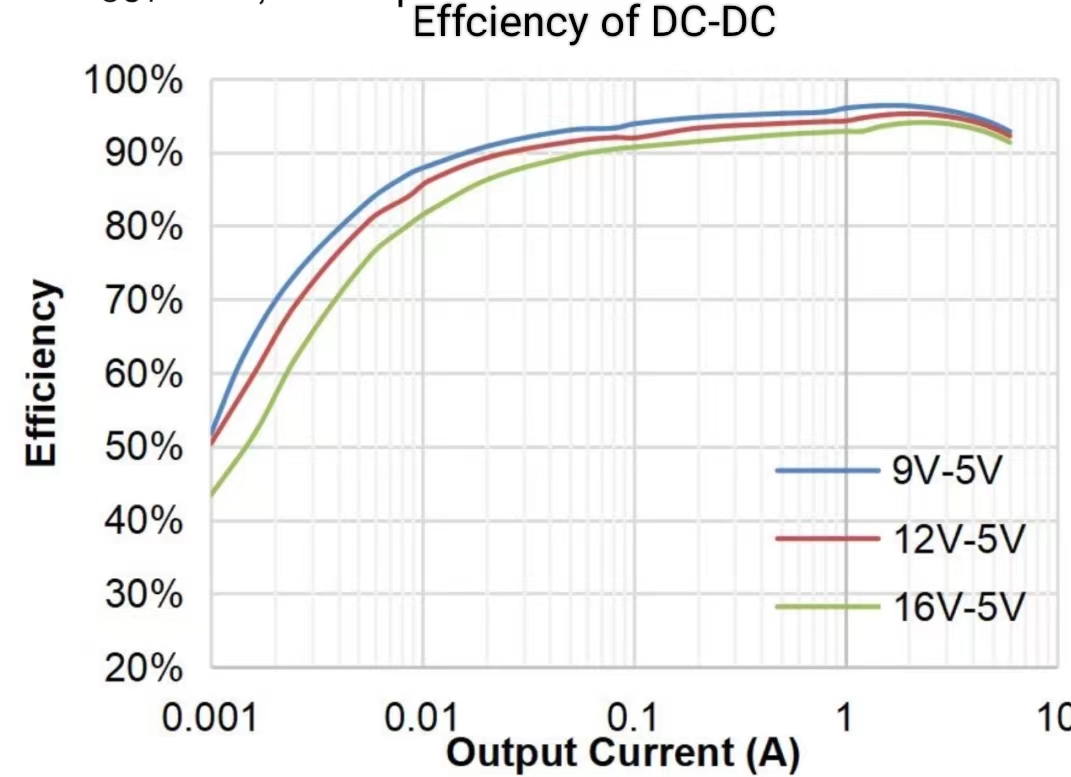

Adjustment method: The DC-DC converter adjusts the output voltage by controlling the on/off of the switch, which can reduce energy loss during the conversion process and has the characteristics of high efficiency and high output current. LDO, on the other hand, stabilizes the output voltage by adjusting the voltage drop of the regulating tube. The adjustment process is relatively simple, but the efficiency is relatively low.
Cost and application scenarios：
Cost: Generally speaking, the cost of LDO is relatively low, the peripheral circuit is simple, suitable for cost-sensitive and power quality requirements are not particularly high occasions. The cost of DC-DC converter is relatively high, but its high efficiency, wide range of input voltage and the ability to flexibly adjust the output voltage make it more suitable for application scenarios requiring high-performance power management.

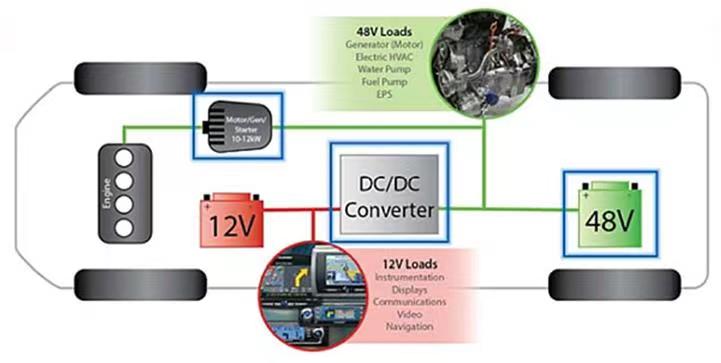

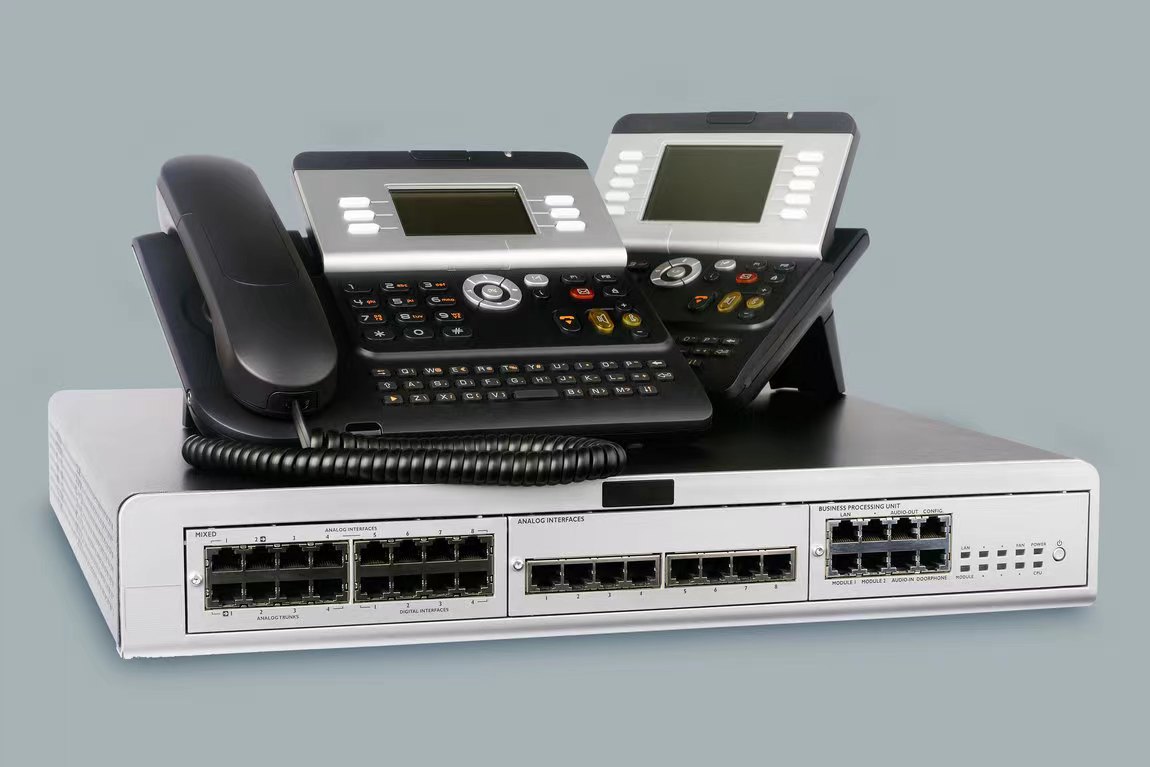

Application scenario: LDO is often used to provide stable power supply for sensitive circuits (such as audio circuits, analog circuits, etc.) due to its low noise, low ripple and fast load response ability. DC-DC converter is widely used in mobile phone, computer, TV and other electronic equipment, as well as industrial automation, communication equipment and other fields due to its high efficiency, wide range of input voltage and flexible adjustment of output voltage ability.
In conclusion, there are significant differences between DC-DC converters and LDO in terms of their basic principles, output voltage, regulation methods, costs, and application scenarios. When selecting power management devices, comprehensive consideration should be given to specific application requirements, cost budget, and performance requirements. DC-DC has the characteristics of high efficiency and high output voltage. For application scenarios that require high efficiency, wide range input voltage, and flexible adjustment of output voltage, DC-DC converters are a better choice; LDO has the characteristics of the lowest cost and lowest noise. For situations that require extremely high power quality and are cost sensitive, LDO can be considered for use.
