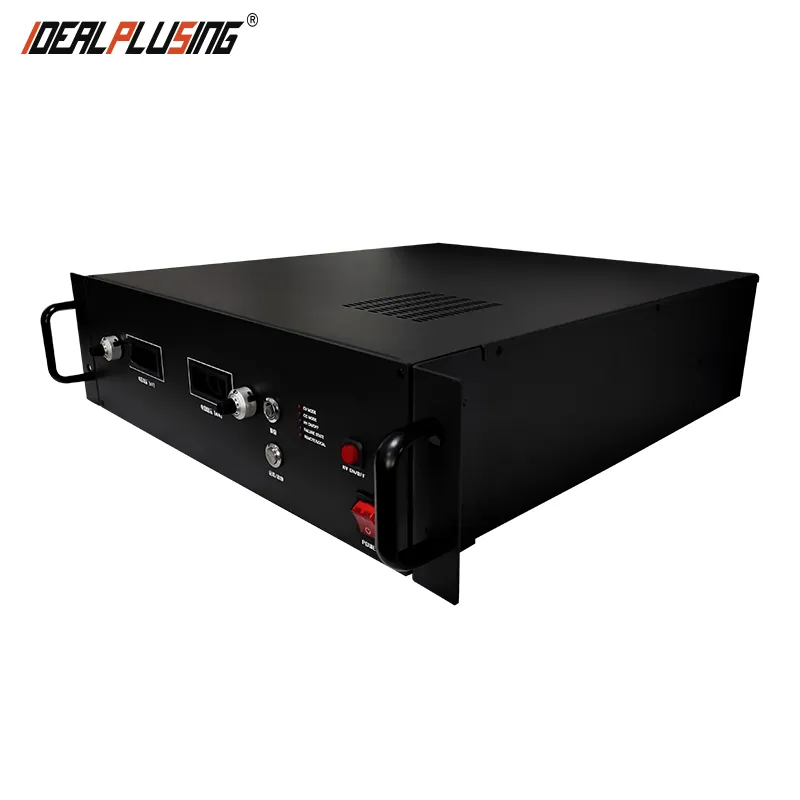

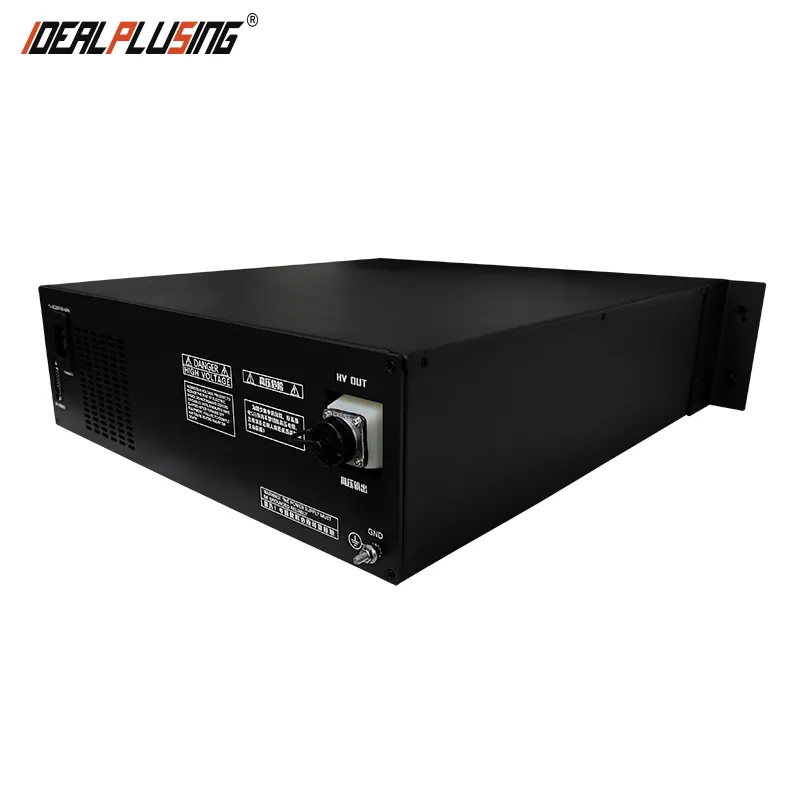

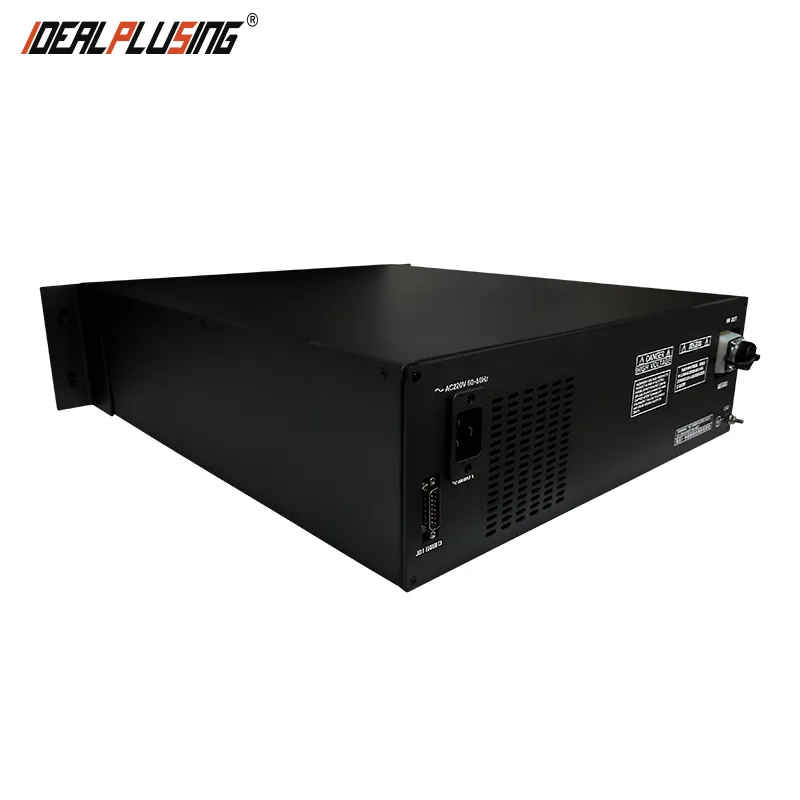

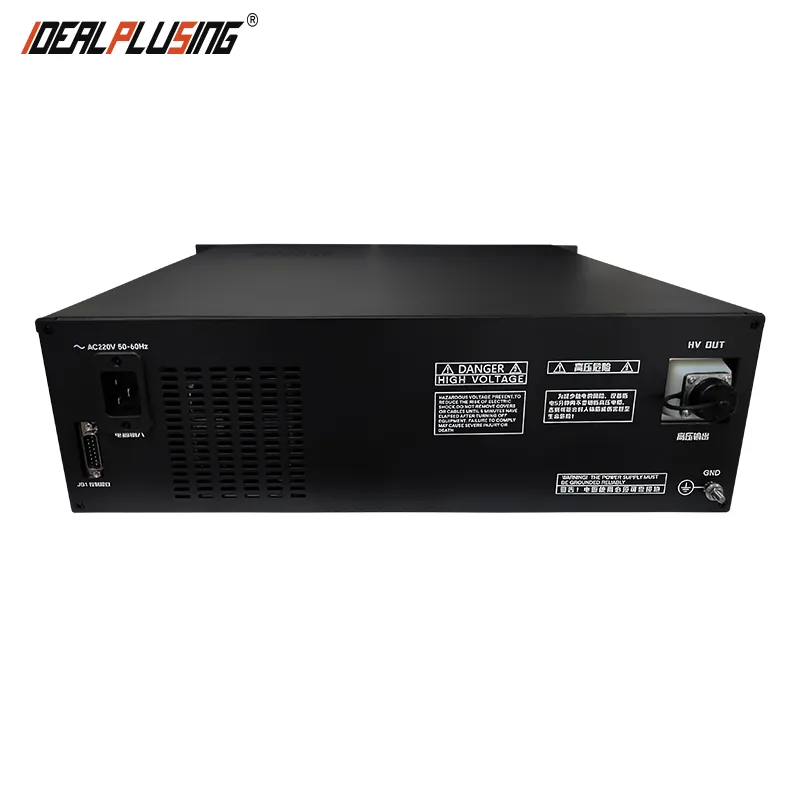

IPS-ATDJ100KV-20mA 100KV 20mA 200W HV DC Power Supply
【Electrostatic spinning equipment, electrostatic flocking, electrostatic spraying, electrostatic sorter, melt blown cloth to increase filtering efficiency, melt blown cloth to add static electricity, super capacitor charging】
I. INTRODUCTION & APPLICATION
| 1 | HV series are high voltage DC power supplies, available from 10kV to 200kV output. |
2 | Output control can be switched between Remote control and Local control. Output displays and output indicators are direct on the front panels and can lead to the external remote display screen. |
3 | The high-voltage output terminal has over-current, over-current, short-circuit protection, and arc protection. |
4 | The HV series high voltage power supply is widely used in electrostatic applications, such as Electrostatic dust removal, Electrostatic spinning, Electrostatic electret, Electrostatic separation, Electrostatic spraying, and Electrostatic flocking. |
5 | The HV series high voltage power supply can also be used in High voltage insulation tests, Material sorting, Metal vaporization, High voltage deburring, and Laboratory test. |
6 | Meltblown cloth electrostatic electret equipment |
7 | Electrostatic Spinning |
8 | Electrostatic Dust Removal |
9 | Capacitor Charge |
10 | Discharge |
11 | Cable Aging Test |
12 | Cable Leakage Test |
13 | Optical Fiber Withstand Voltage Test |
14 | Etc |
II. PRODUCT FEATURES
| 1 | Output voltage full range adjustable |
2 | High voltage Positive output +10kV to +200kV |
3 | High voltage Negative output -10kV to -200kV |
4 | 4 digits LED display for voltage and current |
5 | Low EMI, strong anti-interference ability |
6 | OVP, OCP, ARC, and short circuit protections |
III. OPTIONAL INTERFACE
| 1 | Remote ON/OFF control |
2 | 0-10V analog control for voltage and current output |
3 | RS485, support Modbus-RTU commands |
4 | RS232, support Modbus-RTU commands |
IV. INPUT VOLTAGE
| Rate Voltage | Single phase 220VAC |
Range voltage | 220VAC±10% |
Frequency | 50/60HZ |
V. OUTPUT
| Brand | IDEALPLUSING |
Model | IPS-ATDJ120KV-10mA |
Rated Voltage | 120K0VDC(Full range adjustable) |
Rated Current | 0-10mA(Full range adjustable) (except 1mA models) |
Line Regulation | CV≤0.1%FS |
Load Regulation | CV≤0.1%FS |
Ripple & Noise | ≤0.5% FS |
High Voltage stability | ≤0.1% per hour after warm-up for one hour |
Temperature co-efficiency | 100ppm/°C |
VI. DISPLAY
| Meter | 4 digits LED display for voltage and current | |
Display Resolution | Voltage | 0.01kV / 0.1kV |
Current | 0.001mA / 0.01mA | |
Display Accuracy | Voltage | ≤0.1%FS+2LSB |
Current | ≤0.1%FS+2LSB | |
VII. PROTECTION
| Over Voltage Protection (O.V.P.) | Built-in OVP protection with limit of 105% rated output voltage. |
Over Current Protection (O.C.P.) | Built-in OCP protection with limit of 105% rated output voltage. |
Over Temperature Protection (O.T.P.) | Built-in OTP protection with heat sink temperature limit of 65°C±5°C |
Short Circuit Protection | The output will be shut down when short circuit protection is activated. |
VIII. GENERAL
| Dimension of HV power supply | 516L*500W*136H(MM) |
Net Weight/Gross Weight | 23KG/29KG(Carton box/Wooden carton box package) |
Cooling method | Cooling fan |
Operating environment | 0°C~40°C, 10%~80%RH |
Storage environment | -20°C~70°C, 10%~90%RH |
IX. HIGH-VOLTAGE OUTPUT CABLE (TWO KINDS ARE OPTIONAL)
| 1 | Self-contained high voltage cable without shielding. Standard high-voltage cable length is 1.5 meters, other lengths are optional. |
2 | High-voltage cable with shielding. Standard high-voltage cable length is 1.5 meters, other lengths are optional. |
