I. INTRODUCTION

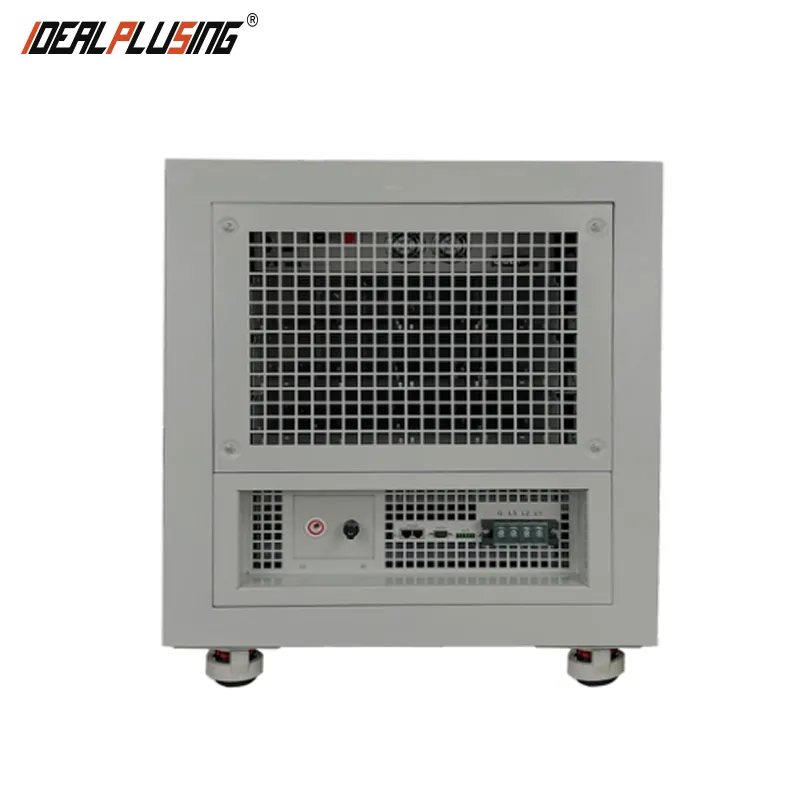

IPS-ATDL The series is a high power DC power supply with a continuously adjustable output rating of 5KW/10KW/15KW/20KW/30KW/50KW. With a maximum voltage rating of up to 12KV, this series of power supplies offers excellent performance in its class. In addition, the power supply offers local operation with the addition of remote control and detection functions, greatly enhancing the flexibility and versatility of the power supply. These power supplies can be used in a wide range of electronic component ageing systems, test equipment and electronic application laboratories.
II. KEY SPECIAL FEATURES AND BENEFITS ARE AS FOLLOWS
| 1 | 19" 12U standard cabinet or 19" 20U standard cabinet available |
2 | Constant voltage and constant current function |
3 | Low ripple and high stability |
4 | Continuously adjustable output voltage and current |
5 | ZVZCS switching mode for high conversion efficiency |
6 | Over-voltage, over-heat and under-voltage protection for mains input |
7 | RS232 and RS485 communication interfaces |
8 | MODBUS-RTU standard communication protocol |
9 | Monitorable via PC software |
10 | Software calibratable parameters |
11 | Dual local and programmable operation modes |
12 | Output rated power 5KW/10KW/15KW/20KW/30KW/50KW |
13 | Rated voltage 1KV~12KV, rated current 500mA~50A Various models available |
III. DATASHEET
| Model | IPS-ATDL12KV-1670mA | |
Input | 3 phases 380VAC±10% 47Hz～63Hz | |
Dimension | L732*W600*H755(MM) (Standard 19inch rack mount) | |
Rating | Output voltage | 12KV |
Output current | 0~1670mA | |
Over-voltage protection | 0~20000V | |
Programmed solutions Degree of analysis | Over-voltage | 1V |
Voltage | 1V | |
Current | 1mA | |
Display resolution | Voltage | 1V |
Current | 1mA | |
Accuracy of displayed values | Voltage | ≤0.3%+2LSB |
Current | ≤0.5%+2LSB | |
Load regulation rate | Voltage | ≤0.5%+2LSB |
Power regulation rate | Voltage | ≤0.1%+2LSB |
Ripple | Voltage | ≤0.1% FS |
