I. INPUT CHARACTERISTICS
Model | IPS-PFC300-24 |
input voltage | 95-264Vac |
Input frequency | 50/60HZ |
Input current | 3.25A |
efficiency | ≥93％ |
Cooling method | Air Cooling |
working temperature | -25-50℃ |
No load power consumption | ＜2W |
Surge current | ≤25A |
Start time | ≤3.5S |
Hold time | ≥10MS |
Input structure | Three wire inputs, namely: live wire, neutral wire, and ground wire |
Linear adjustment rate | Within the input voltage range, the online adjustment rate is ＜ ± 1% |
Input protection | When the input current is greater than the rated current of the fuse, the fuse will blow |
High voltage testing | Input to shell 1600Vac 5mA 3sec |
Insulation impedance | Primary to secondary 500Vdc 100MΩ |
II. OUTPUT CHARACTERISTIC
2-1. Output voltage and current
Output voltage | Error Range | Output Current | |
24VDC | ±0.1% | MIN | MAX |
0A | 12.5A | ||
12V (optional/optional) | ±0.1% | 0A | 2A |
2-1 Load Regulation
Under the conditions of AC input voltage, output load current, and ripple noise changes, the rate of change of output voltage should be within ± 0.5% of the rated output voltage.
2-3. Ripples and noise
Output voltage | Ripple and noise |
24VDC | 260mV (MAX) |
Explanation: The ripple test is conducted at a frequency range of 20MHz and room temperature of 25 ℃ on the oscilloscope, and a 10uF/50V electrolytic capacitor and a 0.1uF/50V ceramic capacitor are connected in parallel at the output end
2-4. Overvoltage protection
When the output voltage is higher than 10% of the rated output voltage, the machine will enter a protective state and can resume normal operation after returning to the rated output voltage
2-5. Overcurrent protection
When the working current of the machine is greater than 13A, the power supply will operate in constant current mode.
2-6. Short circuit protection
When the machine is operating normally (with normal input voltage and load), a short circuit at the output end will not cause damage or safety issues to the machine itself, and the machine can resume normal operation after the short circuit is cancelled
2-7. Leakage current
When the input voltage is 264Vac 50Hz, the leakage current should be ≤ 3.5mA
2-8. Indicator lights
2-9. Static electricity requirements
1.) This power adapter
Must comply with EN50082-1:1997 standard
2. The basic standards are as follows:
a. EN61000-4-3
b. EN61000-4-4
c. EN61000-4-5
III. ENVIRONMENTAL CHARACTERISTICS
3-1 Temperature
1. Working temperature: -10 ℃ to+70 ℃ (with rated operation)
2. Storage temperature: -20 ℃ to+85 ℃
3.) Storage height: 40000 feet
3-2. Humidity
1. Working relative humidity: 10% to 90% (non condensing)
2. Storage relative humidity: 5% to 95% (non condensing)

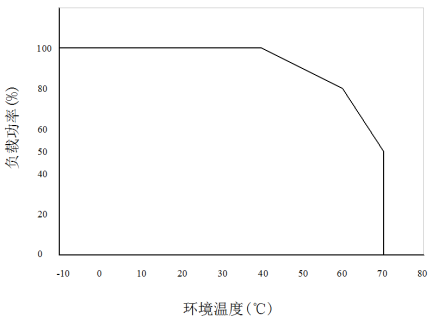

3-3. Temperature Derating Curve
3-4. Altitude
|
IV. EMI/EMC STANDARDS
Complies with GB9254-1998 GB17625.1-2003 EN55022
V. SAFETY STANDARDS
Compliant with CE
VI. RELIABILITY
Mean time between failures: Under normal input voltage, room temperature of 25 ℃, and full load operation, the MBTF should be ≥ 50000 hours
VIII. MECHANICAL CHARACTERISTICS
7-1. Appearance dimensions
Length: 175mm
Width: 110mm
Height: 40mm

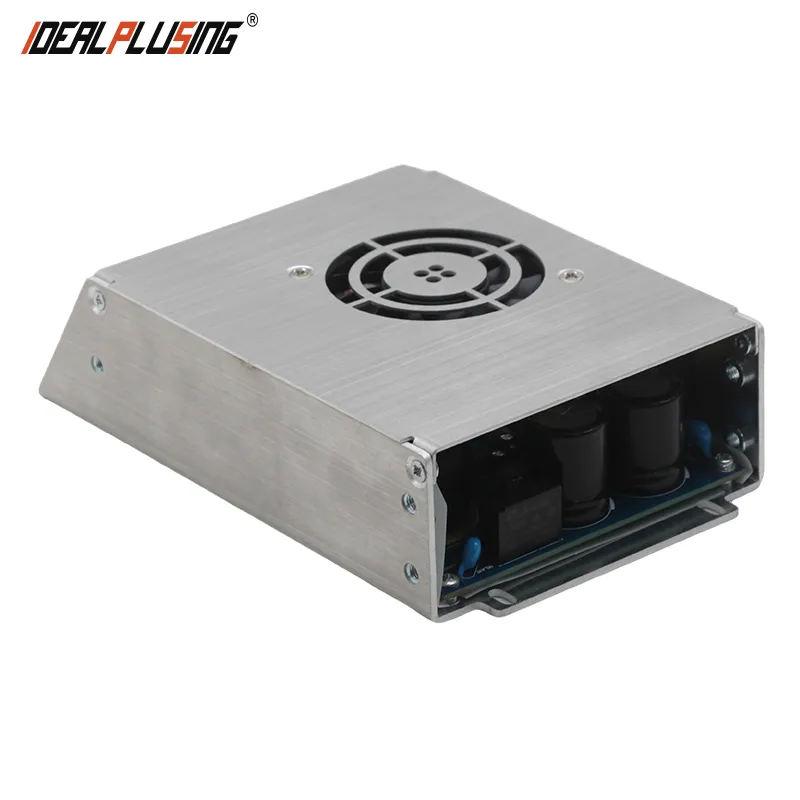

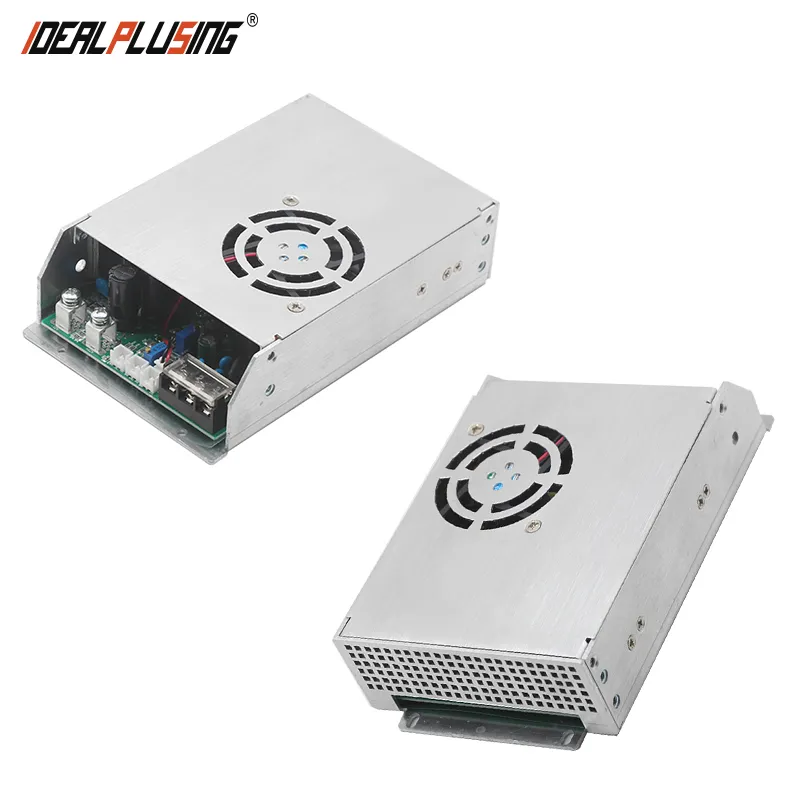

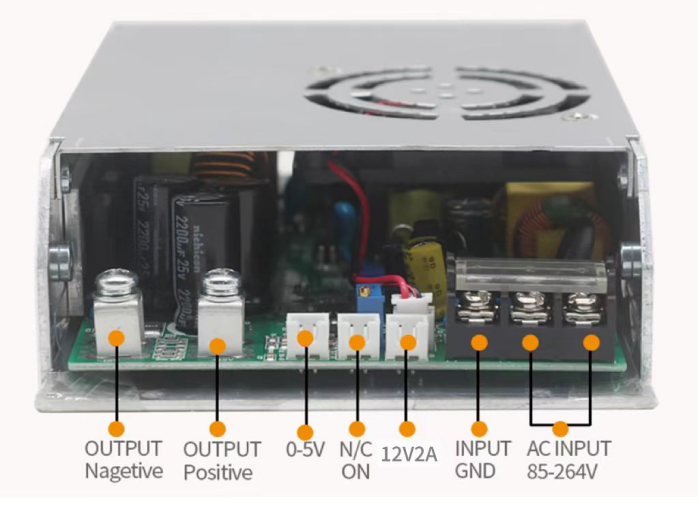

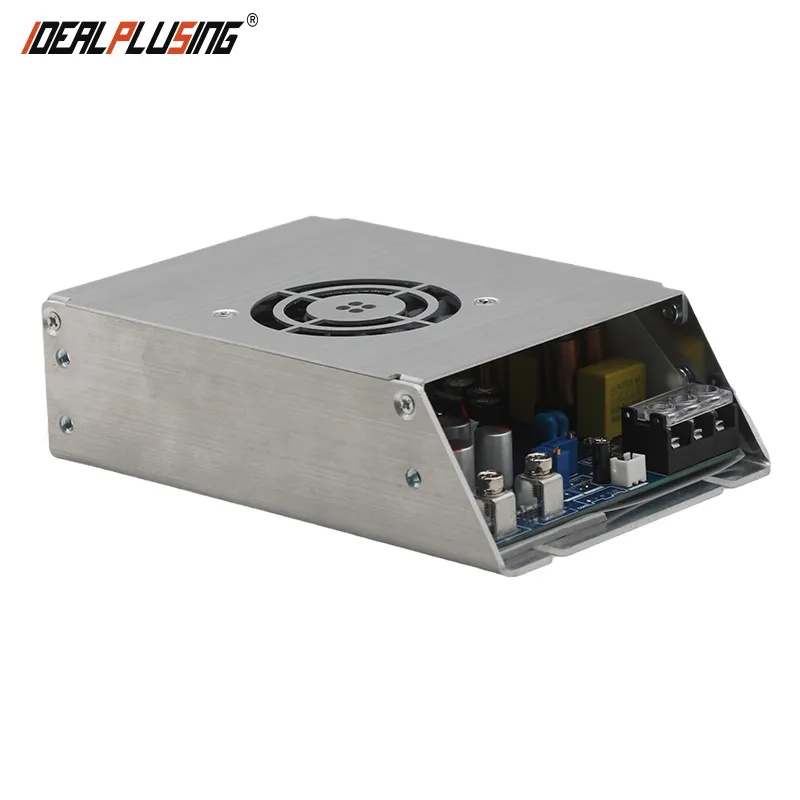

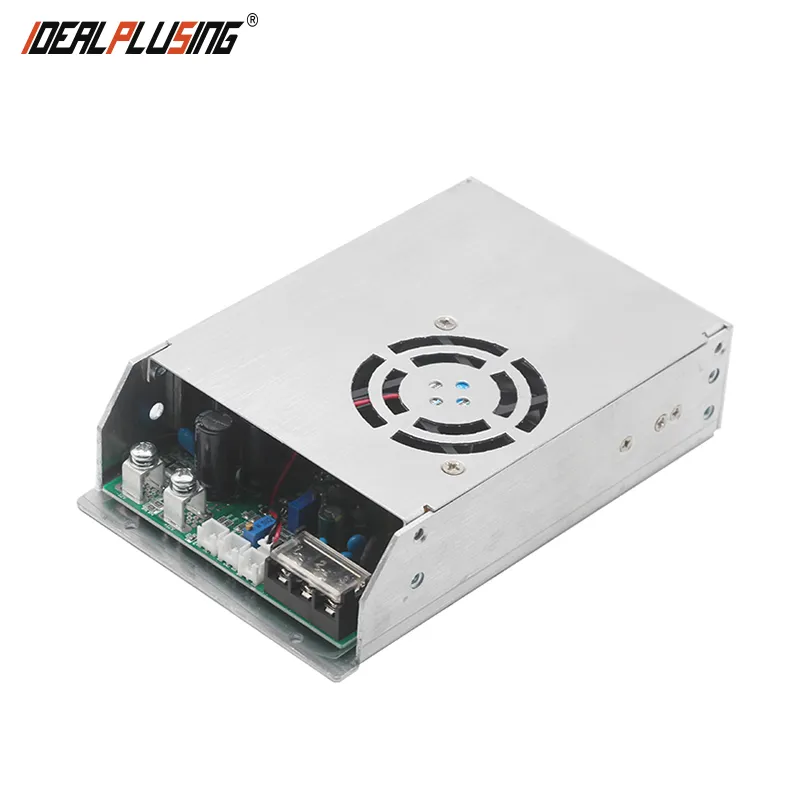

IX. REFERENCE PICTURE
|
