I.FEATURES | |||||

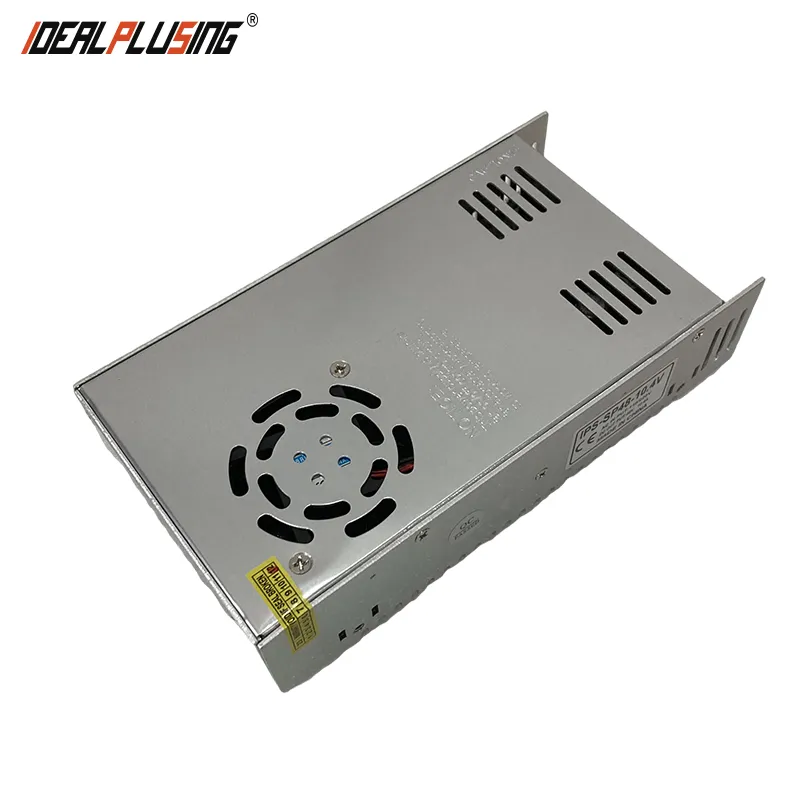

1 | IDEALPLUSING Switching LED dimming power supply 3D printer power supply 200W Switching Power Supply 5v | ||||
2 | Adjustable with Compact size, light weight | ||||
3 | Wide range AC Input , AC input 110V/220Vac input selected by switch | ||||
4 | 100% full load burn-in test | ||||
5 | Protection: Short circuit / Over load / Over voltage | ||||
6 | Fixed switching frequency at 25KHz | ||||
7 | 1 year warranty | ||||
8 | High efficiency, reliability quality, competitive cost | ||||
9 | 0-5Vdc / 0-10Vdc External control output (Optional) | ||||
10 | Extra adjustable potentiometer (Optional) | ||||
11 | Output voltage adjustable, output current be fix | ||||
II. COMMON SPECIFICATION | |||||
Adjustable range for dc voltage | The output voltage is 100% adjustable through the potentiometer | ||||
AC input voltage range | AC 95-125V 60Hz | AC174-264VAC 50Hz Manual switch | ||||
Input current | 115V/3.6A | 230V/1.8A | ||||
AC in lash current | Cold start current 25A/230V | ||||
leakage current | ≤1.5mA 230V AC | ||||
Overload protection | Load more than 110%~120% switch to constant current mode | ||||
Over-voltage protection | ≥15% of output voltage | ||||
Setup rise hold time | 200ms 100ms 20ms | ||||
Vibration | 10-50Hz, 2G 10 minutes/cycle X, Y, Z axis each 60 minutes | ||||
Withstand voltage | Input to shell 1500V/3mA AC | Input to output 1500V/3mA AC | Input to output 500V/3mA AC | ||||
working temperature | -10℃-65℃, 20%-90%RH | ||||
Storage temperature | -10℃--65℃, 20%--95%RH | ||||
Net weight | 0.8KG | ||||
Dimension | 200L*98W*42H (MM) | ||||
OTHERS | |||||
Output voltage tolerance | 1% | ||||
Wave and noise | 150mV P-P | ||||
Efficiency | 90% | ||||
III. MODEL INFOMRATION | |||||
MODEL | OUTPUT VOLTAGE | OUTPUT CURRENT | OUTPUT POWER | ||
IPS-SP5-40 | 0-5VDC | 40A | 200W | ||
IPS-SP12-16.7 | 0-12VDC | 16.7A | 200W | ||
IPS-SP24-8.3 | 0-24VDC | 8.3A | 200W | ||
IPS-SP36-5.6 | 0-36VDC | 5.6A | 200W | ||
IPS-SP48-4.2 | 0-48VDC | 4.2A | 200W | ||
IPS-SP60-3.3 | 0-60VDC | 3.3A | 200W | ||
IPS-SP90-2.2 | 0-90VDC | 2.2A | 200W | ||
IPS-SP110-1.8 | 0-110VDC | 1.8A | 200W | ||
IPS-SP150-1.3 | 0-150VDC | 1.3A | 200W | ||
IPS-SP200-1 | 0-200VDC | 1A | 200W | ||
IPS-SP220-0.9 | 0-220VDC | 0.9A | 200W | ||
