I.FEATURES | |||||

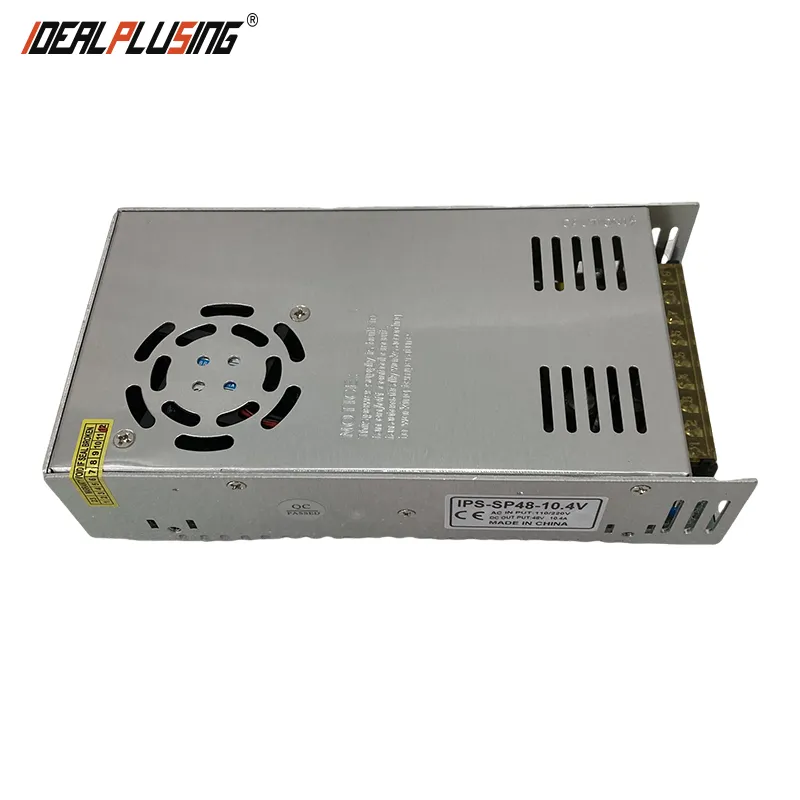

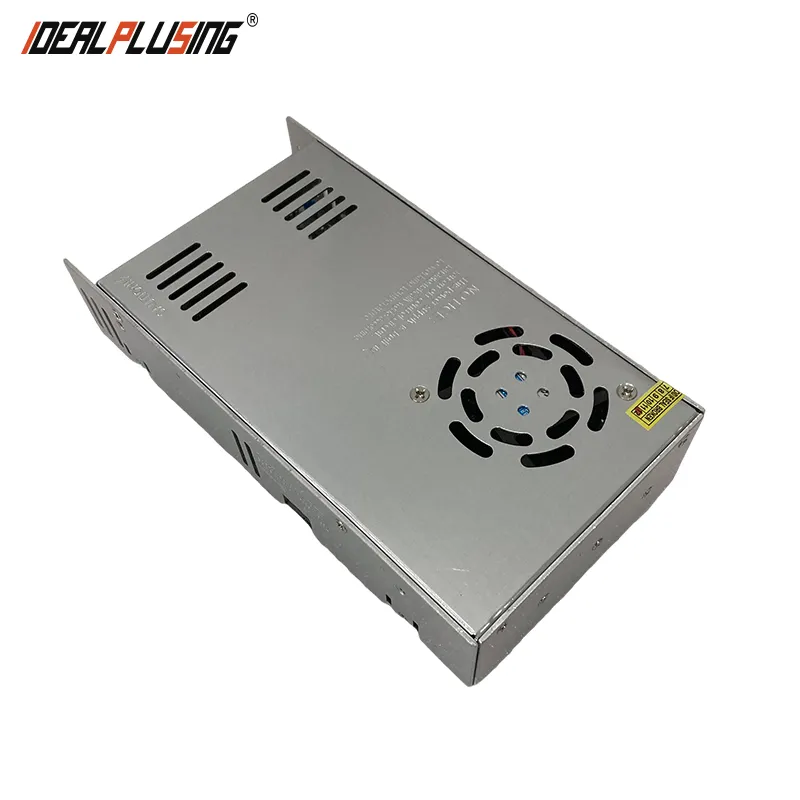

1 | IDEALPLUSING adjustable ac dc 48a 20a 10a 6.7a 5a 4a 3a 2a 1a 240W switching power supply | ||||
2 | Adjustable with Compact size, light weight | ||||
3 | Wide range AC Input , AC input 110V/220Vac input selected by switch | ||||
4 | 100% full load burn-in test | ||||
5 | Protection: Short circuit / Over load / Over voltage | ||||
6 | Fixed switching frequency at 25KHz | ||||
7 | 1 year warranty | ||||
8 | High efficiency, reliability quality, competitive cost | ||||
9 | 0-5Vdc / 0-10Vdc External control output (Optional) | ||||
10 | Extra adjustable potentiometer (Optional) | ||||
11 | Output voltage adjustable, output current be fix | ||||
II. COMMON SPECIFICATION | |||||
Adjustable range for dc voltage | The output voltage is 100% adjustable through the potentiometer | ||||
AC input voltage range | AC 95-125V 60Hz | AC174-264VAC 50Hz Manual switch | ||||
leakage current | ≤1.5mA 230V AC | ||||
Overload protection | Load more than 110%~120% switch to constant current mode | ||||
Over-voltage protection | ≥15% of output voltage | ||||
Setup rise hold time | 200ms 100ms 20ms | ||||
Vibration | 10-50Hz, 2G 10 minutes/cycle X, Y, Z axis each 60 minutes | ||||
Withstand voltage | Input to shell 1500V/3mA AC | Input to output 1500V/3mA AC | Input to output 500V/3mA AC | ||||
working temperature | -10℃-65℃, 20%-90%RH | ||||
Storage temperature | -10℃--65℃, 20%--95%RH | ||||
Net weight | 0.8KG | ||||
Dimension | 200L*98W*42H (MM) | ||||
Adjustable range for dc voltage | The output voltage is 100% adjustable through the potentiometer | ||||
OTHERS | |||||
Output voltage tolerance | 1% | ||||
Wave and noise | 150mV P-P | ||||
Efficiency | 90% | ||||
III. MODEL INFOMRATION | |||||
MODEL | OUTPUT VOLTAGE | OUTPUT CURRENT | OUTPUT POWER | ||
IPS-SP5-48 | 0-5VDC | 48A | 240W | ||
IPS-SP12-20 | 0-12VDC | 20A | 240W | ||
IPS-SP24-10 | 0-24VDC | 10A | 240W | ||
IPS-SP36-6.7 | 0-36VDC | 6.7A | 240W | ||
IPS-SP48-5 | 0-48VDC | 5A | 240W | ||
IPS-SP60-4 | 0-60VDC | 4A | 240w | ||
IPS-SP80-3 | 0-80VDC | 3A | 240W | ||
IPS-SP100-2.4 | 0-100VDC | 2.4A | 240W | ||
IPS-SP120-2 | 0-120VDC | 2A | 240W | ||
IPS-SP150-1.6 | 0-150VDC | 1.6A | 240W | ||
IPS-SP180-1.3 | 0-180VDC | 1.3A | 240W | ||
IPS-SP200 | 0-200VDC | 1.2A | 240W | ||
IPS-SP220-1.1 | 0-220VDC | 1.1A | 240W | ||
IPS-SP240-1 | 0-240VDC | 1A | 240W | ||
