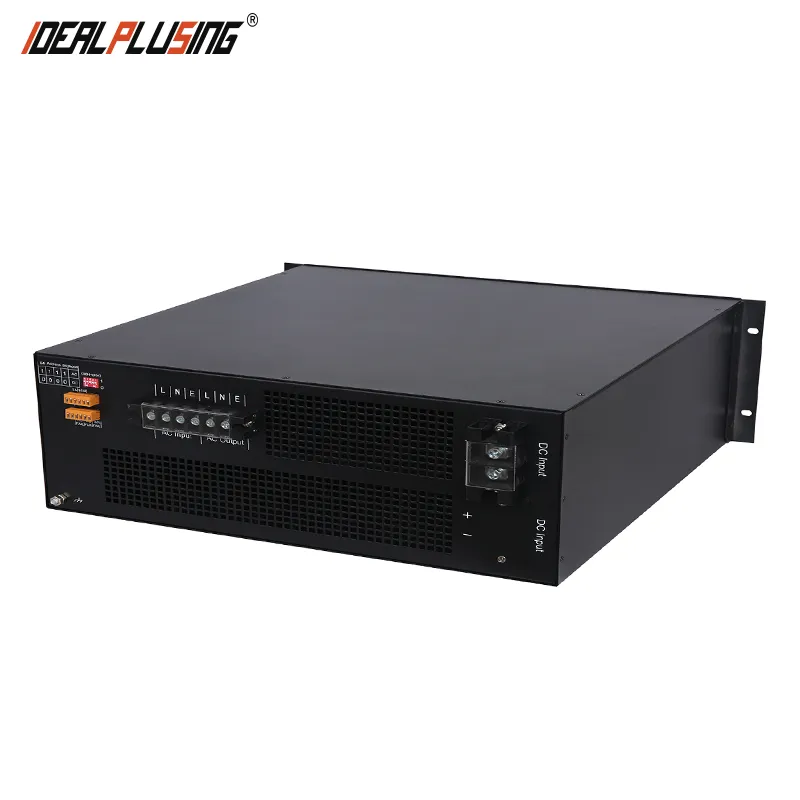

Brand | IDEALPLUSING | |
Model | IPS-DTA4000-48 | |
Rate Capacity(KVA) | 4000VA | |
Rate power(W) | 3200W | |
DC Input | Rate input voltage | 48VDC |
Rate input Current | 74A | |
Shut down voltage range | 40~58.8VDC | |
Start-up voltage range | 42~57VDC | |
Reflect noise current | ≤10% | |
AC Input | Allow bypass voltage | 120VAC |
Bypass switch time (ms) | ≤5ms | |
AC Output | Rated capacity (VA) | 4000VA |
Rated output power (W) | 3200W | |
output voltage | 120VAC | |
Output voltage precision | 120±10VAC | |
Output frequency precision | 50±0.1% Or 60±0.1% HZ | |
Waveform | Pure sine wave | |
Total harmonic distortion | ≤3% (linear load) (THD) | |
Dynamic response time | 5% (load 0←→100%) | |
Power factor (PF) | 0.8 | |
Overload capacity | 100%-120% 60s121%-150% 10s | |
Inversion efficiency (80% resistive load) | ≥85% | |
By-pass conversion time (ms) | ≤5ms | |
Operating environment | Dielectric strength (input and output) | 1500VAC, 1 minute |
Noise (1m) | ≤65dB | |
Operating environment temperature | -20℃~+50℃ | |
Humidity | 0~90%, no moisture condensation | |
Operating altitude (m) | ≤2000 | |
Indication | LCD display | Input and output voltage, frequency, output current, temperature, percentage, etc. |
inverter status | Normal mains, normal inversion, battery under-voltage and output overload | |
Mechanical size | Standard rack (Depth * Width * Height) (mm) | 482*177*440(MM), 25KG |
Protection function | Input under-voltage and over-voltage, output overload and short circuit protections, etc. | |
