1. INFORMATION
DC-DC Converter / DC Conversion Power Supply is specially designed for meeting the requirements of all kinds of communication equipment of communication and electric power departments.
DC-DC Converter / DC Conversion Power Supply adopts the high-frequency switching technology and has many good points, including high accuracy voltage stabilizing, low output noise, strong capacity of resisting disturbance, small volume, lightweight, beautiful external shape, etc. DC-DC Converter / DC Conversion Power Supply is the ideal configuration supplying power to the communication equipment of different voltage grades.
2. FEATURES
l The use of advanced dual-tube forward switch technology, the isolation between the design of the module to prevent the interaction between the modules
l In the case of N + 1 backup, even if one or several modules fail, it does not affect the parallel operation of other modules, and between modules can achieve automatic current sharing.
l Meet the 220VDC, 110VDC, 24VDC power supply system requirements. Input voltage range is wide, basically applicable to a variety of power grid system power supply requirements, compatibility is better.
l Header module with 3 and a half of the table display, display the output current and voltage, simple and practical.

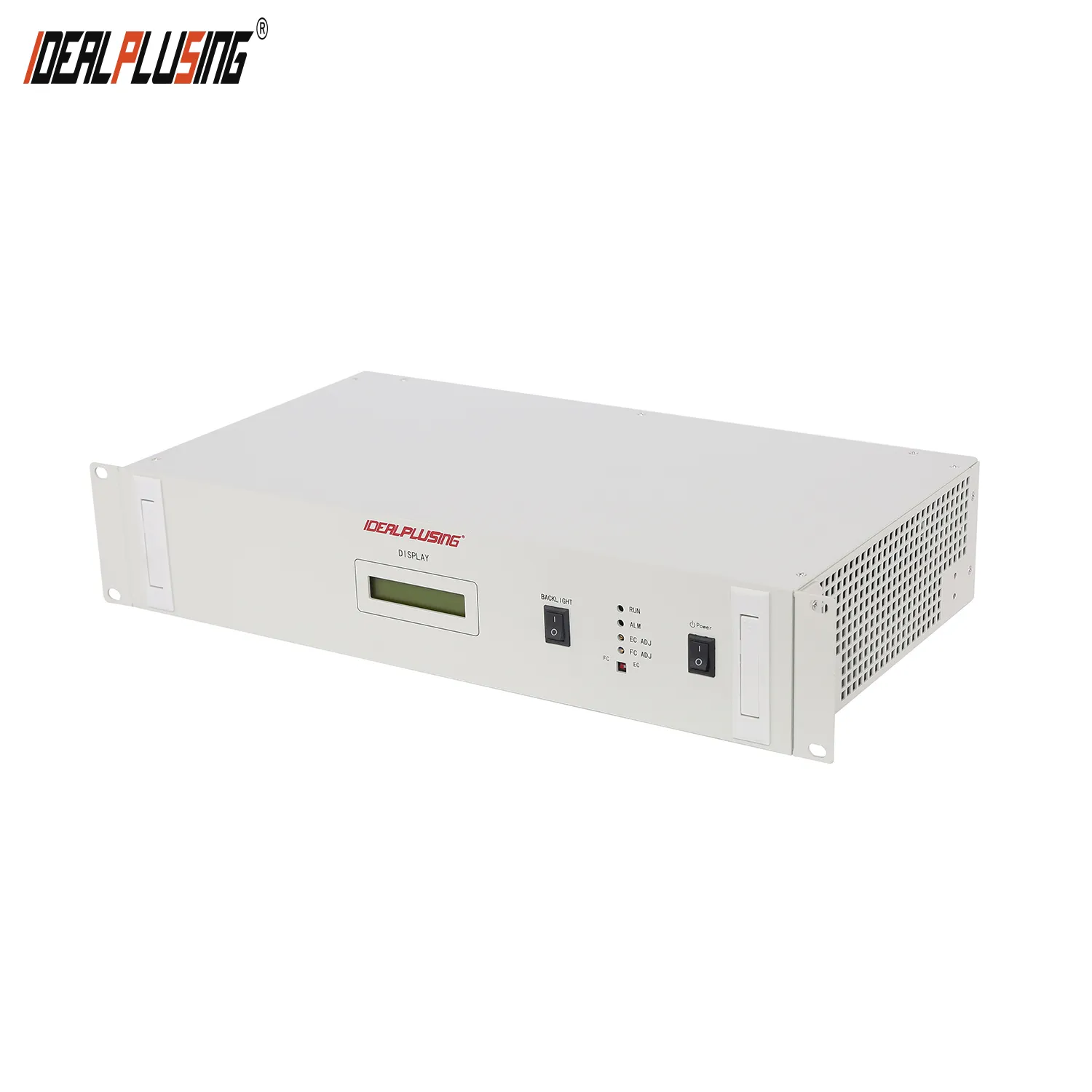

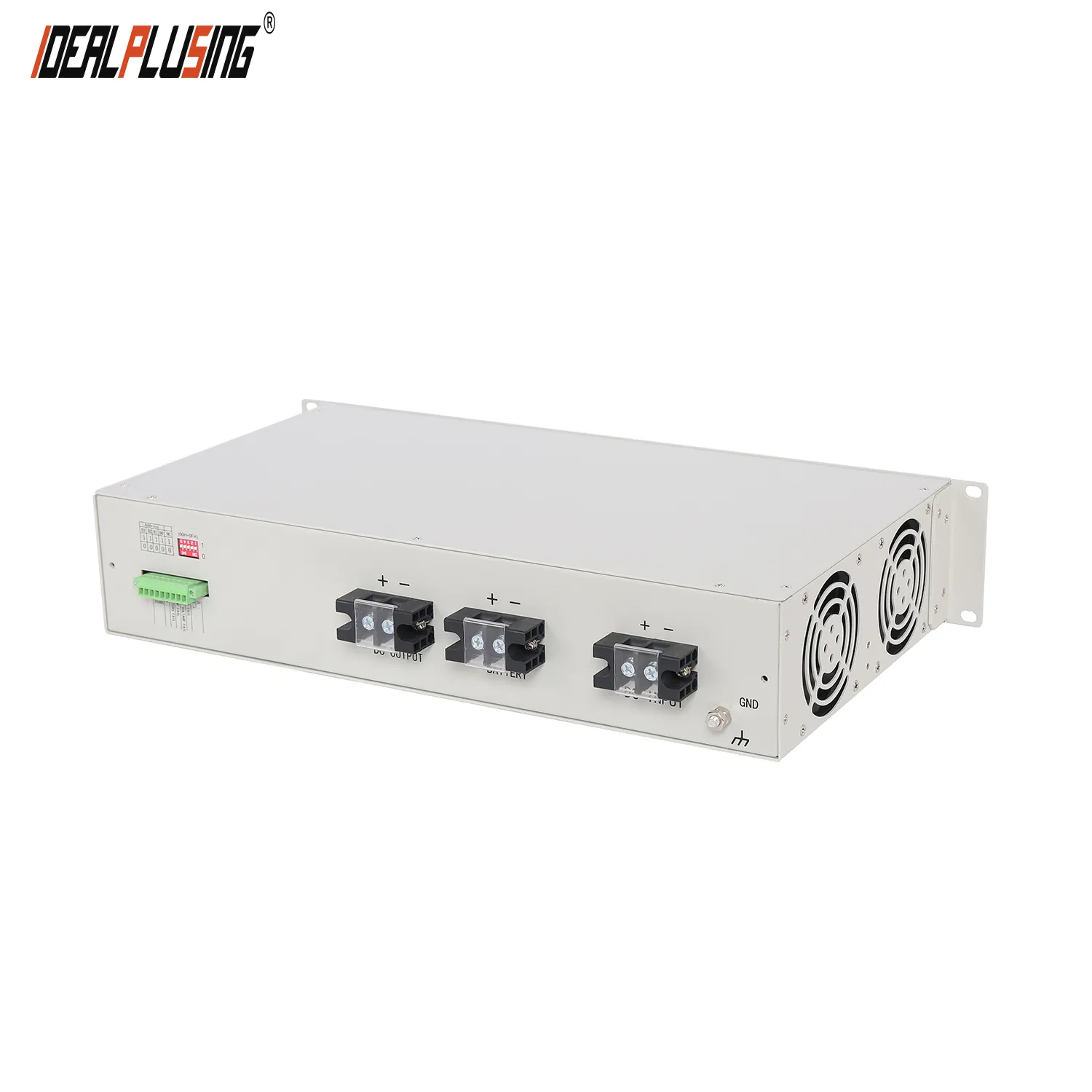

l Module with a width of 19 inches, the height of 2U standard rack-mounted design, the user installed.
l Wide operating temperature range. -10 ℃ ~ +50 ℃ temperature range can be full output power.
l Small size, light weight, easy after-sales maintenance.
l Input and output completely isolated, safe and reliable.
l Advanced current control mode and stable and reliable circuit topology.
l All the key components used in all imported devices.
l Protection function comprehensive, the output over-voltage, over-current, short circuit, the whole overheating protection.
l Can be more than a parallel flow and use. (Optional)
3. MODEL LIST
Model list-19inch Rack Mount DC DC CONVERTER-IDEALPLUSING | ||||
NO | Input Voltage -VDC | OUTPUT Voltage -VDC | Output Current AMPS | Size（MM） |
[24VDC to 48VDC] 19 inch rack mount DC DC CONVERTER | ||||
#1 | 24VDC | 48VDC | 10A | 19”2U(482*240*88) |
#2 | 24VDC | 48VDC | 20A | 19”2U(482*240*88) |
#3 | 24VDC | 48VDC | 30A | 19”2U(482*240*88) |
#4 | 24VDC | 48VDC | 40A | 19”2U(482*240*88) |
#5 | 24VDC | 48VDC | 50A | 19”2U(482*240*88) |
[24VDC to 110VDC] 19 inch rack mount DC DC CONVERTER | ||||
#6 | 24VDC | 110VDC | 5A | 19”2U(482*240*88) |
#7 | 24VDC | 110VDC | 10A | 19”2U(482*240*88) |
#8 | 24VDC | 110VDC | 20A | 19”2U(482*240*88) |
[24VDC to 125VDC] 19 inch rack mount DC DC CONVERTER | ||||
#9 | 24VDC | 125VDC | 5A | 19”2U(482*240*88) |
#10 | 24VDC | 125VDC | 10A | 19”2U(482*240*88) |
#11 | 24VDC | 125VDC | 20A | 19”2U(482*240*88) |
[48VDC to 48VDC] 19 inch rack mount DC DC CONVERTER | ||||
#12 | 48VDC | 48VDC | 10A | 19”2U(482*240*88) |
#13 | 48VDC | 48VDC | 20A | 19”2U(482*240*88) |
#14 | 48VDC | 48VDC | 30A | 19”2U(482*240*88) |
#15 | 48VDC | 48VDC | 40A | 19”2U(482*240*88) |
#16 | 48VDC | 48VDC | 50A | 19”2U(482*240*88) |
[48VDC to 24VDC] 19 inch rack mount DC DC CONVERTER | ||||
#17 | 48VDC | 24VDC | 5A | 19”2U(482*240*88) |
#18 | 48VDC | 24VDC | 10A | 19”2U(482*240*88) |
#19 | 48VDC | 24VDC | 20A | 19”2U(482*240*88) |
#20 | 48VDC | 24VDC | 30A | 19”2U(482*240*88) |
#21 | 48VDC | 24VDC | 40A | 19”2U(482*240*88) |
#22 | 48VDC | 24VDC | 50A | 19”2U(482*240*88) |
[48VDC to 110VDC] 19 inch rack mount DC DC CONVERTER | ||||
#20 | 48VDC | 110VDC | 5A | 19”2U(482*240*88) |
#21 | 48VDC | 110VDC | 10A | 19”2U(482*240*88) |
#22 | 48VDC | 110VDC | 20A | 19”2U(482*240*88) |
[48VDC to 125VDC] 19 inch rack mount DC DC CONVERTER | ||||
#23 | 48VDC | 125VDC | 5A | 19”2U(482*240*88) |
#24 | 48VDC | 125VDC | 10A | 19”2U(482*240*88) |
#25 | 48VDC | 125VDC | 20A | 19”2U(482*240*88) |
[48VDC to 220VDC] 19 inch rack mount DC DC CONVERTER | ||||
#23 | 48VDC | 220VDC | 5A | 19”2U(482*240*88) |
#24 | 48VDC | 220VDC | 10A | 19”2U(482*240*88) |
[110VDC to 24VDC] 19 inch rack mount DC DC CONVERTER | ||||
#25 | 110VDC | 24VDC | 5A | 19”2U(482*240*88) |
#26 | 110VDC | 24VDC | 10A | 19”2U(482*240*88) |
#27 | 110VDC | 24VDC | 20A | 19”2U(482*240*88) |
#28 | 110VDC | 24VDC | 30A | 19”2U(482*240*88) |
#29 | 110VDC | 24VDC | 40A | 19”2U(482*240*88) |
#30 | 110VDC | 24VDC | 50A | 19”2U(482*240*88) |
[125VDC to 24VDC] 19 inch rack mount DC DC CONVERTER | ||||
#25 | 125VDC | 24VDC | 5A | 19”2U(482*240*88) |
#26 | 125VDC | 24VDC | 10A | 19”2U(482*240*88) |
#27 | 125VDC | 24VDC | 20A | 19”2U(482*240*88) |
#28 | 125VDC | 24VDC | 30A | 19”2U(482*240*88) |
#29 | 125VDC | 24VDC | 40A | 19”2U(482*240*88) |
#30 | 125VDC | 24VDC | 50A | 19”2U(482*240*88) |
[110VDC to 48VDC] 19 inch rack mount DC DC CONVERTER | ||||
#31 | 110VDC | 48VDC | 10A | 19”2U(482*240*88) |
#32 | 110VDC | 48VDC | 20A | 19”2U(482*240*88) |
#33 | 110VDC | 48VDC | 30A | 19”2U(482*240*88) |
#34 | 110VDC | 48VDC | 40A | 19”2U(482*240*88) |
#35 | 110VDC | 48VDC | 50A | 19”2U(482*240*88) |
[125VDC to 48VDC] 19 inch rack mount DC DC CONVERTER | ||||
#36 | 125VDC | 48VDC | 20A | 19”2U(482*240*88) |
#37 | 125VDC | 48VDC | 30A | 19”2U(482*240*88) |
#38 | 125VDC | 48VDC | 40A | 19”2U(482*240*88) |
#39 | 125VDC | 48VDC | 50A | 19”2U(482*240*88) |
#40 | 125VDC | 48VDC | 60A | 19”2U(482*240*88) |
[110VDC to 110VDC] 19 inch rack mount DC DC CONVERTER | ||||
#41 | 110VDC | 110VDC | 5A | 19”2U(482*240*88) |
#42 | 110VDC | 110VDC | 10A | 19”2U(482*240*88) |
#43 | 110VDC | 110VDC | 20A | 19”2U(482*240*88) |
[125VDC to 125VDC] 19 inch rack mount DC DC CONVERTER | ||||
#44 | 125VDC | 125VDC | 5A | 19”2U(482*240*88) |
#45 | 125VDC | 125VDC | 10A | 19”2U(482*240*88) |
#46 | 125VDC | 125VDC | 20A | 19”2U(482*240*88) |
[110VDC to 220VDC] 19 inch rack mount DC DC CONVERTER | ||||
#47 | 110VDC | 220VDC | 5A | 19”2U(482*240*88) |
#48 | 110VDC | 220VDC | 10A | 19”2U(482*240*88) |
[125VDC to 220VDC] 19 inch rack mount DC DC CONVERTER | ||||
#49 | 125VDC | 220VDC | 5A | 19”2U(482*240*88) |
#50 | 125VDC | 220VDC | 10A | 19”2U(482*240*88) |
[220VDC to 24VDC] 19 inch rack mount DC DC CONVERTER | ||||
#51 | 220VDC | 24VDC | 5A | 19”2U(482*240*88) |
#52 | 220VDC | 24VDC | 10A | 19”2U(482*240*88) |
#53 | 220VDC | 24VDC | 20A | 19”2U(482*240*88) |
#54 | 220VDC | 24VDC | 30A | 19”2U(482*240*88) |
#55 | 220VDC | 24VDC | 40A | 19”2U(482*240*88) |
#56 | 220VDC | 24VDC | 50A | 19”2U(482*240*88) |
[220VDC to 48VDC] 19 inch rack mount DC DC CONVERTER | ||||
#57 | 220VDC | 48VDC | 10A | 19”2U(482*240*88) |
#58 | 220VDC | 48VDC | 20A | 19”2U(482*240*88) |
#59 | 220VDC | 48VDC | 30A | 19”2U(482*240*88) |
#60 | 220VDC | 48VDC | 40A | 19”2U(482*240*88) |
#61 | 220VDC | 48VDC | 50A | 19”2U(482*240*88) |
[220VDC to 110VDC] 19 inch rack mount DC DC CONVERTER | ||||
#62 | 220VDC | 110VDC | 5A | 19”2U(482*240*88) |
#63 | 220VDC | 110VDC | 10A | 19”2U(482*240*88) |
#64 | 220VDC | 110VDC | 20A | 19”2U(482*240*88) |
[220VDC to 125VDC] 19 inch rack mount DC DC CONVERTER | ||||
#65 | 220VDC | 125VDC | 5A | 19”2U(482*240*88) |
#66 | 220VDC | 125VDC | 10A | 19”2U(482*240*88) |
#67 | 220VDC | 125VDC | 20A | 19”2U(482*240*88) |
[220VDC to 220VDC] 19 inch rack mount DC DC CONVERTER | ||||
#68 | 220VDC | 220VDC | 5A | 19”2U(482*240*88) |
#69 | 220VDC | 220VDC | 10A | 19”2U(482*240*88) |
4. MAIN PARAMETER
Technical Data(IPS-DTD220S24) | 10 | 20 | 30 | 40 | 50 | Test Conditions | |
Input Voltage Range(VDC) | 180～270VDC | ||||||
Module Power Surge (A) | DC≤2A | Output Full Load | |||||
Output Float Voltage (V) | 24VDC | Factory Settings | |||||
Output Current （A） | 10A | 20A | 30A | 40A | 50A | Output Limit 101％～105％ | |
Load Regulation | ≤±0.5％ | Output without load to full load | |||||
Power Regulation | ≤±0.2％ | ||||||
Dynamic Response | 100usMax | 20％～100％ Load | |||||
Phone Scale Noise Voltage（mV） | ≤2 | Noise meter | |||||
Peak - peak Noise Voltage (mV) | ≤100 | 0~20MHz | |||||
Efficiency | ≥83％ | ||||||
Current Deviation | ≤±5％ | ||||||
Temperature Coefficient (℃) | 0.02％ | ||||||
Over-temperature protection (℃) | 95±5 | Radiator will close when temperature is over 95℃, can recover. | |||||
Working Temperature (℃) | -5~45 | ||||||
Storage Temperature (℃) | -10~85 | ||||||
Working Humidity | 5％~95％ | Non-condensing | |||||
Insulation Strength | Leakage Current <30mA | 500Vdc/1min | |||||
Insulation Resistance (MΩ) | ≥20 | DC 1KV | |||||
MTBF (hrs.) | 100000 | ||||||
Net Weight (Kg) | 7.5 | ||||||
Gross Weight (Kg) | 9.5 | ||||||
Dimension | Rack-mounted (mm) (L * H * D) | 482*88*240(MM) | |||||
Dimension | Package | 613*155*413(MM) | |||||
