Ⅰ.TECHINCAL PARAMETER

Brand	IDEALPLUSING
Model	IPS-IY-108-12

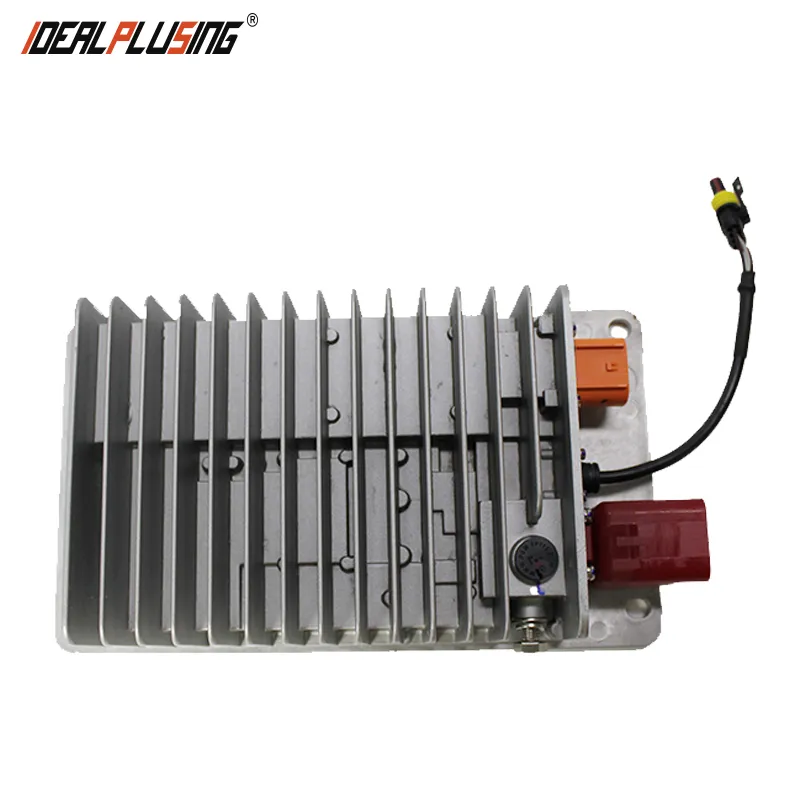

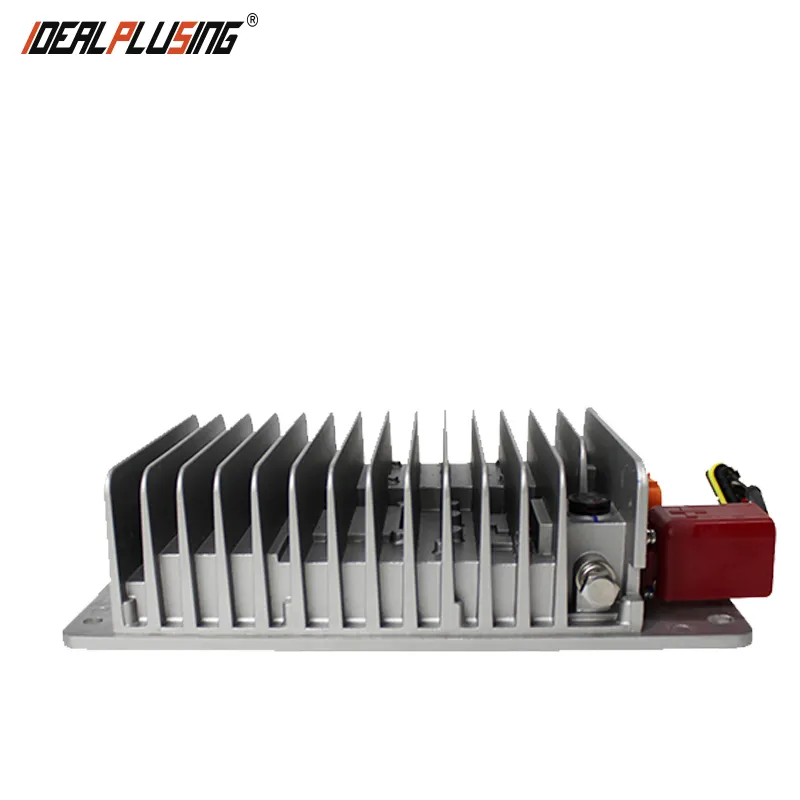

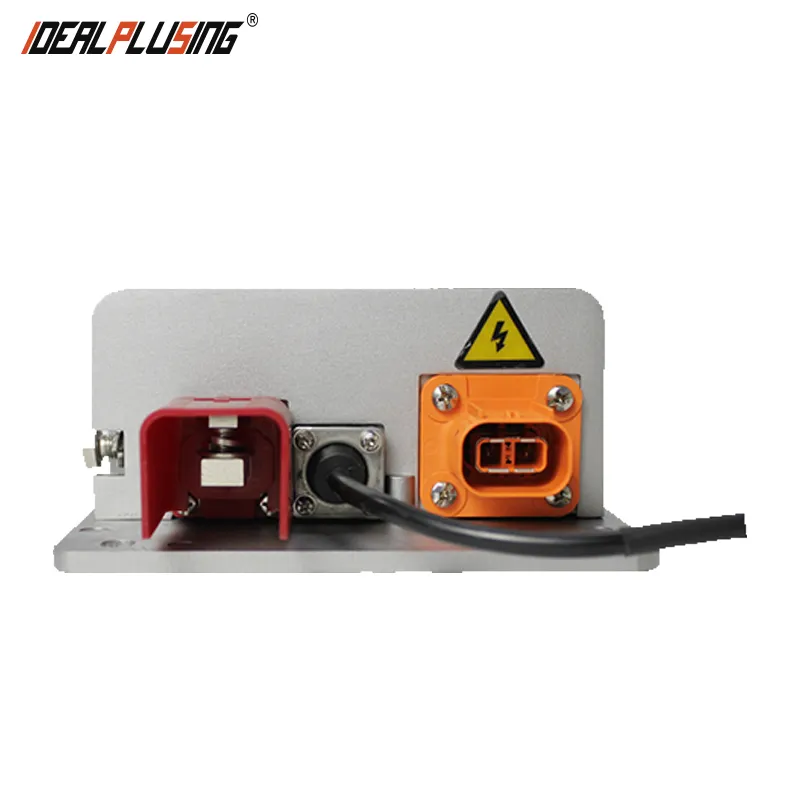

Product name	DC-DC Converter
Type of cooling	Nature Cooling
Power	1000W
Output Voltage	14V
Output Voltage Range	8-15V
Output Current	72A
DC Input voltage	96V/108V
DC Input voltage Range	74-162V
DC Input Current	10A/11A
Max Input Current	18A
NW; GW	NW: 2.7KG; GW: 3.7KG
Dimension	45.524.518(MM)

Ⅱ .MODEL LIST

MODEL	Output Voltage	Output Current
IPS-IY-72-12	14V	72A
IPS-IY-108-12	14V	72A
IPS-IY-144-12	14V	72A
IPS-IY-320-12	14V	72A
IPS-JH-72-12	14V	110A
IPS-JH-108-12	14V	110A
IPS-JH-144-12	14V	110A
IPS-JH-320-12	14V	110A
IPS-TCD-320-14	14V	143A
