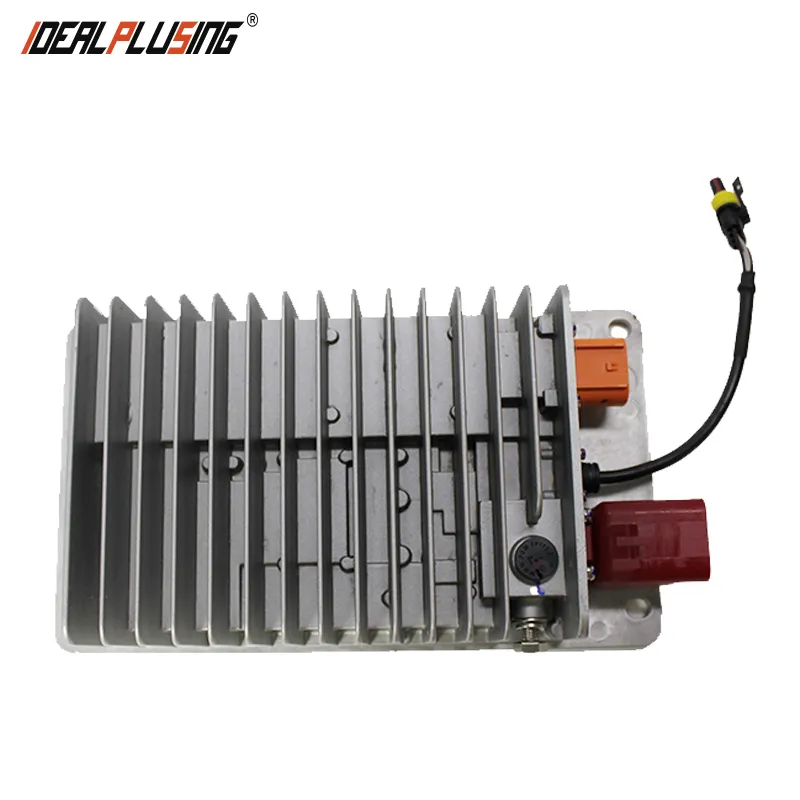

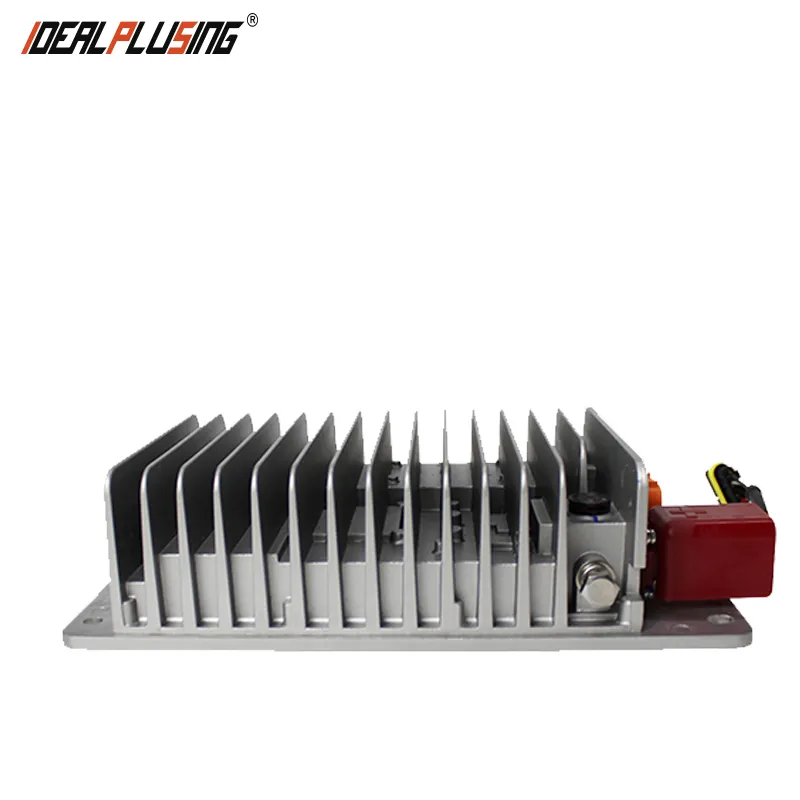

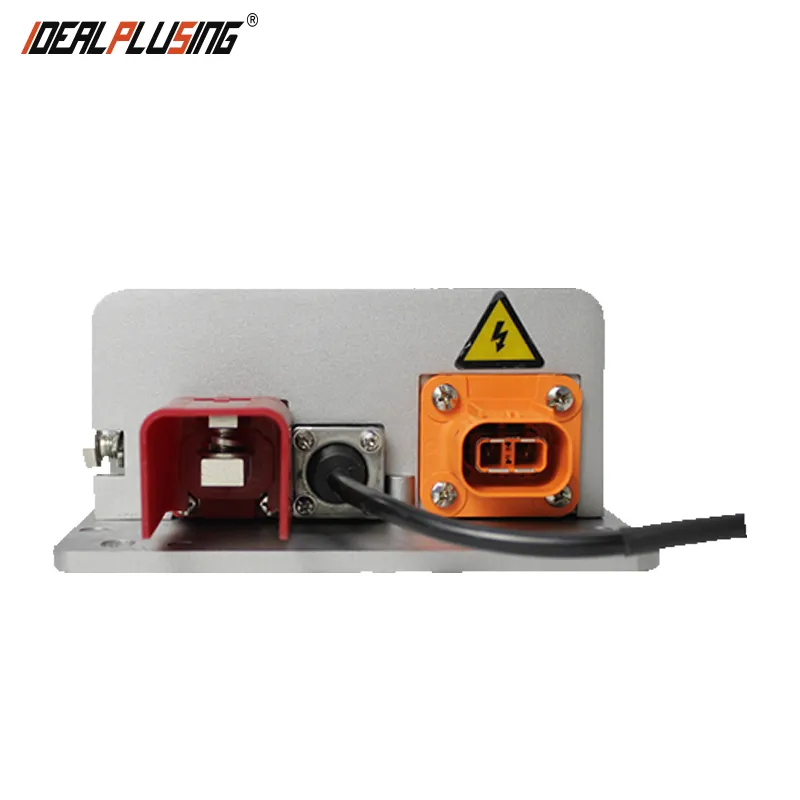

IPS-IY-144-12 IDEALPLUSIN CAN BUS protocal 1KW 144V input 14V output EV dc/dc converter
Model: IPS-IY-144-12
① Type of cooling: Nature Cooling
② Power: 1000W
③ Output Voltage: 14V
④ Output Current: 72A
⑤ DC Input voltage: 144V
⑥ DC Input Current: 7.5A
⑦ Max Input Current: 12A
⑧ NW: 2.7KG; GW: 3.7KG
⑨ Size: 45.5*24.5*18(MM)
Ⅰ.TECHINCAL PARAMETER
Brand | IDEALPLUSING |
Model | IPS-IY-144-12 |
Product name | DC-DC Converter |
Type of cooling | Nature Cooling |
Power | 1000W |
Output Voltage | 14V |
Output Voltage Range | 8-15V |
Output Current | 72A |
DC Input voltage | 144V |
DC Input voltage Range | 103-227V |
DC Input Current | 7.5A |
Max Input Current | 12A |
NW; GW | NW: 2.7KG; GW: 3.7KG |
Dimension | 45.5*24.5*18(MM) |
Ⅱ .MODEL LIST
MODEL | Output Voltage | Output Current |
IPS-IY-72-12 | 14V | 72A |
IPS-IY-108-12 | 14V | 72A |
IPS-IY-144-12 | 14V | 72A |
IPS-IY-320-12 | 14V | 72A |
IPS-JH-72-12 | 14V | 110A |
IPS-JH-108-12 | 14V | 110A |
IPS-JH-144-12 | 14V | 110A |
IPS-JH-320-12 | 14V | 110A |
IPS-TCD-320-14 | 14V | 143A |
