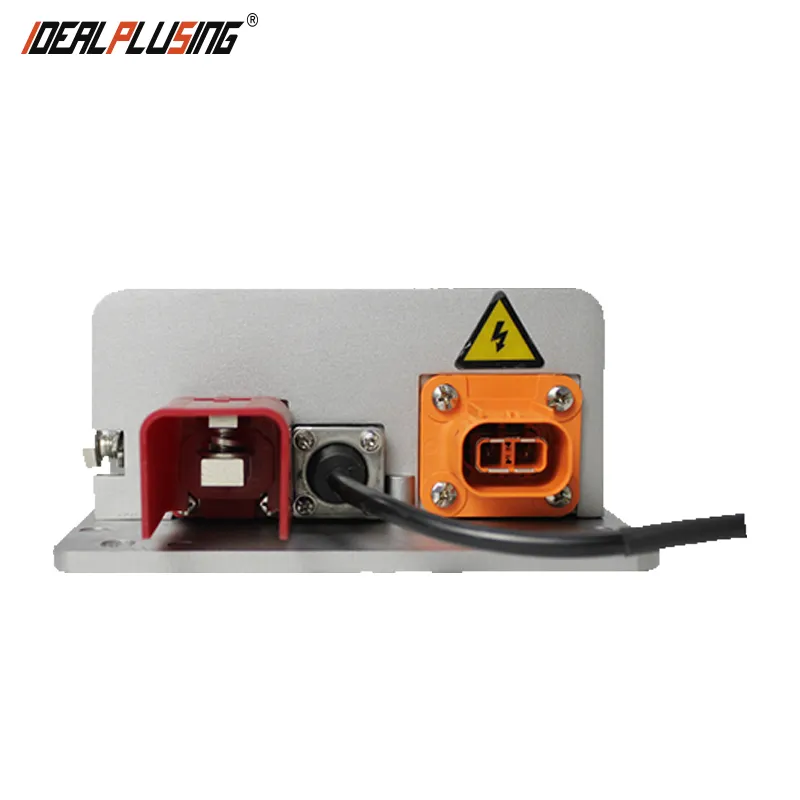

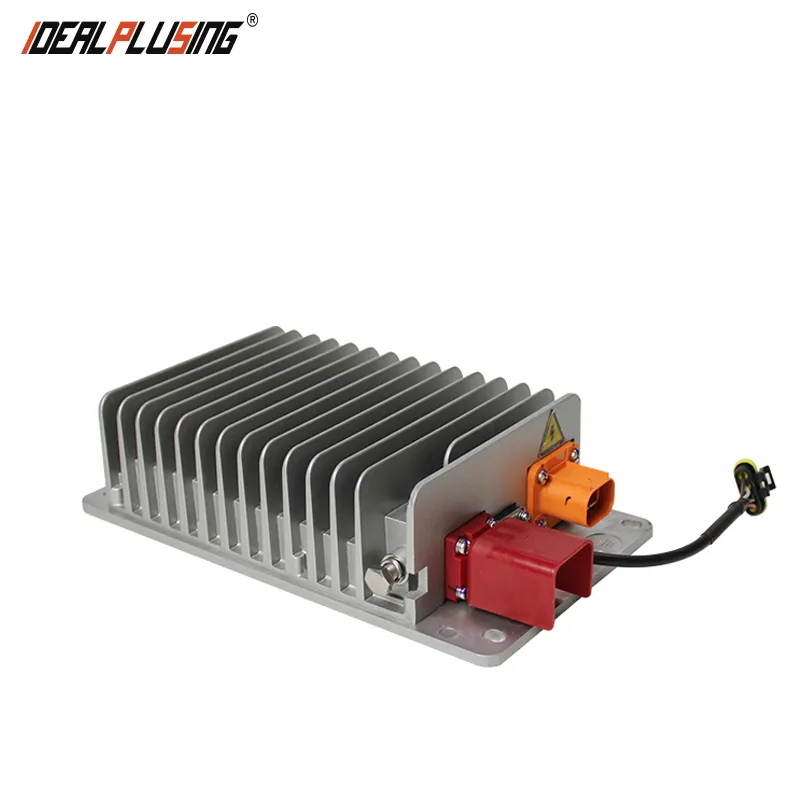

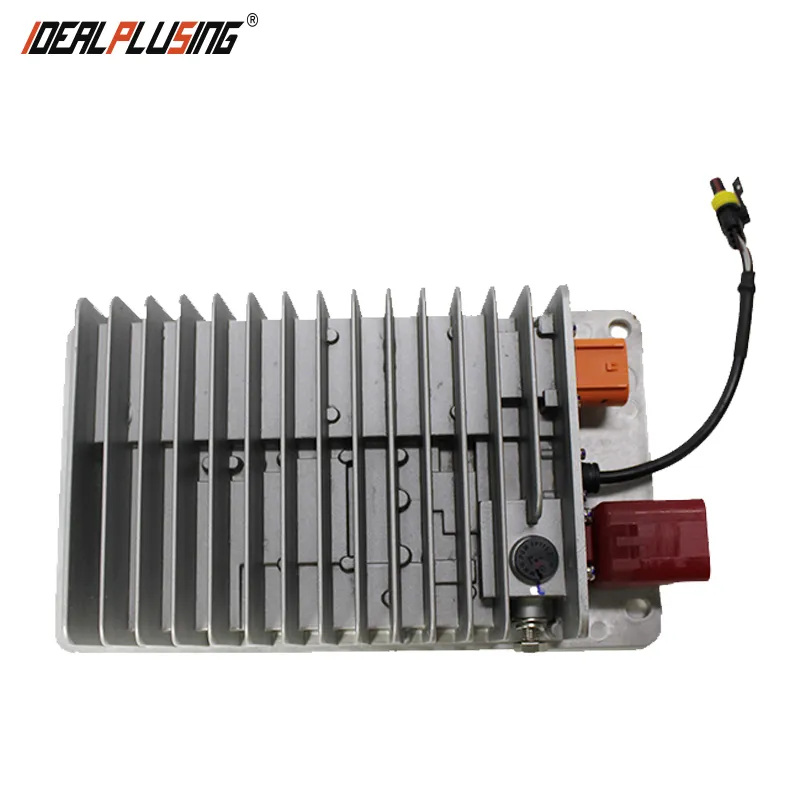

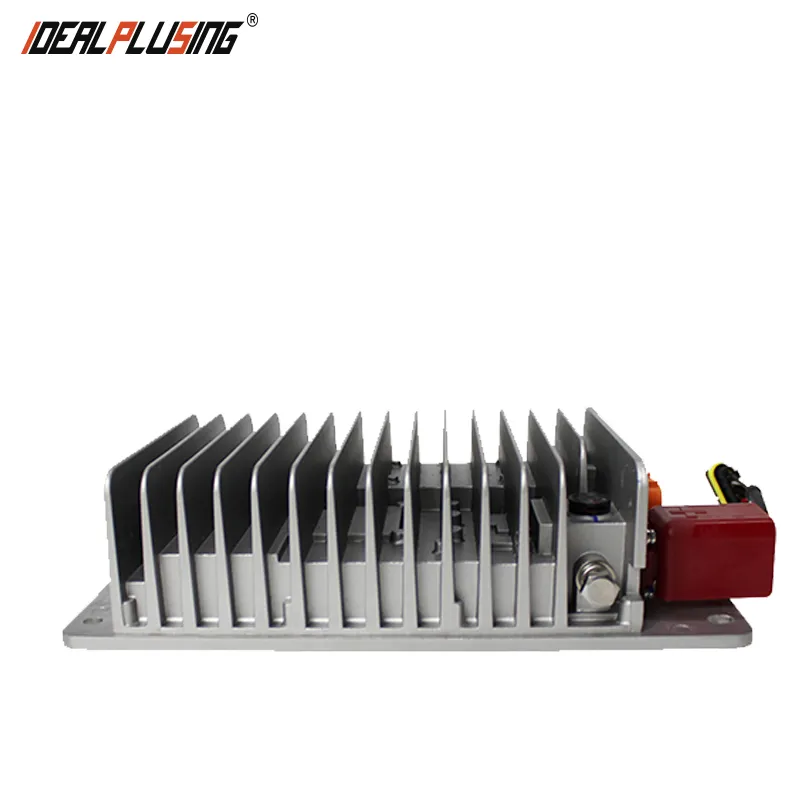

IPS-JH-144-12 IDEALPLUSIN car voltage buck module step down transformer 72A 1KW dc dc 144v to 14v converter
Model: IPS-JH-144-12
① Type of cooling: Enforce Air Cooling
② Power: 1500W
③ Output Voltage: 14V
④ Output Current: 110A
⑤ DC Input voltage: 144V
⑥ DC Input Current: 12A
⑦ Max Input Current: 23A
⑧ NW: 2.3KG; GW: 3.3KG
⑨ Size: 45.5*24.5*18(MM)
Ⅰ.TECHINCAL PARAMETER
Brand | IDEALPLUSING |
Model | IPS-JH-144-12 |
Product name | DC-DC Converter |
Type of cooling | Enforce Air Cooling |
Power | 1500W |
Output Voltage | 14V |
Output Voltage Range | 9-15V |
Output Current | 110A |
DC Input voltage | 144V |
DC Input voltage Range | 88-195V |
DC Input Current | 12A |
Max Input Current | 23A |
NW; GW | NW: 2.3KG; GW: 3.3KG |
Dimension | 45.5*26.1* 15.5(MM) |
Ⅱ .MODEL LIST
MODEL | Output Voltage | Output Current |
IPS-IY-72-12 | 14V | 72A |
IPS-IY-108-12 | 14V | 72A |
IPS-IY-144-12 | 14V | 72A |
IPS-IY-320-12 | 14V | 72A |
IPS-JH-72-12 | 14V | 110A |
IPS-JH-108-12 | 14V | 110A |
IPS-JH-144-12 | 14V | 110A |
IPS-JH-320-12 | 14V | 110A |
IPS-TCD-320-14 | 14V | 143A |
