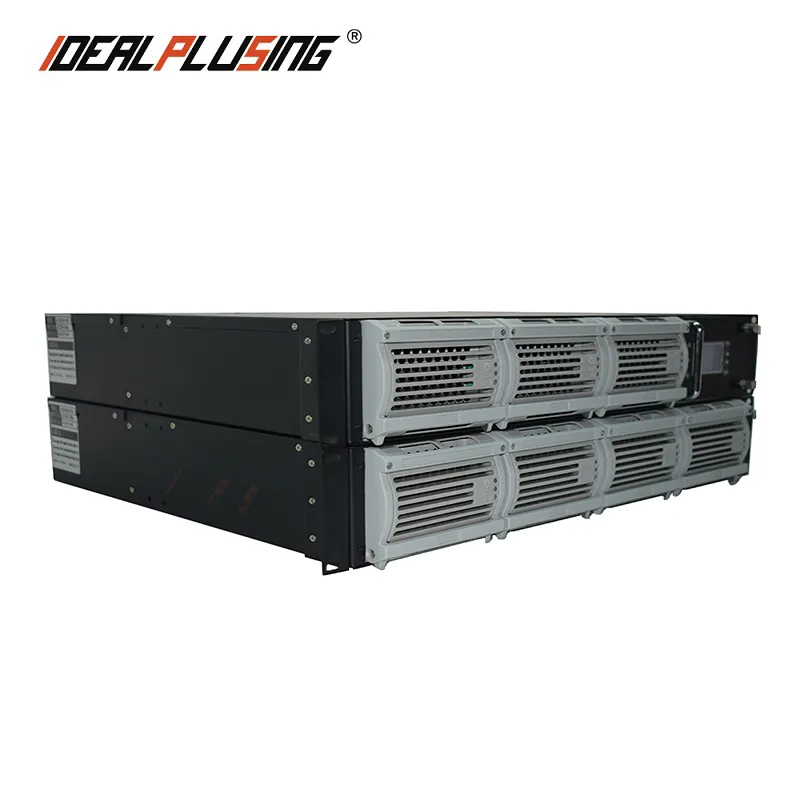

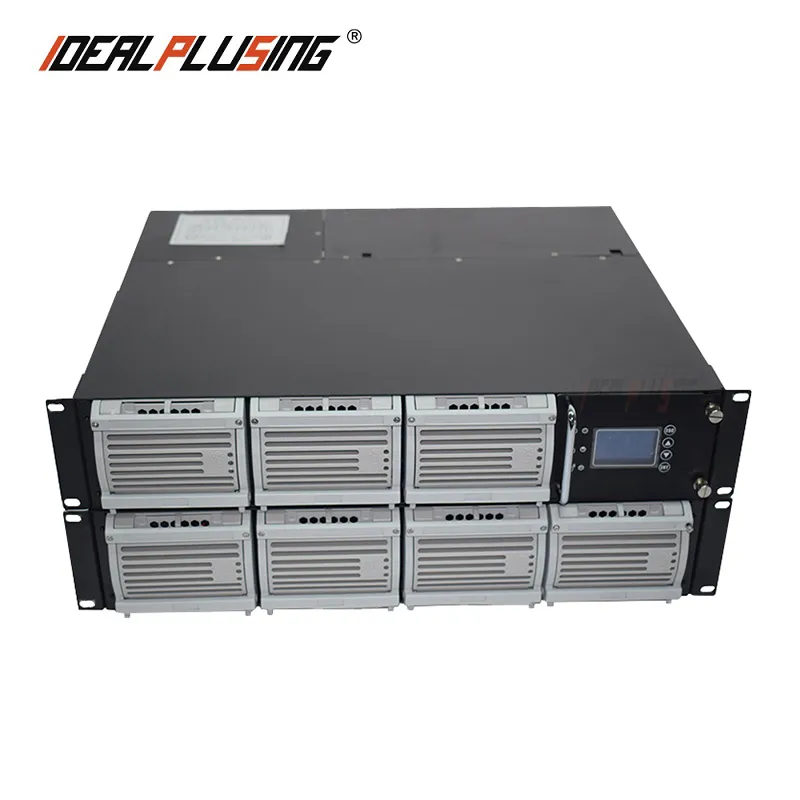

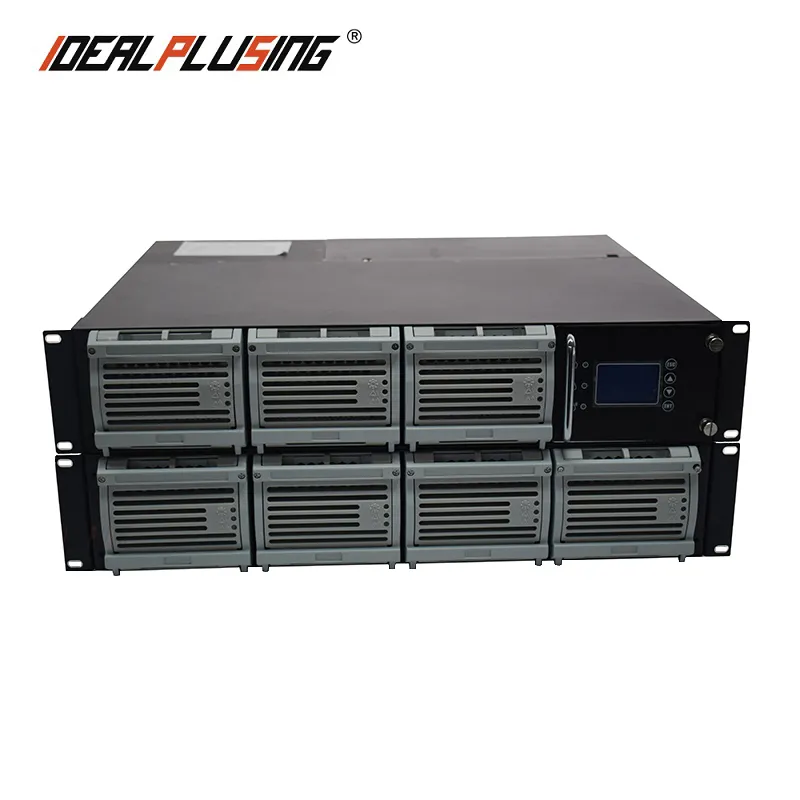

Key Specifications
Brand | IDEALPLUSING |
Model | IPS-RS24490 |
Rated Input Voltage | 220VAC |
Output Voltage | 24VDC |
Output Current | 490A |
Size | 4U-482*410*176(MM) |
NW/GW | 44KG/47KG |
Control & Communications
The System can release control signals according to certain monitored measurement result or the control commands from the host. Its control functions include:
1) Turning on/off the rectifier module according to the corresponding commands sent by the host.
2) Starting/stopping the fans according to the control mode and start/stop temperature sent by the host and the present temperature.
3) Turning on/off the power for loads of batteries according to the corresponding command and system parameters sent by the host
4) Controlling the on/off status of two digital outputs according to the control command sent by the host
5) Controlling the equalized /floating charge statuses according to the control command, control mode and system parameters sent by the host
6) Controlling audio/visible alarm according to the present alarm status of the system
7) Starting/stopping the test on battery discharge according to the control command, and present system status sent by host.
8) Controlling the battery OTP according to the control command. control mode and system parameters sent by the host

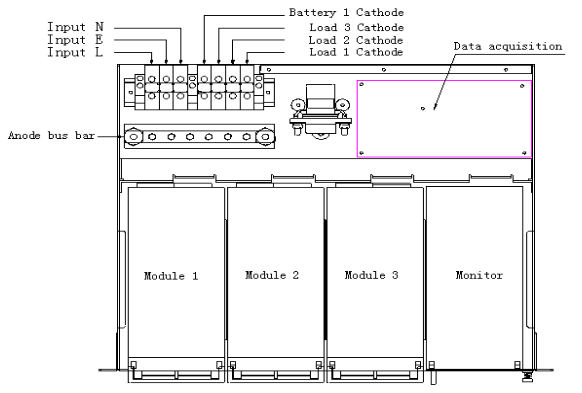

Application of the AC/DC Distribution
Product Description
24VDC Rectifier Module Technical Properties
AC Input properties | |
Input voltage (Vac) | 220VAC |
Input voltage range (Vac) | 290V-185VAC (± 10V) |
Enter the frequency | Rated input frequency: 50 / 60HZ, fluctuation range: 45Hz ~ 66Hz |
DC Output properties | |
Rated output current (A) | 70A |
Rated output power (W) | 2000W |
Rated output voltage (V) | 24VDC |
Output voltage range (V) | 20-30VDC |
All charge voltage (V) | 28.2VDC |
Float voltage (V) | 26.7VDC |
Output voltage accuracy (V) | ≤0.6％ |
Output ripple voltage | ≤200mV<0-20mHZ> |
Power Factor | 0.99 |
Dielectric strength | Output- chassis：500Vdc |
Leakage current | ≤1.5mA |
Effectiveness | 93% |
Environment | |
Dielectric strength | 1500Vac，1min |
Noise (1 meter) | ≤40dB |
Use the ambient temperature | -20℃~+50℃ |
Humidity | 0~90%，No condensation |
Use altitude (m) | ≤2000 |
Indicator | |
LCD display | Input and output voltage, frequency, output current, temperature, percentage and so on |
Power status | Mains normal, the output is normal, the battery voltage, output overload |
Dimension & Weight | |
Size(MM) | 260*103*88 (D*H*W) |
Weight(KG) | ≤2.4 |
48VDC Rectifier Module Technical Properties
AC Input properties | |
Input | 185～300VAC normal output (220Vac) |
85～185VAC reduce output(110Vac) | |
DC Output properties | |
48VDC output | maximum output power 3000W(220Vac) |
Max output power (1500W)(110V ac) | |
DC output voltage range | 42V-59V |
DC output current | 50A |
DC output maximum current | 50A |
Voltage regulation precision | ≤ 0.6% |
Load regulation | ≤ 0.5% |
Voltage regulation | ≤ 0.13% |
limited-current output properties | |
Range: | 0~110% |
Power factor | 0.99(input and out being rated) |
Efficiency | ≥ 93% |
Equalized-current imbalance | ≤ 3% |
DC output noise | |
Weighted psophometric noise | ≤2mv |
Wide frequency noise voltage | ≤100mv (3.4 kHz~150 kHz) |
≤30mv (150 kHz~30 MHz) | |
≤200mv (within 20 MHz) | |
Noise | ≤45dB（A） |
Protection | |
Over-current protection | Over-current protection of input Over-current protection of output Over-current protection of PFC |
Alarm & Protection | Yes |
Short circuit protection (reduce input current to protect) | Yes |
Over-voltage & low-voltage protection | Input low-voltage protection: 85+5V Input over-voltage protection: 290 ± 5V Output over-voltage protection: 58.5±1V |
Over-voltage protection | Yes |
Low-voltage protection | Yes |
Over- temperature protection | (default value 80℃) |
Environment | |
Work tem | -25℃ ~ 65℃ |
Storage temp | -40℃ ~85℃ |
Relative humidity | ≤97%RH |
Height above sea level | ≤2000m |
Size of the module | |
Size((MM) | 88(H)×103 (W)×261(L) |
Weight(KG) | ≤2.4 |
110VDC Rectifier Module Technical Properties
AC Input properties | |
Input voltage (Vac) | 220VAC |
Input voltage range (Vac) | 290V-185VAC(± 10V) |
Enter the frequency | Rated input frequency: 50 / 60HZ, fluctuation range: 45Hz ~ 66Hz |
DC Output properties | |
Rated output current (A) | 20A |
Rated output power (W) | 2000W |
Rated output voltage (V) | 110VDC |
Output voltage range (V) | 90-130VDC |
All charge voltage (V) | 121VDC |
Float voltage (V) | 127VDC |
Output voltage accuracy (V) | ≤0.6％ |
Output ripple voltage | ≤200mV<0-20mHZ> |
Power Factor | 0.99 |
Dielectric strength | Output- chassis：500Vdc |
Leakage current | ≤1.5mA |
Effectiveness | 93% |
Environment | |
Dielectric strength | 1500Vac，1min |
Noise (1 meter) | ≤40dB |
Use the ambient temperature | -20℃~+50℃ |
Humidity | 0~90%，No condensation |
Use altitude (m) | ≤2000 |
Indicator | |
LCD display | Input and output voltage, frequency, output current, temperature, percentage and so on |
Power status | Mains normal, the output is normal, the battery voltage, output overload |
Dimension & Weight | |
Size(MM) | 260*103*88(D*H*W) |
Weight(KG) | ≤2.4 |
220VDC Rectifier Module Technical Properties
AC Input properties | |
Input voltage (Vac) | 220Vac |
Input voltage range (Vac) | 290V-185Vac (± 10V) |
Enter the frequency | Rated input frequency: 50 / 60HZ, fluctuation range: 45Hz ~ 66Hz |
DC Output properties | |
Rated output current (A) | 10A |
Rated output power (W) | 2000W |
Rated output voltage (V) | 220V |
Output voltage range (V) | 180-260Vdc |
All charge voltage (V) | 242VDC |
Float voltage (V) | 253VDC |
Output voltage accuracy (V) | ≤0.6％ |
Output ripple voltage | ≤200mV<0-20mHZ> |
Power Factor | 0.99 |
Dielectric strength | Output- chassis：500Vdc |
Leakage current | ≤1.5mA |
Effectiveness | 93% |
Environment | |
Dielectric strength | 1500Vac，1min |
Noise (1 meter) | ≤40dB |
Use the ambient temperature | -20℃~+50℃ |
Humidity | 0~90%，No condensation |
Use altitude (m) | ≤2000 |
Indicator | |
LCD display | Input and output voltage, frequency, output current, temperature, percentage and so on |
Power status | Mains normal, the output is normal, the battery voltage, output overload |
Dimension & Weight | |
Size(MM) | 260*103*88 (D*H*W) |
Weight(KG) | ≤2.4 |
