Ⅰ. Product Introduction
The high voltage AC power supply is a rack-mounted high voltage power supply, which is mainly used in DBD dielectric barrier discharge experiments, sliding arc experiments, ozone generator matching, corona equipment matching and other related fields. The power supply is simple to operate, easy to install, has a complete protection circuit, and is suitable for harsh working environments.
Ⅱ. Specification
Brand | IDEALPLUSING |
Model | IPS-ATAJ10kV-400mA |
Input Voltage | AC 220V±10% 50/60Hz Mains Electricity |
Output Peak Voltage | 0-10kVAC |
Output Peak Current | 0-400mA |
Output Peak Power | 4000W |
Output Frequency | 10-20kHz |
Waveform | Sine Wave |
Center Frequency | ±5% |
Voltage Regulation | Standard Value 3-5% |
High Voltage Stability | ±0.5% Per Hour After 1 Hour Of Startup |
Temperature Coefficient | 100 ppm Per Degree Celsius |
Ambient Temperature | -25～+55℃ |
Slope | ＞45° |
Use Environment | No Conductive, No Corrosive Metal Liquid, No Condensation |
Case Material | Aluminum |
Power Supply Case Size | W443*D503*H133(MM) |
Weight | 16.55 KG |
Ⅲ. The Overall Structure

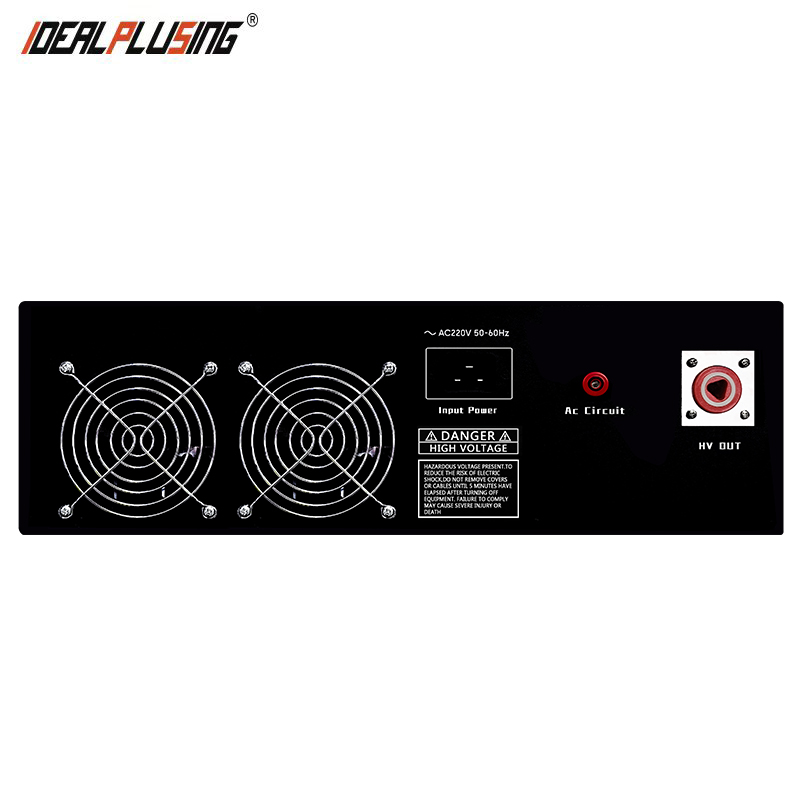

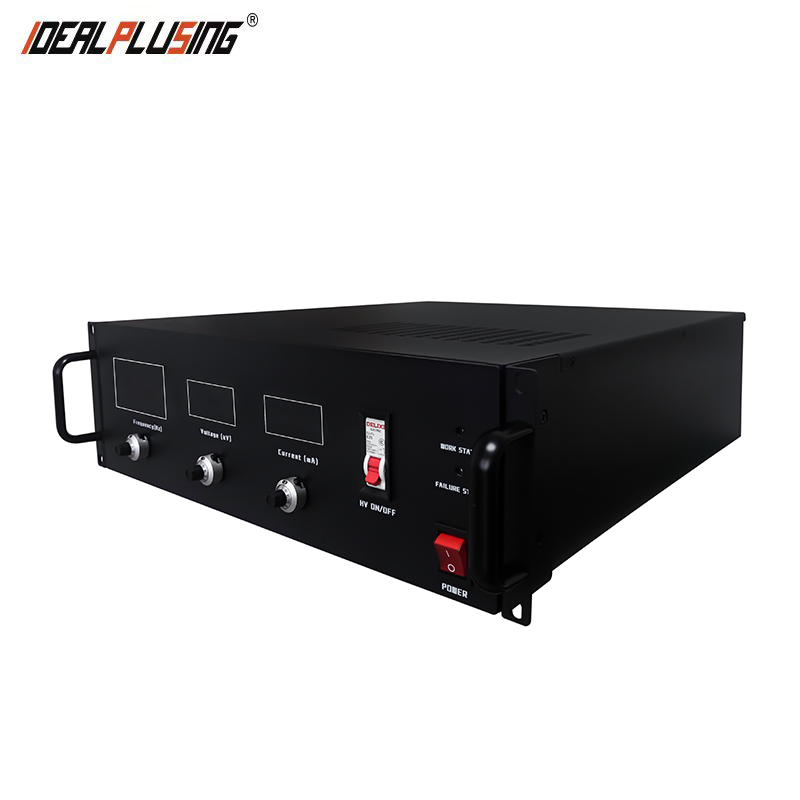

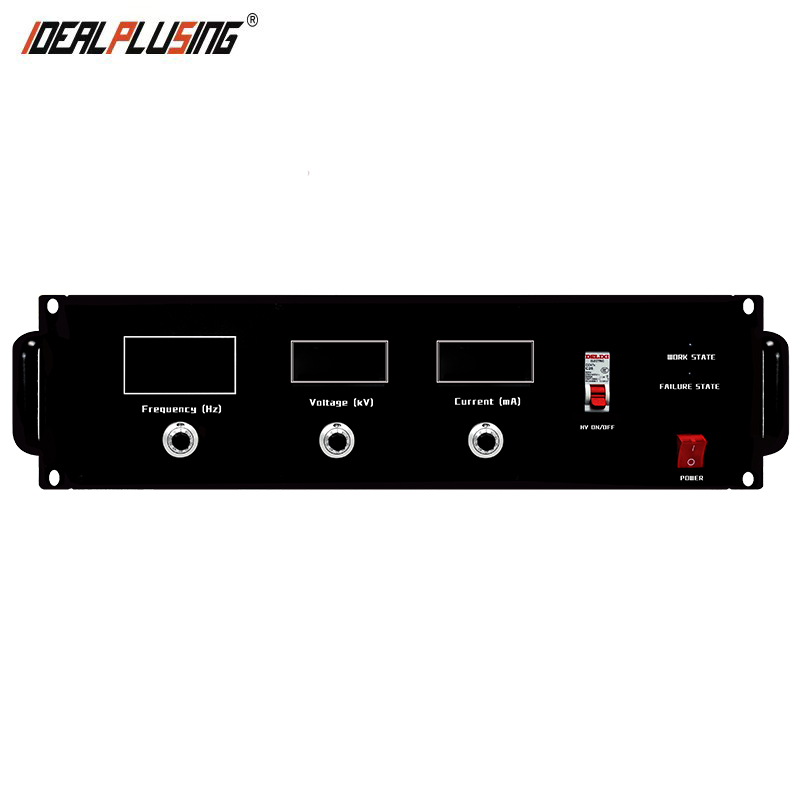

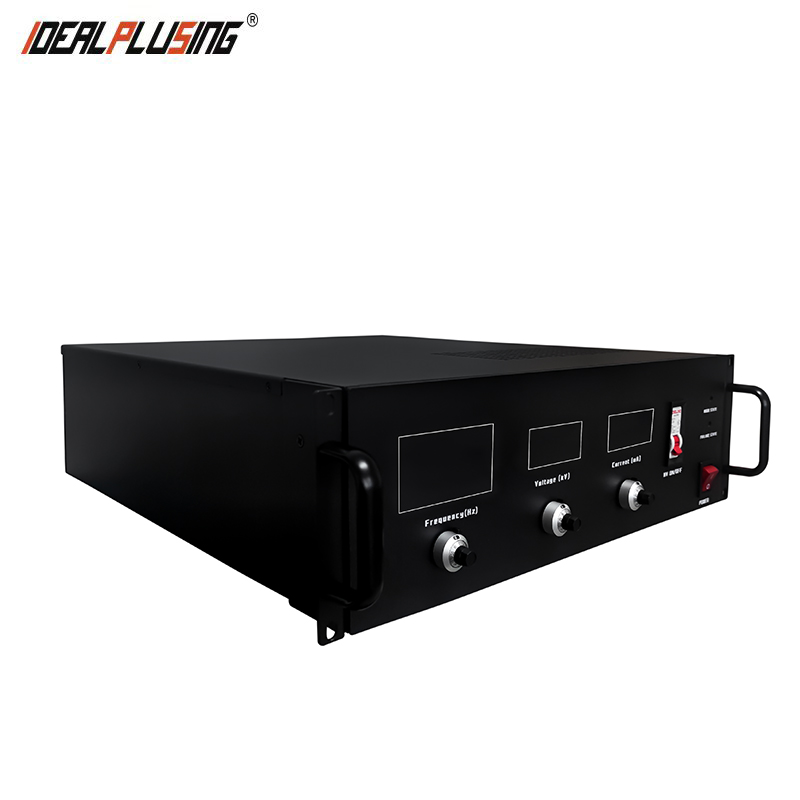

The front panel of the power supply consists of a power switch, a high voltage switch (HV ON/OFF), a frequency adjustment, a voltage adjustment, a current adjustment, a voltage display, a current display, a frequency display, a fault indication (FailureState), a working indication (Work State), and a chassis handle.
Ⅳ. Model List
Model | Output Peak Voltage | Output Peak Current | Output Peak Power | Frequency (FF:Fixed Frequency; AF:Adjust Frequency) | Case Material |
IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 1000W | 10kHz (FF) | Aluminum |
IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 1000W | 20kHz (FF) | Aluminum |
IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 1000W | 30kHz (FF) | Aluminum |
IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 1000W | 40kHz (FF) | Aluminum |
IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 1000W | 50kHz (FF) | Aluminum |
IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 1000W | 15kHz-25KHz (AF) | Aluminum |
IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 1000W | 10kHz-30KHz (AF) | Aluminum |
IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 1000W | 25kHz-35KHz (AF) | Aluminum |
IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 1000W | 35kHz-45KHz (AF) | Aluminum |
IPS-ATAJ10kV-100mA | 10kVAC | 100mA | 1000W | 20kHz-50KHz (AF) | Aluminum |
IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 4000W | 10kHz (FF) | Aluminum |
IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 4000W | 20kHz (FF) | Aluminum |
IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 4000W | 30kHz (FF) | Aluminum |
IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 4000W | 40kHz (FF) | Aluminum |
IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 4000W | 50kHz (FF) | Aluminum |
IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 4000W | 10kHz-20kHz (AF) | Aluminum |
IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 4000W | 15kHz-25kHz (AF) | Aluminum |
IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 4000W | 15kHz-30kHz (AF) | Aluminum |
IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 4000W | 20kHz-40kHz (AF) | Aluminum |
IPS-ATAJ10kV-400mA | 10kVAC | 400mA | 4000W | 20kHz-50kHz (AF) | Aluminum |
