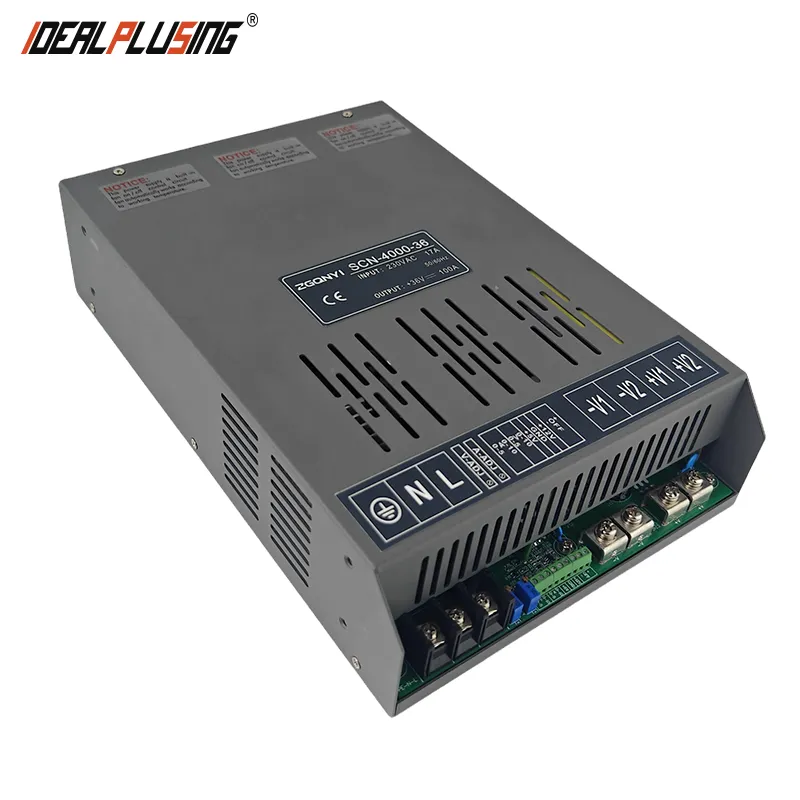

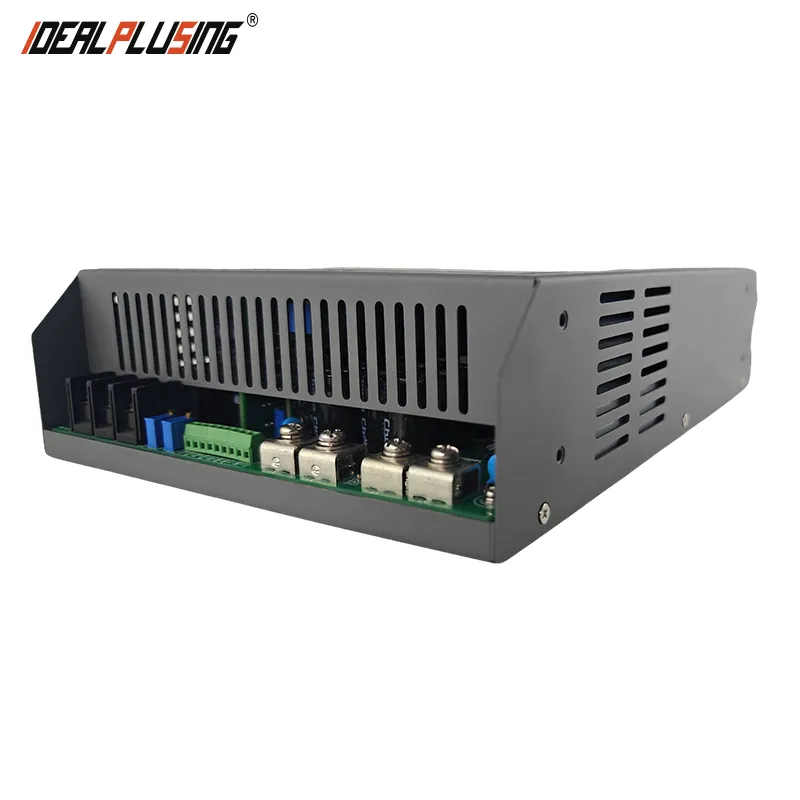

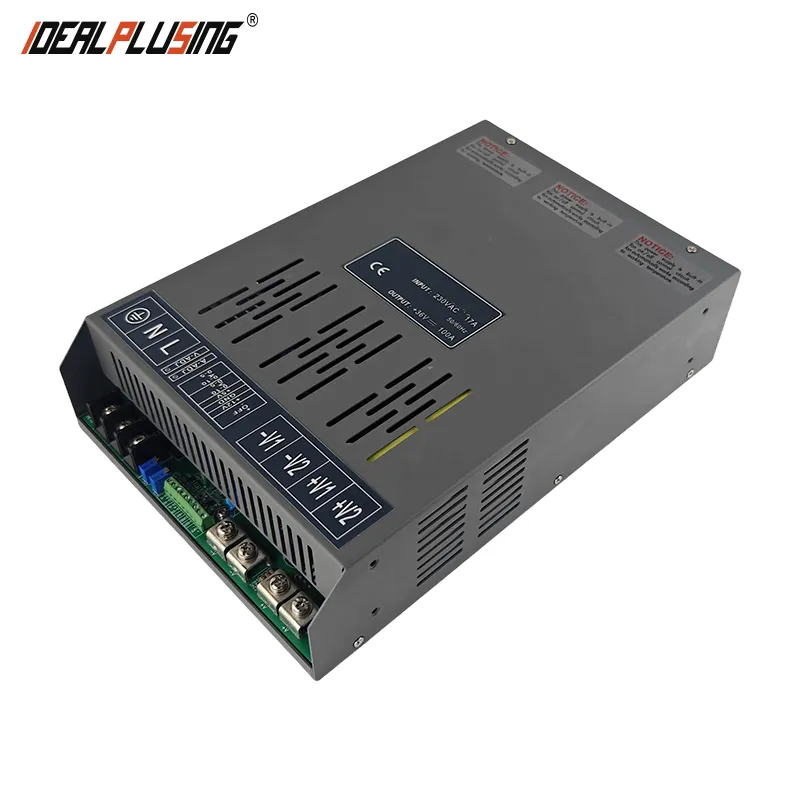

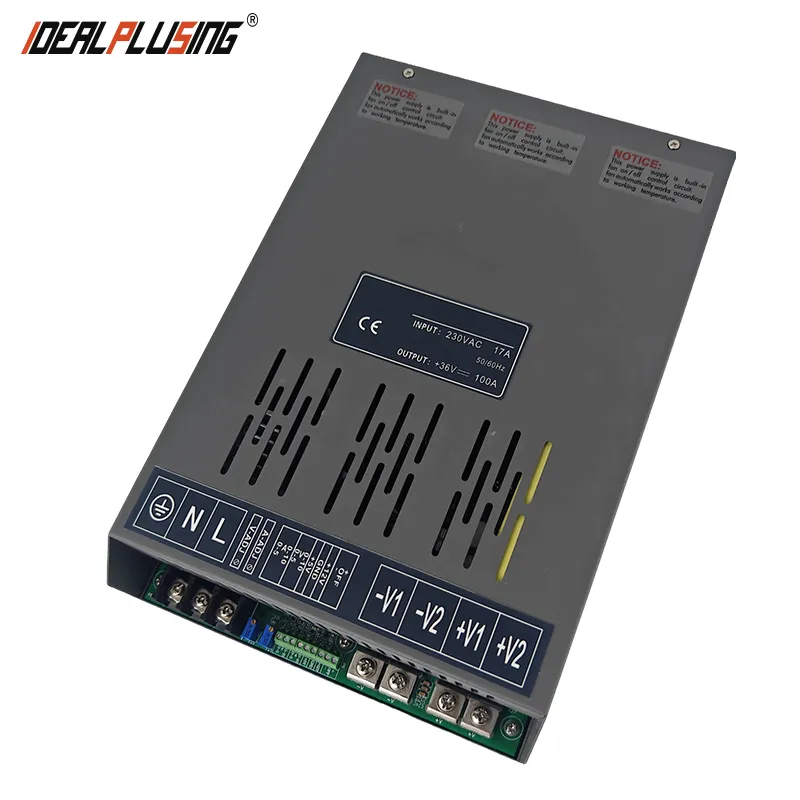

IPS-SP-4000W IDEALPLUSING 12V 24V 36V 48V 72V 96V 110V 220VHigh-Power Switching Power Supply
MODEL：IPS-SP-4000W High Power Switching Power Supply 4000W SPECIFICATION： ① AC input: Single-phase 100-120VAC /200-240VAC 50/60hz ② DC output: 12VDC, 24VDC, 36VDC, 48VDC, 72VDC, 96VDC, 20VDC, 150VDC, 200VDC ③ Power: 4000W ④ Dimension: 300*200*70MM ⑤ NW: 4.1KG We specialize in customizing switching converters to meet your specific requirements. With customized input and output voltages and currents, our products range from 1V to 1000V and 1A to 1000A. We provide one-to-one customization services. You tell us your needs and we will recommend the best solution for you.

文章博客推荐图 (5).jpg

DESCRIPTION

IPS-SP4000W is a 4KW single output enclosure AC to DC power supply. The entire series has an input voltage range of 180 - 264 VAC / 250 - 370 VDC and can provide DC output that can meet most industrial needs. Each model can be cooled by an internal speed-controlled fan and the operating temperature can reach 60℃. Built-in functions such as output voltage, current adjustment, current sharing, remote on/off control, 485 communication control, auxiliary power supply and other functions provide a variety of design flexibility.



FEATURES

●Protection types: short circuit/overcurrent/overvoltage/overtemperature

●Working efficiency up to 93% ·485 communication control

●Voltage input range: 180 - 264 VAC / 250 - 370 VDC

●Power factor PF≧0.99



APPLICATIONS

●Industrial control or automation equipment

●Testing and measuring instruments

●Laser-related machines

●UV curing equipment

●Charging equipment

●Aging equipment


SPECIFICATION

Technical Performance

Technical Index

Model

IPS-SP -4000-12

IPS-SP -4000-24

IPS-SP -4000-36

IPS-SP -4000-48

IPS-SP -4000-72

IPS-SP -4000-96

IPS-SP -4000-110

IPS-SP -4000-150

IPS-SP -4000-220

Output

DC Voltage

12VDC

24VDC

36VDC

48VDC

72VDC

96VDC

110VDC

150VDC

220VDC

Rated Current

290A

166.7A

111A

83.3A

55.6A

41.7A

36.4A

26.7A

18.2A

Current Range

0 - 290A

0 - 166.7A

0 - 111A

0 - 83.3A

0 - 55.6A

0 - 41.7A

0 - 36.4A

0 - 26.7A

0 - 18.2A

Rated Power

3500W

4000W

Ripple

250 mV

270 mV

300 mV

400 mV

500 mV

600 mV

850 mV

900 mV

1000 mV

Constant Current Optimum Range

6 - 12V

12 - 24V

18 - 36V

24 - 48V

36 - 72V

48 - 96V

55 - 110V

75 - 150V

110 - 220V

Voltage Accuracy

± 1.0%

Line Regulation

± 1.0%

Load Regulation

± 1.0%

Startup & Rise Time

1500 mS , 100 mS /230 VAC (full load)

Input

Voltage Range

180 - 264 VAC / 245 - 370 VDC

Frequency Range

45 Hz - 65 Hz

Power Factor

PF ≧0.65/230 VAC (at full load)

Efficiency

83 %

86 %

87 %

89 %

90 %

90 %

90 %

91 %

91 %

AC Current

＜ 30A

Leakage Current

＜ 3.0 mA / 240 VAC

Protection Function

Short Circuit

Input  constant current

Over Temperature

Shut down the output, automatically recover or restart after the temperature drops

Output Voltage Adjustment

0 - 13.2V

0 - 26.4V

0 - 39.6V

0 - 52.8V

0 - 79.2V

0 - 105.6V

0 - 121V

0 - 165V

0 - 242V

Output Constant Current Adjustment

0 - 290A

0 - 166.7A

0 - 111A

0 - 83.3A

0 - 55.6A

0 - 41.7A

0 - 36.4A

0 - 26.7A

0 - 18.2A


External Potentiometer

External potentiometer control (voltage, current)

Analog Voltage Control

0 - 5V / 0 - 10V Control (voltage, current)

Auxiliary Power Supply

12V 0.5A

Remote Control Switch

Default power on, high level power off (3V-12V)

Environment

Operating Temperature

-20 - +60℃

Operating Humidity

-20 - 90% RH No condensation

Storage Temperature And Humidity

-40 - +85℃, 10 - 95% RH No condensation

Vibration Resistance

10 - 500 Hz , 2G 10 Minutes/cycle, X, Y, Z Axis 60 minute

Safety

Insulation Resistance

Input to output: 100 Mhms /500 VDC /25℃/70% RH

Pressure Resistance

I/PO/P :1.2 KVAC  I /P- FG :1.2 KVAC  O /P- FG :0.5 KVAC

Others

Size

300*200*70 mm (L*W*H)

Net Weight

4.1 KG

Remark

1. All parameters are in 230 VAC Voltage input, rated load and The values are measured at 25°C.

2. Ripple and noise voltage are 20 MHz Bandwidth Oscilloscope Band 12 Inch twisted pair ends 0.1 μ and 47 μ Capacitance is measured at 20 MHZ The measurement is performed at bandwidth.

3. Accuracy: includes setting error, line regulation and load regulation.

4. The output needs to be derated in case of low input voltage. Please refer to the static characteristic curve for details.

5. The startup time is measured when the machine is cold. Frequent power on and off may increase the startup time.

MODEL LIST

ModelOutput Power (WATT)Input Voltage(VAC)Output Voltage(VDC)Output Current(A)Size(MM)
IPS-SP12-83.31000W200-240VAC12VDC83.3A237*130*65MM
IPS-SP24-41.71000W200-240VAC24VDC41.7A237*130*65MM
IPS-SP36-27.81000W200-240VAC36VDC27.8A237*130*65MM
IPS-SP48-20.81000W200-240VAC48VDC20.8A237*130*65MM
IPS-SP72-13.91000W200-240VAC72VDC13.9A237*130*65MM
IPS-SP96-101000W200-240VAC96VDC10A237*130*65MM
IPS-SP120-8.31000W200-240VAC120VDC8.3A237*130*65MM
IPS-SP150-6.61000W200-240VAC150VDC6.6A237*130*65MM
IPS-SP200-51000W200-240VAC200Vdc5A237*130*65MM

ModelOutput Power (WATT)Input Voltage(VAC)Output Voltage(VDC)Output Current(A)Size(MM)
IPS-SP12-1001200W100-120VAC/200-240VAC12VDC100A291*132*68MM
IPS-SP24-501200W100-120VAC/200-240VAC24VDC50A291*132*68MM
IPS-SP36-33.31200W100-120VAC/200-240VAC36VDC33.3A291*132*68MM
IPS-SP48-251200W100-120VAC/200-240VAC48VDC25A291*132*68MM
IPS-SP72-16.61200W100-120VAC/200-240VAC72VDC16.6A291*132*68MM
IPS-SP96-12.51200W100-120VAC/200-240VAC96VDC12.5A291*132*68MM
IPS-SP120-101200W100-120VAC/200-240VAC120VDC10A291*132*68MM
IPS-SP150-81200W100-120VAC/200-240VAC150VDC8A291*132*68MM
IPS-SP200-61200W100-120VAC/200-240VAC200VDC6A291*132*68MM

ModelOutput Power (WATT)Input Voltage(VAC)Output Voltage(VDC)Output Current(A)Size (MM)
IPS-SP12-1251500W200-240VAC12VDC125A277*155*70MM
IPS-SP124-62.51500W200-240VAC24VDC62.5A277*155*70MM
IPS-SP36-41.61500W200-240VAC36VDC41.6A277*155*70MM
IPS-SP48-31.21500W200-240VAC48VDC31.2A277*155*70MM
IPS-SP72-201500W200-240VAC72VDC20.8A277*155*70MM
IPS-SP96-15.61500W200-240VAC96VDC15.6A277*155*70MM
IPS-SP120-12.51500W200-240VAC120VDC12.5A277*155*70MM
IPS-SP150-101500W200-240VAC150VDC10A277*155*70MM
IPS-SP200-7.51500W200-240VAC200Vdc7.5A277*155*70MM
IPS-SP220-6.81500W200-240VAC220VDC6.8A277*155*70MM

ModelOutput Power (WATT)Input Voltage(VAC)Output Voltage(VDC)Output Current(A)Size(MM)
IPS-SP12-1502000W200-240VAC12VDC150A277*155*70MM
IPS-SP24-83.32000W200-240VAC24VDC83.3A277*155*70MM
IPS-SP36-55.52000W200-240VAC36VDC55.5A277*155*70MM
IPS-SP48-41.62000W200-240VAC48VDC41.6A277*155*70MM
IPS-SP60-33.32000W200-240VAC60VDC33.3A277*155*70MM
IPS-SP372-27.72000W200-240VAC372Vdc27.7A277*155*70MM
IPS-SP100-202000W200-240VAC100Vdc20A277*155*70MM
IPS-SP150-13.32000W200-240VAC150Vdc13.3A277*155*70MM
IPS-SP200-102000W200-240VAC200Vdc10A277*155*70MM

ModelOutput Power (WATT)Input Voltage(VAC)Output Voltage(VDC)Output Current(A)Size(MM)
IPS-SP12-2082500W100-120VAC/200-240VAC12VDC200A285*185*70MM
IPS-SP24-1042500W100-120VAC/200-240VAC24VDC104A285*185*70MM
IPS-SP25-1002500W100-120VAC/200-240VAC25VDC100A285*185*70MM
IPS-SP36-692500W100-120VAC/200-240VAC36VDC69A285*185*70MM
IPS-SP48-522500W100-120VAC/200-240VAC48VDC52A285*185*70MM
IPS-SP50-502500W100-120VAC/200-240VAC50VDC50A285*185*70MM
IPS-SP100-252500W100-120VAC/200-240VAC100VDC25A285*185*70MM
IPS-SP250-102500W100-120VAC/200-240VAC250Vdc10A285*185*70MM

ModelOutput Power (WATT)Input Voltage(VAC)Output Voltage(VDC)Output Current(A)Size (MM)
IPS-SP12-2503000W200-240VAC12VDC250A285*185*70MM
IPS-SP15-2003000W200-240VAC15VDC200A285*185*70MM
IPS-SP20-1503000W200-240VAC20VDC150A285*185*70MM
IPS-SP24-1253000W200-240VAC24VDC125A285*185*70MM
IPS-SP25-1203000W200-240VAC25VDC120A285*185*70MM
IPS-SP30-1003000W200-240VAC30VDC100A285*185*70MM
IPS-SP50-603000W200-240VAC50VDC60A285*185*70MM
IPS-SP60-503000W200-240VAC60VDC50A285*185*70MM
IPS-SP75-403000W200-240VAC75VDC40A285*185*70MM
IPS-SP100-303000W200-240VAC100VDC30A285*185*70MM
IPS-SP120-253000W200-240VAC120VDC25A285*185*70MM
IPS-SP125-243000W200-240VAC125VDC24A285*185*70MM
IPS-SP200-153000W200-240VAC200VDC15A285*185*70MM
IPS-SP240-12.53000W200-240VAC240VDC12.5A285*185*70MM
IPS-SP250-123000W200-240VAC250VDC12A285*185*70MM

ModelOutput Power (WATT)Input Voltage(VAC)Output Voltage(VDC)Output Current(A)Size (MM)
IPS-SP12-2503000W200-240VAC12VDC250A285*185*70MM
IPS-SP15-2003000W200-240VAC15VDC200A285*185*70MM
IPS-SP20-1503000W200-240VAC20VDC150A285*185*70MM
IPS-SP24-1253000W200-240VAC24VDC125A285*185*70MM
IPS-SP25-1203000W200-240VAC25VDC120A285*185*70MM
IPS-SP30-1003000W200-240VAC30VDC100A285*185*70MM
IPS-SP50-603000W200-240VAC50VDC60A285*185*70MM
IPS-SP60-503000W200-240VAC60VDC50A285*185*70MM
IPS-SP75-403000W200-240VAC75VDC40A285*185*70MM
IPS-SP100-303000W200-240VAC100VDC30A285*185*70MM
IPS-SP120-253000W200-240VAC120VDC25A285*185*70MM
IPS-SP125-243000W200-240VAC125VDC24A285*185*70MM
IPS-SP200-153000W200-240VAC200VDC15A285*185*70MM
IPS-SP240-12.53000W200-240VAC240VDC12.5A285*185*70MM
IPS-SP250-123000W200-240VAC250VDC12A285*185*70MM

ModelOutput Power (WATT)Input Voltage(VAC)Output Voltage(VDC)Output Current(A)Size(MM)
IPS-SP10-3503500W200-240VAC10VDC350A285*185*70MM
IPS-SP12-2913500W200-240VAC12VDC292A285*185*70MM
IPS-SP14-2503500W200-240VAC14VDC250A285*185*70MM
IPS-SP20-1753500W200-240VAC20VDC175A285*185*70MM
IPS-SP24-1453500W200-240VAC24VDC145A285*185*70MM
IPS-SP35-1003500W200-240VAC35VDC100A285*185*70MM
IPS-SP36-973500W200-240VAC36VDC97A285*185*70MM
IPS-SP48-1453500W200-240VAC48VDC72A285*185*70MM
IPS-SP50-703500W200-240VAC50VDC70A285*185*70MM
IPS-SP70-503500W200-240VAC70VDC50A285*185*70MM
IPS-SP100-353500W200-240VAC100VDC35A285*185*70MM

ModelOutput Power (WATT)Input Voltage(VAC)Output Voltage(VDC)Output Current(A)Size(MM)
IPS-SP10-3503500W200-240VAC10VDC350A285*185*70MM
IPS-SP12-2913500W200-240VAC12VDC292A285*185*70MM
IPS-SP14-2503500W200-240VAC14VDC250A285*185*70MM
IPS-SP20-1753500W200-240VAC20VDC175A285*185*70MM
IPS-SP24-1453500W200-240VAC24VDC145A285*185*70MM
IPS-SP35-1003500W200-240VAC35VDC100A285*185*70MM
IPS-SP36-973500W200-240VAC36VDC97A285*185*70MM
IPS-SP48-1453500W200-240VAC48VDC72A285*185*70MM
IPS-SP50-703500W200-240VAC50VDC70A285*185*70MM
IPS-SP70-503500W200-240VAC70VDC50A285*185*70MM
IPS-SP100-353500W200-240VAC100VDC35A285*185*70MM






ModelOutput Power (WATT)Input Voltage(VAC)Output Voltage(VDC)Output Current(A)Size (MM)
IPS-SP10-3503500W200-240VAC10VDC350A285*185*70MM
IPS-SP12-2913500W200-240VAC12VDC292A285*185*70MM
IPS-SP14-2503500W200-240VAC14VDC250A285*185*70MM
IPS-SP20-1753500W200-240VAC20VDC175A285*185*70MM
IPS-SP24-1453500W200-240VAC24VDC145A285*185*70MM
IPS-SP35-1003500W200-240VAC35VDC100A285*185*70MM
IPS-SP36-973500W200-240VAC36VDC97A285*185*70MM
IPS-SP48-1453500W200-240VAC48VDC72A285*185*70MM
IPS-SP50-703500W200-240VAC50VDC70A285*185*70MM
IPS-SP70-503500W200-240VAC70VDC50A285*185*70MM
IPS-SP100-353500W200-240VAC100VDC35A285*185*70MM






ModelOutput Power (WATT)Input Voltage(VAC)Output Voltage(VDC)Output Current(A)Size (MM)
IPS-SP10-3503500W200-240VAC10VDC350A285*185*70MM
IPS-SP12-2913500W200-240VAC12VDC292A285*185*70MM
IPS-SP14-2503500W200-240VAC14VDC250A285*185*70MM
IPS-SP20-1753500W200-240VAC20VDC175A285*185*70MM
IPS-SP24-1453500W200-240VAC24VDC145A285*185*70MM
IPS-SP35-1003500W200-240VAC35VDC100A285*185*70MM
IPS-SP36-973500W200-240VAC36VDC97A285*185*70MM
IPS-SP48-1453500W200-240VAC48VDC72A285*185*70MM
IPS-SP50-703500W200-240VAC50VDC70A285*185*70MM
IPS-SP70-503500W200-240VAC70VDC50A285*185*70MM
IPS-SP100-353500W200-240VAC100VDC35A285*185*70MM






ModelOutput Power (WATT)Input Voltage(VAC)Output Voltage(VDC)Output Current(A)Size(MM)
IPS-SP13.3-3004000W200-240VAC13.3VDC270A300*200*70MM
IPS-SP16-2504000W200-240VAC16VDC250A300*200*70MM
IPS-SP20-2004000W200-240VAC20VDC200A300*200*70MM
IPS-SP24-1664000W200-240VAC24VDC166A300*200*70MM
IPS-SP25-1604000W200-240VAC25VDC160A300*200*70MM
IPS-SP36-1114000W200-240VAC36VDC111A300*200*70MM
IPS-SP40-1004000W200-240VAC40VDC100A300*200*70MM
IPS-SP48-834000W200-240VAC48VDC83A300*200*70MM
IPS-SP50-804000W200-240VAC50VDC80A300*200*70MM
IPS-SP80-504000W200-240VAC80VDC50A300*200*70MM
IPS-SP100-404000W200-240VAC100VDC40A300*200*70MM
IPS-SP160-254000W200-240VAC160VDC25A300*200*70MM
IPS-SP200-204000W200-240VAC200VDC20A300*200*70MM

ModelOutput Power (WATT)Input Voltage(VAC)Output Voltage(VDC)Output Current(A)Size (MM)
IPS-SP24-2126000W200-240VAC24VDC212A351*188.8*148.2MM
IPS-SP36-1416000W200-240VAC36VDC141A351*188.8*148.2MM
IPS-SP48-1066000W200-240VAC48VDC106A351*188.8*148.2MM
IPS-SP60-856000W200-240VAC60VDC85A351*188.8*148.2MM
IPS-SP72-706000W200-240VAC72VDC70A351*188.8*148.2MM
IPS-SP96-536000W200-240VAC96VDC53A351*188.8*148.2MM
IPS-SP110-466000W200-240VAC110VDC46A351*188.8*148.2MM
IPS-SP150-406000W200-240VAC150VDC40A351*188.8*148.2MM
IPS-SP220-236000W200-240VAC220VDC23A351*188.8*148.2MM

ModelOutput Power (WATT)Input Voltage(VAC)Output Voltage(VDC)Output Current(A)Size(MM)
IPS-SP24-2477000W200-240VAC24VDC247A351*210.8*148.5MM
IPS-SP36-1657000W200-240VAC36VDC165A351*210.8*148.5MM
IPS-SP48-1237000W200-240VAC48VDC123A351*210.8*148.5MM
IPS-SP60-997000W200-240VAC60VDC99A351*210.8*148.5MM
IPS-SP72-827000W200-240VAC72VDC82A351*210.8*148.5MM
IPS-SP96-617000W200-240VAC96VDC61A351*210.8*148.5MM
IPS-SP110-547000W200-240VAC110VDC54A351*210.8*148.5MM
IPS-SP150-397000W200-240VAC150VDC39A351*210.8*148.5MM
IPS-SP220-277000W200-240VAC220VDC27A351*210.8*148.5MM






ModelOutput Power (WATT)Input Voltage(VAC)Output Voltage(VDC)Output Current(A)Size (MM)
IPS-SP24-2838000W200-240VAC24VDC283A351*210.8*148.5MM
IPS-SP36-1888000W200-240VAC36VDC188A351*210.8*148.5MM
IPS-SP48-1418000W200-240VAC48VDC141A351*210.8*148.5MM
IPS-SP60-1138000W200-240VAC60VDC113A351*210.8*148.5MM
IPS-SP72-948000W200-240VAC72VDC94A351*210.8*148.5MM
IPS-SP96-708000W200-240VAC96VDC70A351*210.8*148.5MM
IPS-SP110-618000W200-240VAC110VDC61A351*210.8*148.5MM
IPS-SP150-458000W200-240VAC150VDC45A351*210.8*148.5MM
IPS-SP220-308000W200-240VAC220VDC30A351*210.8*148.5MM

ModelOutput Power (WATT)Input Voltage(VAC)Output Voltage(VDC)Output Current(A)Size (MM)
IPS-SP24-35410000W200-240VAC24VDC354A415*222.8*172.2MM
IPS-SP36-23610000W200-240VAC36VDC236A415*222.8*172.2MM
IPS-SP48-17710000W200-240VAC48VDC177A415*222.8*172.2MM
IPS-SP60-14110000W200-240VAC60VDC141A415*222.8*172.2MM
IPS-SP72-11810000W200-240VAC72VDC118A415*222.8*172.2MM
IPS-SP96-8810000W200-240VAC96VDC88A415*222.8*172.2MM
IPS-SP110-7710000W200-240VAC110VDC77A415*222.8*172.2MM
IPS-SP150-5610000W200-240VAC150VDC56A415*222.8*172.2MM
IPS-SP220-3810000W200-240VAC220VDC38A415*222.8*172.2



ModelOutput Power(WATT)Input Voltage(VAC)Output Voltage(VDC)Output Current(A)Size (MM)
IPS-SP12-1803000W100-120VAC/200-240VAC12VDC180A288*174*69MM
IPS-SP15-1803000W100-120VAC/200-240VAC15VDC180A288*174*69MM
IPS-SP24-1253000W100-120VAC/200-240VAC24VDC125A288*174*69MM
IPS-SP36-833000W100-120VAC/200-240VAC36VDC83288*174*69MM
IPS-SP48-62.53000W100-120VAC/200-240VAC48VDC62.5288*174*69MM
IPS-SP60-503000W100-120VAC/200-240VAC60VDC50A288*174*69MM
IPS-SP72-423000W100-120VACAC/200-240V72VDC42A288*174*69MM
IPS-SP180-37.53000W100-120VAC/200-240VAC80VDC37.5A288*174*69MM
IPS-SP96-313000W100-120VACAC/200-240VAC96VDC31A288*174*69MM
IPS-SP110-273000W100-120VAC/200-240VAC110VDC27A288*174*69MM
IPS-SP125-243000W100-120VAC/200-240VAC125VDC24A288*174*69MM
IPS-SP150-203000W100-120VAC/200-240VAC150VDC20A288*174*69MM
IPS-SP200-153000W100-120VAC/200-240VAC200VDC15A288*174*69MM
IPS-SP220-13.63000W100-120VAC/200-240VAC220VDC13.6A288*174*69MM

ModelOutput Power (WATT)Input Voltage(VAC)Output Voltage(VDC)Output Current(A)Size (MM)
IPS-SP24-2126000W100-120VAC/200-240VAC24VDC212A432*179*242MM
IPS-SP36-1416000W100-120VAC/200-240VAC36VDC141A432*179*242MM
IPS-SP48-1066000W100-120VAC/200-240VAC48VDC106A432*179*242MM
IPS-SP60-856000W100-120VAC/200-240VAC60VDC85A432*179*242MM
IPS-SP72-706000W100-120VAC/200-240VAC72VDC70A432*179*242MM
IPS-SP180-636000W100-120VAC/200-240VAC80VDC63A432*179*242MM
IPS-SP96-536000W100-120VAC/200-240VAC96VDC53A432*179*242MM
IPS-SP110-466000W100-120VAC/200-240VAC110VDC46A432*179*242MM
IPS-SP125-406000W100-120VAC/200-240VAC125VDC40A432*179*242MM
IPS-SP150-346000W100-120VAC/200-240VAC150VDC34A432*179*242MM
IPS-SP200-256000W100-120VAC/200-240VAC200VDC25A432*179*242MM
IPS-SP220-236000W100-120VAC/200-240VAC220VDC23A432*179*242MM

ModelOutput Power (WATT)Input Voltage(VAC)Output Voltage(VDC)Output Current(A)Size (MM)
IPS-SP24-3189000W100-120VAC/200-240VAC24VDC318A432*179*242MM
IPS-SP36-2129000W100-120VAC/200-240VAC36VDC212A432*179*242MM
IPS-SP48-1599000W100-120VAC/200-240VAC48VDC159A432*179*242MM
IPS-SP60-1279000W100-120VAC/200-240VAC60VDC127A432*179*242MM
IPS-SP72-1069000W100-120VAC/200-240VAC72VDC106A432*179*242MM
IPS-SP180-959000W100-120VV/200-240VAC80VDC95A432*179*242MM
IPS-SP96-799000W100-120VAC/200-240VAC96VDC79A432*179*242MM
IPS-SP110-699000W100-120VAC/200-240VAC110VDC69A432*179*242MM
IPS-SP125-619000W100-120VAC/200-240VAC125VDC61A432*179*242MM
IPS-SP150-519000W100-120VAC/200-240VAC150VDC51A432*179*242MM
IPS-SP200-389000W100-120VAC/200-240VAC200VDC38A432*179*242MM
IPS-SP220-349000W100-120VAC/200-240VAC220VDC34A432*179*242MM

ModelOutput Power (WATT)Input Voltage(VAC)Output Voltage(VDC)Output Current(A)Size (MM)
IPS-SP24-42512000W100-120VAC/200-240VAC24VDC425A455*345*251MM
IPS-SP36-28312000W100-120VAC/200-240VAC36VDC283A455*345*251MM
IPS-SP48-21212000W100-120VAC/200-240VAC48VDC212A455*345*251MM
IPS-SP60-17012000W100-120VAC/200-240VAC60VDC170A455*345*251MM
IPS-SP72-14112000W100-120VAC/200-240VAC72VDC141A455*345*251MM
IPS-SP180-12712000W100-120VAC/200-240VAC80VDC127A455*345*251MM
IPS-SP96-10612000W100-120VAC/200-240VAC96VDC106A455*345*251MM
IPS-SP110-9212000W100-120VAC/200-240VAC110VDC92A455*345*251MM
IPS-SP125-8112000W100-120VAC/200-240VAC125VDC81A455*345*251MM
IPS-SP150-6812000W100-120VAC/200-240VAC150VDC68A455*345*251MM
IPS-SP200-5112000W100-120VAC/200-240VAC200VDC51A455*345*251MM
IPS-SP220-4612000W100-120VAC/200-240VAC220VDC46A455*345*251MM

ModelOutput Power(WATT)Input Voltage(VAC)Output Voltage(VDC)Output Current(A)Size (MM)
IPS-SP36-35415000W100-120VAC/200-240VAC36VDC354A455*345*251MM
IPS-SP48-26515000W100-120VAC/200-240VAC48VDC265A455*345*251MM
IPS-SP60-21215000W100-120VAC/200-240VAC60VDC212A455*345*251MM
IPS-SP72-17715000W100-120VAC/200-240VAC72VDC177A455*345*251MM
IPS-SP180-15915000W100-120VAC/200-240VAC80VDC159A455*345*251MM
IPS-SP96-13215000W100-120VAC/200-240VAC96VDC132A455*345*251MM
IPS-SP110-11515000W100-120VAC/200-240VAC110VDC115A455*345*251MM
IPS-SP125-10215000W100-120VAC/200-240VAC125VDC102A455*345*251MM
IPS-SP150-8515000W100-120VAC/200-240VAC150VDC85A455*345*251MM
IPS-SP200-6315000W100-120VAC/200-240VAC200VDC63A455*345*251MM
IPS-SP220-5715000W100-120VAC/200-240VAC220VDC57A455*345*251MM

ModelOutput Power (WATT)Input Voltage(VAC)Output Voltage(VDC)Output Current(A)Size (MM)
IPS-SP36-42518000W100-120VAC/200-240VAC36VDC425A455*345*251MM
IPS-SP48-31818000W100-120VAC/200-240VAC48VDC318A455*345*251MM
IPS-SP60-25518000W100-120VAC/200-240VAC60VDC255A455*345*251MM
IPS-SP72-21218000W100-120VAC/200-240VAC72VDC212A455*345*251MM
IPS-SP180-19118000W100-120VAC/200-240VAC80VDC191A455*345*251MM
IPS-SP96-15918000W100-120VAC/200-240VAC96VDC159A455*345*251MM
IPS-SP110-13918000W100-120VAC/200-240VAC110VDC139A455*345*251MM
IPS-SP125-12218000W100-120VAC/200-240VAC125VDC122A455*345*251MM
IPS-SP150-10218000W100-120VAC/200-240VAC150VDC102A455*345*251MM
IPS-SP200-7618000W100-120VAC/200-240VAC200VDC76A455*345*251MM
IPS-SP220-6918000W100-120VAC/200-240VAC220VDC69A455*345*251MM


Telephone: +86-20-89282095

Mobile: +86-15989132799

Whatapp: +86-15989132799

Wechat: +86 15989132799

QQ: 2274914457

E-mail：info@idealplusing.com

ADD: NO.85 Gaopu Road, Tianhe, Guangzhou, Guangdong Province, China. 510520.

Sitemap

Why Choose Us?

Products

IPS-DTD72S1210-72V TO 12V 10A DC DC CONVERTER
IPS-DTD48S1230 DC DC Car Step Down Reducer 48V to 12V 30A
IPS-DTD48S12**-48V to 12V 3A DC DC converter
IPS-ATDK15480 IDEALPLUSING AC to DC Converter Mode Power Supply smps 7200W 0-15V 0-480A 18A 60A 144A 225A Adjustable Variable DC Power Supply

News

Various losses within a switching power supply
DC converters are widely used in the field of automotive electronics
Reliable DC Power for Rail Systems
What is the best choice for blockchain industry application power supply?
WhatsApp
Wechat
Contact Us
Your Name:
Your Email:
Your Message:
This website uses cookies to enhance user experience and to analyze performance and traffic on our website.
We also share information about your use of our site with our social media, advertising and analytics partners.
Do Not Sell My Personal Information
Accept Cookies
