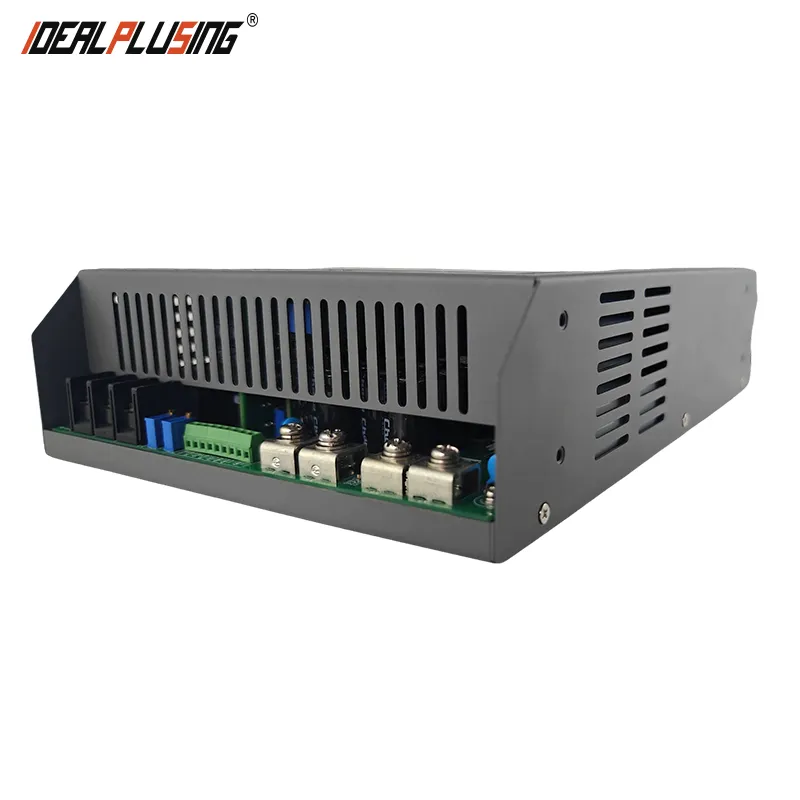

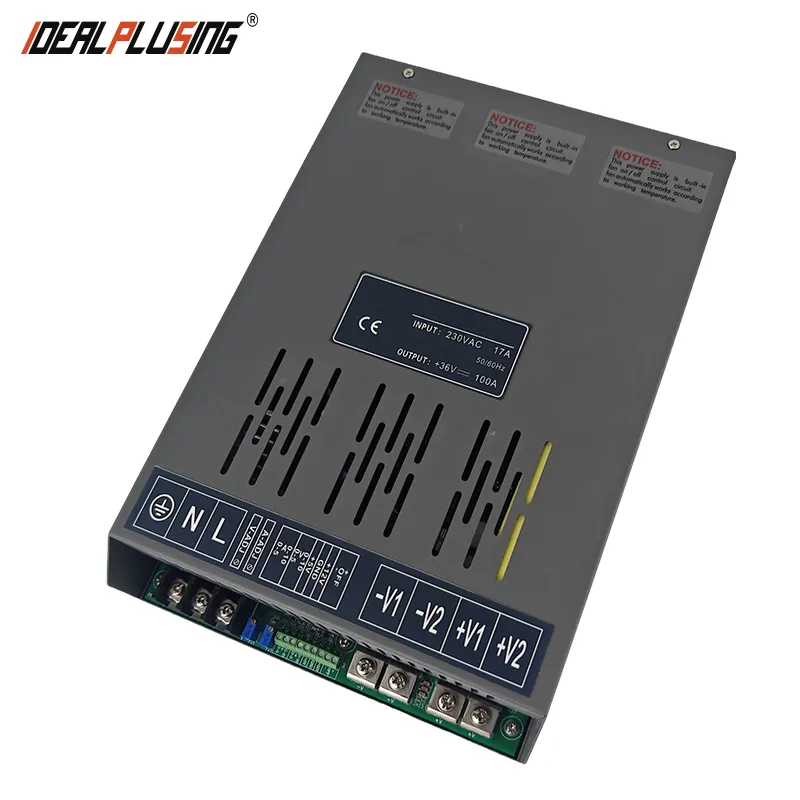

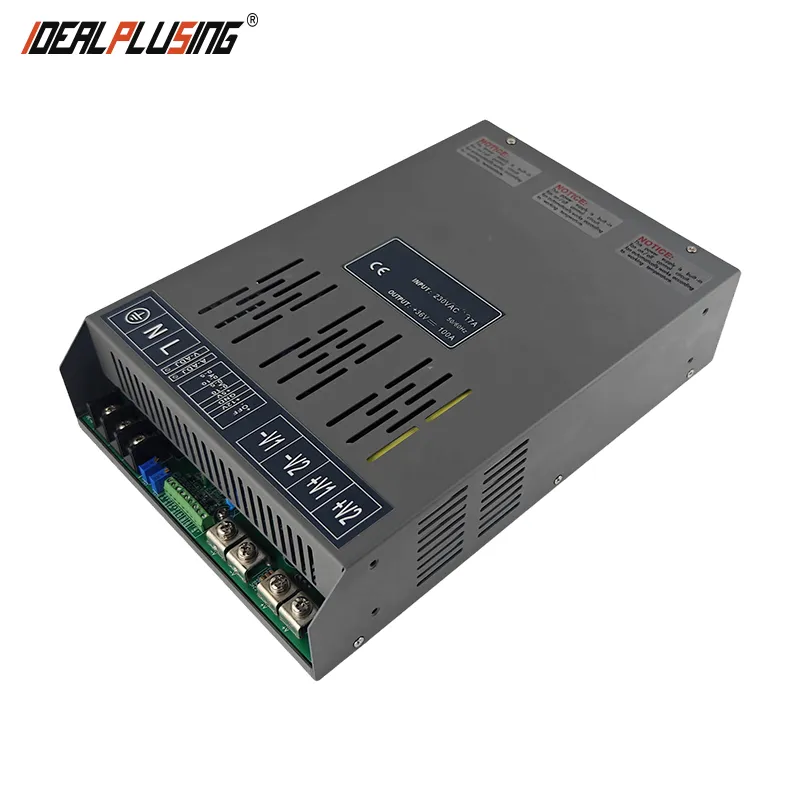

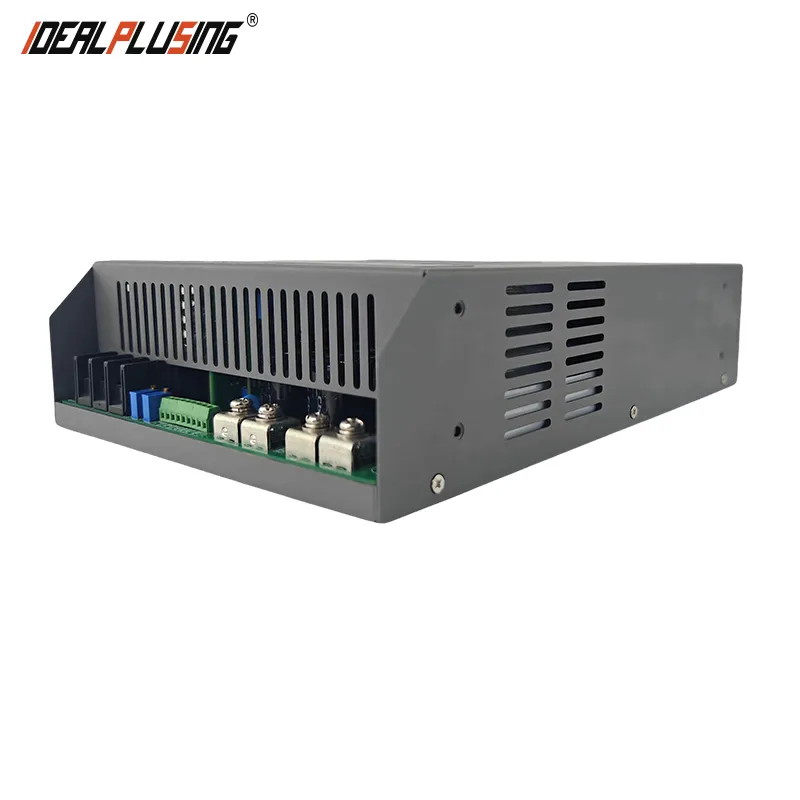

IPS-SPS-3000W IDEALPLUSING 12V 24V 36V 48V 60V 220V Lightweight Rail-Mounted Switching Power

MODEL：IPS-SPS-3000W High Power Switching Power Supply 3000W SPECIFICATION： ① AC input: Single-phase 100-120VAC /200-240VAC 50/60hz ② DC output: 12VDC, 24VDC, 36VDC, 48VDC, 72VDC, 96VDC, 20VDC, 150VDC, 200VDC ③ Power: 3000W ④ Dimension:289*174*69MM ⑤ NW: 3.3KG We specialize in customizing switching converters to meet your specific requirements. With customized input and output voltages and currents, our products range from 1V to 1000V and 1A to 1000A. We provide one-to-one customization services. You tell us your needs and we will recommend the best solution for you.

文章博客推荐图 (5).jpg

DESCRIPTION

IPS-SPS 3000W is a 3KW single output enclosure AC to DC power supply. The entire series has an input voltage range of 180 - 264 VAC / 250 - 370 VDC and can provide DC output that can meet most industrial needs. Each model can be cooled by an internal speed-controlled fan and the operating temperature can reach 60℃. Built-in functions such as output voltage, current adjustment, current sharing, remote on/off control, 485 communication control, auxiliary power supply and other functions provide a variety of design flexibility.

FEATURES

●Protection types: short circuit/overcurrent/overvoltage/overtemperature

●Working efficiency up to 93% ·485 communication control

●Voltage input range: 180 - 264 VAC / 250 - 370 VDC

●Power factor PF≧0.99

APPLICATIONS

●Industrial control or automation equipment

●Testing and measuring instruments

●Laser-related machines

●UV curing equipment

●Charging equipment

●Aging equipment

SPECIFICATION

Technical Performance	Technical Index
Model	IPS-SPS -3000-12	IPS-SPS -3000-24	IPS-SPS -3000-36	IPS-SPS -3000-48	IPS-SPS -3000-60	IPS-SPS -3000-220
Output
DC Voltage	12VDC	24VDC	36VDC	48VDC	60VDC	220VDC
Rated Current	180A	125A	83.3A	62.5A	50A	13.6A
Current Range	0 - 180A	0 - 125A	0 - 83.3A	0 - 62.5A	0 - 50A	0 - 13.6A
Rated Power	2700W	3000W
Ripple	200 mV	200 mV	260 mV	300 mV	500 mV	1000 mV
Constant Current Optimum Range	6 - 15V	12 - 24V	18 - 36V	twenty four - 48V	30 - 60V	110 - 220V
Rated Voltage Accuracy	± 1.0%
Line Regulation	± 1.0%
Load Regulation	± 1.0%
Start Up& Rise Time	1500 mS , 700 mS /230 VAC (full load)
Input
Voltage Range	95-190 VAC (output current 50%),195-265 VAC (output current 100%)
Frequency Range	45 Hz - 65 Hz
Power Factor	PF ≧0.99/230 VAC (at full load)
Efficiency ( Max )	87 %	90 %	91.5 %	92 %	92.5 %	93 %
AC Current	＜ 18A
Leakage Current	＜3.0 mA / 240 VAC
Protec Function
Short Circuit	Entering constant current and voltage lower than rated voltage 10%, 1 After seconds, the output is shut down and locked, and it will recover after restarting.
Overcurrent	User-settable over-current value delay 5 The output will be turned off after seconds and will be restored after restart.
Overpressure	Users can set the overvoltage value to shut down the output voltage, and restore after restart

Over Temperature	Shut down the output, automatically recover or restart after the temperature drops
Output Voltage Adjustment	0 - 15V	0 - 26.4V	0 - 39.6V	0 - 52.8V	0 - 66V	0 - 242V
Output Constant Current Adjustment	0 - 180A	0 - 125A	0 - 83.3A	0 - 62.5A	0 - 50A	0 - 13.6A
Current Sharing	Parallel current sharing
Isolated Auxiliary Power Supply	12V 0.5A
Output Remote Switch	Default power on, high level power off (5V-12V)
Alarm Signal Output	Power Good Signal (Dry contact ≦36V, 0.1A)
Environment
Operating Temperature	-20 - +60℃
Operating Humidity	-20 - 90% RH No condensation
Storage Temperature And Humidity	-40 - +85℃, 10 - 95% RH No condensation
Vibration Resistance	10 - 500 Hz , 2G 10 Minutes/cycle, X, Y, Z Axis 60 minute
Safety
Insulation Resistance	Input to output: 100 Mhms /500 VDC /25℃/70% RH
Pressure Resistance	I/PO/P:2 KVAC I /P- FG :2 KVAC O /P- FG :0.5 KVAC
Others
Size	28917469 mm (LWH)
Net Weight	3.3 KG
Remark
1. All parameters are in 230 VAC Voltage input, rated load and The values are measured at 25°C. 2. Ripple and noise voltage are 20 MHz Bandwidth Oscilloscope Band 12 Inch twisted pair ends 0.1 μ and 47 μ Capacitance is measured at 20 MHZ The measurement is performed at bandwidth . 3. Accuracy: includes setting error, line regulation and load regulation. 4. The output needs to be derated in case of low input voltage. Please refer to the static characteristic curve for details. 5. The startup time is measured when the machine is cold. Frequent power on and off may increase the startup time.

MODEL LIST

Model	Output Power (WATT)	Input Voltage(VAC)	Output Voltage(VDC)	Output Current(A)	Size(MM)
IPS-SP12-83.3	1000W	200-240VAC	12VDC	83.3A	23713065MM
IPS-SP24-41.7	1000W	200-240VAC	24VDC	41.7A	23713065MM
IPS-SP36-27.8	1000W	200-240VAC	36VDC	27.8A	23713065MM
IPS-SP48-20.8	1000W	200-240VAC	48VDC	20.8A	23713065MM
IPS-SP72-13.9	1000W	200-240VAC	72VDC	13.9A	23713065MM
IPS-SP96-10	1000W	200-240VAC	96VDC	10A	23713065MM
IPS-SP120-8.3	1000W	200-240VAC	120VDC	8.3A	23713065MM
IPS-SP150-6.6	1000W	200-240VAC	150VDC	6.6A	23713065MM
IPS-SP200-5	1000W	200-240VAC	200Vdc	5A	23713065MM

Model	Output Power (WATT)	Input Voltage(VAC)	Output Voltage(VDC)	Output Current(A)	Size(MM)
IPS-SP12-100	1200W	100-120VAC/200-240VAC	12VDC	100A	29113268MM
IPS-SP24-50	1200W	100-120VAC/200-240VAC	24VDC	50A	29113268MM
IPS-SP36-33.3	1200W	100-120VAC/200-240VAC	36VDC	33.3A	29113268MM
IPS-SP48-25	1200W	100-120VAC/200-240VAC	48VDC	25A	29113268MM
IPS-SP72-16.6	1200W	100-120VAC/200-240VAC	72VDC	16.6A	29113268MM
IPS-SP96-12.5	1200W	100-120VAC/200-240VAC	96VDC	12.5A	29113268MM
IPS-SP120-10	1200W	100-120VAC/200-240VAC	120VDC	10A	29113268MM
IPS-SP150-8	1200W	100-120VAC/200-240VAC	150VDC	8A	29113268MM
IPS-SP200-6	1200W	100-120VAC/200-240VAC	200VDC	6A	29113268MM

Model	Output Power (WATT)	Input Voltage(VAC)	Output Voltage(VDC)	Output Current(A)	Size (MM)
IPS-SP12-125	1500W	200-240VAC	12VDC	125A	27715570MM
IPS-SP124-62.5	1500W	200-240VAC	24VDC	62.5A	27715570MM
IPS-SP36-41.6	1500W	200-240VAC	36VDC	41.6A	27715570MM
IPS-SP48-31.2	1500W	200-240VAC	48VDC	31.2A	27715570MM
IPS-SP72-20	1500W	200-240VAC	72VDC	20.8A	27715570MM
IPS-SP96-15.6	1500W	200-240VAC	96VDC	15.6A	27715570MM
IPS-SP120-12.5	1500W	200-240VAC	120VDC	12.5A	27715570MM
IPS-SP150-10	1500W	200-240VAC	150VDC	10A	27715570MM
IPS-SP200-7.5	1500W	200-240VAC	200Vdc	7.5A	27715570MM
IPS-SP220-6.8	1500W	200-240VAC	220VDC	6.8A	27715570MM

Model	Output Power (WATT)	Input Voltage(VAC)	Output Voltage(VDC)	Output Current(A)	Size(MM)
IPS-SP12-150	2000W	200-240VAC	12VDC	150A	27715570MM
IPS-SP24-83.3	2000W	200-240VAC	24VDC	83.3A	27715570MM
IPS-SP36-55.5	2000W	200-240VAC	36VDC	55.5A	27715570MM
IPS-SP48-41.6	2000W	200-240VAC	48VDC	41.6A	27715570MM
IPS-SP60-33.3	2000W	200-240VAC	60VDC	33.3A	27715570MM
IPS-SP372-27.7	2000W	200-240VAC	372Vdc	27.7A	27715570MM
IPS-SP100-20	2000W	200-240VAC	100Vdc	20A	27715570MM
IPS-SP150-13.3	2000W	200-240VAC	150Vdc	13.3A	27715570MM
IPS-SP200-10	2000W	200-240VAC	200Vdc	10A	27715570MM

Model	Output Power (WATT)	Input Voltage(VAC)	Output Voltage(VDC)	Output Current(A)	Size(MM)
IPS-SP12-208	2500W	100-120VAC/200-240VAC	12VDC	200A	28518570MM
IPS-SP24-104	2500W	100-120VAC/200-240VAC	24VDC	104A	28518570MM
IPS-SP25-100	2500W	100-120VAC/200-240VAC	25VDC	100A	28518570MM
IPS-SP36-69	2500W	100-120VAC/200-240VAC	36VDC	69A	28518570MM
IPS-SP48-52	2500W	100-120VAC/200-240VAC	48VDC	52A	28518570MM
IPS-SP50-50	2500W	100-120VAC/200-240VAC	50VDC	50A	28518570MM
IPS-SP100-25	2500W	100-120VAC/200-240VAC	100VDC	25A	28518570MM
IPS-SP250-10	2500W	100-120VAC/200-240VAC	250Vdc	10A	28518570MM

Model	Output Power (WATT)	Input Voltage(VAC)	Output Voltage(VDC)	Output Current(A)	Size (MM)
IPS-SP12-250	3000W	200-240VAC	12VDC	250A	28518570MM
IPS-SP15-200	3000W	200-240VAC	15VDC	200A	28518570MM
IPS-SP20-150	3000W	200-240VAC	20VDC	150A	28518570MM
IPS-SP24-125	3000W	200-240VAC	24VDC	125A	28518570MM
IPS-SP25-120	3000W	200-240VAC	25VDC	120A	28518570MM
IPS-SP30-100	3000W	200-240VAC	30VDC	100A	28518570MM
IPS-SP50-60	3000W	200-240VAC	50VDC	60A	28518570MM
IPS-SP60-50	3000W	200-240VAC	60VDC	50A	28518570MM
IPS-SP75-40	3000W	200-240VAC	75VDC	40A	28518570MM
IPS-SP100-30	3000W	200-240VAC	100VDC	30A	28518570MM
IPS-SP120-25	3000W	200-240VAC	120VDC	25A	28518570MM
IPS-SP125-24	3000W	200-240VAC	125VDC	24A	28518570MM
IPS-SP200-15	3000W	200-240VAC	200VDC	15A	28518570MM
IPS-SP240-12.5	3000W	200-240VAC	240VDC	12.5A	28518570MM
IPS-SP250-12	3000W	200-240VAC	250VDC	12A	28518570MM

Model	Output Power (WATT)	Input Voltage(VAC)	Output Voltage(VDC)	Output Current(A)	Size (MM)
IPS-SP12-250	3000W	200-240VAC	12VDC	250A	28518570MM
IPS-SP15-200	3000W	200-240VAC	15VDC	200A	28518570MM
IPS-SP20-150	3000W	200-240VAC	20VDC	150A	28518570MM
IPS-SP24-125	3000W	200-240VAC	24VDC	125A	28518570MM
IPS-SP25-120	3000W	200-240VAC	25VDC	120A	28518570MM
IPS-SP30-100	3000W	200-240VAC	30VDC	100A	28518570MM
IPS-SP50-60	3000W	200-240VAC	50VDC	60A	28518570MM
IPS-SP60-50	3000W	200-240VAC	60VDC	50A	28518570MM
IPS-SP75-40	3000W	200-240VAC	75VDC	40A	28518570MM
IPS-SP100-30	3000W	200-240VAC	100VDC	30A	28518570MM
IPS-SP120-25	3000W	200-240VAC	120VDC	25A	28518570MM
IPS-SP125-24	3000W	200-240VAC	125VDC	24A	28518570MM
IPS-SP200-15	3000W	200-240VAC	200VDC	15A	28518570MM
IPS-SP240-12.5	3000W	200-240VAC	240VDC	12.5A	28518570MM
IPS-SP250-12	3000W	200-240VAC	250VDC	12A	28518570MM

Model	Output Power (WATT)	Input Voltage(VAC)	Output Voltage(VDC)	Output Current(A)	Size(MM)
IPS-SP10-350	3500W	200-240VAC	10VDC	350A	28518570MM
IPS-SP12-291	3500W	200-240VAC	12VDC	292A	28518570MM
IPS-SP14-250	3500W	200-240VAC	14VDC	250A	28518570MM
IPS-SP20-175	3500W	200-240VAC	20VDC	175A	28518570MM
IPS-SP24-145	3500W	200-240VAC	24VDC	145A	28518570MM
IPS-SP35-100	3500W	200-240VAC	35VDC	100A	28518570MM
IPS-SP36-97	3500W	200-240VAC	36VDC	97A	28518570MM
IPS-SP48-145	3500W	200-240VAC	48VDC	72A	28518570MM
IPS-SP50-70	3500W	200-240VAC	50VDC	70A	28518570MM
IPS-SP70-50	3500W	200-240VAC	70VDC	50A	28518570MM
IPS-SP100-35	3500W	200-240VAC	100VDC	35A	28518570MM

Model	Output Power (WATT)	Input Voltage(VAC)	Output Voltage(VDC)	Output Current(A)	Size(MM)
IPS-SP10-350	3500W	200-240VAC	10VDC	350A	28518570MM
IPS-SP12-291	3500W	200-240VAC	12VDC	292A	28518570MM
IPS-SP14-250	3500W	200-240VAC	14VDC	250A	28518570MM
IPS-SP20-175	3500W	200-240VAC	20VDC	175A	28518570MM
IPS-SP24-145	3500W	200-240VAC	24VDC	145A	28518570MM
IPS-SP35-100	3500W	200-240VAC	35VDC	100A	28518570MM
IPS-SP36-97	3500W	200-240VAC	36VDC	97A	28518570MM
IPS-SP48-145	3500W	200-240VAC	48VDC	72A	28518570MM
IPS-SP50-70	3500W	200-240VAC	50VDC	70A	28518570MM
IPS-SP70-50	3500W	200-240VAC	70VDC	50A	28518570MM
IPS-SP100-35	3500W	200-240VAC	100VDC	35A	28518570MM

Model	Output Power (WATT)	Input Voltage(VAC)	Output Voltage(VDC)	Output Current(A)	Size (MM)
IPS-SP10-350	3500W	200-240VAC	10VDC	350A	28518570MM
IPS-SP12-291	3500W	200-240VAC	12VDC	292A	28518570MM
IPS-SP14-250	3500W	200-240VAC	14VDC	250A	28518570MM
IPS-SP20-175	3500W	200-240VAC	20VDC	175A	28518570MM
IPS-SP24-145	3500W	200-240VAC	24VDC	145A	28518570MM
IPS-SP35-100	3500W	200-240VAC	35VDC	100A	28518570MM
IPS-SP36-97	3500W	200-240VAC	36VDC	97A	28518570MM
IPS-SP48-145	3500W	200-240VAC	48VDC	72A	28518570MM
IPS-SP50-70	3500W	200-240VAC	50VDC	70A	28518570MM
IPS-SP70-50	3500W	200-240VAC	70VDC	50A	28518570MM
IPS-SP100-35	3500W	200-240VAC	100VDC	35A	28518570MM

Model	Output Power (WATT)	Input Voltage(VAC)	Output Voltage(VDC)	Output Current(A)	Size (MM)
IPS-SP10-350	3500W	200-240VAC	10VDC	350A	28518570MM
IPS-SP12-291	3500W	200-240VAC	12VDC	292A	28518570MM
IPS-SP14-250	3500W	200-240VAC	14VDC	250A	28518570MM
IPS-SP20-175	3500W	200-240VAC	20VDC	175A	28518570MM
IPS-SP24-145	3500W	200-240VAC	24VDC	145A	28518570MM
IPS-SP35-100	3500W	200-240VAC	35VDC	100A	28518570MM
IPS-SP36-97	3500W	200-240VAC	36VDC	97A	28518570MM
IPS-SP48-145	3500W	200-240VAC	48VDC	72A	28518570MM
IPS-SP50-70	3500W	200-240VAC	50VDC	70A	28518570MM
IPS-SP70-50	3500W	200-240VAC	70VDC	50A	28518570MM
IPS-SP100-35	3500W	200-240VAC	100VDC	35A	28518570MM

Model	Output Power (WATT)	Input Voltage(VAC)	Output Voltage(VDC)	Output Current(A)	Size(MM)
IPS-SP13.3-300	4000W	200-240VAC	13.3VDC	270A	30020070MM
IPS-SP16-250	4000W	200-240VAC	16VDC	250A	30020070MM
IPS-SP20-200	4000W	200-240VAC	20VDC	200A	30020070MM
IPS-SP24-166	4000W	200-240VAC	24VDC	166A	30020070MM
IPS-SP25-160	4000W	200-240VAC	25VDC	160A	30020070MM
IPS-SP36-111	4000W	200-240VAC	36VDC	111A	30020070MM
IPS-SP40-100	4000W	200-240VAC	40VDC	100A	30020070MM
IPS-SP48-83	4000W	200-240VAC	48VDC	83A	30020070MM
IPS-SP50-80	4000W	200-240VAC	50VDC	80A	30020070MM
IPS-SP80-50	4000W	200-240VAC	80VDC	50A	30020070MM
IPS-SP100-40	4000W	200-240VAC	100VDC	40A	30020070MM
IPS-SP160-25	4000W	200-240VAC	160VDC	25A	30020070MM
IPS-SP200-20	4000W	200-240VAC	200VDC	20A	30020070MM

Model	Output Power (WATT)	Input Voltage(VAC)	Output Voltage(VDC)	Output Current(A)	Size (MM)
IPS-SP24-212	6000W	200-240VAC	24VDC	212A	351188.8148.2MM
IPS-SP36-141	6000W	200-240VAC	36VDC	141A	351188.8148.2MM
IPS-SP48-106	6000W	200-240VAC	48VDC	106A	351188.8148.2MM
IPS-SP60-85	6000W	200-240VAC	60VDC	85A	351188.8148.2MM
IPS-SP72-70	6000W	200-240VAC	72VDC	70A	351188.8148.2MM
IPS-SP96-53	6000W	200-240VAC	96VDC	53A	351188.8148.2MM
IPS-SP110-46	6000W	200-240VAC	110VDC	46A	351188.8148.2MM
IPS-SP150-40	6000W	200-240VAC	150VDC	40A	351188.8148.2MM
IPS-SP220-23	6000W	200-240VAC	220VDC	23A	351188.8148.2MM

Model	Output Power (WATT)	Input Voltage(VAC)	Output Voltage(VDC)	Output Current(A)	Size(MM)
IPS-SP24-247	7000W	200-240VAC	24VDC	247A	351210.8148.5MM
IPS-SP36-165	7000W	200-240VAC	36VDC	165A	351210.8148.5MM
IPS-SP48-123	7000W	200-240VAC	48VDC	123A	351210.8148.5MM
IPS-SP60-99	7000W	200-240VAC	60VDC	99A	351210.8148.5MM
IPS-SP72-82	7000W	200-240VAC	72VDC	82A	351210.8148.5MM
IPS-SP96-61	7000W	200-240VAC	96VDC	61A	351210.8148.5MM
IPS-SP110-54	7000W	200-240VAC	110VDC	54A	351210.8148.5MM
IPS-SP150-39	7000W	200-240VAC	150VDC	39A	351210.8148.5MM
IPS-SP220-27	7000W	200-240VAC	220VDC	27A	351210.8148.5MM

Model	Output Power (WATT)	Input Voltage(VAC)	Output Voltage(VDC)	Output Current(A)	Size (MM)
IPS-SP24-283	8000W	200-240VAC	24VDC	283A	351210.8148.5MM
IPS-SP36-188	8000W	200-240VAC	36VDC	188A	351210.8148.5MM
IPS-SP48-141	8000W	200-240VAC	48VDC	141A	351210.8148.5MM
IPS-SP60-113	8000W	200-240VAC	60VDC	113A	351210.8148.5MM
IPS-SP72-94	8000W	200-240VAC	72VDC	94A	351210.8148.5MM
IPS-SP96-70	8000W	200-240VAC	96VDC	70A	351210.8148.5MM
IPS-SP110-61	8000W	200-240VAC	110VDC	61A	351210.8148.5MM
IPS-SP150-45	8000W	200-240VAC	150VDC	45A	351210.8148.5MM
IPS-SP220-30	8000W	200-240VAC	220VDC	30A	351210.8148.5MM

Model	Output Power (WATT)	Input Voltage(VAC)	Output Voltage(VDC)	Output Current(A)	Size (MM)
IPS-SP24-354	10000W	200-240VAC	24VDC	354A	415222.8172.2MM
IPS-SP36-236	10000W	200-240VAC	36VDC	236A	415222.8172.2MM
IPS-SP48-177	10000W	200-240VAC	48VDC	177A	415222.8172.2MM
IPS-SP60-141	10000W	200-240VAC	60VDC	141A	415222.8172.2MM
IPS-SP72-118	10000W	200-240VAC	72VDC	118A	415222.8172.2MM
IPS-SP96-88	10000W	200-240VAC	96VDC	88A	415222.8172.2MM
IPS-SP110-77	10000W	200-240VAC	110VDC	77A	415222.8172.2MM
IPS-SP150-56	10000W	200-240VAC	150VDC	56A	415222.8172.2MM
IPS-SP220-38	10000W	200-240VAC	220VDC	38A	415222.8172.2

Model	Output Power(WATT)	Input Voltage(VAC)	Output Voltage(VDC)	Output Current(A)	Size (MM)
IPS-SP12-180	3000W	100-120VAC/200-240VAC	12VDC	180A	28817469MM
IPS-SP15-180	3000W	100-120VAC/200-240VAC	15VDC	180A	28817469MM
IPS-SP24-125	3000W	100-120VAC/200-240VAC	24VDC	125A	28817469MM
IPS-SP36-83	3000W	100-120VAC/200-240VAC	36VDC	83	28817469MM
IPS-SP48-62.5	3000W	100-120VAC/200-240VAC	48VDC	62.5	28817469MM
IPS-SP60-50	3000W	100-120VAC/200-240VAC	60VDC	50A	28817469MM
IPS-SP72-42	3000W	100-120VACAC/200-240V	72VDC	42A	28817469MM
IPS-SP180-37.5	3000W	100-120VAC/200-240VAC	80VDC	37.5A	28817469MM
IPS-SP96-31	3000W	100-120VACAC/200-240VAC	96VDC	31A	28817469MM
IPS-SP110-27	3000W	100-120VAC/200-240VAC	110VDC	27A	28817469MM
IPS-SP125-24	3000W	100-120VAC/200-240VAC	125VDC	24A	28817469MM
IPS-SP150-20	3000W	100-120VAC/200-240VAC	150VDC	20A	28817469MM
IPS-SP200-15	3000W	100-120VAC/200-240VAC	200VDC	15A	28817469MM
IPS-SP220-13.6	3000W	100-120VAC/200-240VAC	220VDC	13.6A	28817469MM

Model	Output Power (WATT)	Input Voltage(VAC)	Output Voltage(VDC)	Output Current(A)	Size (MM)
IPS-SP24-212	6000W	100-120VAC/200-240VAC	24VDC	212A	432179242MM
IPS-SP36-141	6000W	100-120VAC/200-240VAC	36VDC	141A	432179242MM
IPS-SP48-106	6000W	100-120VAC/200-240VAC	48VDC	106A	432179242MM
IPS-SP60-85	6000W	100-120VAC/200-240VAC	60VDC	85A	432179242MM
IPS-SP72-70	6000W	100-120VAC/200-240VAC	72VDC	70A	432179242MM
IPS-SP180-63	6000W	100-120VAC/200-240VAC	80VDC	63A	432179242MM
IPS-SP96-53	6000W	100-120VAC/200-240VAC	96VDC	53A	432179242MM
IPS-SP110-46	6000W	100-120VAC/200-240VAC	110VDC	46A	432179242MM
IPS-SP125-40	6000W	100-120VAC/200-240VAC	125VDC	40A	432179242MM
IPS-SP150-34	6000W	100-120VAC/200-240VAC	150VDC	34A	432179242MM
IPS-SP200-25	6000W	100-120VAC/200-240VAC	200VDC	25A	432179242MM
IPS-SP220-23	6000W	100-120VAC/200-240VAC	220VDC	23A	432179242MM

Model	Output Power (WATT)	Input Voltage(VAC)	Output Voltage(VDC)	Output Current(A)	Size (MM)
IPS-SP24-318	9000W	100-120VAC/200-240VAC	24VDC	318A	432179242MM
IPS-SP36-212	9000W	100-120VAC/200-240VAC	36VDC	212A	432179242MM
IPS-SP48-159	9000W	100-120VAC/200-240VAC	48VDC	159A	432179242MM
IPS-SP60-127	9000W	100-120VAC/200-240VAC	60VDC	127A	432179242MM
IPS-SP72-106	9000W	100-120VAC/200-240VAC	72VDC	106A	432179242MM
IPS-SP180-95	9000W	100-120VV/200-240VAC	80VDC	95A	432179242MM
IPS-SP96-79	9000W	100-120VAC/200-240VAC	96VDC	79A	432179242MM
IPS-SP110-69	9000W	100-120VAC/200-240VAC	110VDC	69A	432179242MM
IPS-SP125-61	9000W	100-120VAC/200-240VAC	125VDC	61A	432179242MM
IPS-SP150-51	9000W	100-120VAC/200-240VAC	150VDC	51A	432179242MM
IPS-SP200-38	9000W	100-120VAC/200-240VAC	200VDC	38A	432179242MM
IPS-SP220-34	9000W	100-120VAC/200-240VAC	220VDC	34A	432179242MM

Model	Output Power (WATT)	Input Voltage(VAC)	Output Voltage(VDC)	Output Current(A)	Size (MM)
IPS-SP24-425	12000W	100-120VAC/200-240VAC	24VDC	425A	455345251MM
IPS-SP36-283	12000W	100-120VAC/200-240VAC	36VDC	283A	455345251MM
IPS-SP48-212	12000W	100-120VAC/200-240VAC	48VDC	212A	455345251MM
IPS-SP60-170	12000W	100-120VAC/200-240VAC	60VDC	170A	455345251MM
IPS-SP72-141	12000W	100-120VAC/200-240VAC	72VDC	141A	455345251MM
IPS-SP180-127	12000W	100-120VAC/200-240VAC	80VDC	127A	455345251MM
IPS-SP96-106	12000W	100-120VAC/200-240VAC	96VDC	106A	455345251MM
IPS-SP110-92	12000W	100-120VAC/200-240VAC	110VDC	92A	455345251MM
IPS-SP125-81	12000W	100-120VAC/200-240VAC	125VDC	81A	455345251MM
IPS-SP150-68	12000W	100-120VAC/200-240VAC	150VDC	68A	455345251MM
IPS-SP200-51	12000W	100-120VAC/200-240VAC	200VDC	51A	455345251MM
IPS-SP220-46	12000W	100-120VAC/200-240VAC	220VDC	46A	455345251MM

Model	Output Power(WATT)	Input Voltage(VAC)	Output Voltage(VDC)	Output Current(A)	Size (MM)
IPS-SP36-354	15000W	100-120VAC/200-240VAC	36VDC	354A	455345251MM
IPS-SP48-265	15000W	100-120VAC/200-240VAC	48VDC	265A	455345251MM
IPS-SP60-212	15000W	100-120VAC/200-240VAC	60VDC	212A	455345251MM
IPS-SP72-177	15000W	100-120VAC/200-240VAC	72VDC	177A	455345251MM
IPS-SP180-159	15000W	100-120VAC/200-240VAC	80VDC	159A	455345251MM
IPS-SP96-132	15000W	100-120VAC/200-240VAC	96VDC	132A	455345251MM
IPS-SP110-115	15000W	100-120VAC/200-240VAC	110VDC	115A	455345251MM
IPS-SP125-102	15000W	100-120VAC/200-240VAC	125VDC	102A	455345251MM
IPS-SP150-85	15000W	100-120VAC/200-240VAC	150VDC	85A	455345251MM
IPS-SP200-63	15000W	100-120VAC/200-240VAC	200VDC	63A	455345251MM
IPS-SP220-57	15000W	100-120VAC/200-240VAC	220VDC	57A	455345251MM

Model	Output Power (WATT)	Input Voltage(VAC)	Output Voltage(VDC)	Output Current(A)	Size (MM)
IPS-SP36-425	18000W	100-120VAC/200-240VAC	36VDC	425A	455345251MM
IPS-SP48-318	18000W	100-120VAC/200-240VAC	48VDC	318A	455345251MM
IPS-SP60-255	18000W	100-120VAC/200-240VAC	60VDC	255A	455345251MM
IPS-SP72-212	18000W	100-120VAC/200-240VAC	72VDC	212A	455345251MM
IPS-SP180-191	18000W	100-120VAC/200-240VAC	80VDC	191A	455345251MM
IPS-SP96-159	18000W	100-120VAC/200-240VAC	96VDC	159A	455345251MM
IPS-SP110-139	18000W	100-120VAC/200-240VAC	110VDC	139A	455345251MM
IPS-SP125-122	18000W	100-120VAC/200-240VAC	125VDC	122A	455345251MM
IPS-SP150-102	18000W	100-120VAC/200-240VAC	150VDC	102A	455345251MM
IPS-SP200-76	18000W	100-120VAC/200-240VAC	200VDC	76A	455345251MM
IPS-SP220-69	18000W	100-120VAC/200-240VAC	220VDC	69A	455345251MM
