Product Model : IPSDPZ-A
1.Product Information

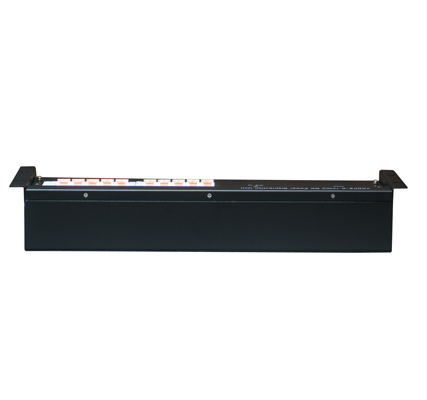

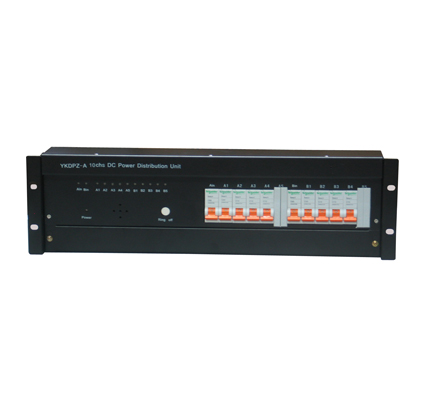

IPADPZ-A is a DC power distribution system module with 19inch standard structure, small size , easy to install and use. There is A-B 2chs input, multi-channels output (max 18chs). Visual-aural alarm when there is failure. LED display running status.
This equipment of 8 Channels power distribution unit has excellent performance and reliable quality. the product of 8 Channels power distribution unit that it’s widely used in Telecom, BTS, Mobile, Unicom, electric power, army, public security, etc.
2.Customize Range
Regards as PDU/DC Distribution Unit, We can customized all kind of PDU according to your request
DC Distribution Unit can customize different specification | ||
Input | ||
Channel | Voltage (Optional) | Circuit breaker/Air switch |
2 channels | -48/24/220/110VDC | 10A, 16A, 32A, 63A ,100A,125A/800A |
Output | ||
Channel | Voltage(Optional) | Circuit breaker/Air switch |
Can customize | -48/24/220/110VDC | 10A, 16A, 32A, 63A ,100A,125A/800A |
Alarming--- With/without alarming function can be option | ||
Rack Mount--2U-6U can customize | ||
3.Specification
Item | Technical specification |
Rated voltage | -48VDC/24VDC/220VDC/110VDC |
Insulation resistance | ≥30MΩ |
Insulating intensity | Input—housing：AC1000V，50Hz，1minute |
Input channels | 2 channels DC-48V，10A,16A, 32A, 63A ,100A,125A circuit breaker/air switch can be optional |
Output channels | 1-8 channels |
Alarm | Visual-aural alarm signal. When there is any channel is failed, |
Working environment | Working temperature ：0℃～40℃ |
Dimension and Weight | 510 mm *150 mm *125mm, 3.5kg |
