WHO WE ARE?
We have own factories (locate in shenzhen China), and more than 20 cooperationed factories, more than 60 workers and 10000 different models with specification of power supply.
It is one of suppliers on integrating , developing, manufacture , sales,engineering design and construction for different kind of power supply.
We strict implement the operation guideline of “Leading Technology, Reliable Quality, Satisfactory Service & Customers First ! ”.
WHAT WE DO?
We supply reliable and innovative Ground Power Units.
Looking for a reliable and innovative Ground Power Unit to supply your aircraft?
No matter which type of Ground Power Unit you are looking for, we have the power to cover your needs.
We have a full range of solid-state, diesel-driven, and battery-powered Ground Power Units from 400 Hz frequency converters to 28 VDC /270 VDC Ground Power Unit or a combination.
Whether you require a power supply for hangar use, for use at aircraft parking positions, or in remote areas, we have the right solution.
We got you covered!
DC-DC converter (Isolated and non-isolated), voltage from 12vdc to 1000vdc, power from 1-200kw.
AC DC power supply, voltage from 0 to 200kv, current from 0-20k amps.
DC AC inverter, dc voltage from 12vdc to 2000vdc, and power from 100w to 500kw.
AC AC power source, single phase or 3 phases, 10-500hz, power supply from 1kva to 500kva.
AC DC Ground Power Unit, from 300 amps to 50000 amps.
SPECIFICATION
Brand IDEALPLUSING | ||||
Model | IPS-GPU-60KVA | |||

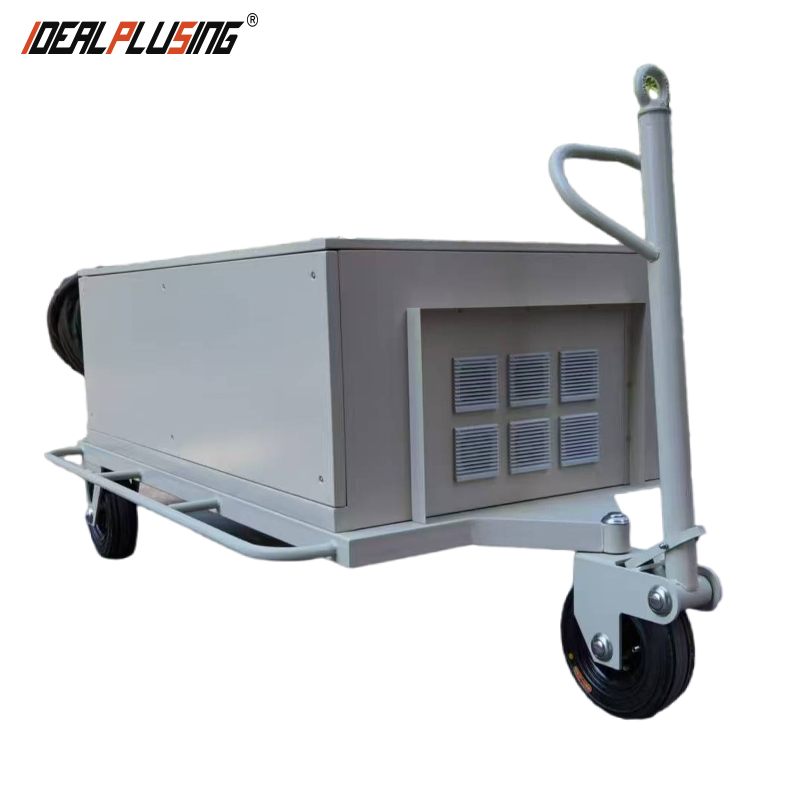

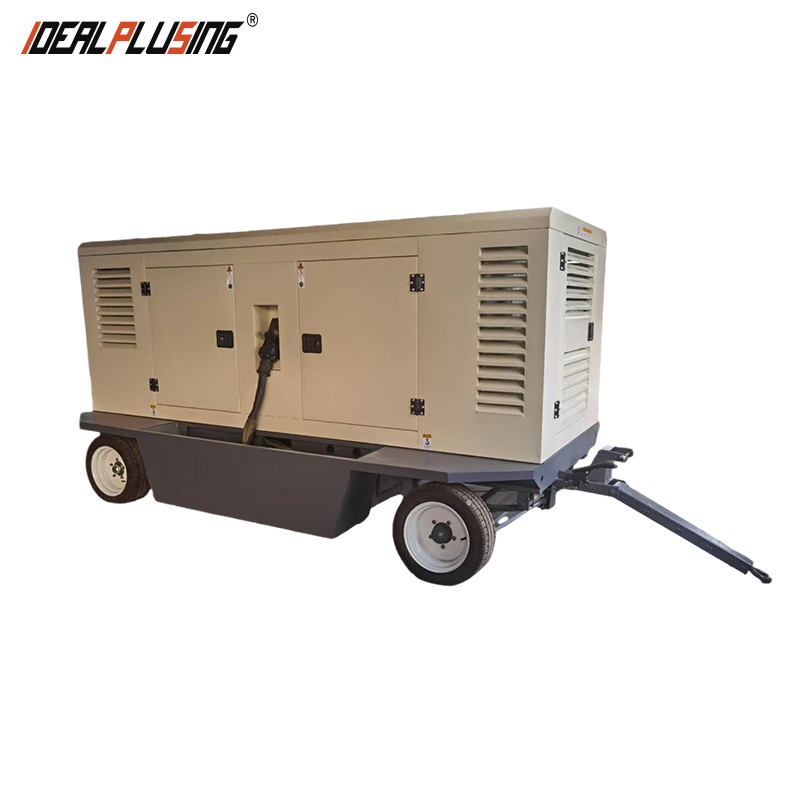

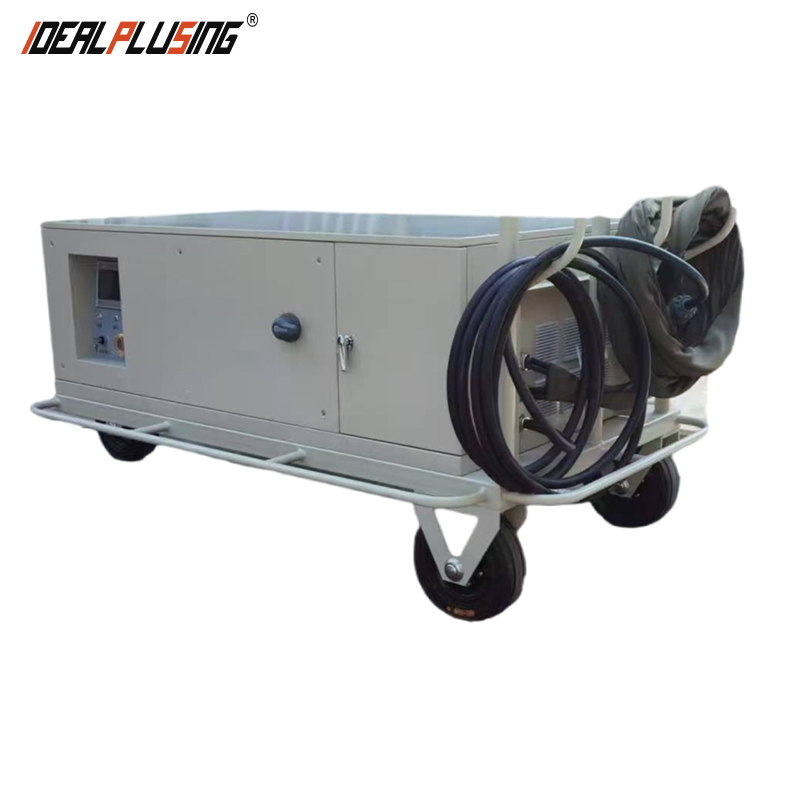

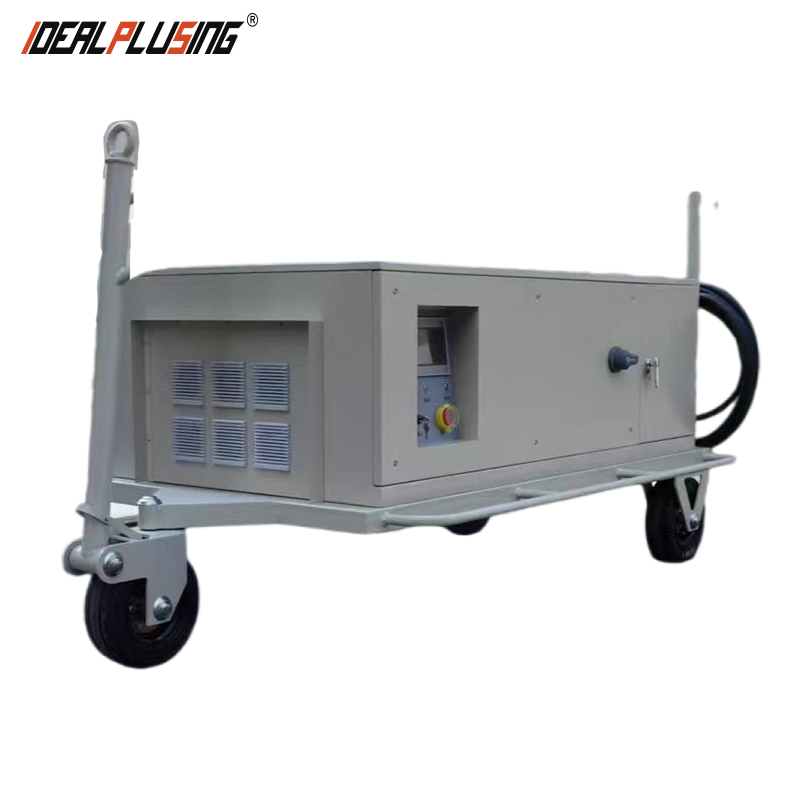

1.Product features | The IPS-GPU-60KVA power supply vehicle is a trailer-type AC power supply vehicle. It uses a diesel engine as the prime mover to drive a generator to generate medium-frequency power. If DC is required, it can be generated through an external commutator. The entire generator set and electrical control system are loaded on the trailer chassis. The vehicle's AC and DC power supplies can be output independently. | |||
2.Main uses and scope of application | When supporting aircraft that use 115/200V 400Hz electricity, in 115V mode, it can output AC 115/200V for power-on and starting, and can provide AC 220V50HZ detection power. | |||
3.Use environment and working conditions |
Altitude: 4000m Ambient temperature: (-20～ +50)℃ , Relative humidity: not more than 95 (25℃) | |||
4.Impact on the environment and safety requirements | The diesel engine and generator of the vehicle are nationally approved products, and the emission meets environmental protection requirements. There are no special safety requirements for operating this vehicle, which can ensure the safety of the operator. | |||
5.Performance data | Capacity: 60 KVA. Rated current: 175A. Power factor: 0.8. Rated voltage: 115V/200V. Rated frequency: 400Hz. | |||
Unit Configuration Table | ||||
2-1 | ||||
Name | Configuration | Remark | ||
Engine | Weichai | |||
Dynamo |
Self-developed | |||
Couplings |
Elastic connection disc | |||
Cooling water tank | Dedicated water tank | |||
Control system | Intelligent four protections | |||
Battery float charge | Included | |||
Connection base (common base) | I-beam or channel steel | |||
Battery | Maintenance-free battery × 2 | |||
Battery cable | Included | |||
Diesel filter | Equipped on the unit | Original | ||
Oil filter |
Equipped on the unit | Original | ||
Shock absorber (pad) | Between the unit and the base | |||
Output circuit breaker | Included | |||
Connecting oil pipe | Included | |||
Operation, Installation, Parts manuals | Included | |||
Connecting flange | Included | |||
Factory test and commissioning of the unit | Included | |||
Engine oil, Antifreeze | Included | |||
Diesel engine information | Included | |||
Generator Information | Included | |||
Certificate | Included | |||
PE film packaging | Included | |||
Remote technical guidance | After-sales service at any time | |||
2-2 | ||||
Alarm | ▶Start and stop failure ▶Charging failure ▶Overcurrent ▶The unit voltage is too low/too high ▶Oil pressure too low ▶Emergency stop ▶Engine temperature is too high ▶Overload | |||
Display | ▶Unit voltage (phase-phase/phase-line) ▶Engine oil pressure (psi-bar) ▶Unit current (L1, L2, L3) ▶Engine temperature (°C and ° F) ▶Unit frequency (Hz) ▶Factory battery voltage ▶Engine running hour meter ▶Unit kVA, kWh ▶The percentage of unit power to rated power ▶Unit Cos (σ) | |||
2-3 | ||||
Output | ||||
1-way AC: 115V/200V; meets the power-on inspection and start-up requirements of civil aircraft, military aircraft, and helicopters. | ||||
Current | AC Current | |||
Capacity | 60KVA | |||
Phase | Three-phase | |||
Voltage | 115V/200VAC | |||
Voltage adjustable | 90~138VAC Phase voltage: 90~138VAC | |||
Frequency | 400Hz | |||
Frequency stability | 0.5% | |||
Voltage regulation rate | < ±1% | |||
Load stability | < ±1% | |||
Waveform distortion | ≤2% Sine wave ≤2% | |||
Reaction time | ＜ 100ms | |||
Panel display | Frequency 、Voltage 、 Current | Voltage 、Current | ||
Adapt to load | No type restriction, non-linear loads such as capacitive and inductive loads can be used with derating | |||
Protective devices |
Electronic circuits quickly detect overvoltage, overcurrent, overload, overtemperature and short circuit, automatically trip protection and alarm. | |||
Cooling device | ||||
Usage Environment | ||||
Operating temperature | -20~50℃ | |||
Relative humidity |
0-90% (non-condensing state) | |||
Altitude | ≤4000 m | |||
Structure | Self-propelled | |||
2-4 | ||||
III.Unit Configuration Details | ||||
Name | Model | Unit | Remark | |
Engine | Huai Chai | 1 Tower | Installation | |
Dynamo | Self-developed | 1 Tower | Installation | |
Cooling water tank | Original water tank | 1 Set | Installation | |
Output circuit breaker | Contains | 1 Indivual |
Installation | |
Control system | Four protection control system | 1 Set | Installation | |
Chassis | Standard chassis | 1 Set | Installation | |
Diesel filter | Original |
Installation | ||
Oil filter | Original | Installation | ||
Air filter | Original | Installation | ||
Battery | Maintenance-free battery | 1 Set | Scattered | |
Battery cable | Pure copper battery wire | Contains | ||
Muffler | Contains | Contains | ||
Shock absorbers | Original | Installation | ||
Silent box | Equipped with 60KVA unit | 1 Set | Contains | |
Output aircraft docking cable | 115V/200V400HZ aircraft special cable | 1 Set |
Installation | |
Size mm | 3400*1500*1500 | Chassis can be customized | ||
Net Weight | 2 Tons | |||
