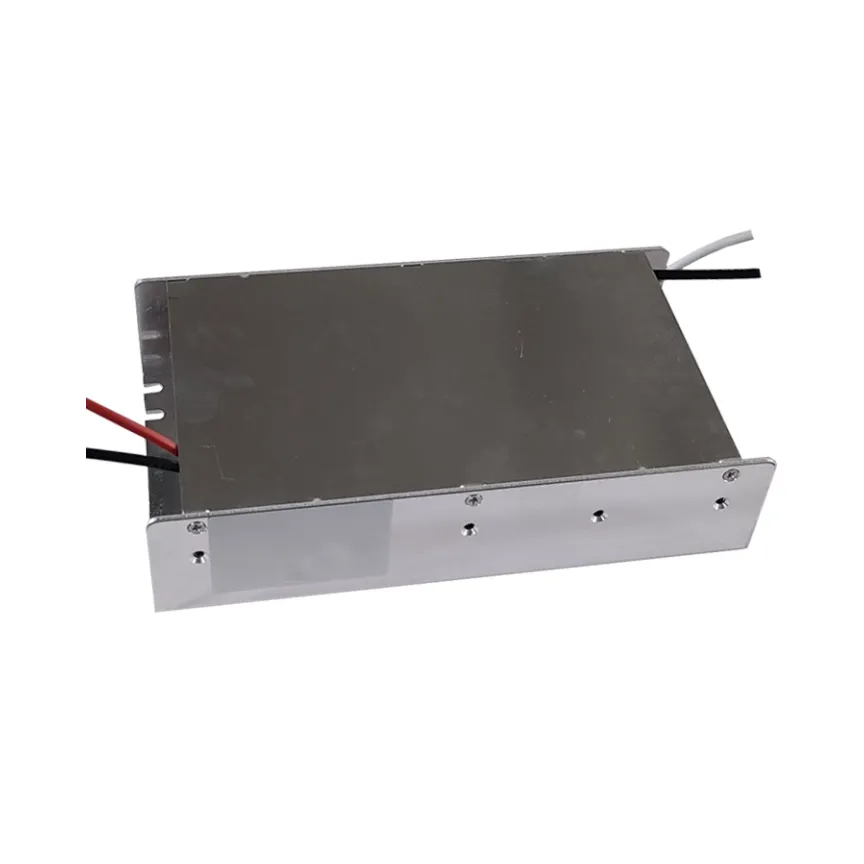

IPS-350-V4S28U-S IDEALPLUSING 28VDC 12.5A DC-DC Power Supply Ultra-wide Voltage Power Supply For Automation Control
Model : IPS-350-V4S28U-S 28VDC 12.5A DC-DC High Voltage Input Power Supply For Medical Equipment ① Input : 300-1500VDC ② Output : 28VDC 12.5A ③ Max power: 350W ④ Size : 215*120*50.0(MM) ⑤ Net weight: 2.1KG ⑥ Industrial grade products, RoHS compliant Greetings, esteemed clientele. We specialize in customizing DC-DC converters to meet your specific requirements. With customized input and output voltage and current, our offerings range from 1V to 1000V and 1A to 1000A. We provide both isolated and non-isolated converter design options. Please visit our website and submit any inquiries to explore our capabilities further. Our dedicated team endeavors to respond within one hour. Thank you for considering our services.

INTRODUCE:

A DC/DC high voltage input power supply is a device that converts a high voltage DC power supply into a DC power supply of a different voltage level. They are widely used in a variety of applications


FEATURES:

lUltra-wide voltage input: 300-1500 VDC

lHigh reliability and long life

lInput and output isolation

lInput undervoltage protection, input reverse connection protection

lOutput overcurrent protection, output short circuit protection

lApplicable to automation control, photovoltaic power generation, energy storage and other fields


SPECIFICATIONS:

Input Characteristics

Project

Condition

Minimum

Typical Value

Maximum

Input voltage range

DC input

300 VDC

1000 VDC

1500 VDC

Input Current

1000 VDC

/

600 mA

/

Inrush Current

300 VDC

/

300A

/

Input undervoltage protection

Undervoltage protection point

/

250VDC

/

Undervoltage release point

/

265 VDC

/

Input reverse connection protection


have

Output Characteristics

Project

Condition

Minimum

Typical Value

Maximum

Output voltage accuracy


/

±2%

/

Load Regulation

10%-100% full load


±1.5%

/

Voltage Regulation

Output full load

/

±1%

/

Output ripple noise *

20 MHz Bandwidth (peak -to- peak value)

24~28 VDC Output

/

300 mV

/

32~ 110 VDC Output

/

1.5% Vo

/

Minimum load


0



Short circuit protection


Can be short-circuited for a long time, Self-recovery

Output overcurrent protection


≥110%Io , Self-recovery

Power-off retention time


/

10ms

/

Note: * Ripple and noise are tested using the parallel line test method (the oscilloscope probe is tested close to the test point, and a 10μF high frequency low resistance electrolytic capacitor and one 0. 1μF ceramic capacitors).

General Features

Project

Condition

Minimum

Typical Value

Maximum

Operating temperature


-40 ℃

/

+70 ℃

Storage temperature


-40 ℃

/

+85 ℃

Storage humidity


/

/

95% RH

Switching frequency


/

65K Hz

/

Insulation voltage

Input to output, test 60s , ≤5 mA

4000 VDC

/

/

MTBF

MIL - HDBK -217F@25 ℃

215000h

/

/

Cooling method


Natural cooling


MODEL LIST:

Model

Output Peak Voltage

Output Peak Current

Output Peak Power

Size (MM)

IPS-350-V4S24U-S

24VDC

14.5A

350W

215*120*50MM

IPS-350-V4S28U-S

28VDC

12.5A

350W

215*120*50MM

IPS-350-V4S32U-S

32VDC

10.9A

350W

215*120*50MM

IPS-350-V4S48U-S

48VDC

7.2A

350W

215*120*50MM

IPS-350-V4S110U-S

110VDC

3.1A

350W

215*120*50MM
