IPS-ATDM1605 IDEALPLUSING 160VDC 5A Color Screen High Precision Program-controlled Switching Power Supply
MODEL:IPS-ATDM1605 Low Voltage 3 Channels Programmable Power Supply SPECIFICATION: ① AC input: 220VAC ± 10%, 50/60Hz ② DC output: 160VDC, 5A ③ Power: 300W ④ Dimension:330*250*155MM ⑤ NW: 5.5KG We specialize in customizing switching converters to meet your specific requirements. With customized input and output voltages and currents, our products range from 1V to 1000V and 1A to 1000A. We provide one-to-one customization services. You tell us your needs and we will recommend the best solution for you

INTRODUCE

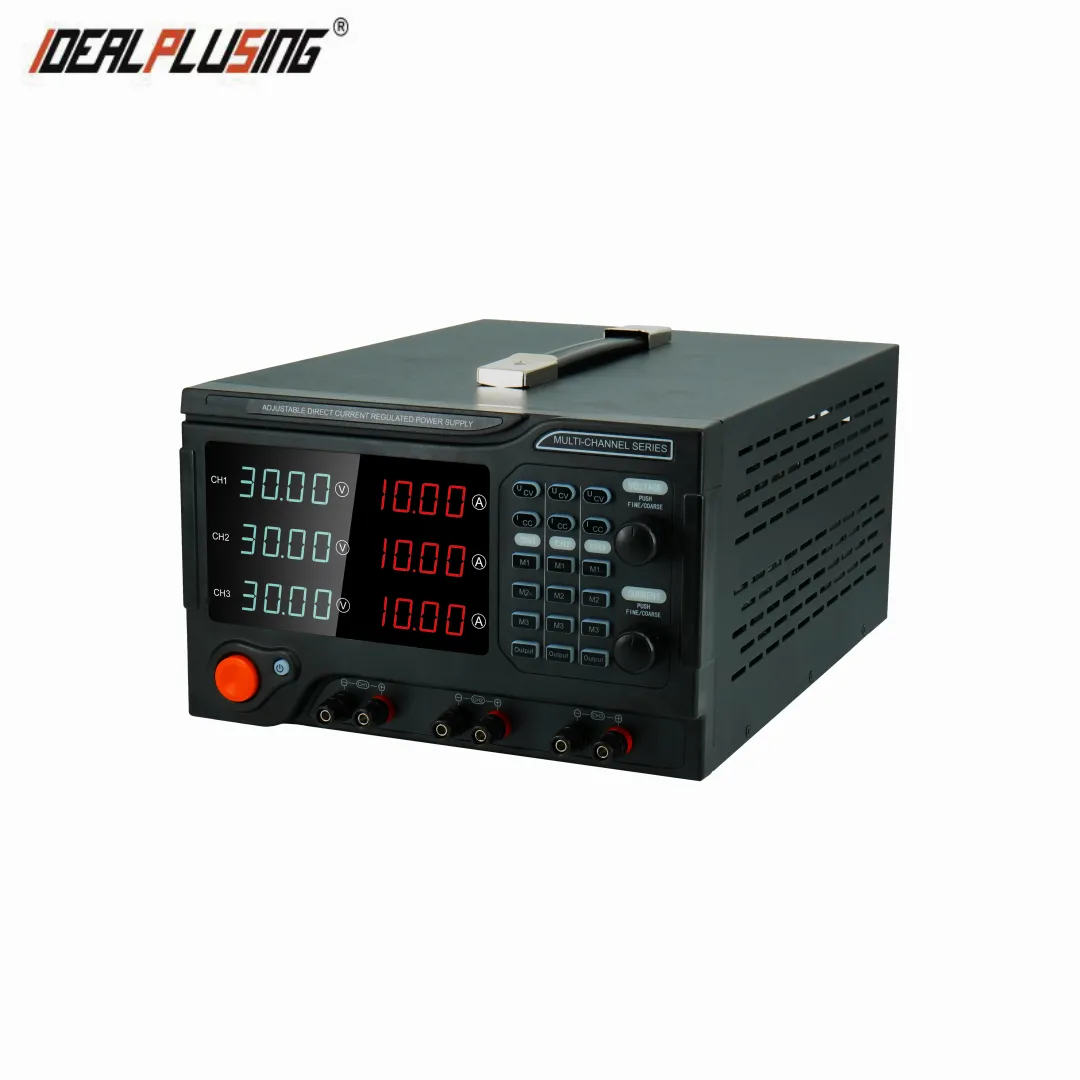

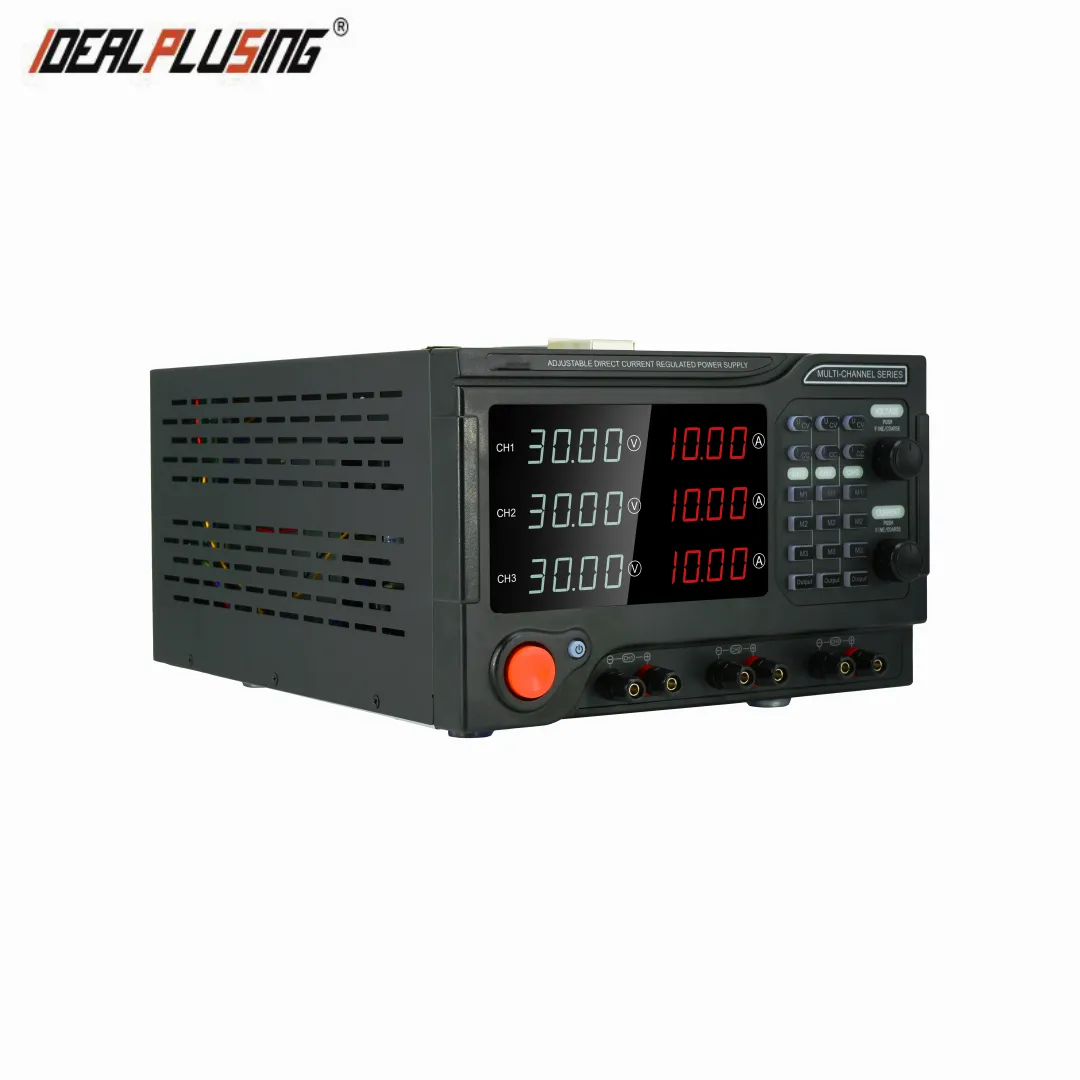

This series of products is a three-channel output programmable DC power supply with 3 sets of power modules integrated. Each channel of this series of power supplies can freely select power modules


FEATURE

lEach output channel has 11 modules to choose from

lEach output channel can independently control the

lProgrammable settings, support MODBUS communication protocol

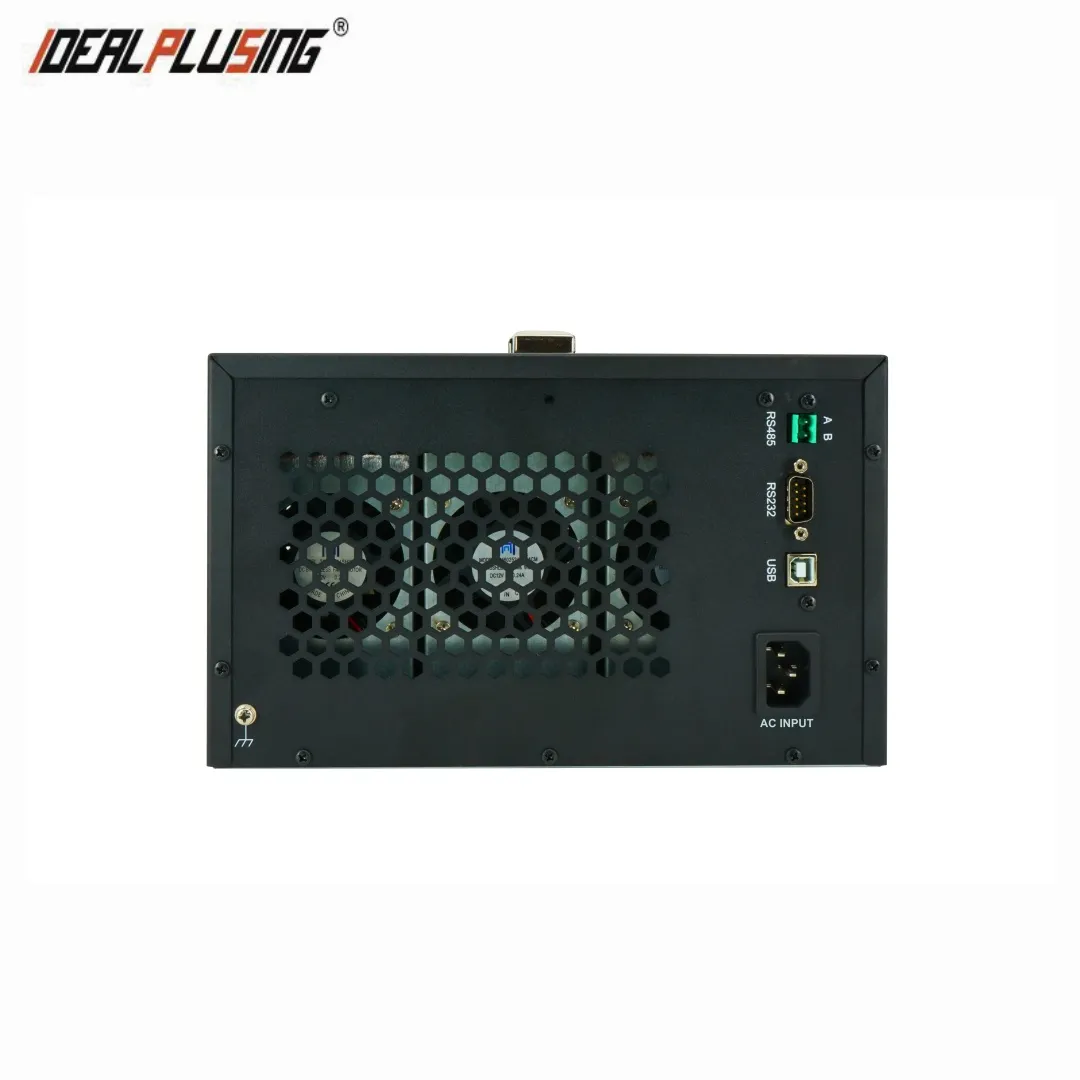

lRS232/RS485/USB serial port is standard on the back panel

lThe digital control of the coding switch is convenient, stable and durable

lThree groups of preset parameter storage functions for each channel

lOVP and OCP threshold values can be set directly


SPECIFICATION

Brand        IDEALPLUSING

Wide range of power supply & module parameters

1. Rated working conditions

Working voltage: 110VAC /220VAC ±10%    50/60 Hz

Working conditions: temperature 0~40℃ Relative humidity: ≤80% RH

Storage conditions: Temperature -20~60℃ Relative humidity: ≤80% RH

Guaranteed accuracy temperature range: 23℃±5℃

Symbol naming

I

Model

IPS-ATDM1605

Output voltage (0- Vmax )

0-160VDC

Output current (0- Cmax )

0-5A

Output power (0- Pmax )

0-300W

Voltage

Set Resolution

100V :10 mV ; ≥100V : 0. 1V

Setting accuracy

≤0.1%+5 digits

Readback resolution

100V :10 mV ; ≥100V : 0. 1V

Readback accuracy

≤0.1%+5 digits

Ripple

≤26mVrms

Current

Set Resolution

10A : 1 mA ; ≥10A: 10 mA

Setting accuracy

≤0.2%+10 digits

Readback resolution

10A : 1 mA ; ≥10A: 10 mA

Readback accuracy

≤0.2%+10 digits

Ripple

≤18 mArms

Load Regulation

≤0.2% Vmax +5 mV

Power Regulation

≤0.2% Vmax +5 mV

OVP

0- Vmax ±0.2% FS

Maximum voltage

Vmax ±0.2%

OCP

0- Cmax ±0.2% FS

Maximum current

Cmax ±0.2%

Power Input

220VAC±10%,50 Hz ( optional: fixed 110VAC±10% , 60 Hz input )

Sense compensation

Optional

Size

330*250*155MM

Weight

5.5KG


MODEL LIST

Model

Output Peak Voltage

Output Peak Current

Output Peak Power

Size (MM)

IPS-ATDM152

15VDC

2A

30W

330*250*155MM

IPS-ATDM155

15VDC

5A

75W

330*250*155MM

IPS-ATDM305

30VDC

5A

150W

330*250*155MM

IPS-ATDM3010

30VDC

10A

300W

330*250*155MM

IPS-ATDM605

60VDC

5A

300W

330*250*155MM

IPS-ATDM1003

80VDC

11A

300W

330*250*155MM

IPS-ATDM 1520

15VDC

20A

300W

330*250*155MM

IPS-ATDM 1502

150VDC

2A

300W

330*250*155MM

IPS-ATDM 4020

40VDC

20A

300W

330*250*155MM

IPS-ATDM 8010

80VDC

10A

300W

330*250*155MM

IPS-ATDM 1605

160VDC

5A

300W

330*250*155MM
