INTRODUCE

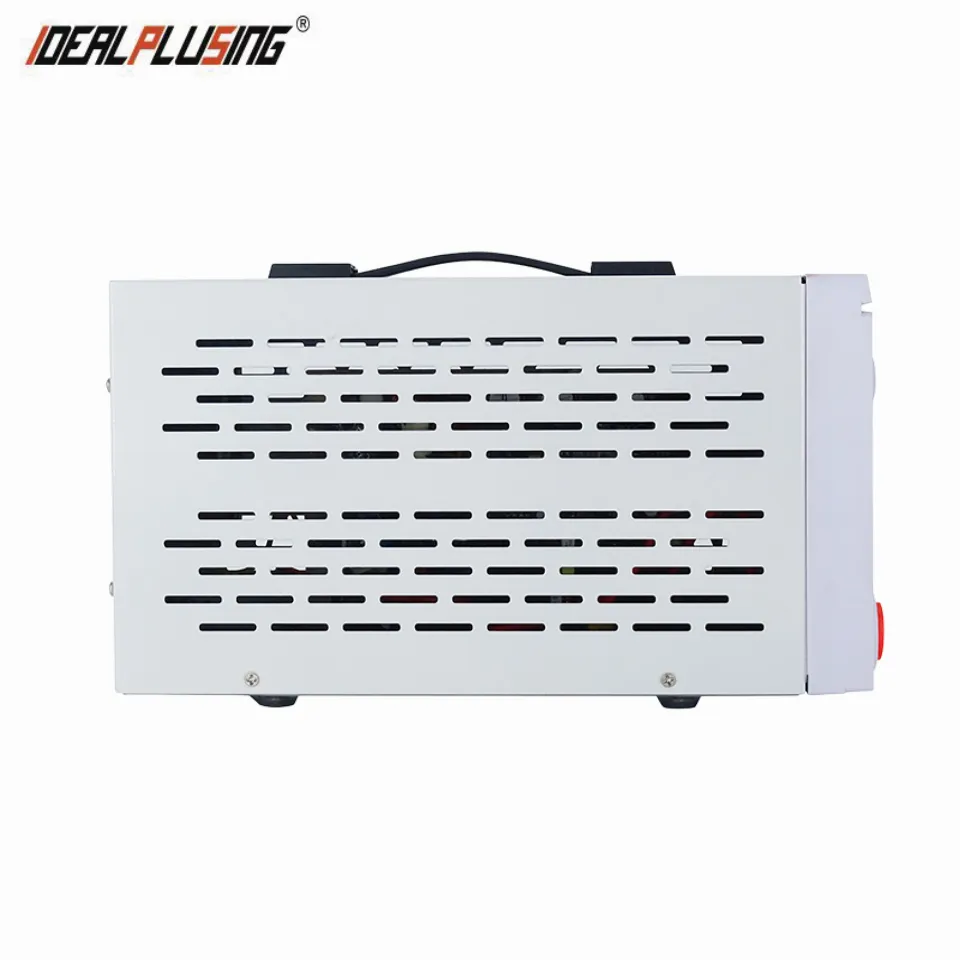

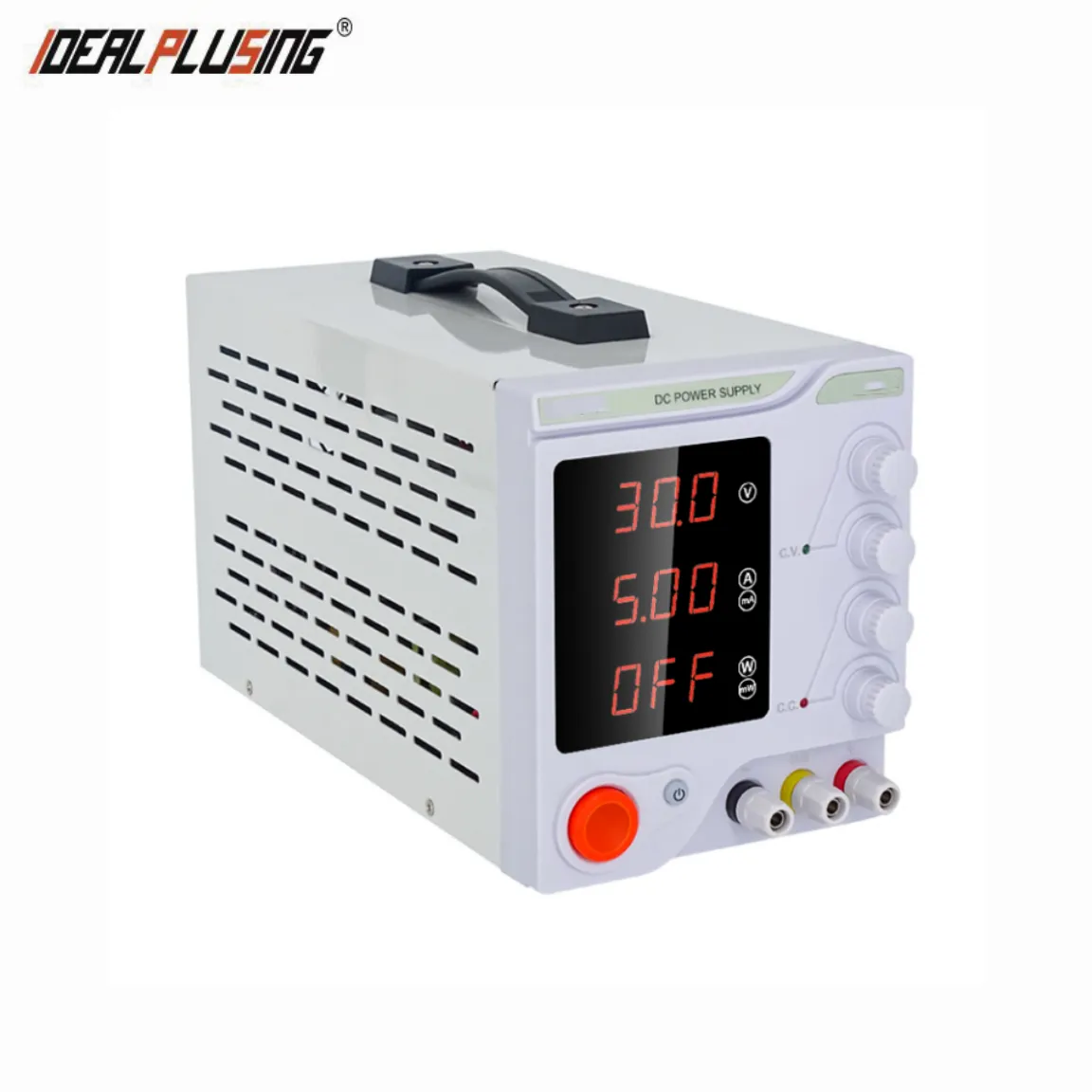

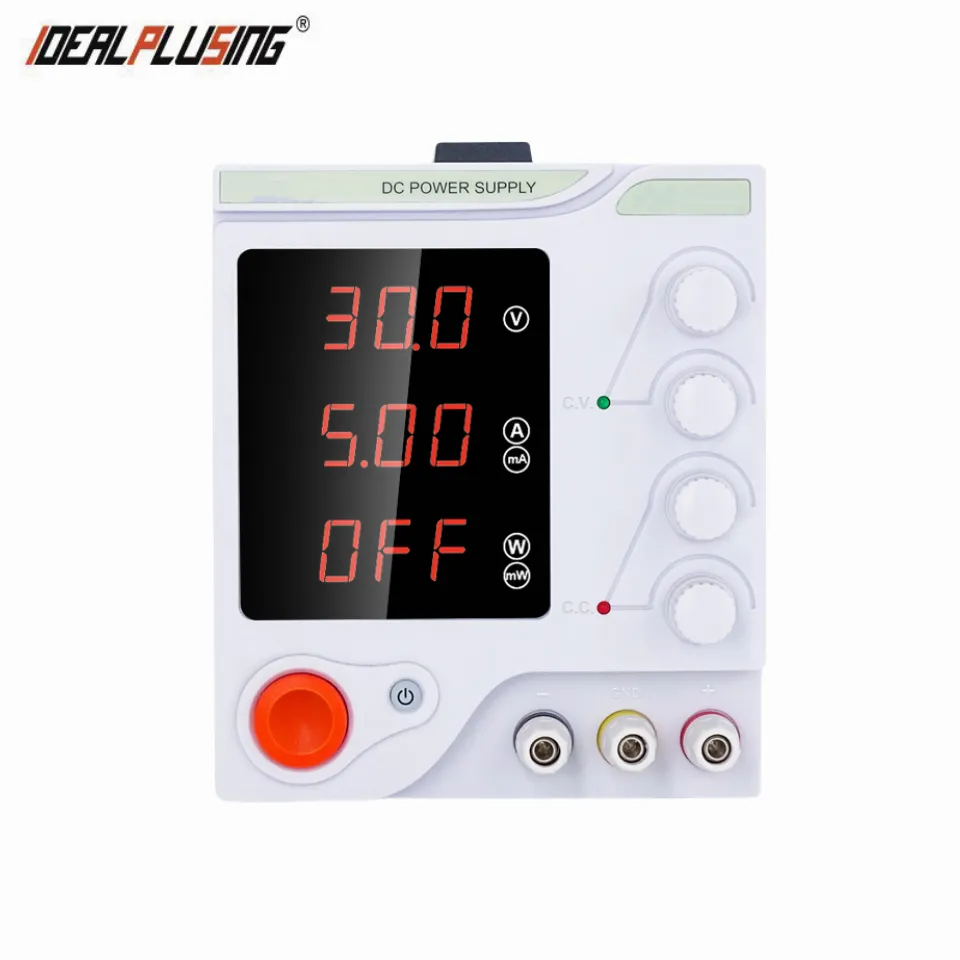

This series is a common three-position 300W switching DC power supply, with LEDs that intuitively display voltage, current and output power
FEATURE
lVoltage and current can be preset
lPower display
lON/OFF switch

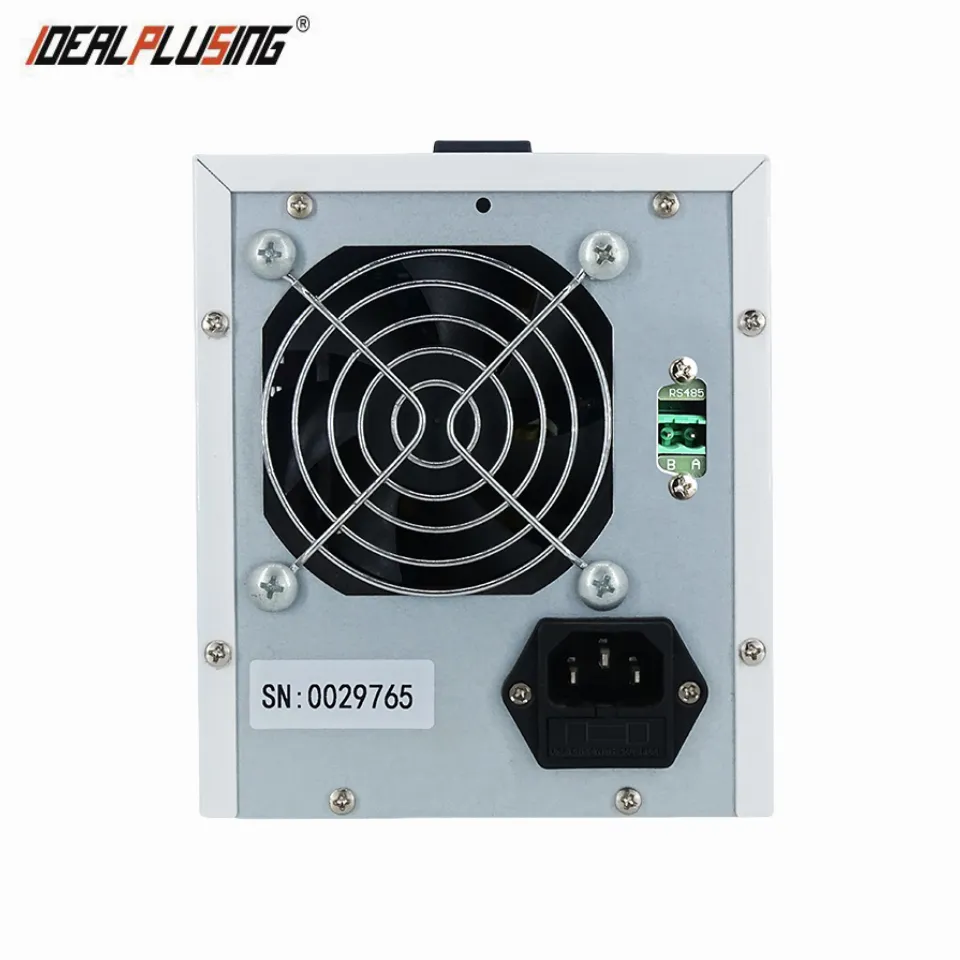

lPost-communication function (can only control on/off and read, cannot set and program)
SPECIFICATION
Brand IDEALPLUSING | |
Common power supply & module parameters | |
1. Rated working conditions | |
Working voltage: 110VAC/220VAC±10% 50/60Hz | |
Working conditions: temperature 0～40℃ Relative humidity: ≤80%RH | |
Storage conditions: temperature -20～60℃ Relative humidity: ≤80%RH | |
Guaranteed accuracy temperature range: 23℃±5℃ | |
2. Technical instructions | |
Symbol naming | A |
Module power supply | IPS-ATDM1502 |
Maximum voltage | 150VDC |
Maximum current | 2A |
Output power | 300W |
Voltage | |
Set Resolution | ＜100V: 10mV; ≥100V: 0. 1V |
Setting accuracy | ≤0.1%+5digits |
Readback resolution | ＜100V: 10mV; ≥100V: 0. 1V |
Readback accuracy | ≤0.1%+5digits |
Temperature coefficient | ≤0.02%+3mV |
Ripple | ≤10mVrms |
Current | |
Set Resolution | ＜10A: 1mA ; ≥10A: 10mA |
Setting accuracy | ≤0.2%+10digits |
Readback resolution | ＜10A: 1mA ; ≥10A: 10mA |
Readback accuracy | ≤0.2%+10digits |
Temperature coefficient | ≤0.02%+3mA |
Ripple | ≤10mArms |
Load Regulation | <10A: ≤0.1%Umax+5mV |
Power Regulation | ≥10A: ≤0.2%Umax+5mV |
OVP | 0-16V |
OCP | 0-2.5A |
Power Input | AC 220V±10%,50Hz (optional: fixed AC110V±10%, 60Hz input) |
Sense compensation | Unavailable |
Note: When using this specification, please ensure that the machine is powered on for more than 10 minutes. | |
Size | 330*250*155MM |
Weight | 5.5KG |
MODEL LIST
Model | Output Peak Voltage | Output Peak Current | Output Peak Power | Size (MM) |
IPS-ATDM152 | 15VDC | 2A | 30W | 280*130*165MM |
IPS-ATDM155 | 15VDC | 5A | 75W | 280*130*165MM |
IPS-ATDM1520 | 15VDC | 20A | 300W | 280*130*165MM |
IPS-ATDM305 | 30VDC | 5A | 150W | 280*130*165MM |
IPS-ATDM3010 | 30VDC | 10A | 300W | 280*130*165MM |
IPS-ATDM605 | 60VDC | 5A | 300W | 280*130*165MM |
IPS-ATDM1003 | 100VDC | 3A | 300W | 280*130*165MM |
IPS-ATDM1502 | 150VDC | 2A | 300W | 280*130*165MM |
