FEATURE
●Undervoltage protection, overcurrent protection, output short circuit protection, overheat protection
●Organic silicone thermal potting process
●Die-cast aluminum alloy shell, fast and natural heat dissipation
●Waterproof grade IP67
●Operating temperature range: -20℃ to +85℃
SPECIFICATION
Technical Performance | Technical Index | |
Brand | IDEALPLUSING | |
Type | NON-Isolated | |
Name | Non-isolated Dual Output DC DC Converter | |
Model | IPS-DTD15-40S510-1210 | |
DC Voltage Input | ||
Input Voltage rate | 12/24/36VDC | |
Input Voltage range | 15-40VDC | |
DC Voltage & Current Output | ||
Output Voltage rate | 5VDC | 12VDC |
Output Current | 10AMPS | 10AMPS |
Output Rate Power | 50Watts | 120Watts |
Highest conversion efficiency | 92.9% | 96.8% |
Converter Size | 100*79*39(MM) | |
NW | 480G | |
Others | ||
Length of conventional wire | 120MM | |
Line diameter | 1.0m² | |
Customize | Input red, black; one way 12V10A output yellow, black; another way 5V10A output blue, black; There are 6 lines in total | |
Technology | Organic Silicone Thermal Encapsulation Process | |
Material of shell | Aluminum | |
Working temp | -20℃ to +85℃ | |
Waterproof Level | IP67 | |
Features | Organic Silicone Thermal Encapsulation Process; Die-cast aluminum alloy housing, fast and natural heat dissipation | |
Protection function | Under-voltage protection, Over-current protection, output short circuit protection, overheat protection | |
Customize | From 1-200A Size and weight different if current different | |

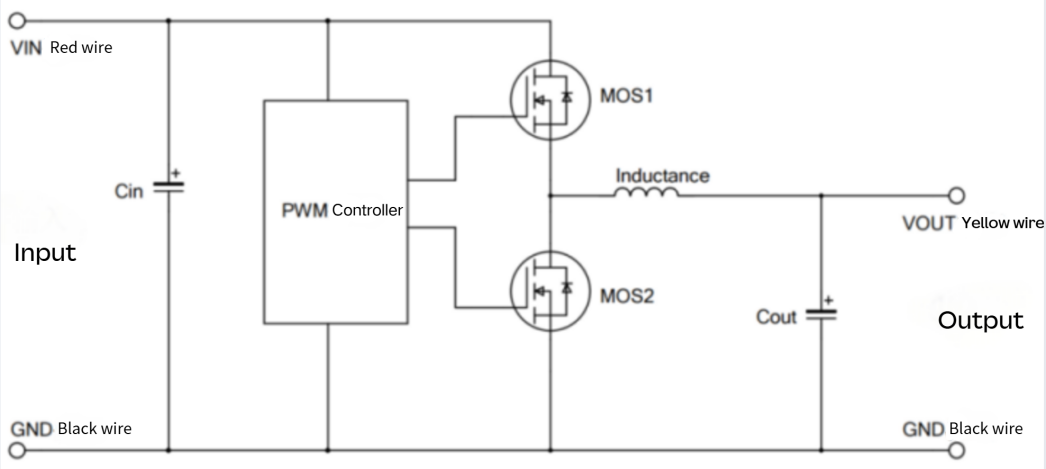

SINGLE CHANNEL SIMPLIFIED CIRCUIT DIAGRAM
Model List
Model | Input Voltage | Input Voltage | Channel Output Volts VDC & Current AMP | Max Power | Size (MM) | NW/GW |
IPS-DTD8-40S510-1210 | 12VDC/24VDC | 15-40VDC | 5VDC 10A; 12VDC 10A | 50W; 120W | 100*79*39MM | 0.48KG |
IPS-DTD30-80S550-1220-2415-3610 | 36/48VDC | 30-80VDC | 5VDC 50A; 12VDC 20A; 24VDC 15A; 36VDC 10A (select only two outputs） | 250W; 240W; 360W; 360W (select only two outputs） | 100*79*39MM | 0.48KG |
IPS-DTD8-40S520-1220 | 12VDC/24VDC | 8-40VDC | 5VDC 20A; 12VDC 20A | 100W; 240W | 126*105*52MM | 1.1KG |
IPS-DTD8-60S1220-2415 | 36VDC/48VDC | 8-60VDC | 12VDC 20A; 24VDC 15A | 240W; 360W | 126*105*52MM | 1.1KG |
IPS-DTD36-60S3610-485 | 36VDC/48VDC | 36-60VDC | 36VDC 10A; 48VDC 5A | 360W; 240W | 126*105*52MM | 1.1KG |
IPS-DTD8-80S1220-2415 | 60VDC/72VDC | 8-80VDC | 12VDC 20A; 24VDC 15A | 240W; 360W | 126*105*52MM | 1.1KG |
IPS-DTD8-80S3610-485 | 60VDC/72VDC | 8-80VDC | 36VDC 10A; 48VDC 5A | 360W; 240W | 126*105*52MM | 1.1KG |
IPS-DTD8-100S1220-2415 | 80VDC/96VDC | 8-100VDC | 12VDC 20A; 24VDC 15A | 240W; 360W | 126*105*52MM | 1.1KG |
IPS-DTD36-100S3610-485 | 80VDC/96VDC | 36-100VDC | 36VDC 10A; 48VDC 5A | 360W; 240W | 126*105*52MM | 1.1KG |
IPS-DTD20-120S1220-2415 | 120VDC | 20-120VDC | 12VDC 20A; 24VDC 15A | 240W; 360W | 126*105*52MM | 1.1KG |
IPS-DTD36-120S3610-485 | 120VDC | 36-120VDC | 36VDC 10A; 48VDC 5A | 360W; 240W | 126*105*52MM | 1.1KG |
