IPS-DTD8-100S1220-2415 IDEALPLUSING 72vdc/96vdc dual dc dc converter with positive and negative outputs non-isolated dc dc converter

80/96VDC to 12VDC 20A 240W / 24VDC 15A 360W Non-isolated Dual Output DC DC Converter CE RoHS Certificated Model : IPS-DTD8-100S1220-2415 80/96VDC TO 12VDC 20A / 24VDC 15A DC DC CONVERTER Specification : ①　Input: 80/96VDC（30-100VDC） ②　Output: 12VDC 20A ; 24VDC 15A ③　Max power: 240W; 360W ④　Material of shell: Aluminum ⑤　Size: 126*105*52MM ⑥　NW: 1.1KG ⑦　Design: Non isolate and waterproof IP67 ⑧　Email :power@idealplusing.com Greetings, esteemed clientele.

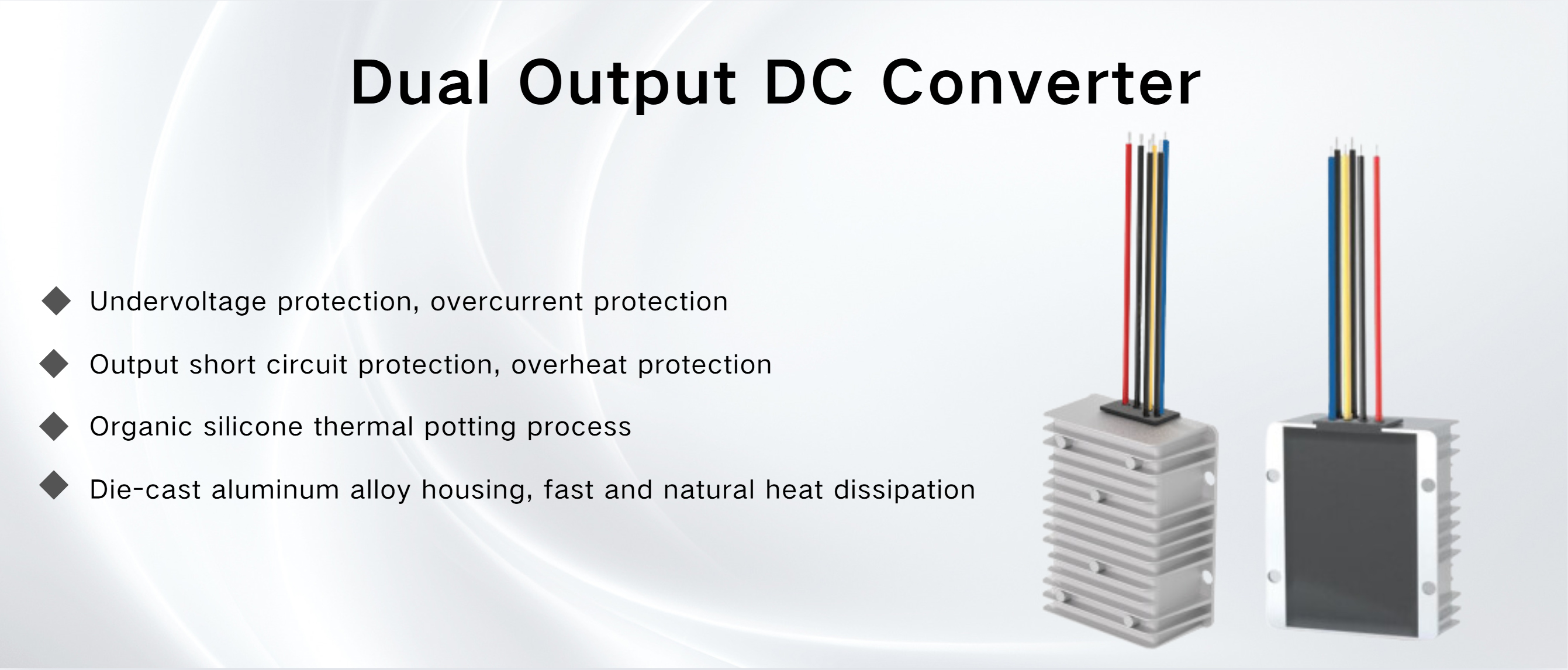

FEATURE

●Undervoltage protection, overcurrent protection, output short circuit protection, overheat protection

●Organic silicone thermal potting process

●Die-cast aluminum alloy shell, fast and natural heat dissipation

●Waterproof grade IP67

●Operating temperature range: -20℃ to +85℃

SPECIFICATION

Technical Performance	Technical Index
Brand	IDEALPLUSING
Type	NON-Isolated
Name	Non-isolated Dual Output DC DC Converter
Model	IPS-DTD8-100S1220-2415
DC Voltage Input
Input Voltage rate	80/96VDC
Input Voltage range	30-100VDC
DC Voltage & Current Output
Output Voltage rate	12VDC	24VDC
Output Current	20AMPS	15AMPS
Output Rate Power	240Watts	360Watts
Highest conversion efficiency	92.9%	96.8%
Converter Size	12610552(MM)
NW	1.1KG
Others
Length of conventional wire	120MM
Line diameter	1.0m²
Customize	Input red, black; one way 12V10A output yellow, black; another way 5V10A output blue, black; There are 6 lines in total
Technology	Organic Silicone Thermal Encapsulation Process
Material of shell	Aluminum
Working temp	-20℃ to +85℃
Waterproof Level	IP67
Features	Organic Silicone Thermal Encapsulation Process; Die-cast aluminum alloy housing, fast and natural heat dissipation
Protection function	Under-voltage protection, Over-current protection, output short circuit protection, overheat protection
Customize	From 1-200A Size and weight different if current different

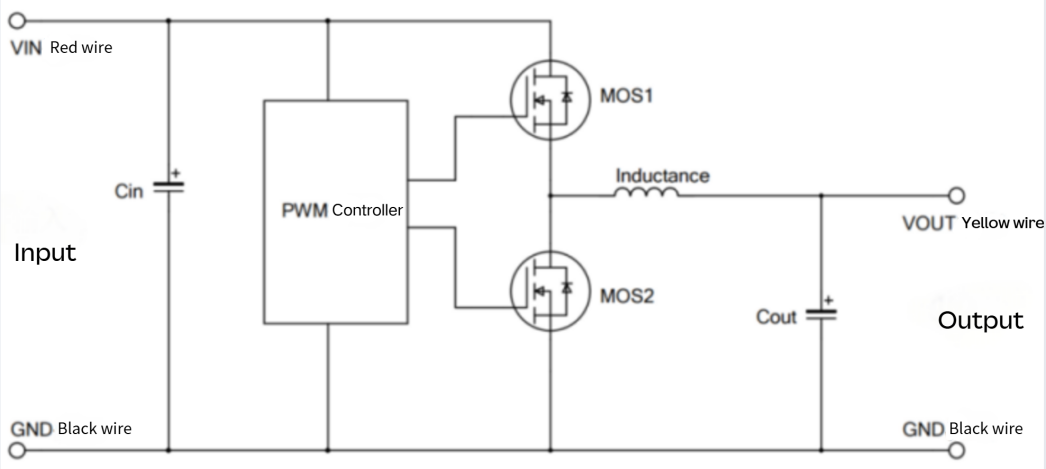

SINGLE CHANNEL SIMPLIFIED CIRCUIT DIAGRAM

MODEL LIST

Model	Input Voltage VDC	Input Voltage VDC Range	Channel Output Volts VDC & Current AMP	Max Power WATT	Size (MM) LHW	NW/GW （KG）
IPS-DTD8-40S510-1210	12VDC/24VDC	15-40VDC	5VDC 10A; 12VDC 10A	50W; 120W	1007939MM	0.48KG
IPS-DTD30-80S550-1220-2415-3610	36/48VDC	30-80VDC	5VDC 50A; 12VDC 20A; 24VDC 15A; 36VDC 10A (select only two outputs）	250W; 240W; 360W; 360W (select only two outputs）	1007939MM	0.48KG
IPS-DTD8-40S520-1220	12VDC/24VDC	8-40VDC	5VDC 20A; 12VDC 20A	100W; 240W	12610552MM	1.1KG
IPS-DTD8-60S1220-2415	36VDC/48VDC	8-60VDC	12VDC 20A; 24VDC 15A	240W; 360W	12610552MM	1.1KG
IPS-DTD36-60S3610-485	36VDC/48VDC	36-60VDC	36VDC 10A; 48VDC 5A	360W; 240W	12610552MM	1.1KG
IPS-DTD8-80S1220-2415	60VDC/72VDC	8-80VDC	12VDC 20A; 24VDC 15A	240W; 360W	12610552MM	1.1KG
IPS-DTD8-80S3610-485	60VDC/72VDC	8-80VDC	36VDC 10A; 48VDC 5A	360W; 240W	12610552MM	1.1KG
IPS-DTD8-100S1220-2415	80VDC/96VDC	8-100VDC	12VDC 20A; 24VDC 15A	240W; 360W	12610552MM	1.1KG
IPS-DTD36-100S3610-485	80VDC/96VDC	36-100VDC	36VDC 10A; 48VDC 5A	360W; 240W	12610552MM	1.1KG
IPS-DTD20-120S1220-2415	120VDC	20-120VDC	12VDC 20A; 24VDC 15A	240W; 360W	12610552MM	1.1KG
IPS-DTD36-120S3610-485	120VDC	36-120VDC	36VDC 10A; 48VDC 5A	360W; 240W	12610552MM	1.1KG
