INFORMATION

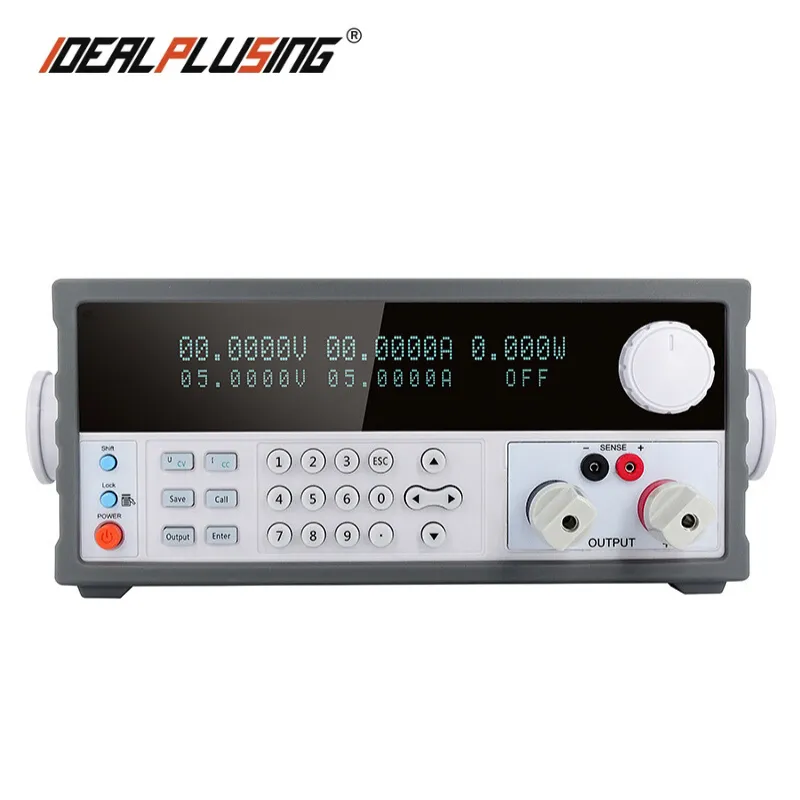

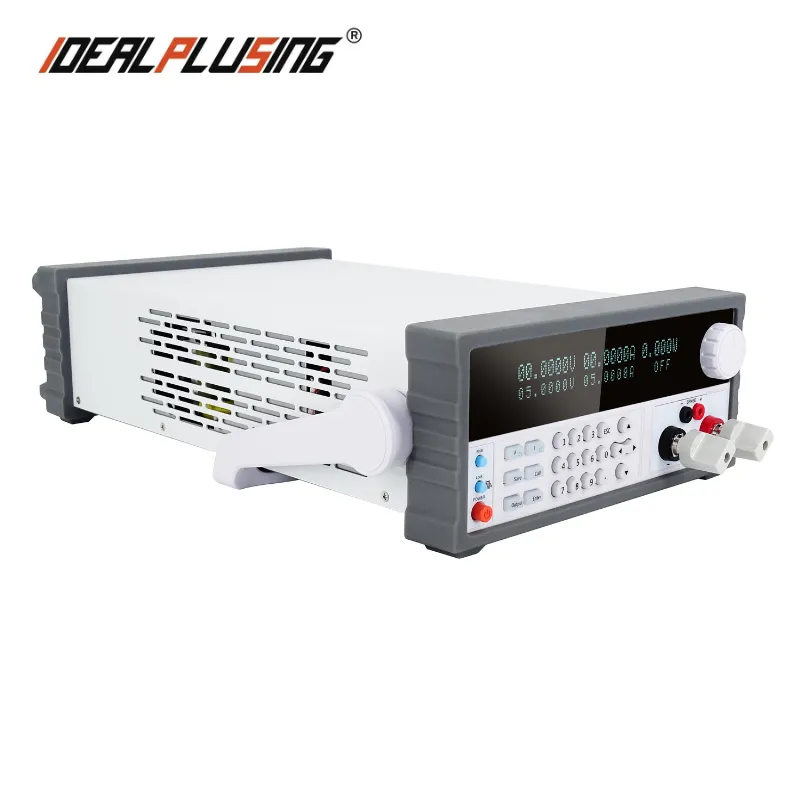

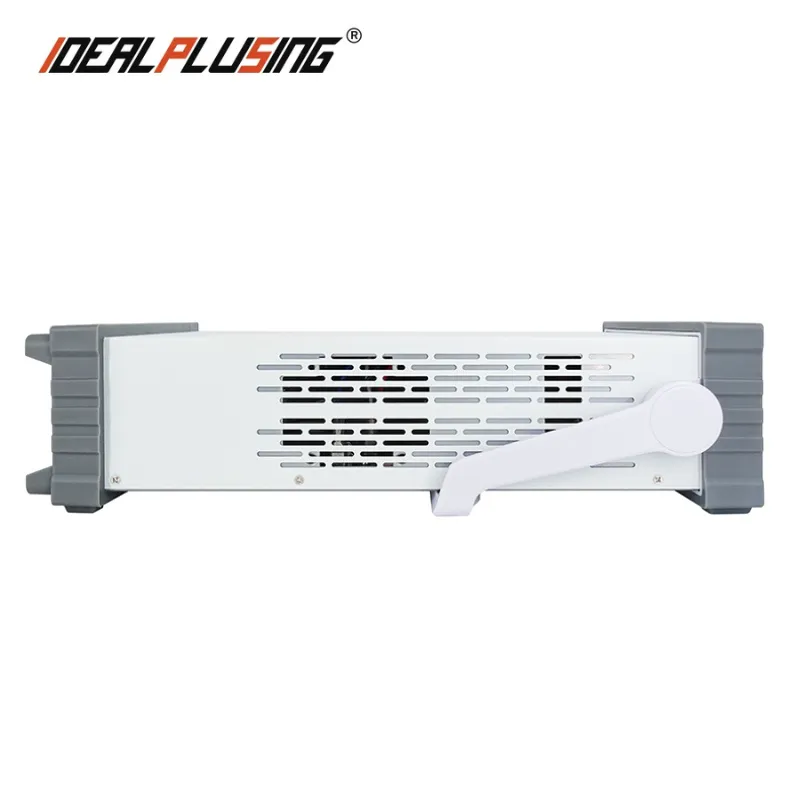

This series of products is a high-precision single-group output programmable DC switching power supply, which is light and compact, with adjustable voltage and current and multiple operating modes.
FEATURE
●Window List sequence test technology, can store/call 100 sets of voltage and current data.
●Multiple power-on modes are optional.
●Compatible with standard Modbus and SCPl protocols.
●Optional display of power or load resistance value, with low resistance measurement function.
●Multiple protection functions such as overload, reverse polarity protection, overvoltage protection, overcurrent protection, overtemperature protection, etc.
●Multiple trigger sources (command, level, pulse, external) trigger mode selection.
●VSelf voltage automatic calibration function to reduce the deviation from the set voltage value.
●Constant current priority setting.

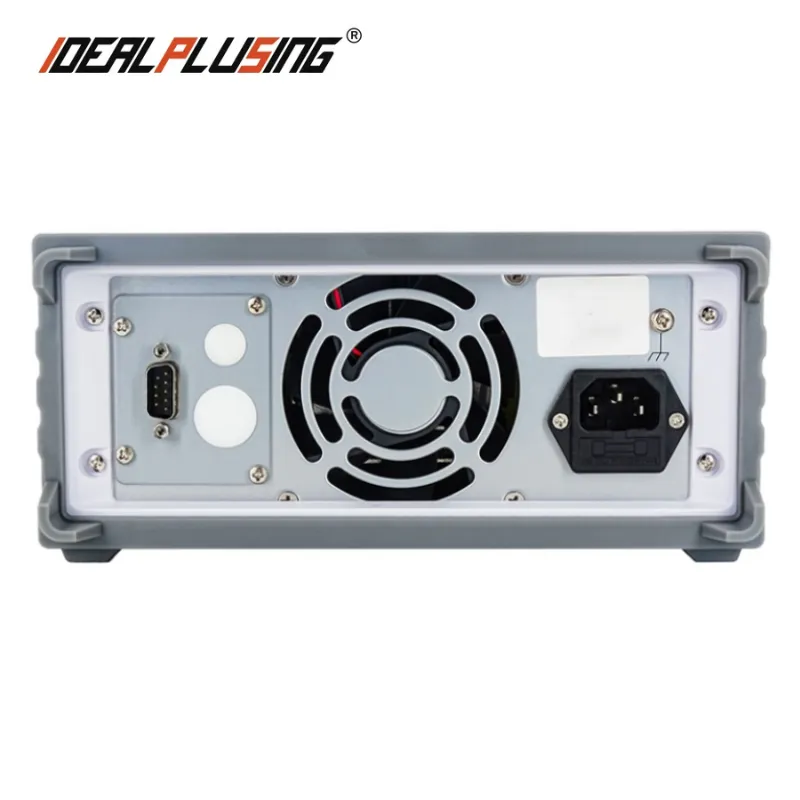

●Standard rear RS232 interface, optional RS485 interface: optional USB interface; optional Ethernet interface.
●Optional buzzer, suitable for a variety of different occasions.
●High resolution, high accuracy.
SPECIFICATION
Brand IDEALPLUSING | ||||||
Product Name | 6-Bit VFD High-Precision Programmable Switching Power Supply | |||||
Model | IPS-ATDM1560 | IPS-ATDM3020 | IPS-ATDM3030 | IPS-ATDM6010 | IPS-ATDM6015 | IPS-ATDM8011 |
Rated DC output（0℃~40℃) | ||||||
Voltage | 0～15V | 0～30V | 0～30V | 0～60V | 0～60V | 0～80V |
Current | 0～60A | 0～20A | 0～30A | 0～10A | 0～15A | 0～11A |
Output power | 900W | 600W | 900W | 600W | 900W | 880W |
Overvoltage protection | 0. 1～18V | 0.1～34V | 0.1～34V | 0.1～64V | 0.1～64V | 0. 1～88V |
Overcurrent protection | 0. 1～62A | 0.1～24A | 0.1～34A | 0.1～12A | 0.1～18A | 0. 1～12A |
Voltage Output | ||||||
Power supply effect | ≤0.01%+4mV | |||||
Loading effect | ≤0.01%+5mV | |||||
Recovery time | ≤1.5ms(50%load change) | |||||
Ripple And Noise | ≤2mVrms,30mVpp | |||||
Temperature coefficient | ≤300ppm/℃ | |||||
Setting accuracy | ±(0.03% of reading + 10mV) (25±5℃) | |||||
Set Resolution | 0. 1mV | |||||
Current output | ||||||
Power supply effect | ≤0.2%+3mA | |||||
Loading Effect | ≤0.2%+5mA | |||||
Ripple and Noise | ≤10mArms | |||||
Setting accuracy | ±(0.03% of reading+10mA)(25±5℃) | |||||
Set Resolution | 0. 1mA | |||||
Show | ||||||
Voltage | 6digits display | |||||
Current | 6 digits display | |||||
Voltage resolution | 0. 1mV | |||||
Current resolution | 0. 1mA | |||||
Reading accuracy | ±(0.02% of reading +5mV) (25±5℃)；±(0.05% of reading +10mA) (25±5℃) | |||||
Protect | Overload protection, reverse polarity protection, overvoltage protection, over currentprotection, overtemperature protection | |||||
Lock keyboard | Have | |||||
Programming interface | Standard RS232 interface, optional USB, RS485, LAN interface (choose one from four) | |||||
Programming Protocol | Support SCPI and MODBUS command sets | |||||
Store Recall | 100 Group | |||||
Insulation | Between output terminal and housing or other terminals：≥20MΩ/500 VDC | |||||
Operating Environment | Indoor use altitude: ≤ 2000m Ambient temperature: 0 ℃ ~ 40 ℃ Relative humidity: ≤ 80% Installation Class: II Pollution Degree: 2 | |||||
Storage environment | Ambient temperature: -10 ~ 70 ℃ Relative humidity: ≤ 70% | |||||
Power Input | AC220V±10%,50/60Hz | |||||
appendix | User Manual 1 piece, power cord 1 , host computer software CD 1 piece, RS232 interface cable 1 root | |||||
Size (without protective case) | 352(D)×215(W)×89(H)mm | |||||
Weight | About 5.5kg | |||||
MODEL LIST
Model | Output Peak Voltage | Output Peak Current | Output Peak Power | Size (MM) |
IPS-ATDM1560 | 15VDC | 60A | 900W | 352×215×89MM |
IPS-ATDM3020 | 30VDC | 20A | 600W | 352×215×89MM |
IPS-ATDM3030 | 30VDC | 30A | 900W | 352×215×89MM |
IPS-ATDM6010 | 60VDC | 10A | 600W | 352×215×89MM |
IPS-ATDM6015 | 60VDC | 15A | 900W | 352×215×89MM |
IPS-ATDM8011 | 80VDC | 11A | 880W | 352×215×89MM |
