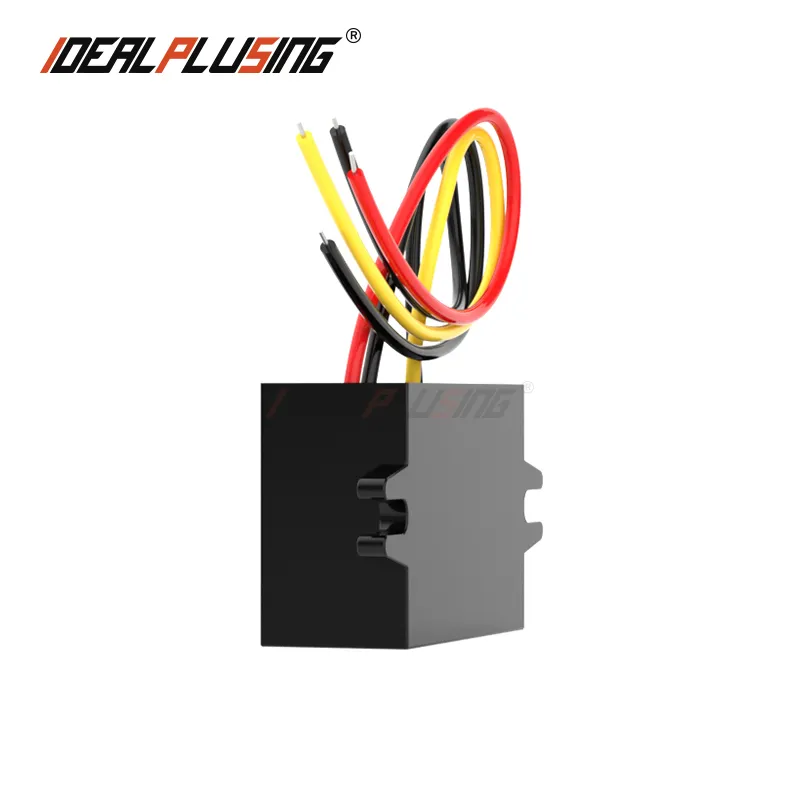

IPS-DTD1224S56 dc converter 8-40v 12v 24v 28v 36v to 5v 6a Suitable

High efficiency Factory customization Non-isolation dc converter 8-40v 12v 24v 28v 36v to 5v 6a Suitable for all kinds of electronic equipment Model : IPS-DTD1224S56 12/24V TO 5V 6A DC DC CONVERTER Specification : ①　Input: 12/24VDC（8~30VDC） ②　Output: 5VDC 6A ③　Max power: 30W ④　Material of shell: Plastic ⑤　Size: 46*32*18 MM ⑥　Input & Output cable: 13~15CM ⑦　NW: 45G,GW: 65G ⑧　Design: Non isolate and waterproof IP65 ⑨　Email :power@idealplusing.com Greetings, esteemed clientele. We specialize in customizing DC-DC converters to meet your specific requirements. With customized input and output voltage and current, our offerings range from 1V to 1000V and 1A to 1000A. We provide both isolated and non-isolated converter design options. Please visit our website and submit any inquiries to explore our capabilities further. Our dedicated team endeavors to respond within one hour. Thank you for considering our services.

Datasheet： Download

Brand	IDEALPLUSING
Name	dc converter 8-40v 12v 24v 28v 36v to 5v 6a Suitable
Type	Non-Isolate
Model (IPS-)*	IPS-DTD1224S51	IPS-DTD1224S52	IPS-DTD1224S53	IPS-DTD1224S54
Model (IPS-)*	IPS-DTD1224S55	IPS-DTD1224S56	IPS-DTD1224S58	IPS-DTD1224S510
INPUT
Rate Volts	12/24VDC
Volts range	8~40VDC
OUTPUT
Efficiency	92%
Output volts	5VDC
Output current	1A	2A	3A	4A
Rated Power	5W	10W	15W	20W
Output current	5A	6A	8A	10A
Rated Power	25W	30W	40W	50W
OTHERS
Voltage regulation	< 1%
Load regulation	< 2%
Ripple	< 50mV
No-load current	< 20mA
Working Temp	-40°c ~ +80°c
Waterproof rating	IP65
Machine size	*463218(MM)）*
NW	45G
Cooling way	Free air convection
Certifications	CE, RoHS
Customize	Support
Sample order	Support
OEM & ODM	Support
Package	White & colorful package optional
