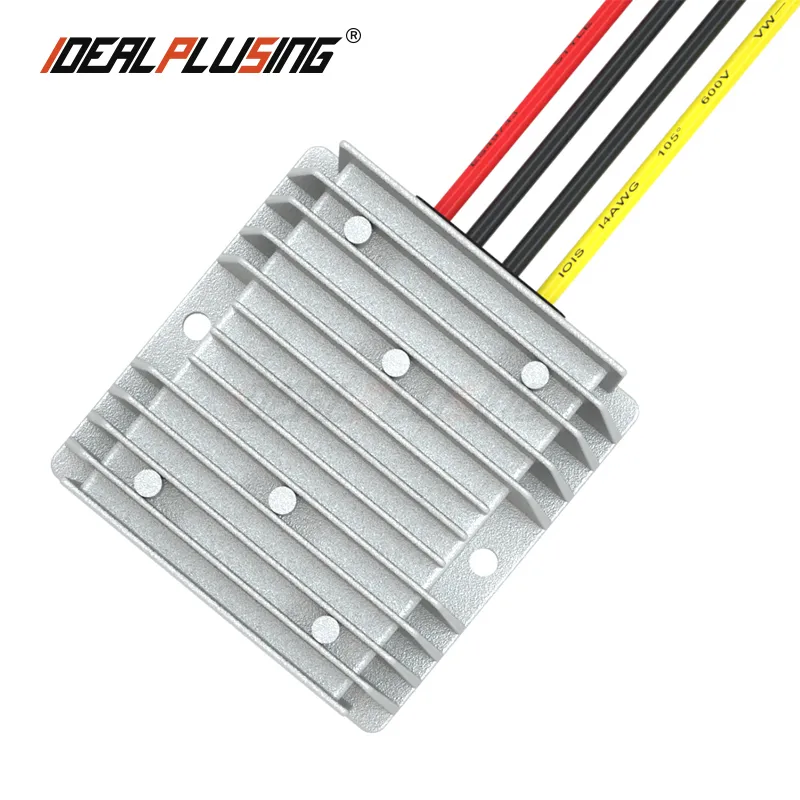

IPS-DTD1224S515 DC DC Step Down Converter 24V to 5V 15A
24V to 5V 15A Newest Hot 75W DC DC Step Down Converter Reducer CE RoHS Certificated
Model : IPS-DTD1224S515 12/24V TO 5V 15A DC DC CONVERTER
Specification :
① Input: 12/24VDC（8~32VDC）
② Output: 5VDC 15A
③ Max power: 75W
④ Material of shell: Aluminum
⑤ Size: 74*74*32 MM
⑥ Input & Output cable: 13~15CM
⑦ NW: 300G,GW: 500G
⑧ Design: Non isolate and waterproof IP65
⑨ Email :power@idealplusing.com
Greetings, esteemed clientele. We specialize in customizing DC-DC converters to meet your specific requirements. With customized input and output voltage and current, our offerings range from 1V to 1000V and 1A to 1000A. We provide both isolated and non-isolated converter design options. Please visit our website and submit any inquiries to explore our capabilities further. Our dedicated team endeavors to respond within one hour. Thank you for considering our services.
Datasheet： Download
Brand | IDEALPLUSING | |||
Name | DC DC Step Down Converter 24V to 5V 15A | |||
Type | Non-Isolate | |||
Model (IPS-***) | IPS-DTD1224S510 | IPS-DTD1224S515 | IPS-DTD1224S520 | IPS-DTD1224S530 |
INPUT | ||||
Rate Volts | 12/24VDC | |||
Volts range | 8~32VDC | |||
OUTPUT | ||||
Efficiency | 92% | |||
Output volts | 5VDC | |||
Output current | 10A | 15A | 20A | 30A |
Rated Power | 50W | 75W | 100W | 150W |
OTHERS | ||||
Voltage regulation | < 1% | |||
Load regulation | < 2% | |||
Ripple | < 50mV | |||
No-load current | < 20mA | |||
Working Temp | -40°c ~ +80°c | |||
Waterproof rating | IP65 | |||
Machine size | 74*74*32(MM)） | |||
NW | 300G | |||
Cooling way | Free air convection | |||
Certifications | CE, RoHS | |||
Customize | Support | |||
Sample order | Support | |||
OEM & ODM | Support | |||
Package | White & colorful package optional | |||
