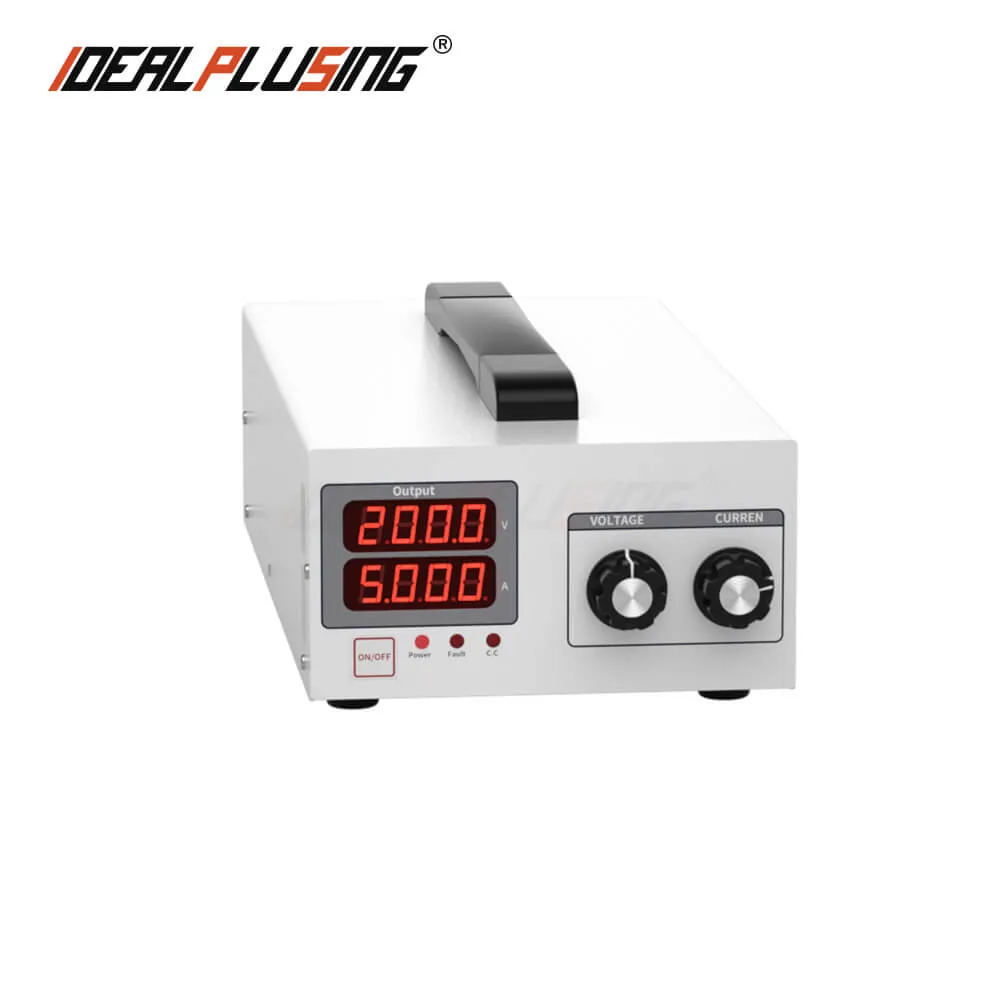

Brand | IDEALPLUSING |
Model | IPS-ATD2425 |
Input Voltage | 1 Phase 220VAC±15%，50Hz/60Hz |
Output Voltage/Current | 0.24~24VDC，Stabilizer value. 1% to 100% adjustable 0.25~25A，Constant current value. 1% to 100% adjustable |
Output Power | 600W |
Source Voltage Regulation Rate | ≤0.5％ |
Load Regulation | Stabilizer Voltage ≤1％； Constant Current≤2％ |
Voltage Display Accuracy | + 1.2% |
Current Display Accuracy | + 1.5% |
Display form | 0.000 to 9999 |
Output Voltage Overshoot | ≤2% of maximum output |
Operation Temperature | (-20～45)℃ |
Over-Temperature Protection | 75~85 Degree |
Heat Dissipation Mode/ Cooling mode | Fan heat dissipation |
Ripple Voltage | Vpp≤2% |
Efficiency | ≥86％ |
Start-up Output voltage setting time | ≤3S |
Protection | lower voltage, over voltage, over current, short circuit, overheating Protection |
Insulation Strength | Input output: AC1500V, 10mA, 1 minutes; Input - machine shell: AC1500V, 10mA, 1 minutes; Output - shell: AC1500V, 10mA, 1 minutes |
Insulation Resistance | Input-Output ≥20MΩ； Input-Output ≥20MΩ； Input-Output ≥20MΩ。 |
MTTF | ≥50000h |
CUSTOMIZE FUNCTION | |
Remote Control Function (Option) | 0-5Vdc /0-10Vdc analog signal control output voltage & current |
0-5Vdc /0-10Vdc analog signal to read-back output voltage & current | |
0-5Vdc /0-10Vdc analog Switch signal to control output ON/OFF | |
4-20mA analog signal control output voltage & current | |
RS232/RS485 Communication port control by computer | |
Machine/Package Dimension | L165*W330*H88(MM)/L420*W260*H170(MM) |
Net Weight/Gross Weight | 3.5KG/5.5KG |
Adjustable Voltage / Current Mode | Knob type & Keystroke type for option |
Color | Grey |
