I.FEATURES | ||||||

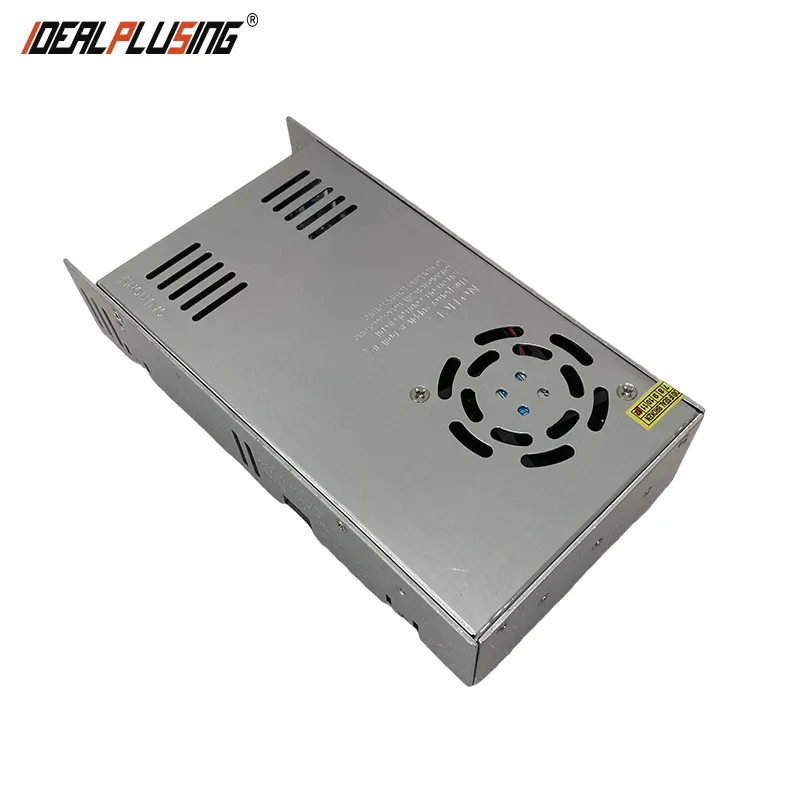

1 | IDEALPLUSING Hot Sale AC to DC 32v 12.5a 0-90VDC 4.4A/0-110VDC 3.6A/0-150VDC 2.7A 400W Switching Power Supply | |||||
2 | Adjustable with Compact size, light weight | |||||
3 | Wide range AC Input , AC input 110V/220Vac input selected by switch | |||||
4 | 100% full load burn-in test | |||||
5 | Protection: Short circuit / Over load / Over voltage | |||||
6 | Fixed switching frequency at 25KHz | |||||
7 | 1 year warranty | |||||
8 | High efficiency, reliability quality, competitive cost | |||||
9 | 0-5Vdc / 0-10Vdc External control output (Optional) | |||||
10 | Extra adjustable potentiometer (Optional) | |||||
11 | Output voltage adjustable, output current be fix | |||||
II. COMMON SPECIFICATION | ||||||
Adjustable range for dc voltage | The output voltage is 100% adjustable through the potentiometer | |||||
AC input voltage range | AC 95-125V 60Hz | AC174-264VAC 50Hz Manual switch | |||||
Input current | 115V/4.23A / 230V/2.12A | |||||
leakage current | ≤1.5mA 230V AC | |||||
Overload protection | Load more than 110%~120% switch to constant current mode | |||||
Over-voltage protection | ≥15% of output voltage | |||||
Setup rise hold time | 200ms 100ms 20ms | |||||
Vibration | 10-50Hz, 2G 10 minutes/cycle X, Y, Z axis each 60 minutes | |||||
Withstand voltage | Input to shell 1500V/3mA AC | Input to output 1500V/3mA AC | Input to output 500V/3mA AC | |||||
working temperature | -10℃-65℃, 20%-90%RH | |||||
Storage temperature | -10℃--65℃, 20%--95%RH | |||||
Net weight | 0.9KG | |||||
Dimension | 215L*115W*50H (MM) | |||||
OTHERS | ||||||
Output voltage tolerance | 1% | |||||
Wave and noise | 150mV P-P | |||||
Efficiency | 91% | |||||
III. MODEL INFOMRATION | ||||||
MODEL | OUTPUT VOLTAGE | OUTPUT CURRENT | OUTPUT POWER | |||
IPS-SP12-33.3 | 0-12VDC | 33.3A | 400W | |||
IPS-SP24-16.7 | 0-24VDC | 16.7A | 400W | |||
IPS-SP36-11.1 | 0-36VDC | 11.1A | 400W | |||
IPS-SP48-8.3 | 0-48VDC | 8.3A | 400W | |||
IPS-SP60-6.7 | 0-60VDC | 6.7A | 400W | |||
IPS-SP90-4.4 | 0-90VDC | 4.4A | 400W | |||
IPS-SP110-3.6 | 0-110VDC | 3.6A | 400W | |||
IPS-SP150-2.7 | 0-150VDC | 2.7A | 400W | |||
IPS-SP200-2 | 0-200VDC | 2A | 400W | |||
IPS-SP220-1.82 | 0-220VDC | 1.82A | 400W | |||
IPS-SP240-1.68 | 0-240VDC | 1.68A | 400W | |||
IPS-SP260-1.54 | 0-260VDC | 1.54A | 400W | |||
IPS-SP280-1.43 | 0-280VDC | 1.43A | 400W | |||
IPS-SP300-1.33 | 0-300VDC | 1.33A | 400W | |||
IPS-SP330-1.21 | 0-330VDC | 1.21A | 400W | |||
