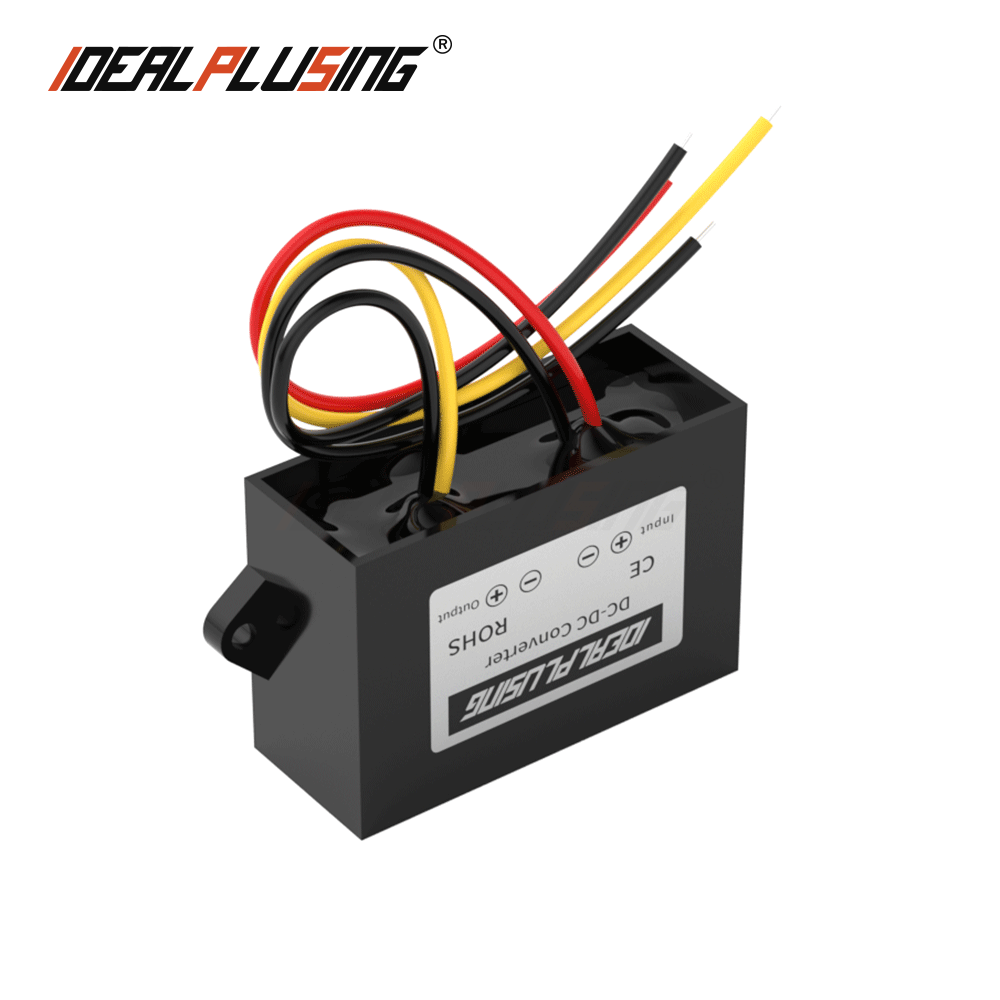

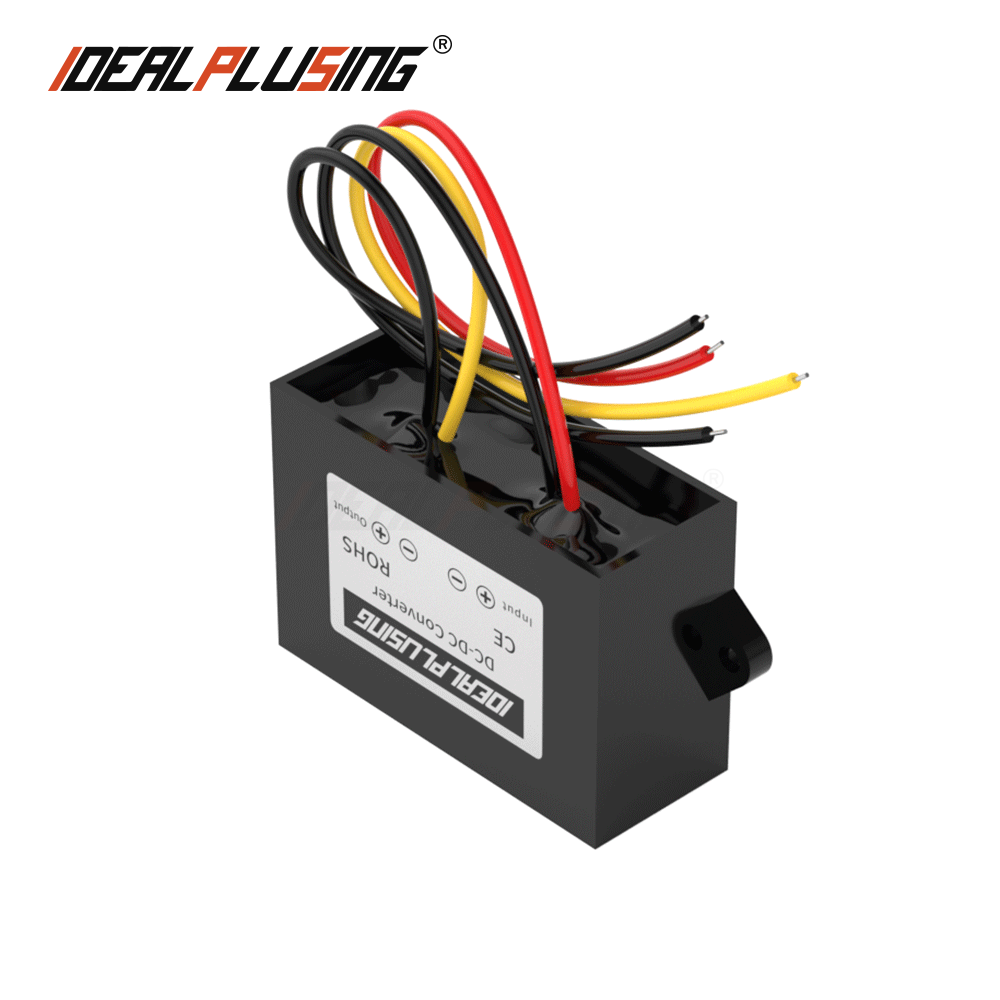

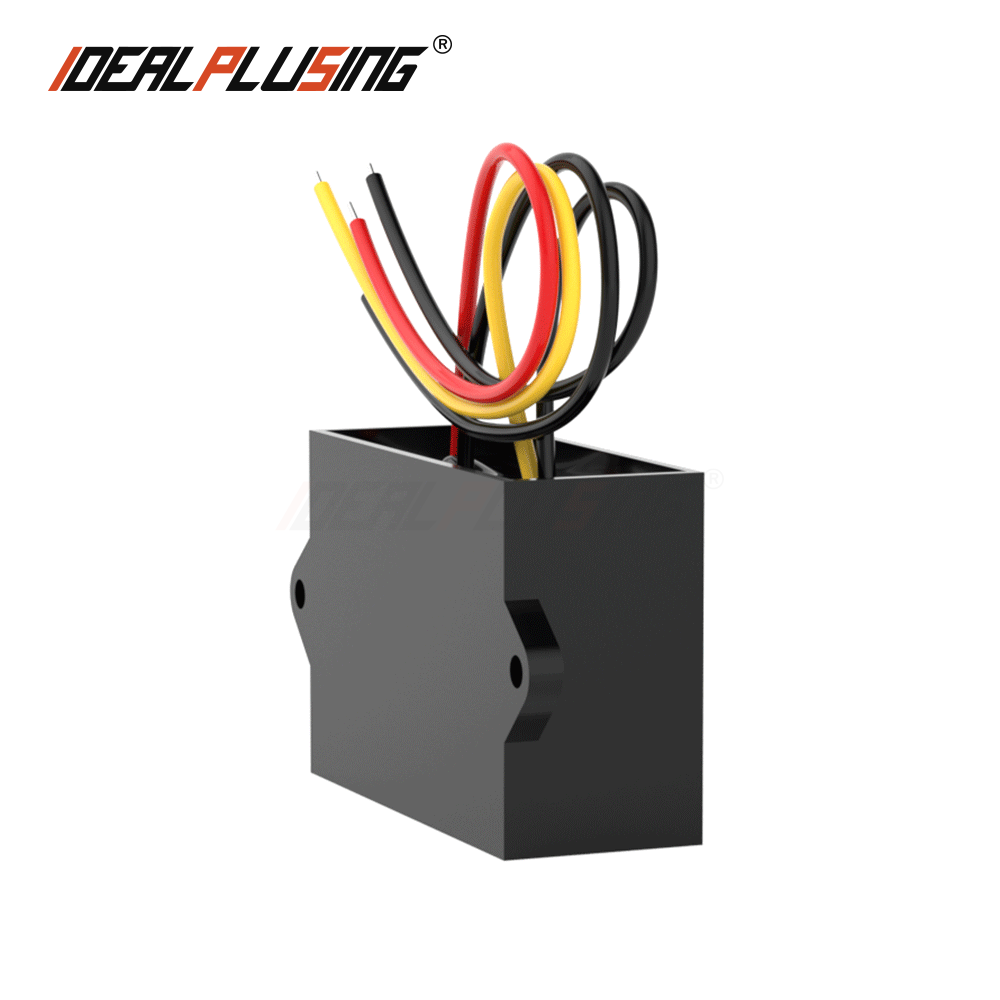

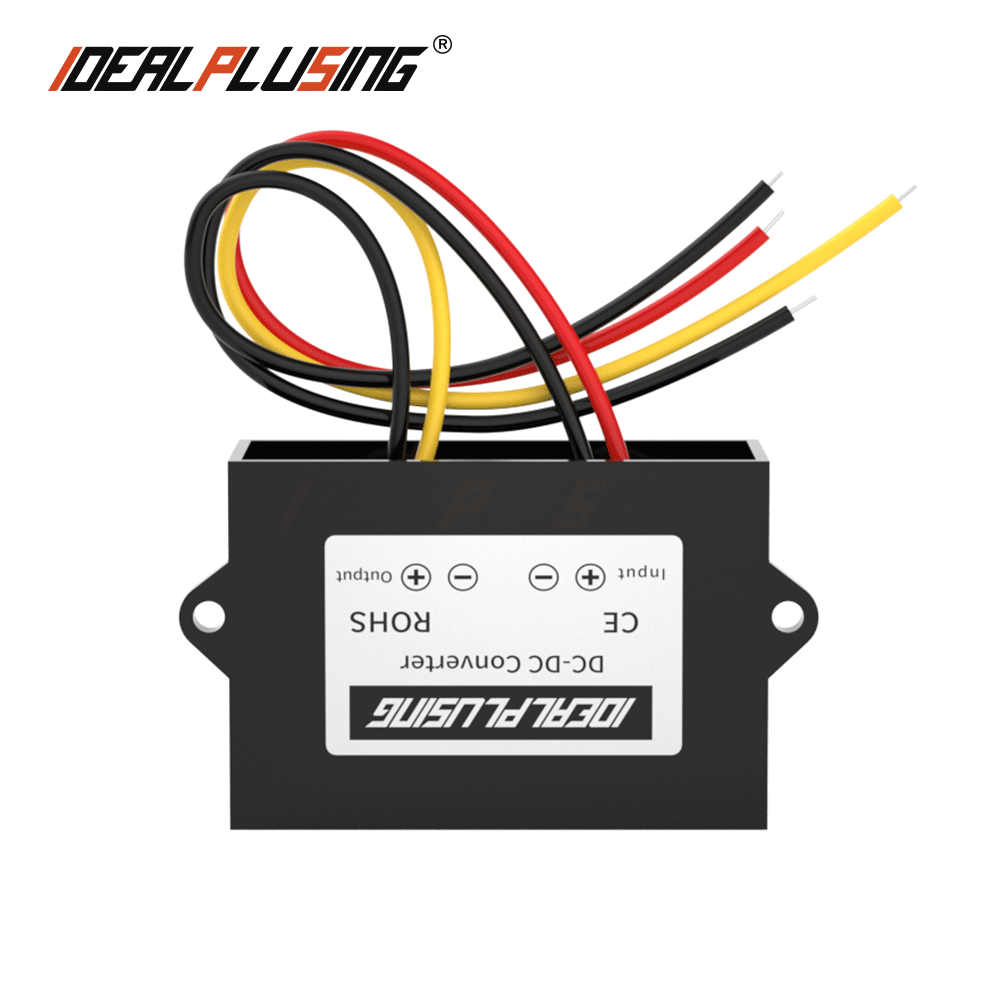

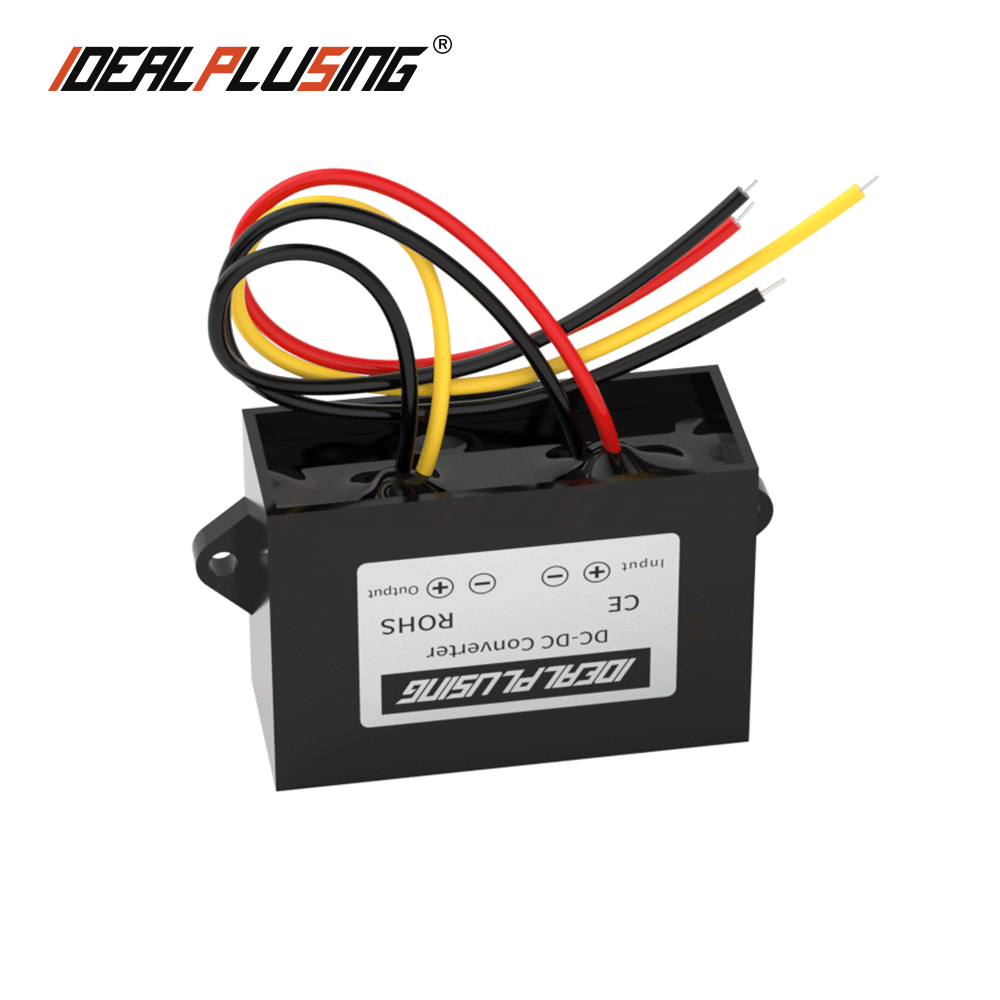

IPS-DTD5-11S121 5V 8V 11V to 12V 1A 12W DC DC Boost Converter
IPS-DTD5-11S121 5V 8V 11V to 12V 1A 12W DC DC Boost Converter
Model : IPS-DTD5-11S121 5V
Specification :
① Input: 8VDC（5-11VDC）
② Output: 12VDC 1A
③ Max power: 12W
④ Material of shell: Aluminum
⑤ Size: 58*40*22MM
⑥ Input & Output cable: 13~15CM
⑦ NW: 100G,GW:200G
⑧ Design: Non isolate and waterproof IP65
⑨ Email :power@idealplusing.com
Greetings, esteemed clientele. We specialize in customizing DC-DC converters to meet your specific requirements. With customized input and output voltage and current, our offerings range from 1V to 1000V and 1A to 1000A. We provide both isolated and non-isolated converter design options. Please visit our website and submit any inquiries to explore our capabilities further. Our dedicated team endeavors to respond within one hour. Thank you for considering our services.
Datasheet： Download
Brand | IDEALPLUSING |
Name | IPS-DTD5-11S121 5V 8V 11V to 12V 1A 12W DC DC Boost Converter |
Type | Non-Isolate |
Model (IPS-***) | IPS-DTD5-11S121 |
INPUT | |
Rate Volts | 8VDC |
Volts range | 5-11VDC |
OUTPUT | |
Efficiency | 92% |
Output volts | 12VDC |
Output current | 1A |
Rated Power | 12W |
OTHERS | |
Voltage regulation | < 1% |
Load regulation | < 2% |
Ripple | < 50mV |
No-load current | < 20mA |
Working Temp | -40°c ~ +80°c |
Waterproof rating | IP65 |
Machine size | 58*40*22(MM) |
NW | 100G |
Cooling way | Free air convection |
Certifications | CE, RoHS |
Customize | Support |
Sample order | Support |
OEM & ODM | Support |
Package | White & colorful package optional |
