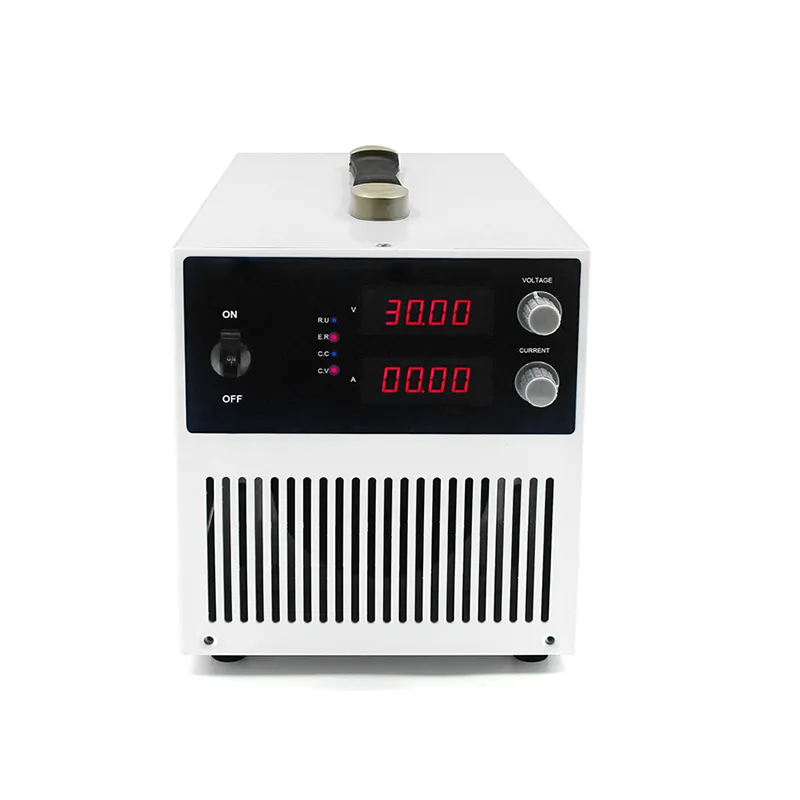

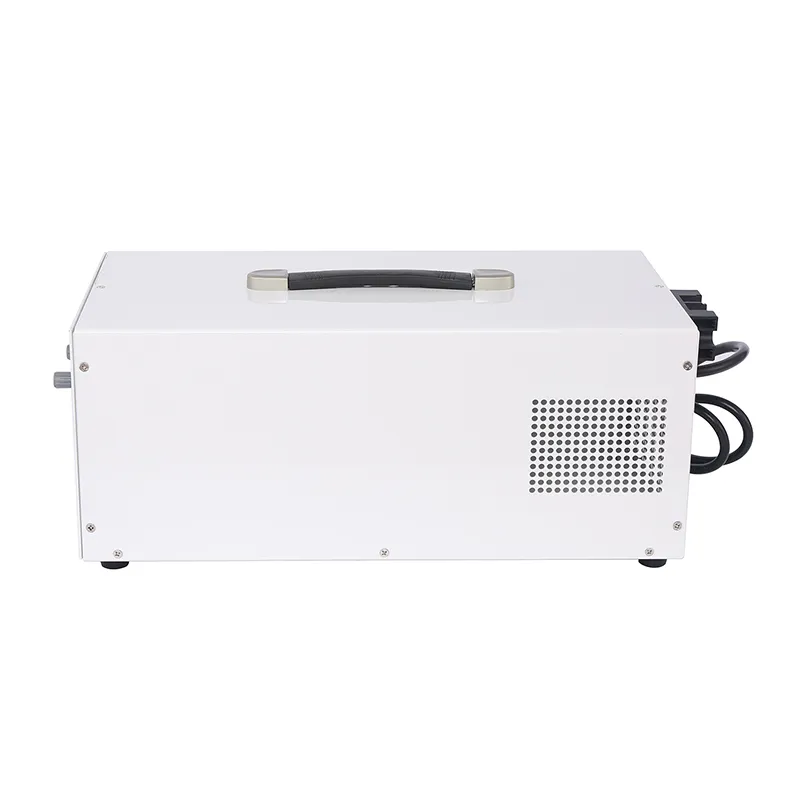

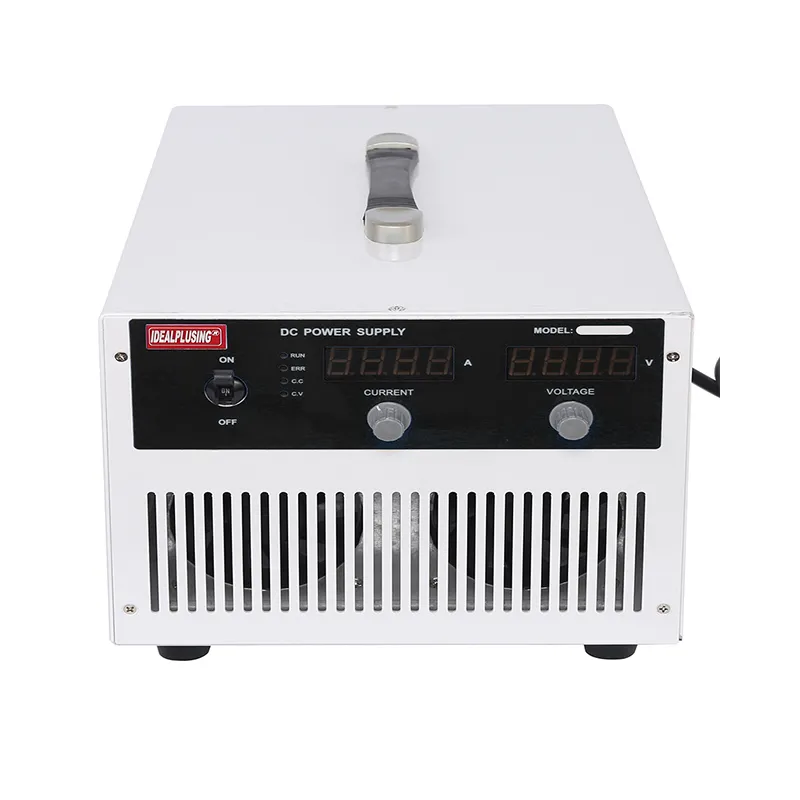

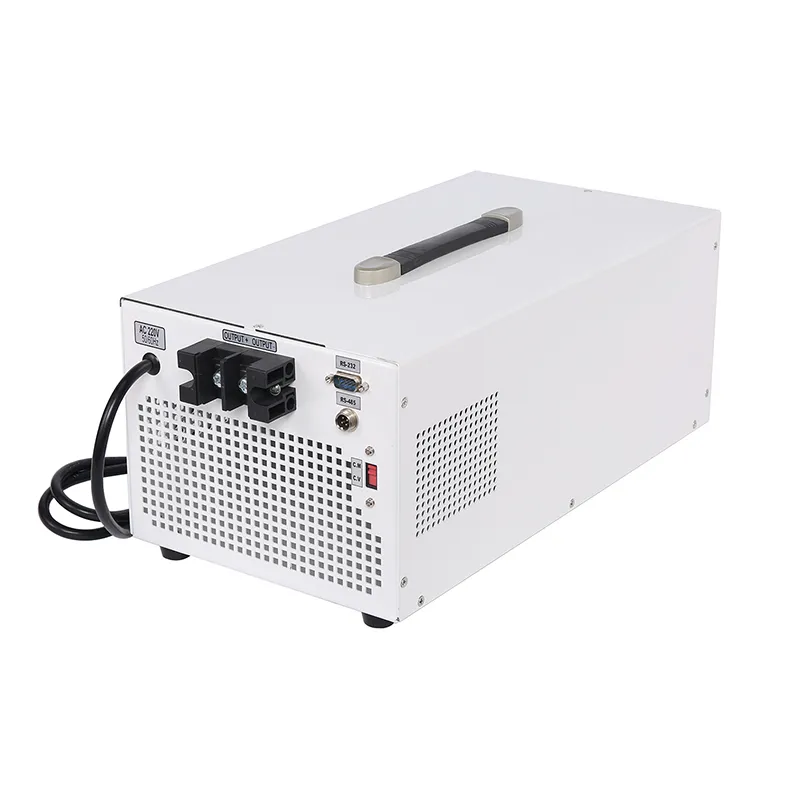

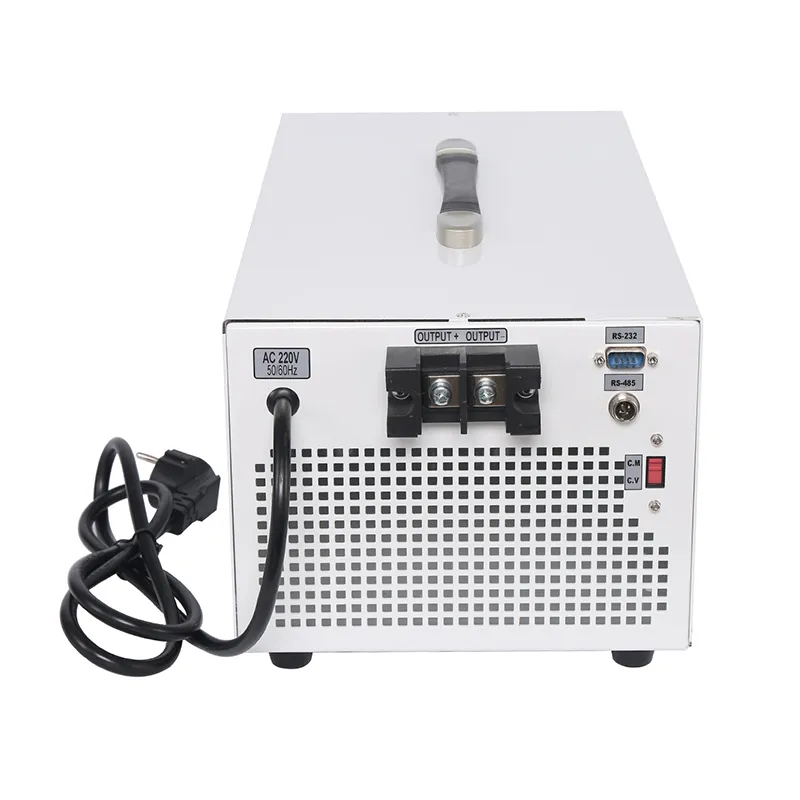

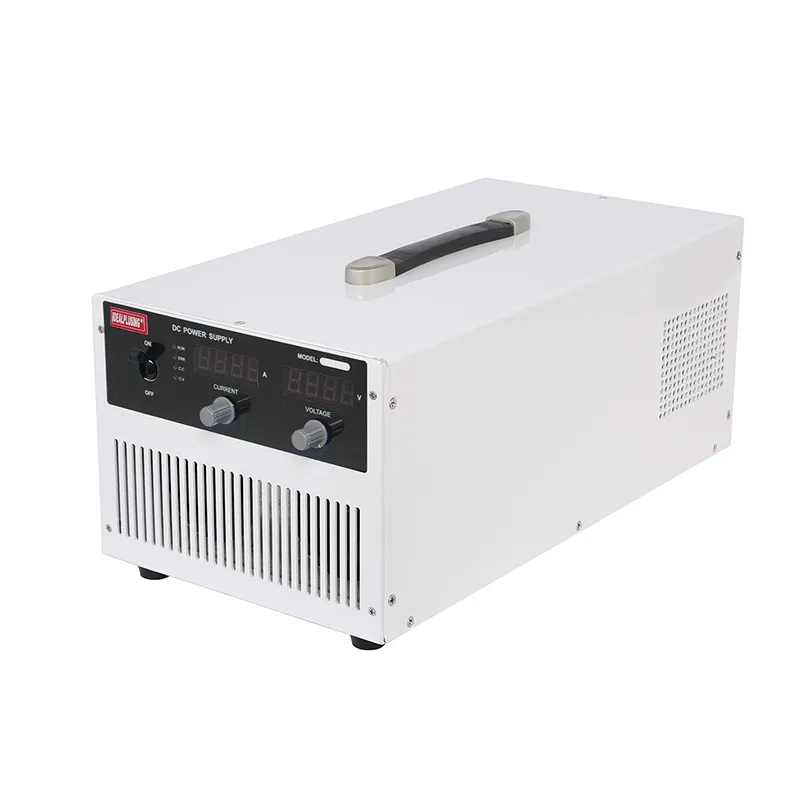

Model | IPS-ATDY25012 |
AC Input | Single phase 220VAC±15% |
Input Voltage Range | 220VAC±15% |
Input frequency | 50Hz/60Hz |
Output voltage | 0~250VDC |
Output current | 0~12A |
Output Power | 3000W |
Voltage Stabilization | ≤0.3%+10mV |
Load Stabilization | ≤0.5%+30mV |
Ripples and Noises | ≤0.5%+10mVrms |
Voltage Display Accuracy | 4-digit Accuracy: ±1%+1 word (10%-100% rating) |
Display Format | 0.000V-9.999V; 0.00V-99.99V; 0.0V-999.9V |
Current Display Accuracy | 4-digit Accuracy: ±1%+1 word (10%-100% rating) |
Remote Adjustment | (Analog control: Voltage adjustable )：0-5VDC；(Current adjustable)：0-5VDC |
Remote Display | (Analog control: Voltage adjustable )： 0-5VDC；(Current adjustable)：0-5VDC |
Output Over Voltage Protection | Built-in O.V.P. protection, protection limited value is rated +5% |
Output Over Load Protection | Overload, current limit, constant current output |
Over Temperature Protection | Built-in O.T.P. protection, Protection value 85℃±5% heat sink temperature |
Voltage Setting | 10-turn precision potentiometer |
Current Setting | 10-turn precision potentiometer |
Output Polarity | Output Positive（+) negative（- ) Can be grounded at will |
Heat Dissipation Way | Forced fan cooling |
Work Conditions | Indoor use design，Temperature：0℃~40℃； Humidity： 10%~85%RH |
Storage Conditions | Temperature：-20℃~70℃；Humidity： 10%~90%RH |
Product Dimension | 220*460*170MM |
Net Weight | 13KG |
