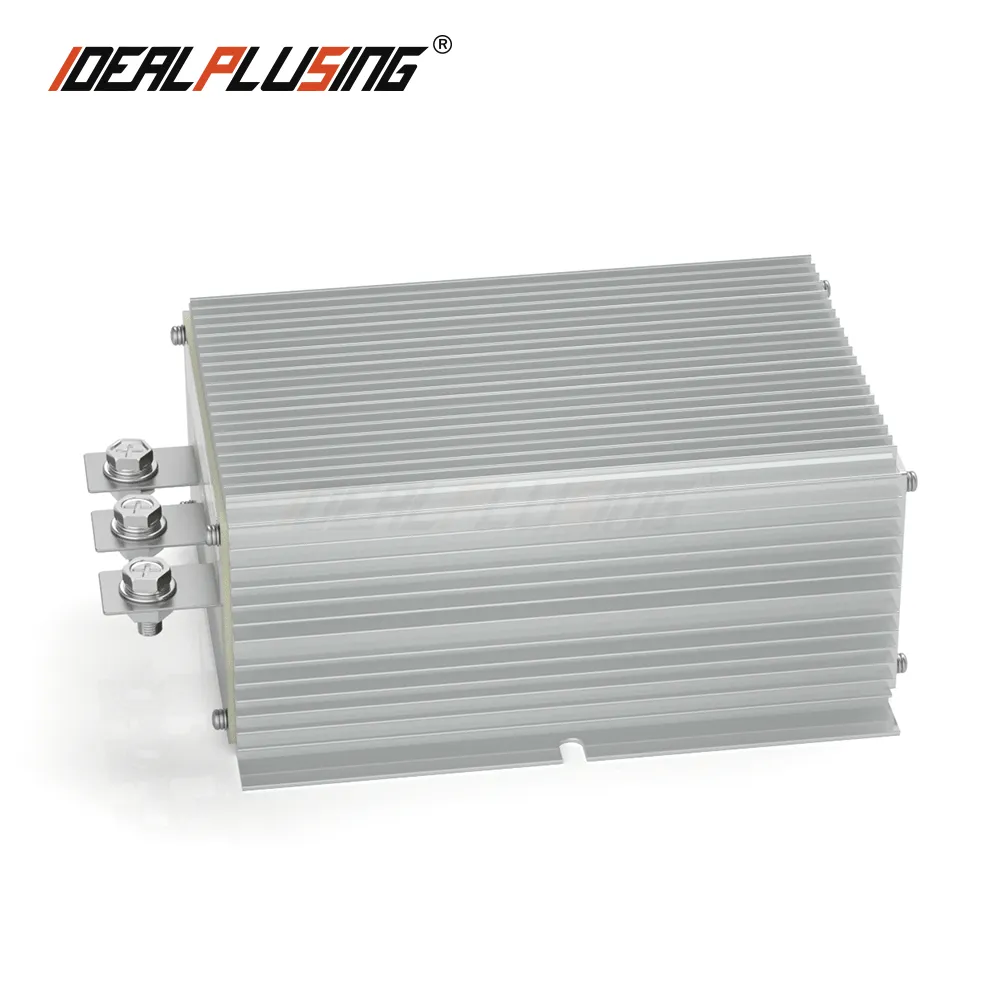

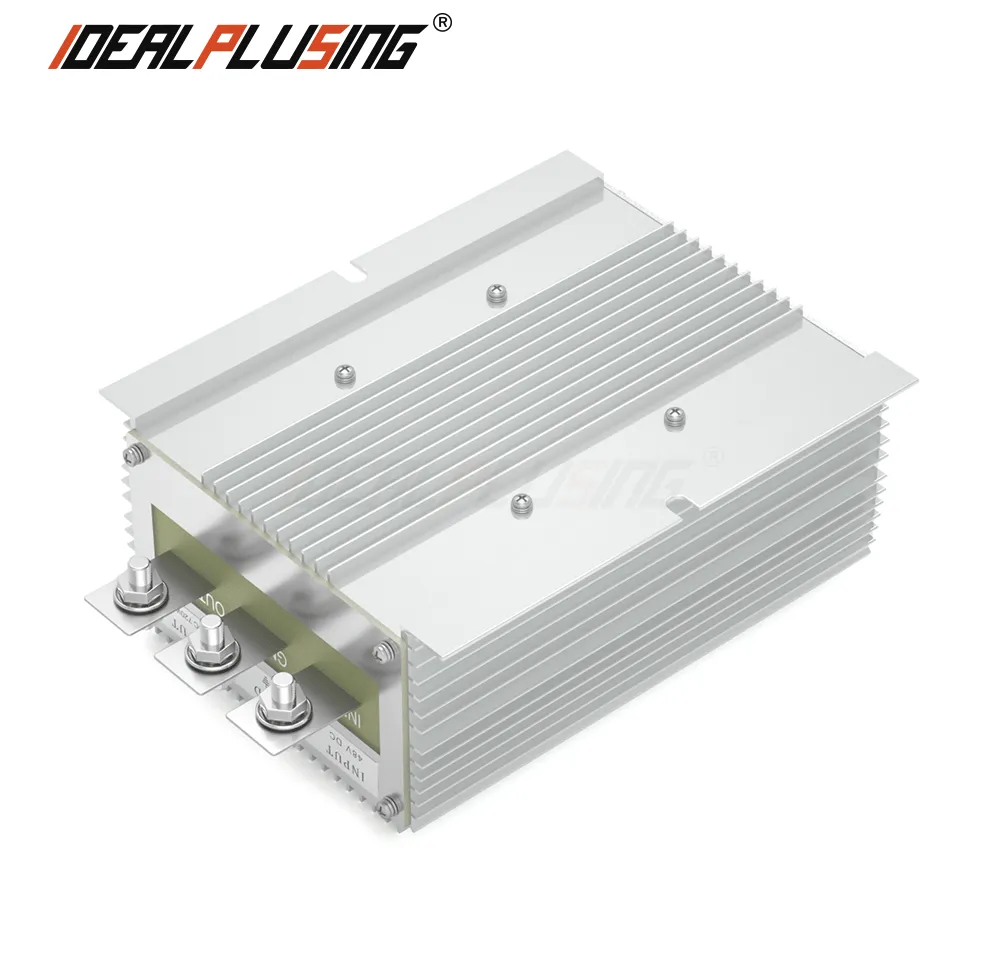

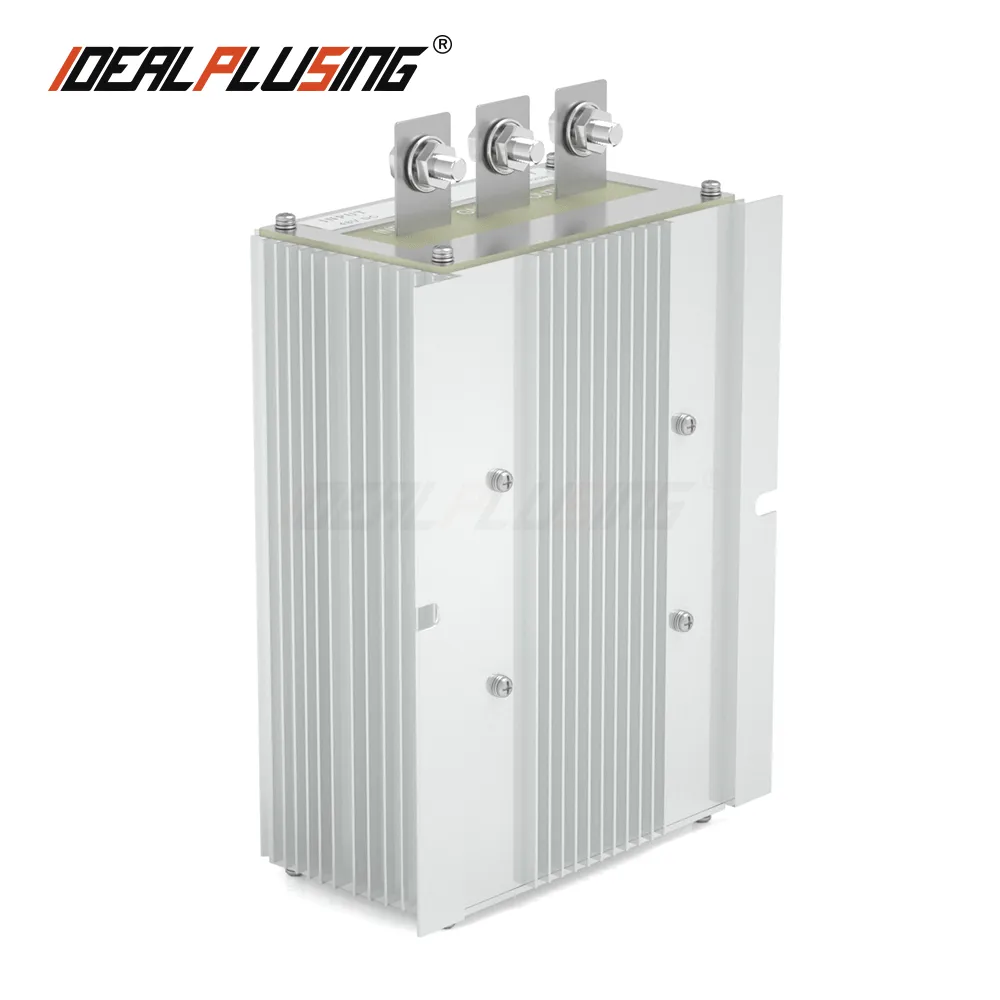

IPS-DTD12S2820 10V 12V to 28V 10A 20A 560W Step Up Down Boost Buck Power Converter
IPS-DTD12S2820 10V 12V to 28V 10A 20A 560W Step Up Down Boost Buck Power Converter Model : IPS-DTD12S2820 Specification : ① Input: 12VDC(10-15VDC) ② Output: 28VDC 20A ③ Max power: 560W ④ Material of shell: Aluminum ⑤ Size: 150*127*63MM ⑥ Input & Output cable: 13~15CM ⑦ NW: 1600G, GW:1800G ⑧ Design: Non isolate and waterproof IP65 We specialize in customizing DC-DC converters to meet your specific requirements. With customized input and output voltage and current, our offerings range from 1V to 10000VDC and 1A to 1000A. We provide both isolated and non-isolated converter design options. Please visit our website and submit any inquiries to explore our capabilities further.
Datasheet: Download

Brand

IDEALPLUSING

Name

IPS-DTD12S2820

10V 12V to 28V 10A 20A 560W Step Up Down Boost Buck Power Converter

Type

Non-Isolate

Model (IPS-***)

IPS-DTD12S2820

INPUT

Rate Volts

12VDC

Volts range

10-15VDC

OUTPUT

Efficiency

92%

Output volts

28VDC

Output current

20A

Rated Power

560W

OTHERS

Voltage regulation

< 1%

 Load regulation

 < 2%

 Ripple

< 50mV

 No-load current

< 20mA

 Working Temp

-40°c ~ +80°c

Waterproof rating

IP65

 Machine size

150*127*63(MM)

 NW

1600G

Cooling way

Free air convection

 Certifications

CE, RoHS

 Customize

Support

Sample order

Support

OEM & ODM

Support

Package

White & colorful package optional
