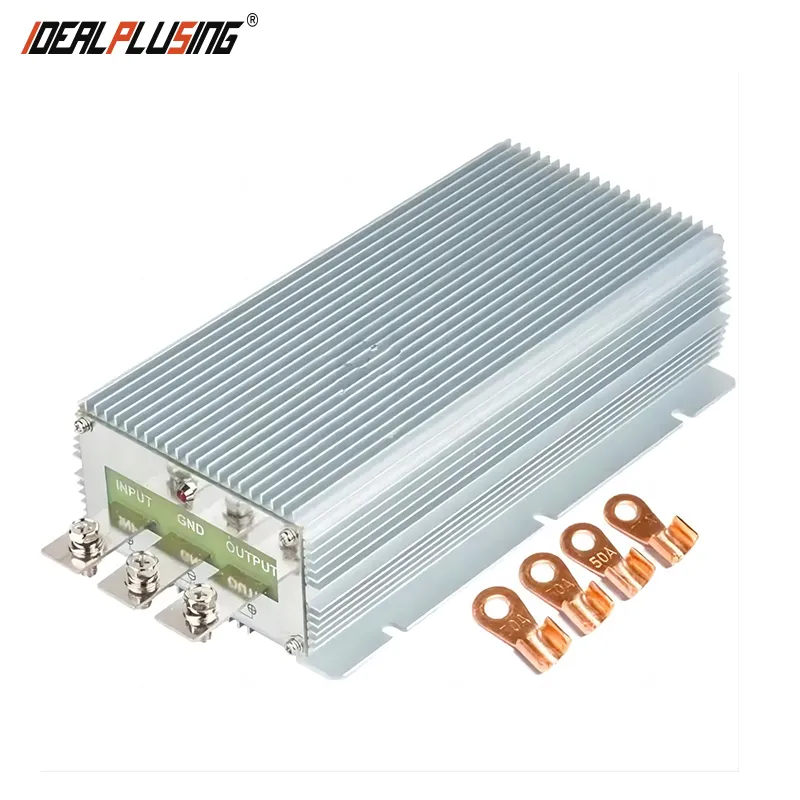

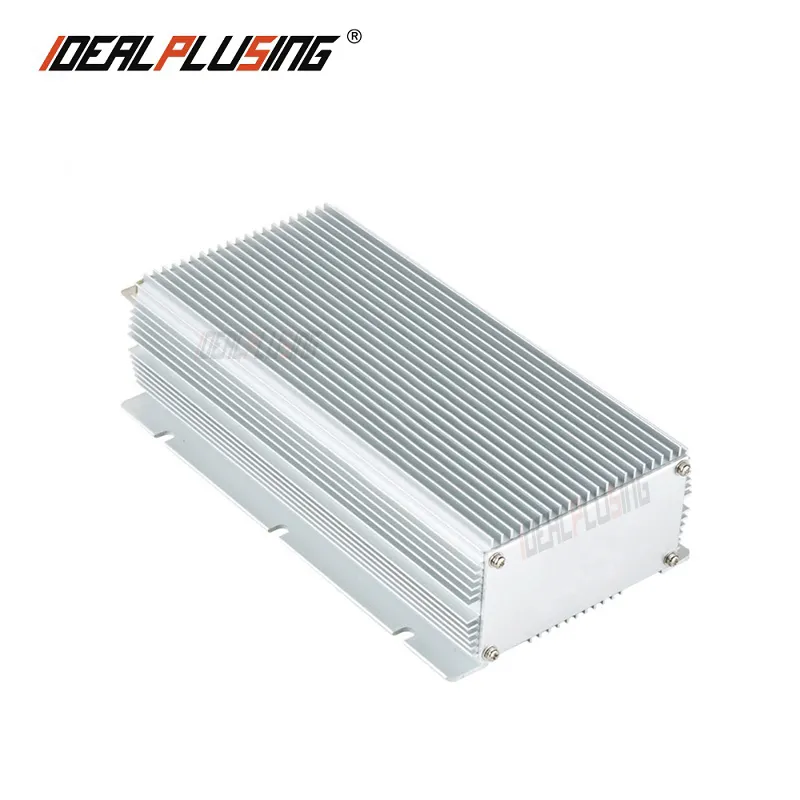

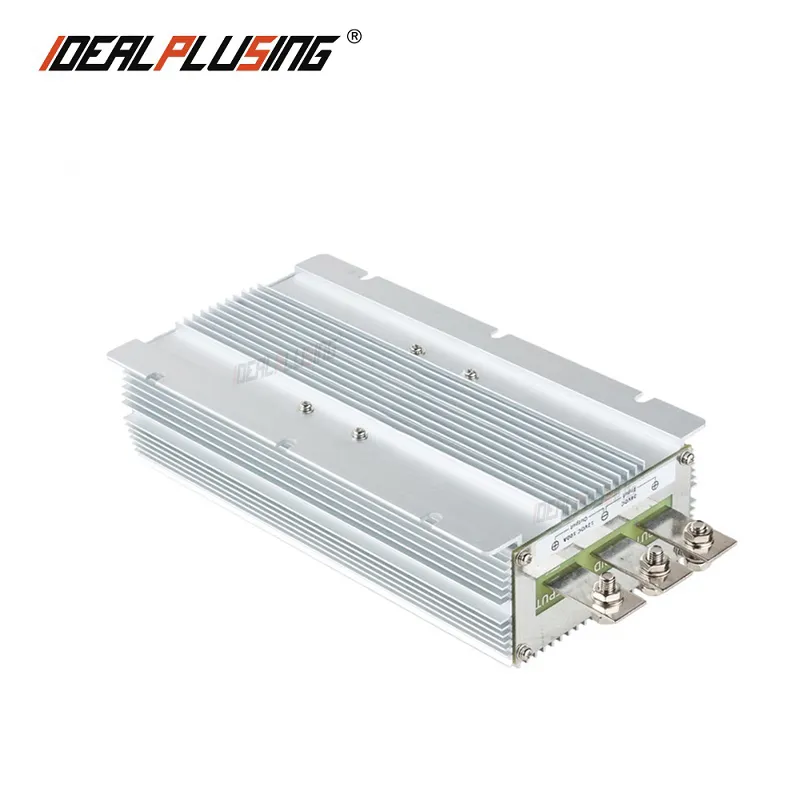

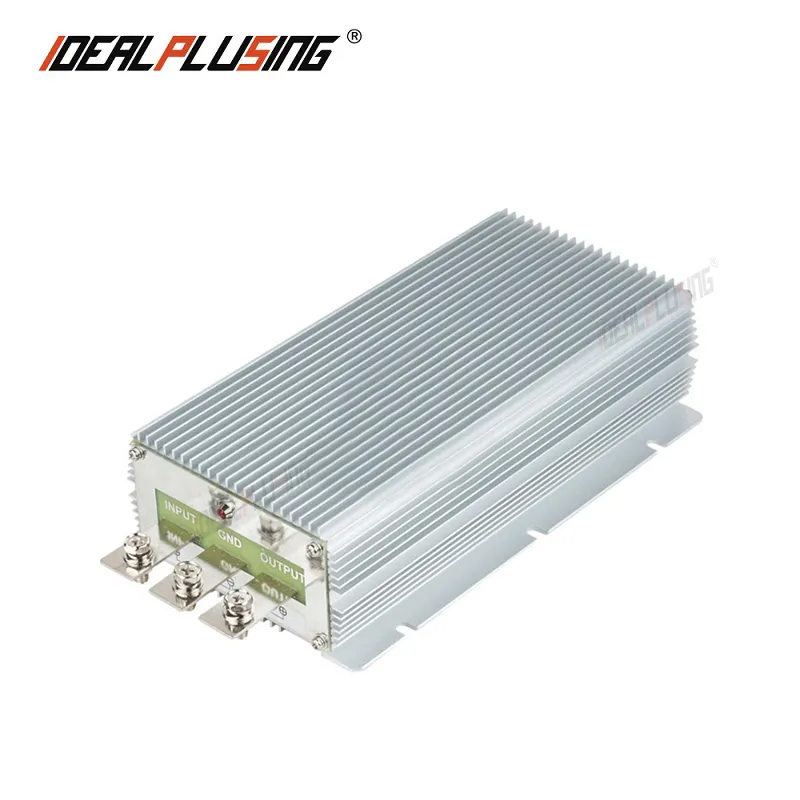

IPS-DTD12S2840 10V 12V to 28V 20A 40A 1120W High Efficiency Boost Step Up DC-DC Converters
IPS-DTD12S2840 10V 12V to 28V 20A 40A 1120W High Efficiency Boost Step Up DC-DC Converters
Model : IPS-DTD12S2840
Specification :
① Input: 12VDC（10-15VDC）
② Output: 28VDC 40A
③ Max power: 1120W
④ Material of shell: Aluminum
⑤ Size: 220*127*63MM
⑥ Input & Output cable: 13~15CM
⑦ NW: 2500G, GW:3000G
⑧ Design: Non isolate and waterproof IP65
We specialize in customizing DC-DC converters to meet your specific requirements. With customized input and output voltage and current, our offerings range from 1V to 10000VDC and 1A to 1000A.
We provide both isolated and non-isolated converter design options. Please visit our website and submit any inquiries to explore our capabilities further.
Datasheet： Download
Brand | IDEALPLUSING |
Name | IPS-DTD12S2840 10V 12V to 28V 20A 40A 1120W High Efficiency Boost Step Up DC-DC Converters |
Type | Non-Isolate |
Model (IPS-***) | IPS-DTD12S2840 |
INPUT | |
Rate Volts | 12VDC |
Volts range | 10-15VDC |
OUTPUT | |
Efficiency | 92% |
Output volts | 28VDC |
Output current | 40A |
Rated Power | 1120W |
OTHERS | |
Voltage regulation | < 1% |
Load regulation | < 2% |
Ripple | < 50mV |
No-load current | < 20mA |
Working Temp | -40°c ~ +80°c |
Waterproof rating | IP65 |
Machine size | 220*127*63(MM) |
NW | 2500G |
Cooling way | Free air convection |
Certifications | CE, RoHS |
Customize | Support |
Sample order | Support |
OEM & ODM | Support |
Package | White & colorful package optional |
