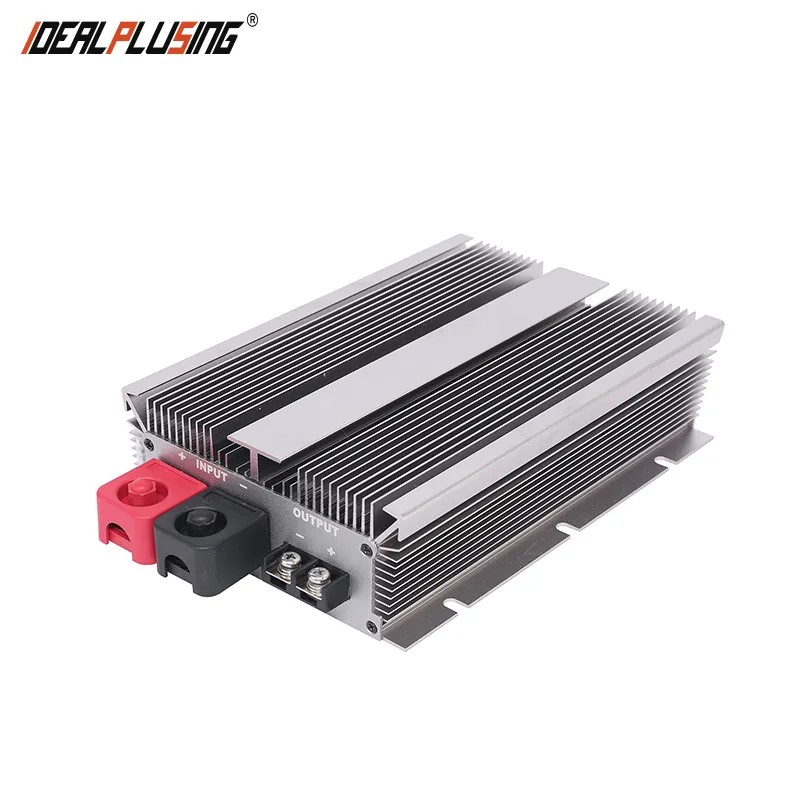

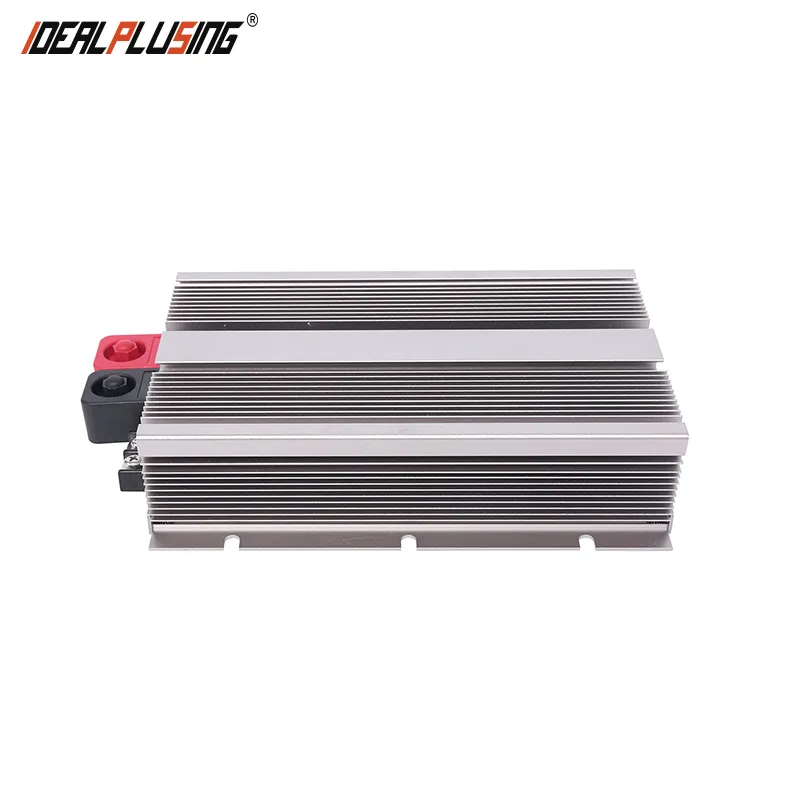

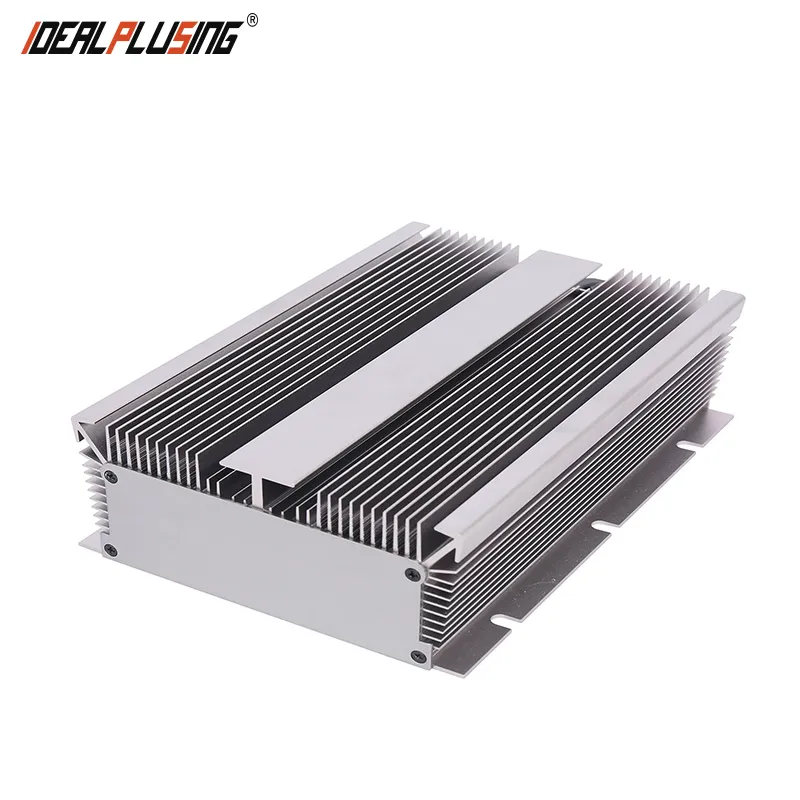

IPS-DTD12S56.430 10V 12V 16V to 56.4V 30A 1692W DC DC Buck Boost Converter Step up Converter
IPS-DTD12S56.430 10V 12V 16V to 56.4V 30A 1692W DC DC Buck Boost Converter Step up Converter
Model: IPS-DTD12S56.420
Specification:
① Input:12VDC (10-16VDC)
② Output: 56.4VDC 20A
③ Max power: 1692w
④ Material of shell: Aluminum
⑤ Size:220*156*65MM

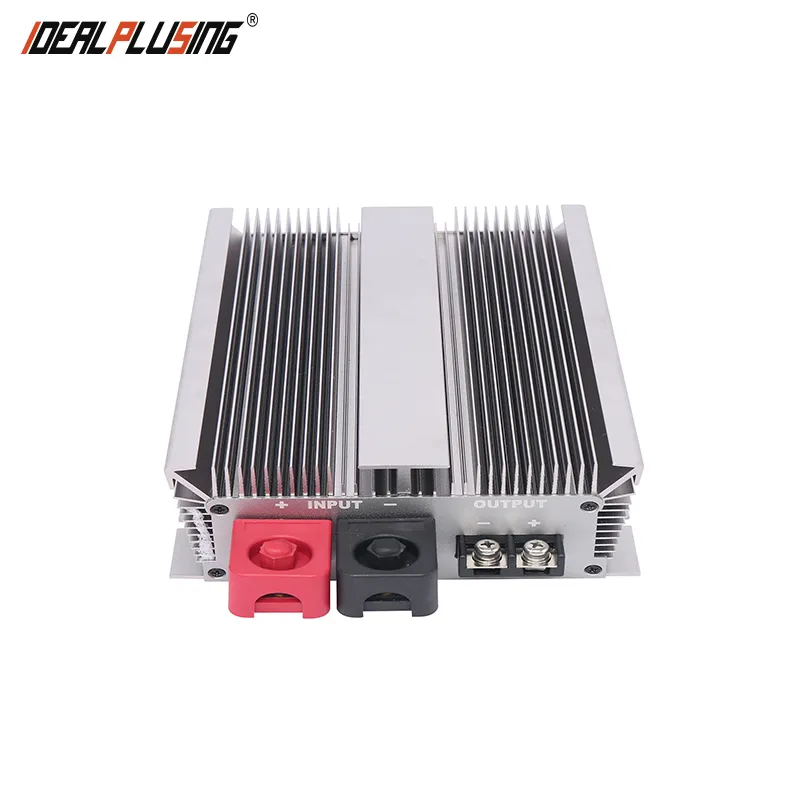

⑥ Input&Output :Terminal Block
⑦ NW:3700G,GW:4500G
⑧ Design:Nonisolate and waterproof IP65
We specialize in customizing DC-DC converters to meet your specific
requirements. With customized input and output voltage and current, our
offerings range from 1V to10000vDC and1A to1000A.
We provide both isolated and non-isolated converter design options.Please
visit our website and submit any inquiriesto explore our capabilities further.
Datasheet： Download
Brand | IDEALPLUSING |
Name | IPS-DTD12S56.430 10V 12V 16V to 56.4V 30A 1692W DC DC Buck Boost Converter Step up Converter |
Type | Non-Isolate |
Model (IPS-***) | IPS-DTD12S56.430 |
INPUT | |
Rate Volts | 12VDC |
Volts range | 10-16VDC |
OUTPUT | |
Efficiency | 92% |
Output volts | 56.4VDC |
Output current | 30A |
Rated Power | 1692W |
OTHERS | |
Voltage regulation | < 1% |
Load regulation | < 2% |
Ripple | < 50mV |
No-load current | < 20mA |
Working Temp | -40°c ~ +80°c |
Waterproof rating | IP65 |
Machine size | 220*156*65(MM) |
NW | 3700G |
Cooling way | Free air convection |
Certifications | CE, RoHS |
Customize | Support |
Sample order | Support |
OEM & ODM | Support |
Package | White & colorful package optional |
