IPS-DTD12S24120 10V 12V 15V to 24V 10A 50A 120A 2880W Boost Converter High Quantity DC to DC Inverters & Converters Step Up Voltage
IPS-DTD12S24120 10V 12V 15V to 24V 10A 50A 120A 2880W Boost Converter High Quantity DC to DC Inverters & Converters Step Up Voltage

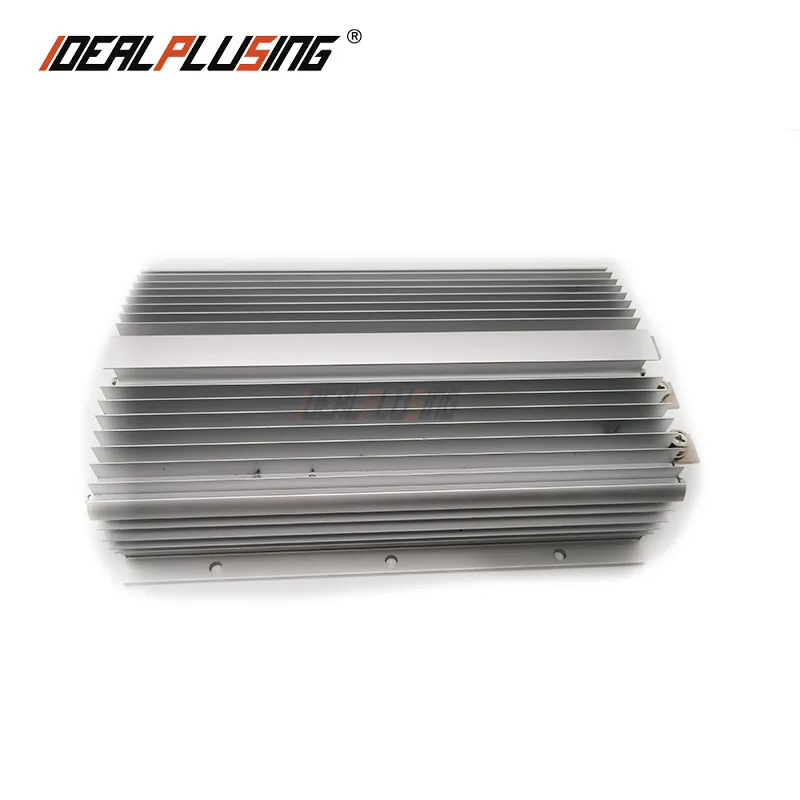

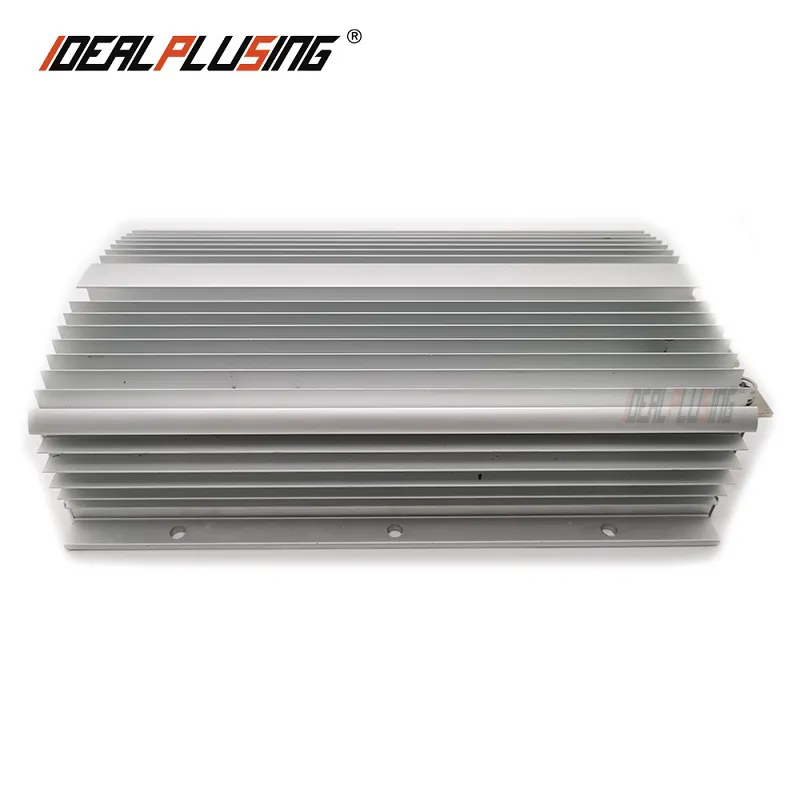

Model : IPS-DTD12S24120
Specification :
① Input: 12VDC（10-15VDC）
② Output: 24VDC 120A
③ Max power: 2880W
④ Material of shell: Aluminum
⑤ Size: 300*195*90MM

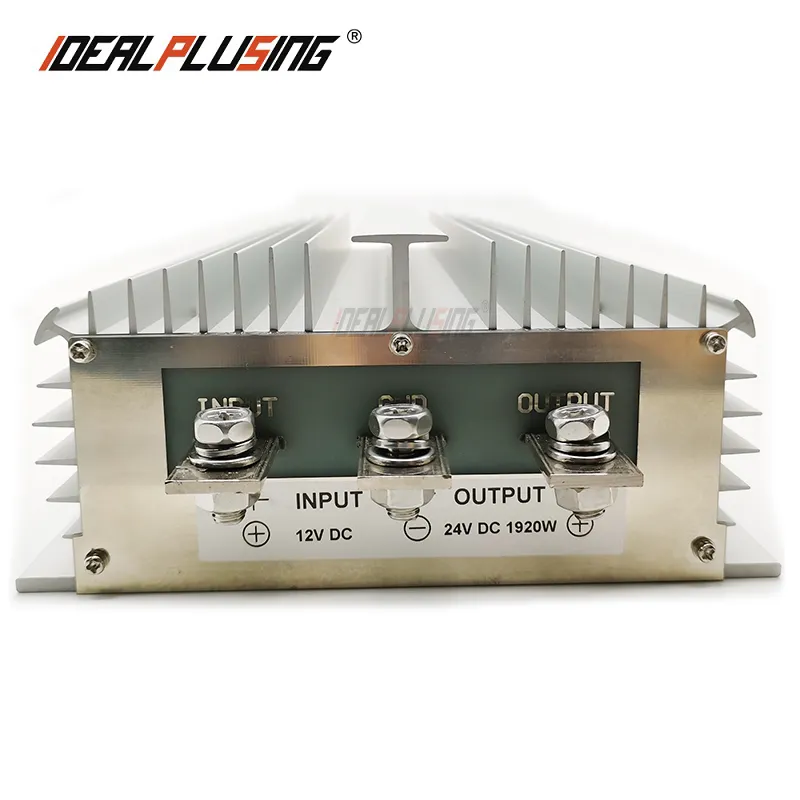

⑥ Input & Output cable: 13~15CM
⑦ NW: 7000G, GW:8000G
⑧ Design: Non isolate and waterproof IP65
We specialize in customizing DC-DC converters to meet your specific requirements. With customized input and output voltage and current, our offerings range from 1V to 10000VDC and 1A to 1000A.
We provide both isolated and non-isolated converter design options. Please visit our website and submit any inquiries to explore our capabilities further.
Datasheet： Download
Brand | IDEALPLUSING |
Name | IPS-DTD12S24120 10V 12V 15V to 24V 10A 50A 120A 2880W Boost Converter High Quantity DC to DC Inverters & Converters Step Up Voltage |
Type | Non-Isolate |
Model (IPS-***) | IPS-DTD12S24120 |
INPUT | |
Rate Volts | 12VDC |
Volts range | 10-15VDC |
OUTPUT | |
Efficiency | 92% |
Output volts | 24VDC |
Output current | 120A |
Rated Power | 2880W |
OTHERS | |
Voltage regulation | < 1% |
Load regulation | < 2% |
Ripple | < 50mV |
No-load current | < 20mA |
Working Temp | -40°c ~ +80°c |
Waterproof rating | IP65 |
Machine size | 300*195*90(MM) |
NW | 7000G |
Cooling way | Free air convection |
Certifications | CE, RoHS |
Customize | Support |
Sample order | Support |
OEM & ODM | Support |
Package | White & colorful package optional |
