Ⅰ. WHO WE ARE?
We have own factories (locate in shenzhen China), and more than 20 cooperationed factories, more than 60 workers and 10000 different models with specification of power supply.
It is one of suppliers on integrating , developing, manufacture , sales,engineering design and construction for different kind of power supply.
We strict implement the operation guideline of “Leading Technology, Reliable Quality, Satisfactory Service & Customers First ! ”.
Ⅱ. WHAT WE DO?
We supply reliable and innovative Ground Power Units.
Looking for a reliable and innovative Ground Power Unit to supply your aircraft?
No matter which type of Ground Power Unit you are looking for, we have the power to cover your needs.
We have a full range of solid-state, diesel-driven, and battery-powered Ground Power Units from 400 Hz frequency converters to 28 VDC /270 VDC Ground Power Unit or a combination.
Whether you require a power supply for hangar use, for use at aircraft parking positions, or in remote areas, we have the right solution.
We got you covered!
[ DC-DC converter (Isolated and non-isolated), voltage from 12vdc to 1000vdc, power from 1-200kw. ]
[ AC DC power supply, voltage from 0 to 200kv, current from 0-20k amps. ]
[ DC AC inverter, dc voltage from 12vdc to 2000vdc, and power from 100w to 500kw. ]
[ AC AC power source, single phase or 3 phases, 10-500hz, power supply from 1kva to 500kva.]
[ AC DC Ground Power Unit, from 300 amps to 50000 amps.]
Ⅲ.INTRODUCTION & APPLICATION

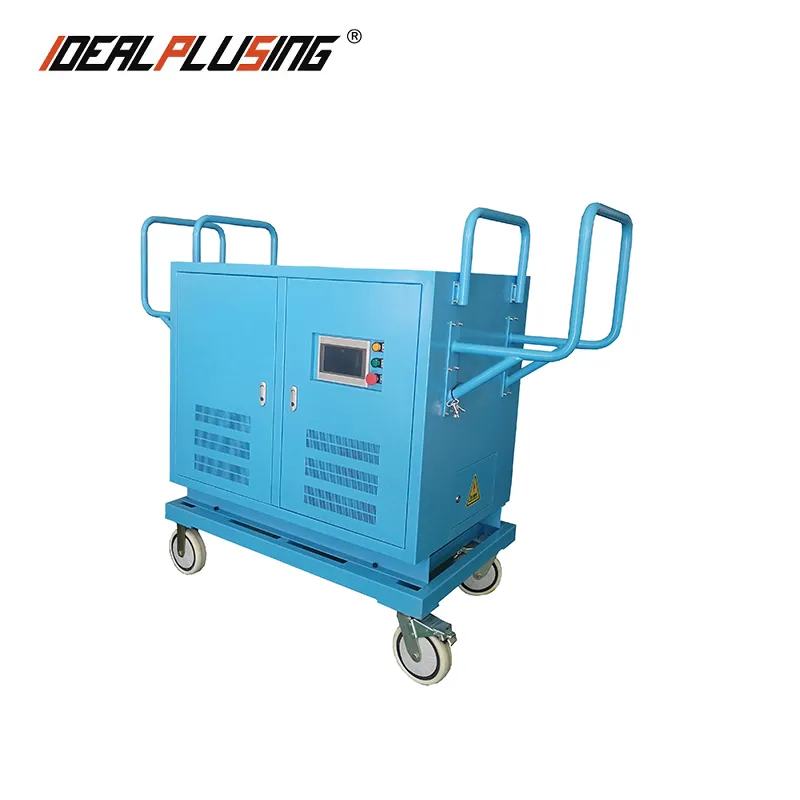

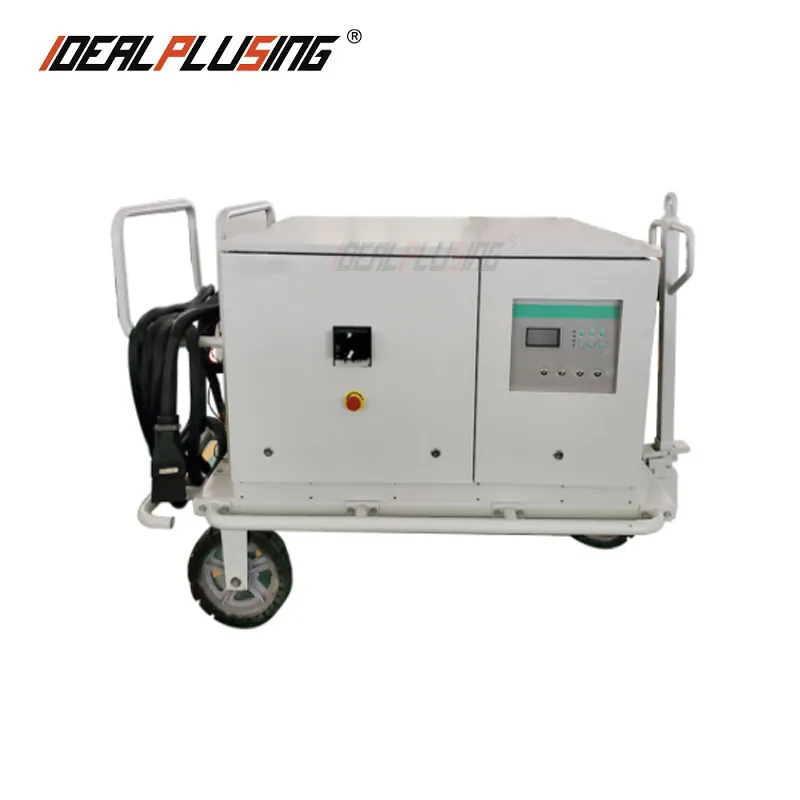

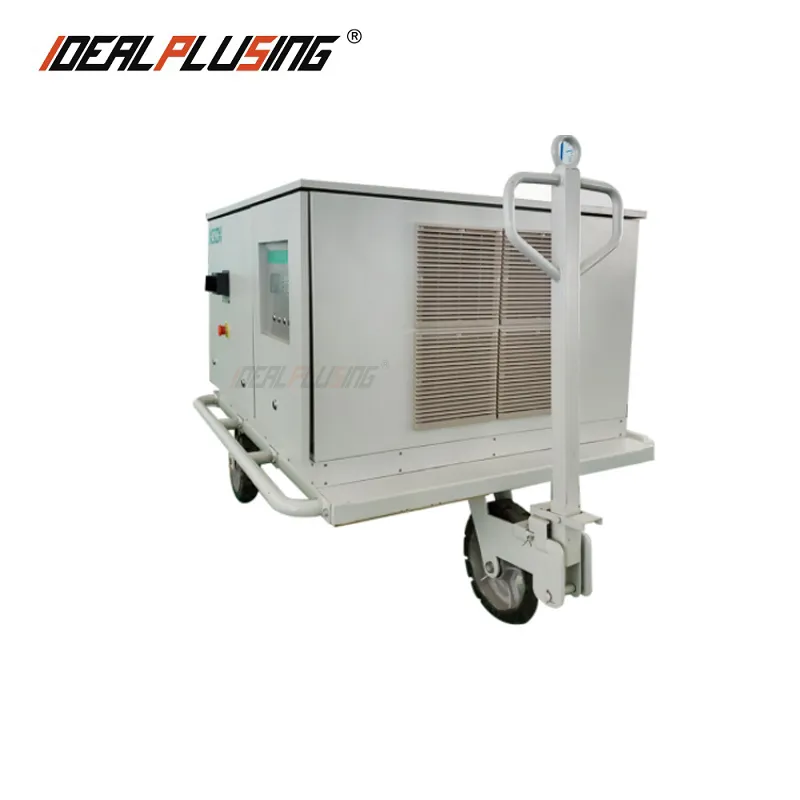

| 1 | IPS-APSA-28.5 Series is designed to give continuous high-quality DC power. |
2 | This continuous high power model is ideal for crew training, aircraft servicing in workshops, on the ramp, or in the field, diagnostic work, pre-flight checks, charging the onboard battery, or for continuous powering of equipment during operations, without draining the onboard aircraft batteries. |
3 | The safety features include Over Voltage, Overload, and Internal Thermal, Short Circuit protection. The power modules conform to EMC standards for noise emissions and immunity |
Ⅳ. PERFORMANCE CHARACTERISTICS
| 1 | Robust metal cabinet housing |
2 | Compact size |
3 | Fixed or Mobile are available |
4 | Low ripple content ≤ 150mV (RMS) |
5 | Self diagnose and alarm |
6 | Complete protection |
Ⅴ. DATASHEET
| Model Specification | IPS-ATDA28.5-100 | |
Input | Standard | Single phase or 3 phases |
Voltage | 220VAC±20% or 380VAC±20% Or 450VAC±20% | |
| Frequency | 50/60HZ or 400HZ or 36HZ optinal | |
Output | Power | 2850W (Can customized other lower or higher current) |
Rated voltage | 28.5VDC | |
Voltage regulation range | 5.00V-32.00VDC | |
Current | 100.0A(Can customized other lower or higher current) | |
Restricted Flow Range | 0-100.0A(Can customized other lower or higher current) | |
Source voltage effect/load effect | ≤0.5% FS | |
DC voltage ripple | ≤0.5% FS（Vrms） | |
Indicator | 7 inch color LCD | |
Output voltage display | 4-digits LCD, resolution 0.01V | |
Maximum allowable error: ≤±0.5%FS (Note: FS means full scale) | ||
Output current display | 4-digits LCD, resolution 0.1A | |
Maximum allowable error: ≤0.5%FS (10% above rated value) | ||
Insulation resistance | Input to housing and output：≥20M（DC 1000V） | |
Electrical strength resistance | Input to housing and output：AC 1500V/min,Leakage current＜20mA | |
Overall machine efficiency | ≥85% | |
Automatic protection function | Automatic protection in case of output overvoltage, overcurrent, module overheating and short circuit | |
Communication Interface | Communication RS485, modbus rtu protocol | |
Ambient temperature | Temperature: -10℃-45℃, relative humidity 10-95% (25℃ non-condensing state) | |
Dimension/Weight | Trailer type (including cable hanger): width 650 height 800 (with universal wheels) depth 600 | |
Remarks | The standard offer does not including any cable for this power supply. | |
Ⅵ.MODEL LIST GROUND POWER UNIT
| (DC28V 0-33V)Nominal Voltage: 28.5VDC | |||||
NO | Model | INPUT (VAC) | OUTPUT | OUTPUT | CAPACITY |
1 | IPS-ATDA28.5-50 | Single phase 220VAC 50Hz/60Hz | 0~28.5VDC | 0-50A | 1425 |
2 | IPS-ATDA28.5-100 | Single phase 220VAC 50Hz/60Hz | 0~28.5VDC | 0-100A | 2850 |
3 | IPS-ATDA28.5-200 | Single phase 220VAC 50Hz/60Hz | 0~28.5VDC | 0-200A | 5700 |
4 | IPS-ATDA28.5-400 | 3 phases 380VAC 50Hz/60Hz | 0~28.5VDC | 0-400A | 14250 |
5 | IPS-ATDA28.5-500 | 3 phases 380VAC 50Hz/60Hz | 0~28.5VDC | 0-500A | 14250 |
6 | IPS-ATDA28.5-600 | 3 phases 380VAC 50Hz/60Hz | 0~28.5VDC | 0-600A | 17100 |
7 | IPS-ATDA28.5-800 | 3 phases 380VAC 50Hz/60Hz | 0~28.5VDC | 0-800A | 22800 |
8 | IPS-ATDA28.5-1000 | 3 phases 380VAC 50Hz/60Hz | 0~28.5VDC | 0-1000A | 28500 |
9 | IPS-ATDA28.5-1200 | 3 phases 380VAC 50Hz/60Hz | 0~28.5VDC | 0-1200A | 34200 |
10 | IPS-ATDA28.5-1500 | 3 phases 380VAC 50Hz/60Hz | 0~28.5VDC | 0-1500A | 42750 |
11 | IPS-ATDA28.5-1800 | 3 phases 380VAC 50Hz/60Hz | 0~28.5VDC | 0-1800A | 51300 |
12 | IPS-ATDA28.5-2000 | 3 phases 380VAC 50Hz/60Hz | 0~28.5VDC | 0-2000A | 57000 |
(DC270V 0-330V) Nominal Voltage: 270VDC | |||||
NO | Model | INPUT (VAC) | OUTPUT | OUTPUT | CAPACITY |
13 | IPS-ATDA270-30 | 3 phases 380VAC 50Hz/60Hz | 0~270VDC | 0-30A | 8100 |
14 | IPS-ATDA270-50 | 3 phases 380VAC 50Hz/60Hz | 0~270VDC | 0-50A | 13500 |
15 | IPS-ATDA270-100 | 3 phases 380VAC 50Hz/60Hz | 0~270VDC | 0-100A | 27000 |
16 | IPS-ATDA270-150 | 3 phases 380VAC 50Hz/60Hz | 0~270VDC | 0-150A | 40500 |
17 | IPS-ATDA270-200 | 3 phases 380VAC 50Hz/60Hz | 0~270VDC | 0-200A | 54000 |
18 | IPS-ATDA270-300 | 3 phases 380VAC 50Hz/60Hz | 0~270VDC | 0-300A | 81000 |
19 | IPS-ATDA270-500 | 3 phases 380VAC 50Hz/60Hz | 0~270VDC | 0-500A | 135000 |
20 | IPS-ATDA270-800 | 3 phases 380VAC 50Hz/60Hz | 0~270VDC | 0-800A | 216000 |
