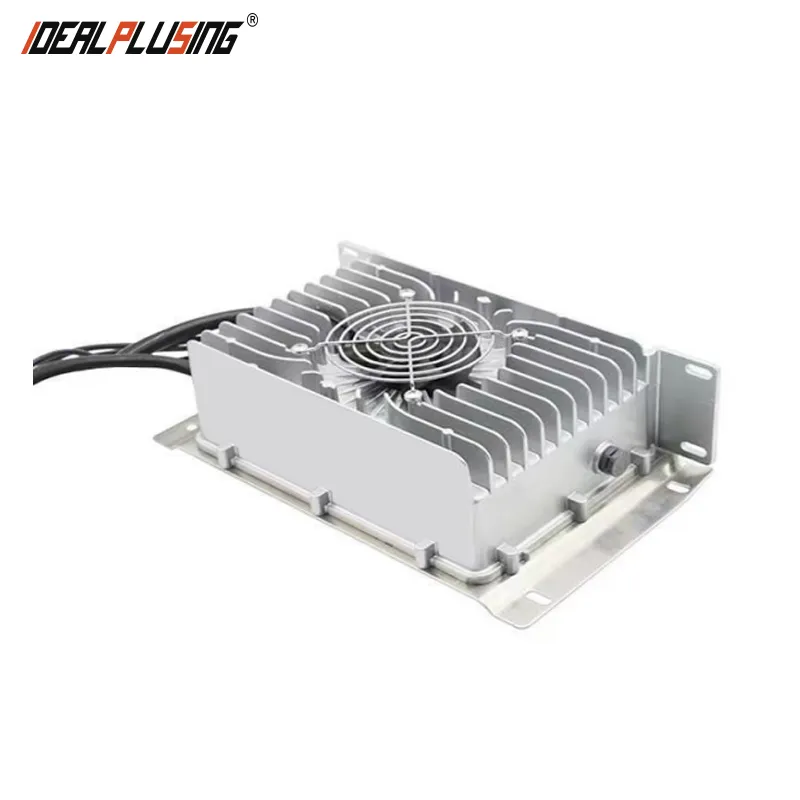

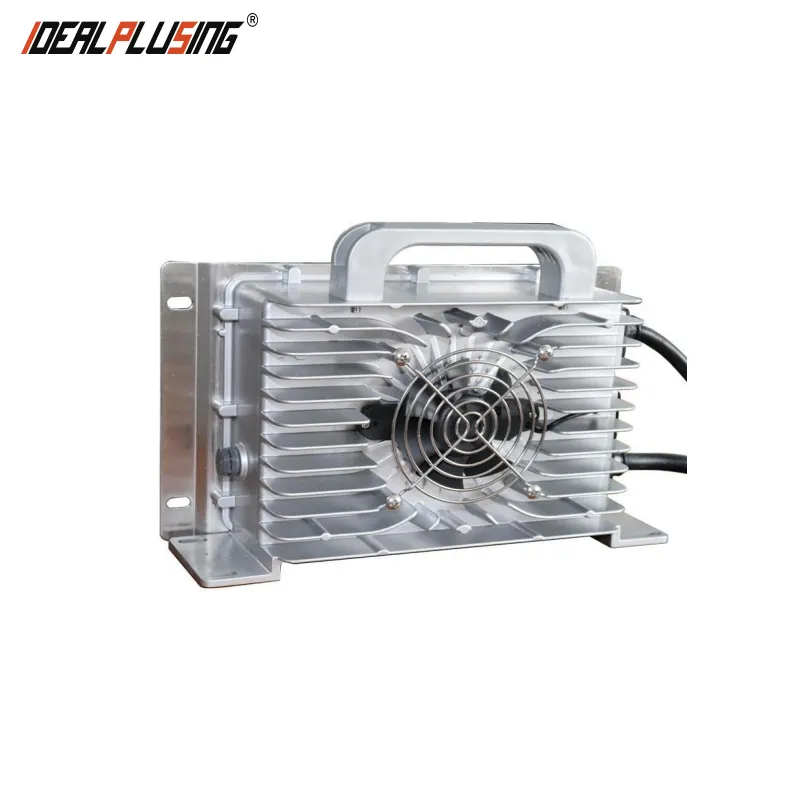

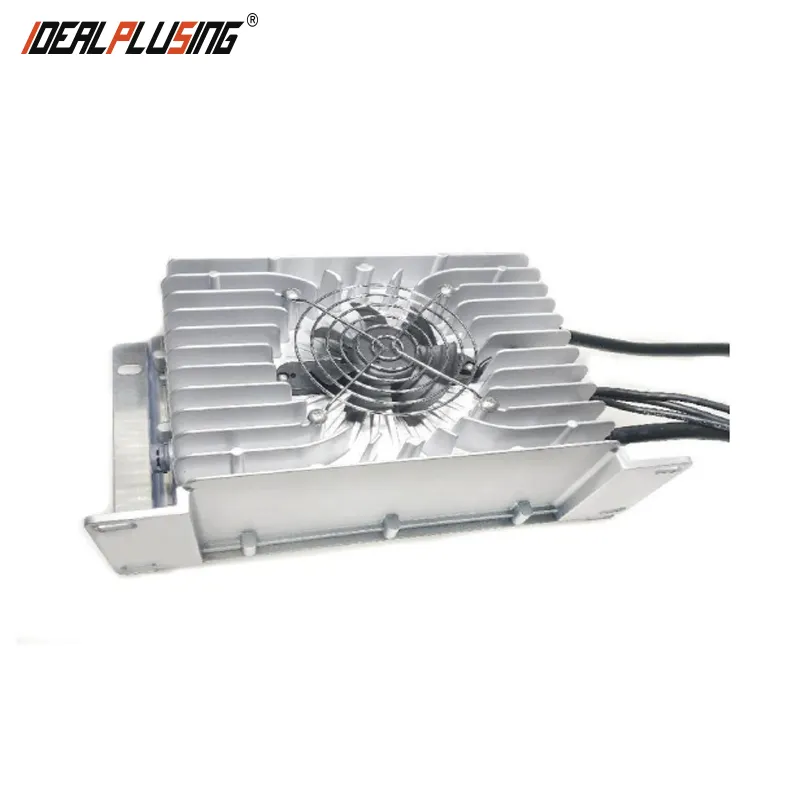

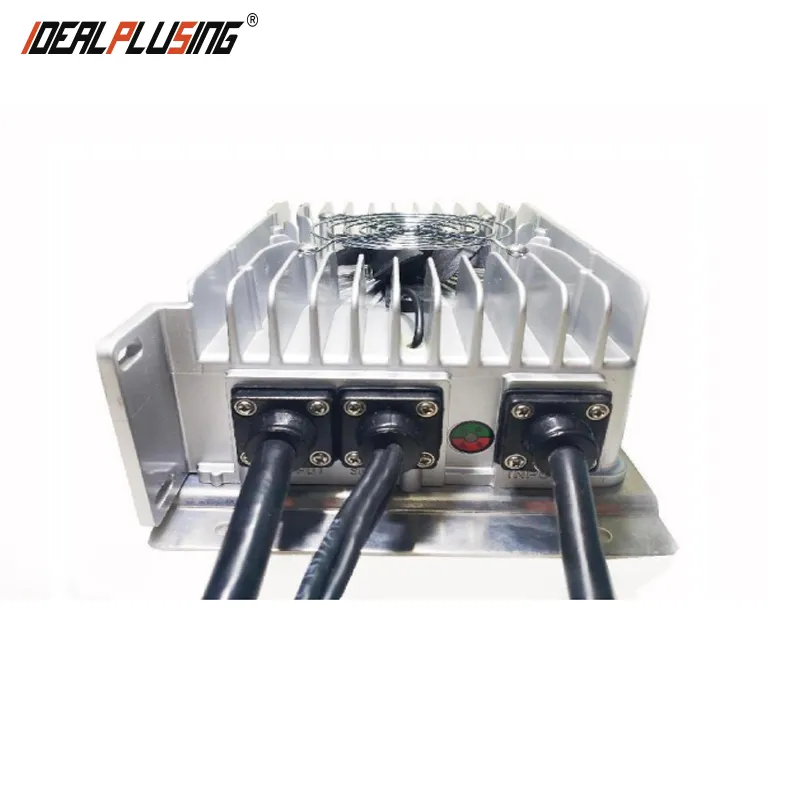

IPS-BCW24-15 Waterproof 24V 15A 25A 30A Lead-acid battery charger 220V TO 24V 15A 378W electric motorcycle battery charger
MODEL:IPS-BCW24-15 24VDC 15A charger ① Input Voltage: Single phase 220VAC±15% 50/60hz ② Charging Voltage: 25.2VDC(6S*4.2V) for Lithium battery ③ Charging current: 15A ④ Output Power: 378W ⑤ Dimension: L282*W166*H120(MM) ⑥ Net Weight: 3.15KG ⑦ Cooling method: Fan Heat ⑧ Water proof grade: IP65

24V 15A 25A 30A Lithium battery charger

Brand

IDEALPLUSING

Battery Type

Lithium battery

Model

IPS-BCW24-15

IPS-BCW24-25

IPS-BCW24-30

Input voltage

220VAC

Output  voltage

24VDC

CV-Lithium-4.2V

25.2VDC(6S)

Output Current

15A

25A

30A

Power

378W

630W

756W

Input frequency

50Hz±2%

Weight

3.7KG

Size

L282*W166*H120(MM)

Application

96%

Product features

Maximum efficiency>93%

100% full load aging test

Power factor > 0.98 (APFC function)

Seismic grade of automobile grade

Strong protection function

Operating temperature range of wide temperature class

Intelligent temperature compensation for battery

Maximum efficiency>93%

Protection characteristics

Output over-voltage protection

Output short circuit protection

Over temperature protection of charger

Output over current protection

Output reverse current protection

Output reverse current protection

Protection

-40℃~+60℃

Storage temperature

-40℃~+90℃

Relative humidity

5%~95%

Heat dissipation mode

Forced air cooling

Water proof grade

IP65

Customized

Support
