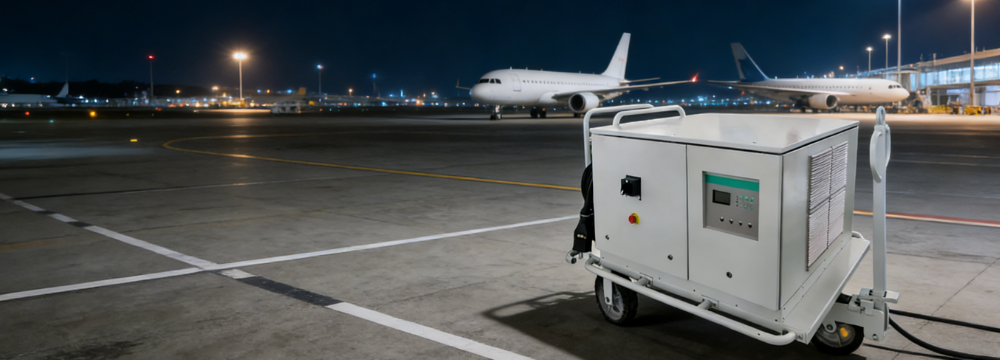

On the airport tarmac, every stationary aircraft is typically connected to a thick cable beneath its fuselage, linked to a compact external unit — the aircraft ground power unit, or GPU. Acting as the vital “lifeline” for aircraft on the ground, it provides stable power for system startup, maintenance, and ground support operations. A key engineering characteristic of aircraft electrical systems is their use of 400Hz power, rather than the 50Hz or 60Hz frequency found in standard civilian mains. This specialized medium‑frequency power system embodies the rigorous demands of aviation design, and depends entirely on the precise output of dedicated aircraft ground power units.
I. The Core Logic of 400Hz: Weight, Efficiency and Electromagnetic Compatibility
Based on the law of electromagnetic induction (E ∝ 4.44·f·N·Φₘ), frequency (f) directly determines the volume and weight of magnetic components such as transformers and inductors. When frequency is raised from 50Hz to 400Hz — an eightfold increase — the number of winding turns (N) or the cross‑sectional area of the core (A) can be significantly reduced under the same voltage and magnetic flux conditions. This delivers three decisive advantages:
Lightweight System DesignAt the same power rating, 400Hz transformers and motors can achieve a 50%–70% reduction in volume and 40%–60% less weight. Following the aviation principle of “saving every gram possible”, 400Hz represents the ideal compromise between electrical performance and weight control.
Controllable Transmission LossesAlthough higher frequency increases inductive reactance and skin‑effect losses, the cable distances inside an aircraft are relatively short. With the use of litz wire, silver‑plated conductors, and optimized routing, these losses can be maintained within acceptable limits.
Enhanced Electromagnetic CompatibilityThe 400Hz medium frequency helps reduce electromagnetic interference (EMI), preventing disruptions to avionics, navigation, and communication equipment, and improving overall system stability.
By contrast, adopting 50Hz or 60Hz mains frequency would drastically increase the size and weight of airborne electrical equipment, raising fuel consumption, reducing payload capacity, and failing to fit within the confined spaces of the fuselage and wings.
II. Aircraft Ground Power Units: The Foundation of 400Hz Ground Power Supply
Aircraft ground power units, which act as a critical bridge connecting the terrestrial power grid to the aircraft, transform conventional airport mains or alternative energy supplies into 115V/400Hz three‑phase alternating current — the prevailing industrial norm — or 28V direct current.Classified into three primary categories are these ground power units:
Rotary GPU: Powered directly by a diesel engine to produce 400Hz electricity, which is extensively deployed at remote aircraft stands and for temporary ground support.
Static Frequency Converter: Adopting an AC‑DC‑AC conversion topology equipped with high‑performance IGBT modules, which generates low noise, pure sinusoidal waveforms and exceptional efficiency, making it the optimal selection for contemporary jet bridges and maintenance hangars.
Energy‑Storage GPU: Driven by lithium‑ion batteries or supercapacitors, which delivers zero exhaust emissions and ultra‑silent operation, fully aligning with the evolution strategy of eco‑friendly airports.
Achieved by state‑of‑the‑art static converters are a total harmonic distortion rate below 1%, frequency precision within ±0.1Hz, and voltage stability within ±0.5V, all of which fully satisfy the stringent performance demands of aircraft avionics and flight control systems.
III. Why Ordinary Mains Electricity Cannot Be Directly Utilized in Aircraft
Frequency IncompatibilityCaused by the discrepancy between 50/60Hz and 400Hz are magnetic saturation and overheating in airborne transformers, motors and control equipment, which may trigger mechanical vibration, performance deterioration or even irreversible component failure.
Voltage and Power MismatchDemanded by aircraft systems are 115/200V three‑phase power with sustained high‑power output, a requirement which standard civilian power grids are incapable of steadily fulfilling.
Extreme Power Quality RequirementsImposed by avionics and flight‑critical systems are far more rigorous restrictions on voltage fluctuation, frequency deviation and harmonic distortion, which civilian power systems are unable to meet.
Aerospace‑Grade Safety StandardsAircraft power systems require multi‑level protection and certified safety designs that conventional power supplies simply do not provide.
IV. Engineering Applications and Future Trends of 400Hz Systems
The 400Hz standard forms a unified, interchangeable power ecosystem across ground power units, onboard generators, transformers, and motors. Its faster dynamic response also supports sudden loads such as engine starting and radar pulse power.
With the advancement of electric aviation, energy‑saving and zero‑emission static converters are gradually replacing diesel‑driven units, supporting the construction of low‑carbon, low‑noise airports.
400Hz is not an arbitrary aviation standard — it is the optimal solution shaped by electromagnetic theory and real‑world aerospace constraints. Aircraft ground power units convert ordinary mains electricity into stable, clean, high‑precision 400Hz power, ensuring safe and reliable ground operation. Understanding the mystery of 400Hz reveals how aviation engineering achieves a precise balance among weight, efficiency, and reliability.
