In the power system of modern aircraft, the DC power supply architecture plays a critical role. Among them, three DC voltage levels—28V, 270V, and 540V—undertake power supply tasks for different equipment, adapting to diverse needs ranging from traditional aircraft models to new-generation more electric aircraft. Many people wonder about the exact differences between these three voltages, which are all onboard DC power supplies, and how they divide functions in aircraft ground power supplies and onboard systems. This article elaborates on the core differences between the three from the perspectives of application scenarios, power supply characteristics, and equipment adaptation, helping you understand the voltage logic of aviation power supplies.
28V DC Voltage: The Classic Standard for Basic Aviation Power Supply
28V DC is the longest-standing basic voltage level in the aviation field and the core power supply standard for traditional aircraft models and general aviation equipment, with extremely wide applications in aircraft ground power supplies. It is mainly responsible for powering key low-power onboard equipment, including cockpit navigation instruments, communication systems, flight control sensors, cabin basic lighting, and emergency indication equipment—devices with high requirements for voltage stability but relatively low power demands.

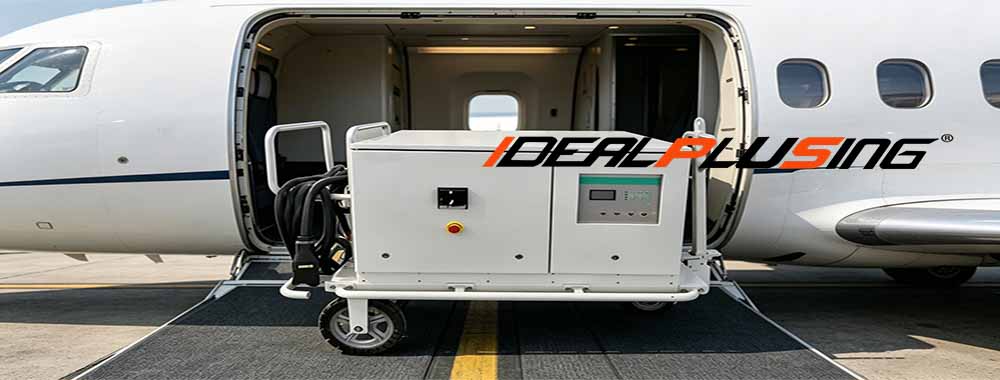

The 28V module in aircraft ground power supplies is an essential piece of equipment for airport ground support. When an aircraft is docked at a jet bridge or parking stand, the 28V aircraft ground power supply provides stable power for APU starting, onboard equipment power-on detection, and pre-flight and post-flight maintenance, avoiding fuel consumption from idling engines while ensuring the normal operation of avionic systems on the ground. The advantages of 28V voltage lie in its mature technology, high safety, and strong compatibility, making it compatible with various traditional onboard equipment and serving as the basic support of the aviation power supply system.
270V DC Voltage: Core Power Support for More Electric Aircraft
With the popularization of more electric aircraft technology and the increase in high-power electrical equipment onboard, the traditional 28V voltage can no longer meet demand. Thus, 270V high-voltage DC emerged as the mainstream power supply voltage for new-generation civil aviation airliners and military aircraft. It mainly powers medium and high-power loads such as environmental control systems, electric actuators, radar equipment, and high-power avionic modules, effectively solving the problems of high transmission loss and heavy cables associated with low-voltage DC.
The 270V aircraft ground power supply is the core equipment for ground support of more electric aircraft, playing a significant role in aircraft ground commissioning, high-power equipment testing, and long-term power supply on parking aprons. Compared with 28V, 270V voltage has a smaller current at the same power, which can significantly reduce the weight of distribution cables, improve power supply efficiency, and meet the power demands of electrified equipment. In onboard systems, the 270V voltage can also be stepped down to 28V to power basic equipment through power conversion modules, forming a coordinated high-low voltage power supply architecture.
540V DC Voltage: High-Voltage Power Supply Solution for High-End Special Aircraft
540V DC is a higher voltage level in current aviation DC power supply, mainly used in high-end models such as special aircraft, high-altitude long-endurance drones, and electric vertical takeoff and landing aircraft, adapting to ultra-high-power electrical systems and high-voltage DC grid architectures. It focuses on high-power loads such as ultra-large actuators, high-energy radars, and propulsion systems, further reducing transmission loss, improving power density, and meeting the power supply needs of future all-electric aircraft.
The 540V aircraft ground power supply is targeted at ground testing and support for special models, widely used in aviation laboratories and special airport maintenance scenarios. It has a higher technical threshold and stringent requirements for insulation protection, electromagnetic compatibility, and stability control, representing a cutting-edge application of aviation high-voltage DC technology. Compared with 270V, 540V voltage features higher power supply efficiency and more significant cable weight reduction, adapting to the future development trend of aviation electrification and high-powerization.
Core Differences and Industry Application Summary of the Three Voltages
The three voltages of 28V, 270V, and 540V are essentially products of the iteration of aviation power supply technology, adapting to the power needs of different models and equipment. 28V focuses on basic safety, covering traditional equipment and general support; 270V balances efficiency and adaptation, supporting mainstream applications of more electric aircraft; 540V focuses on high-end cutting-edge, meeting special high-power scenarios. They cooperate in the onboard system and form a complete support system in aircraft ground power supplies, jointly building a safe, efficient, and stable aviation power supply network.
In the process of upgrading aviation power supply technology, the R&D of professional manufacturers is crucial. IDEALPLUSING continues to deepen its expertise in the field of aviation DC power supplies, providing reliable technical support for aircraft ground power supplies and onboard power supply systems, and facilitating the stable development of the aviation power supply system. In the future, with the advancement of all-electric aircraft and low-altitude economy, these three voltage levels will continue to be optimized and upgraded, driving aviation power supply technology to a higher level.
